2.1.2.1 pain.002 Preferences

The pain.002 Generation Preferences screen allows user to capture Duplicate Check Fields information.

1. Click pain.002 Preferences button at the bottom of Batch Validations Maintenance screen.
   pain.002 Generation Preferences sub-screen is displayed.

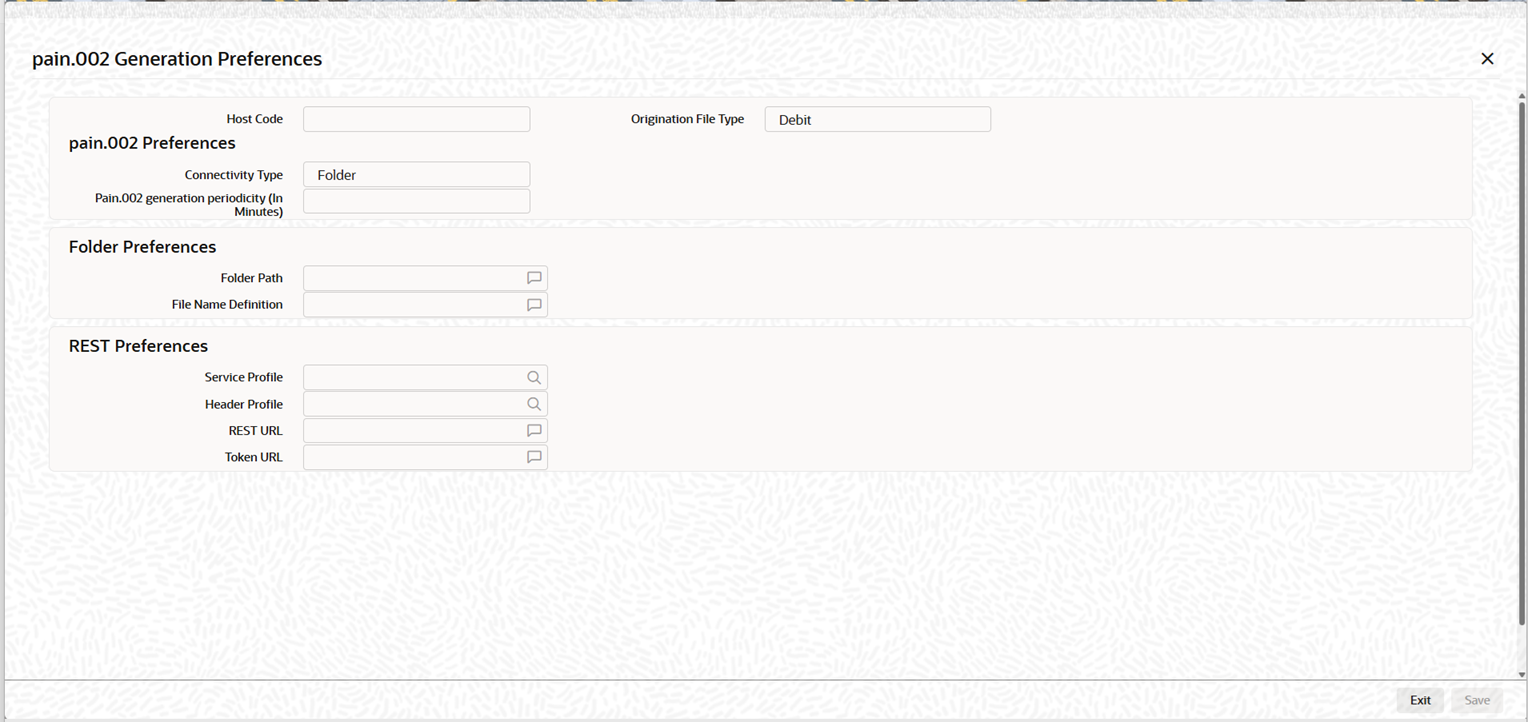

   Figure 2-4 pain.002 Generation Preferences


   Description of "Figure 2-4 pain.002 Generation Preferences"
2. On pain.002 Generation Preferences screen, specify the fields.
   For more information on fields, refer to the field description below:

   Table 2-4 pain.002 Generation Preferences - Field Description

   Field	Description
   Host Code	System defaults this field from the maintenance screen.
   Original File Type	System defaults this field from the maintenance screen.
   pain.002 Preferences	--
   Connectivity Type	Select the Connectivity Type from the following: Folder ReST
   Pain.002 generation periodicity (In Minutes)	Specify the Date and Time in the YYYYMMDDHHMMSSSSS format.
   Folder Preferences	--
   Folder Path	Specify the Folder Path. File path is given for the main Folder. 'init' and 'completed' sub folders are to be maintained within the main folder.
   File Name Definition	File Name Definition is defaulted as <FILE_NAME_PAIN001><DATE_PAIN002><TIME_PAIN002>.
   REST Preferences	--
   Service Profile	Specify Service Profile from the list of values.
   Header Profile	Specify the Header Profile to link with Header Profile .
   REST URL	Specify the REST endpoint of the consumer application.
   Token URL	Specify the consumer application authentication token url for consumer application.
