3.1 Collections Network Preferences Detailed

User can maintain network preferences specific to Collections using ‘Collections Network Preferences Detailed’ screen.

In this screen, Specify the following preferences:

• Common Preferences
• Exchange Rate Preferences
• Accounting Details
• Pricing Details
• Scheme Type Preferences
• Inactive Period and Settlement Time specific to collections

1. On Homepage, specify PCDNWDDP in the text box, and click next arrow.
   Collections Network Preferences Detailed screen is displayed.

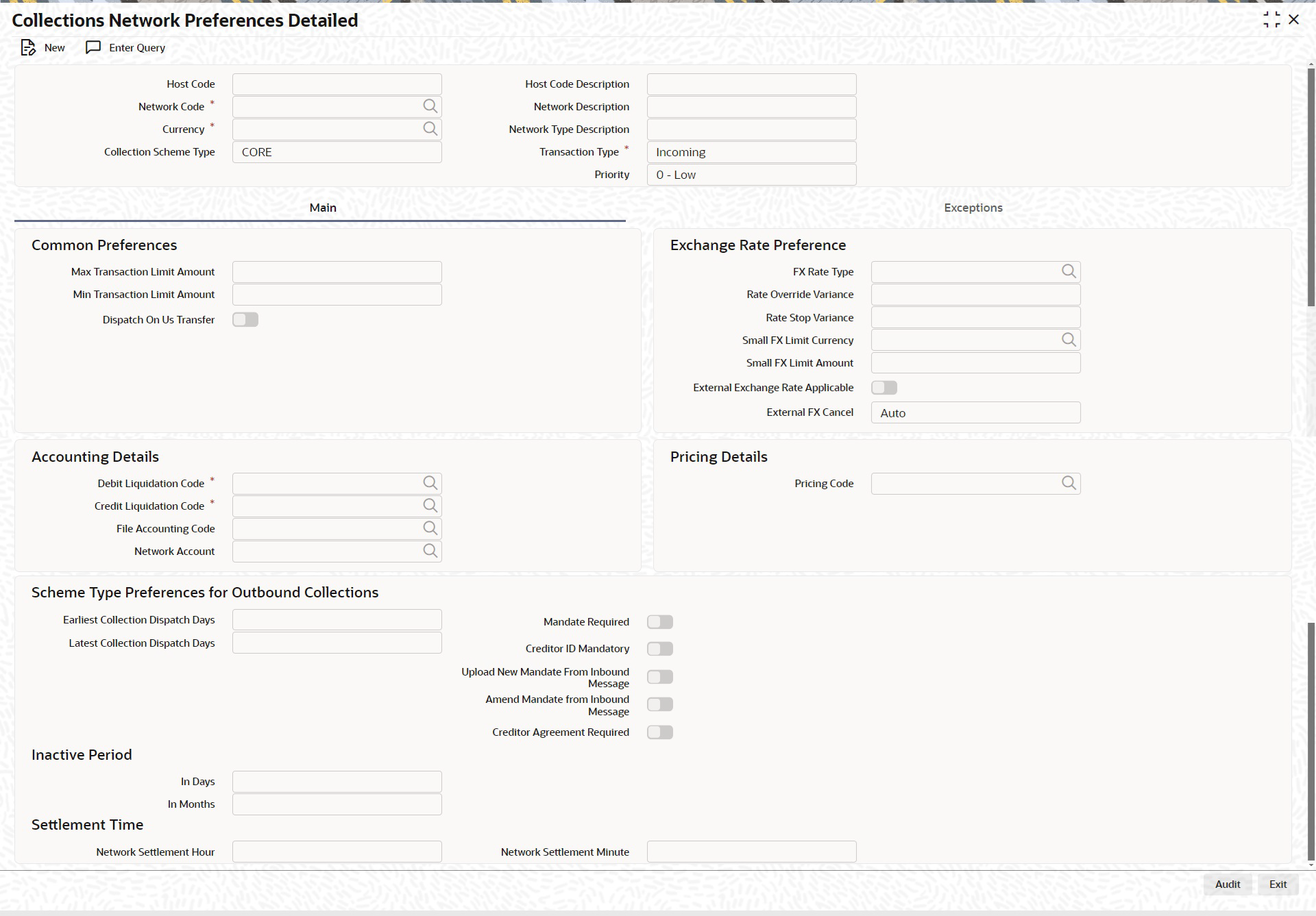

   Figure 3-1 Collections Network Preferences Detailed


   Description of "Figure 3-1 Collections Network Preferences Detailed"
2. On Collections Network Preferences Detailed screen, specify the fields.
   For more information about the fields, refer to field description below:

   Table 3-1 Collections Network Preferences Detailed - Field Description

   Field	Description
   Host Code	System defaults the Host Code of transaction branch.
   Host Code Description	System defaults the Host Code Description of transaction branch.
   Transaction Type	Specify the transaction type for which the DD preferences are to be maintained for a specific network. Transaction type can be Incoming or outgoing.
   Network Code	Specify the network code for which the Collections preferences are to be maintained.
   Network Code Description	System defaults the description of the Network Code.
   Network Type Description	System defaults the description of the Network Code.
   Currency	Select the Currency preference required for the Network selected.
   Priority	Select a priority for the network maintenance done. This can vary from the values, ‘0- Low’ to ‘9-High’.
   Collection Scheme Type	Specify the scheme type of the mandate. The values allowed for this field are Core and B2B.

• Main Tab

• Exception Tab
