2.2.7 Generic RTGS XML Schema Preference

The Generic RTGS XML Schema Preference screen allows users to provide the schema details for a message type and Media Control system. It is assumed that the schema definition of all messages received in a MCS for a particular message type is same.

1. On Homepage, specify PSDGRXSP in the text box, and click next arrow.
   Generic RTGS XML Schema Preference screen is displayed.

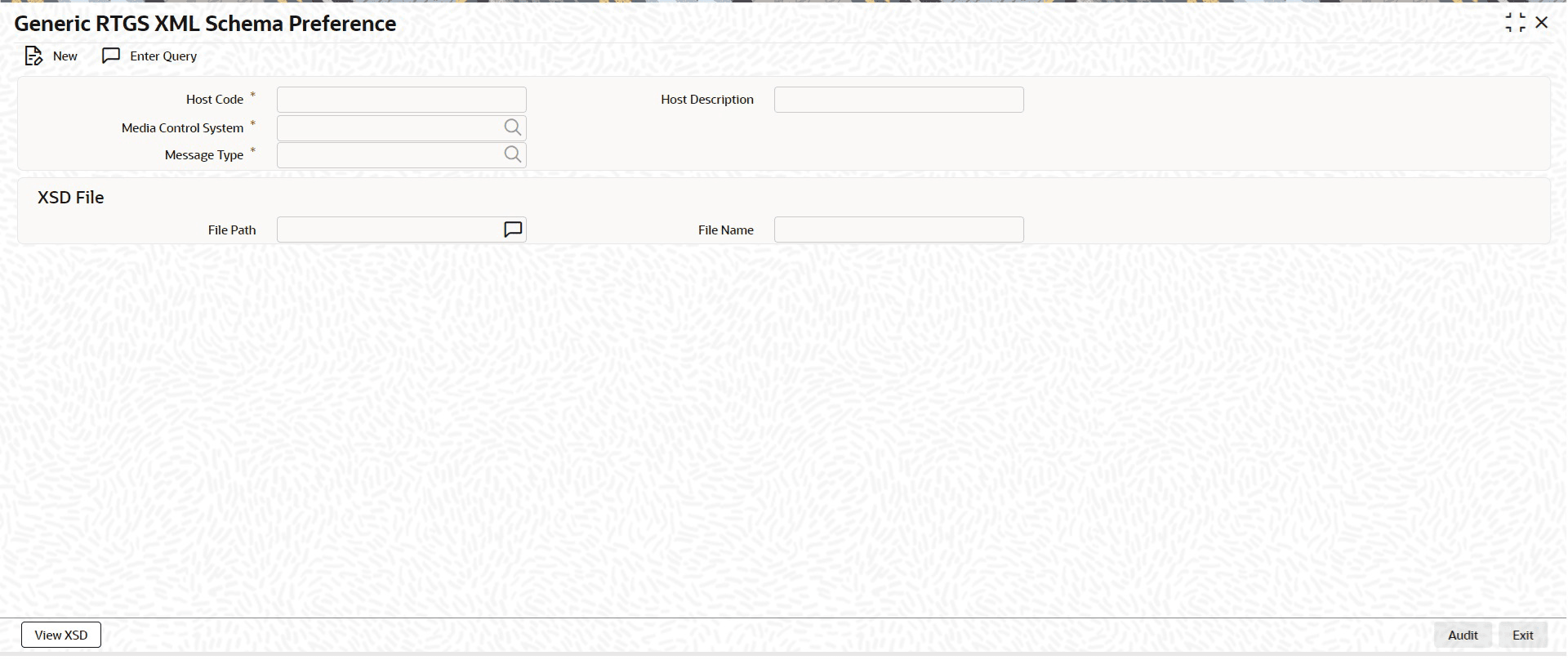

   Figure 2-17 Generic RTGS XML Schema Preference





   Description of "Figure 2-17 Generic RTGS XML Schema Preference"



2. Click New button on the Application toolbar.
3. On Generic RTGS XML Schema Preference screen, specify the fields.
   For more information about the fields, refer to field description below:

   Table 2-11 Generic RTGS XML Schema Preference - Field Description

   Field	Description
   Host Code	System defaults the Host Code of transaction branch on clicking ‘New’ button.
   Host Code Description	System defaults the description of the Host Code displayed.
   Media Control System	Specify the Media Control System from the list of values. Valid Media Control systems (Open / Authorized) with media as 'RTGSMX' are listed.
   Message Type	Specify the Message Type from the list of values. Following are the ISO Message Types applicable for RTGS ISO networks: HEAD.001 PACS.008 PACS.009 PACS.009 COVER PACS.004 PACS.002 CAMT.056 CAMT.029 CAMT.050 CAMT.003 CAMT.004 ADMI.002 ADMI.005 ADMI.007
   XSD File	--
   File Path	Specify the File Path.
   File Name	Specify the File Path.
