2.1 WAR Build Process

  1. The process of building WAR files includes the following steps:
    • Obtain the Fcubs.properties file by generating the GUI Installer which is saved in the required path.
    • Run the PMEarRun.bat file for windows and PMEarRun.sh file for linux.
  2. To build the application for setup using the Silent Installer, follow the steps given below:

    Maintain the fcubs.properties file path which is created through GUI Installer otherwise WAR may fail if the fcubs property file path is not provided.

  3. Maintain the Environment Property File by inputting all the fields FCUBS_PROPERTIES_PATH Mention the property file path with file name where it is been placed.

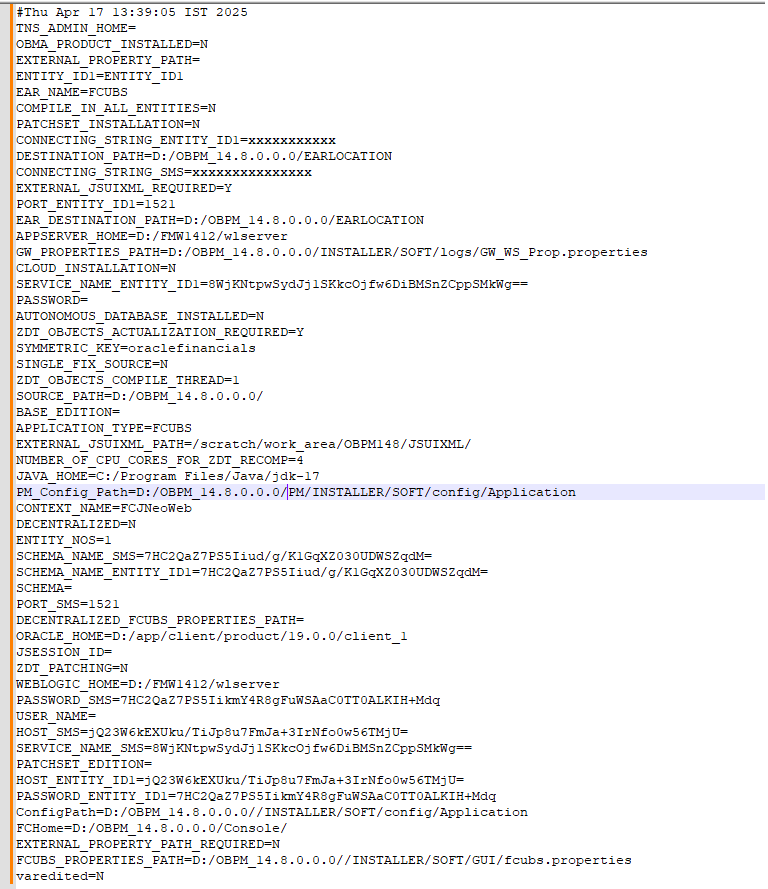

    Figure 2-1 Environment Property File


    Description of Figure 2-1 follows
    Description of "Figure 2-1 Environment Property File"

  4. Maintain the following Application Type according to the product type.
    Product Type Application Type WAR Name
    PAYMENTS FCUBS

    Any Distinct Name

    Ex:
    • FCJNeoWeb.war
    • SMWeb.war (For Standalone SMS Service)
    • FCJPlatoReST.war
    GW-Integrated INTEGRATED Any Distinct Name
    GW-Individual INDIVIDUAL Not Required
    GWMDB,HTTP GATEWAY

    Any Distinct Name

    Ex: GWMDB.war
    Scheduler SCHDLR

    Any Distinct Name

    Ex:FCJSchedulerWeb.war

Parent topic: Building Application for Setup
