2.2 External Account Validation Maintenance (PMDINECA)

1. Maintain the External Account Validation system as ‘OBA’ in the PMDINECA screen.

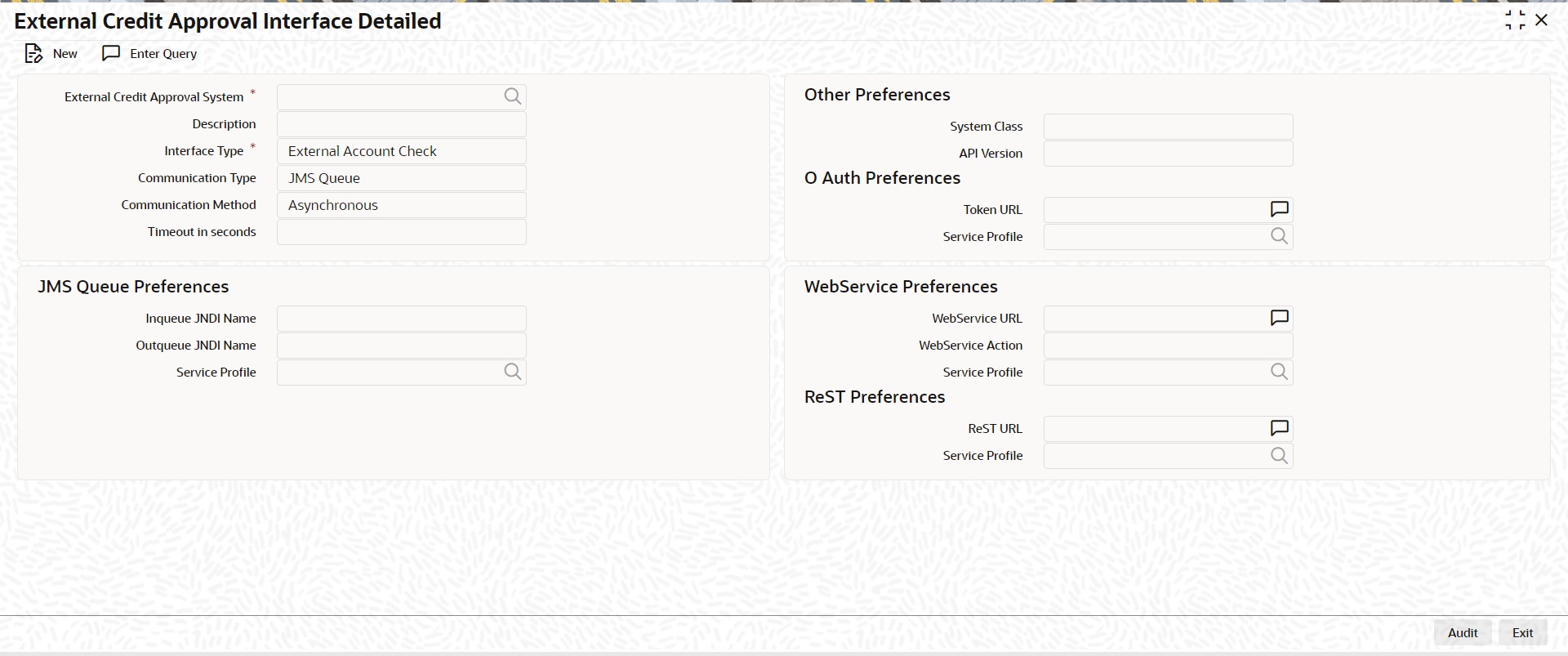

   Figure 2-5 External Credit Approval Interface





   Description of "Figure 2-5 External Credit Approval Interface"



2. Maintain External Credit Approval Interface System with system class as OBA, Interface Type as External Account Check & Communication Type as ReST & Method as Synchronous.
3. Maintain service profile in PMDSPROF & to be mapped. Refer to ECA System Maintenance section.
4. Maintain header profile in MSDHPROF and to be mapped.

   Rest URL should contain the URL of OBA where the External Account Validation check is done or the OBRH system.

5. OBPM builds the External Account Validation request with details and posts to the OBA System via OBRH and calls the Account validation service. Once the process is completed, the OBA system posts the response to OBPM.
6. Following ReST endpoint used by OBPM to post into OBA:

   <host><port>/obcdda-pp-account-services/service/v1/accountservices/externalaccountvalidation
