2.13.1 IFSC Directory

The IFSC Directory screen allows users to maintain IFSC Codes for participating branches/bank wise.

1. On Homepage, specify PMDIFSMN in the text box, and click next arrow.
   IFSC Directory screen is displayed.

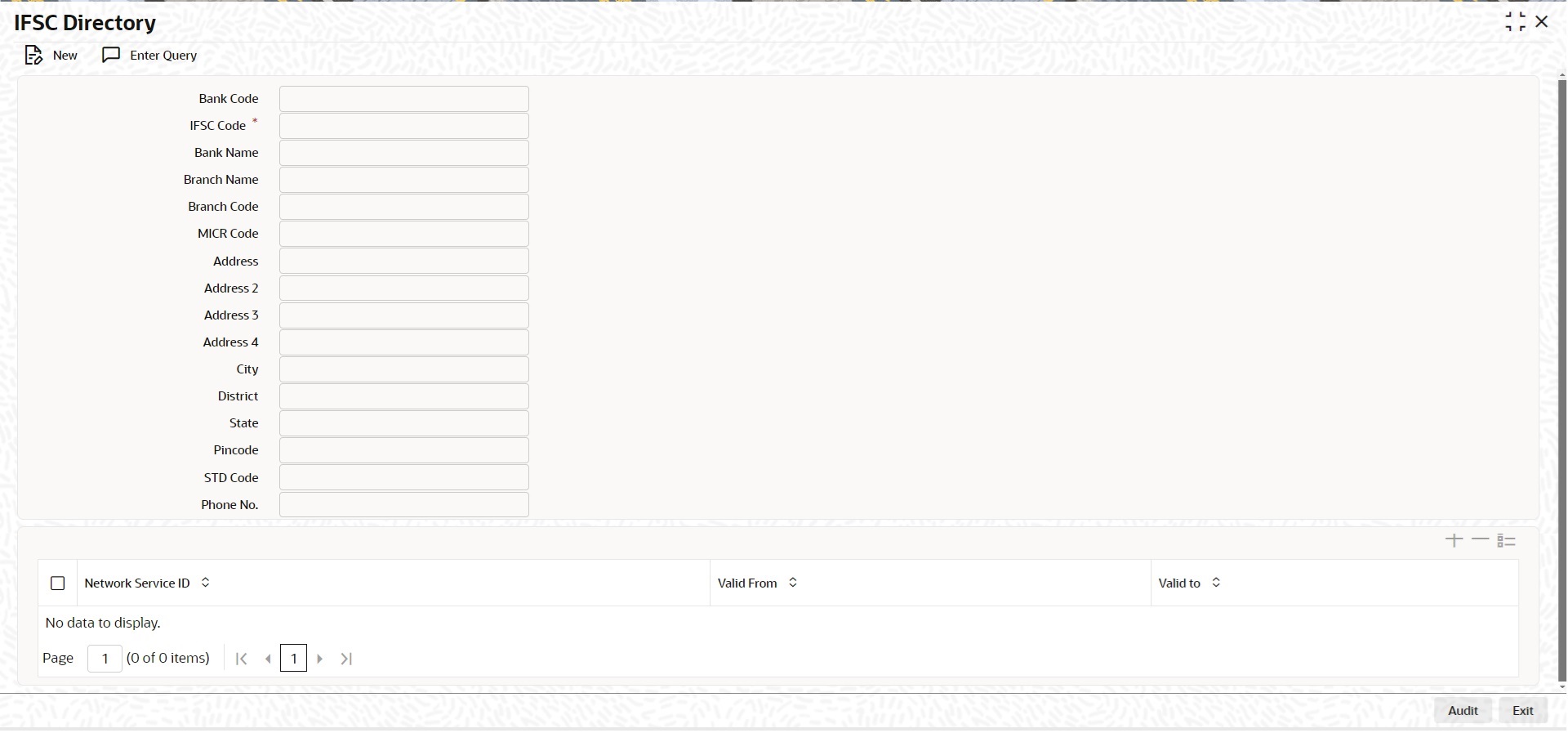

   Figure 2-246 IFSC Directory


   Description of "Figure 2-246 IFSC Directory"
2. Click the New button on the Application toolbar.
3. On IFSC Directory screen, specify the following fields:
   • Bank Code
   • IFSC Code
   • Bank Name
   • Branch Name
   • Address
   • Address 2
   • Address 3
   • Address 4
   • City
   • District
   • State
   • Pincode
   • STD Code
   • Phone No.

   Note:

   If the IFSC Directory record is maintained from the screen or if records are uploaded/ updated from a pro-liferation message, then record details are added/updated in common core local bank directory maintenance.

4. On IFSC Directory screen, specify the fields.

   Table 2-131 IFSC Directory - Field Description

   Field	Description
   Network Service ID	Specify Network Service ID from the following: NEFT RTGS IMPS This field identifies respective bank branches participating in NEFT network while processing outbound payments. The Beneficiary Bank IFSC Code list of values in the transaction screens fetches only those specific open, valid and authorized IFSC records based on network while transaction processing.
   Valid From	Specify the Valid from Date.
   Valid To	Specify the Valid till Date.

   Note:

   A REST service [JSON] is available for IFSC Code Search.

   This service provides search criteria based on IFSC code, Bank Name, and Branch Name fields. The search filters such as Equal To, Starts With, or Contains are supported. IFSC Code Search criteria can include the number of matching IFSC records sent in response to channels.

   OBPM sends the list of matching IFSC Code details in response to the valid search record through this screen.

• IFSC Directory Summary
