3.3 Cache Topic Cluster Setup

To use Cache Topic in a cluster setup, the following setup are required:

• Configuration at the WebLogic Console level
• Additional changes are part of the OBPM deployment

1. Configuration at the WebLogic console

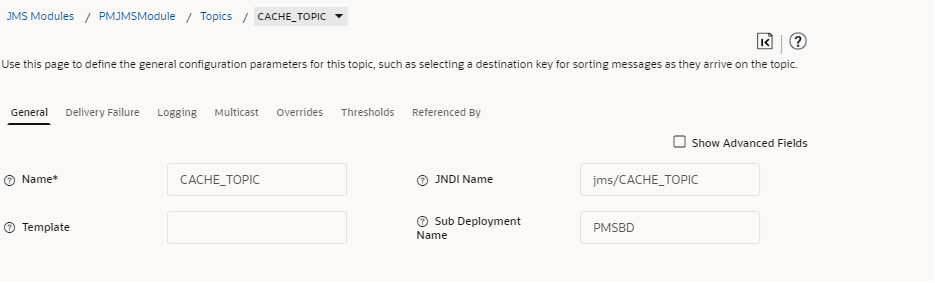

   • For cluster setup Topic should be created as “Uniform Distributed Topic” with Forwarding Policy as “Partitioned”. Below are sample screenshot. If there any existing CACHE_TOPIC without uniform distribution type then delete same and create fresh.

     Description of the illustration configuration-weblogic-console.png


   • Topic should Advance target to Subdeployment which used for all other queues, connection factories and Target to JMS Server which is further targeted to Cluster.

     JMS Server should target to Cluster

     Please note Persistent store map to JMS Server should also map to Cluster.
