2.3.3 Inbound RTP Payments View

The US RTP Inbound Payments View screen allows user to view Inbound payment status. Payments received from all channels are listed in this screen. The related messages are listed in the ‘View Messages’ sub-screen.

1. On Homepage, specify PUDIVIEW in the text box, and click next arrow.
   US RTP Inbound Payments View screen is displayed.

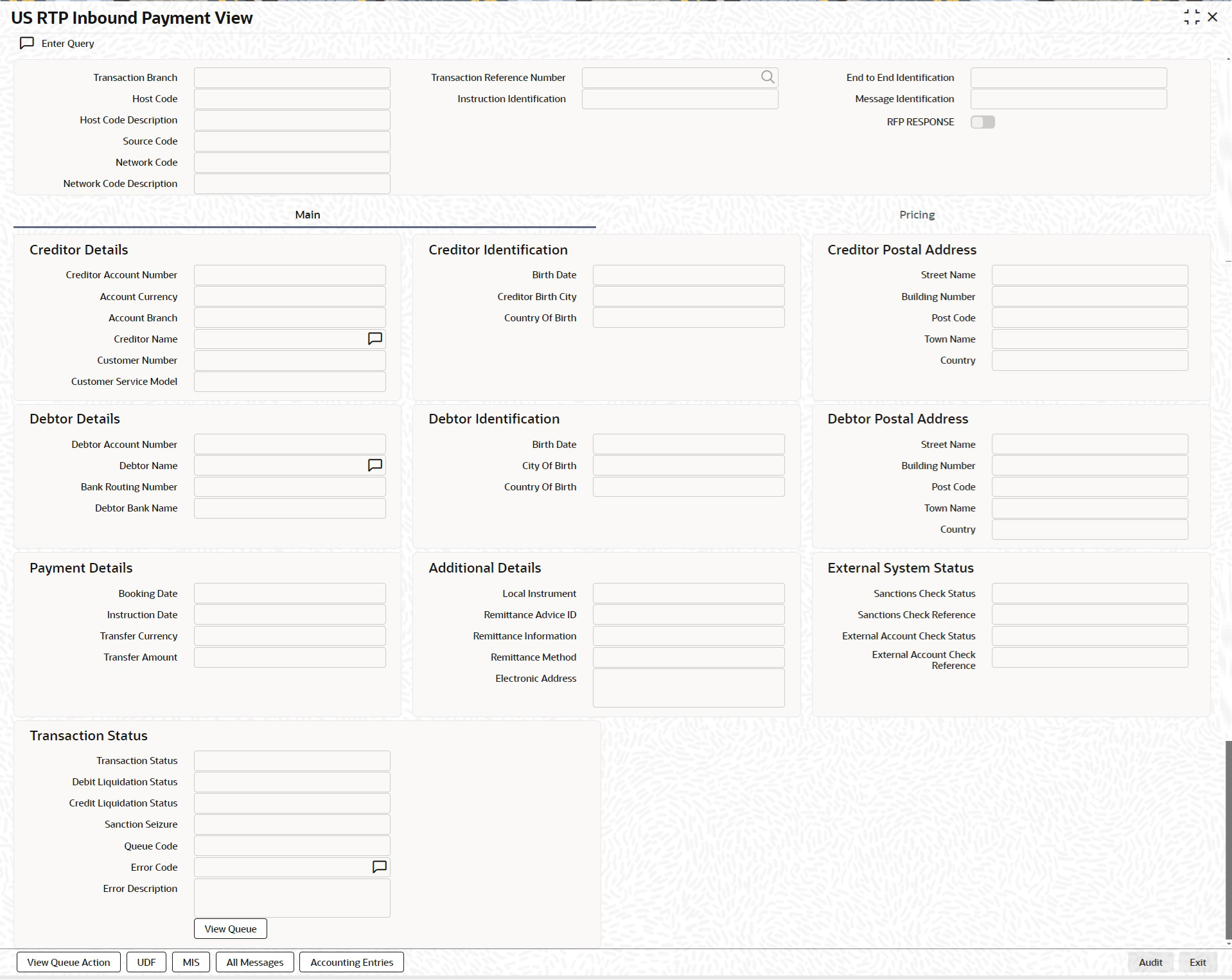

   Figure 2-30 US RTP Inbound Payments View


   Description of "Figure 2-30 US RTP Inbound Payments View"
2. Click Enter Query from this screen.
   The Transaction Reference field gets enabled which opens an LOV screen.
3. Click the Fetch button and select the required value.
4. Along with the transaction details in the Main and Pricing tabs user can also view the Status details for the following:
   • External System Status
   • Transaction Status
5. Click Execute Query to populate the details of the transaction in the US RTP Inbound Payments View screen.
6. RFP Response - This check box indicates that the transaction is received as response to outbound RFP sent.
   For more details on Main, Pricing tabs refer to ‘PUDOTONL’ screen details.

• View Queue Action Log

• UDF Button

• MIS Button

• All Messages

• Accounting Details

• RTP Inbound Payments View Summary
