3.3 DataSource

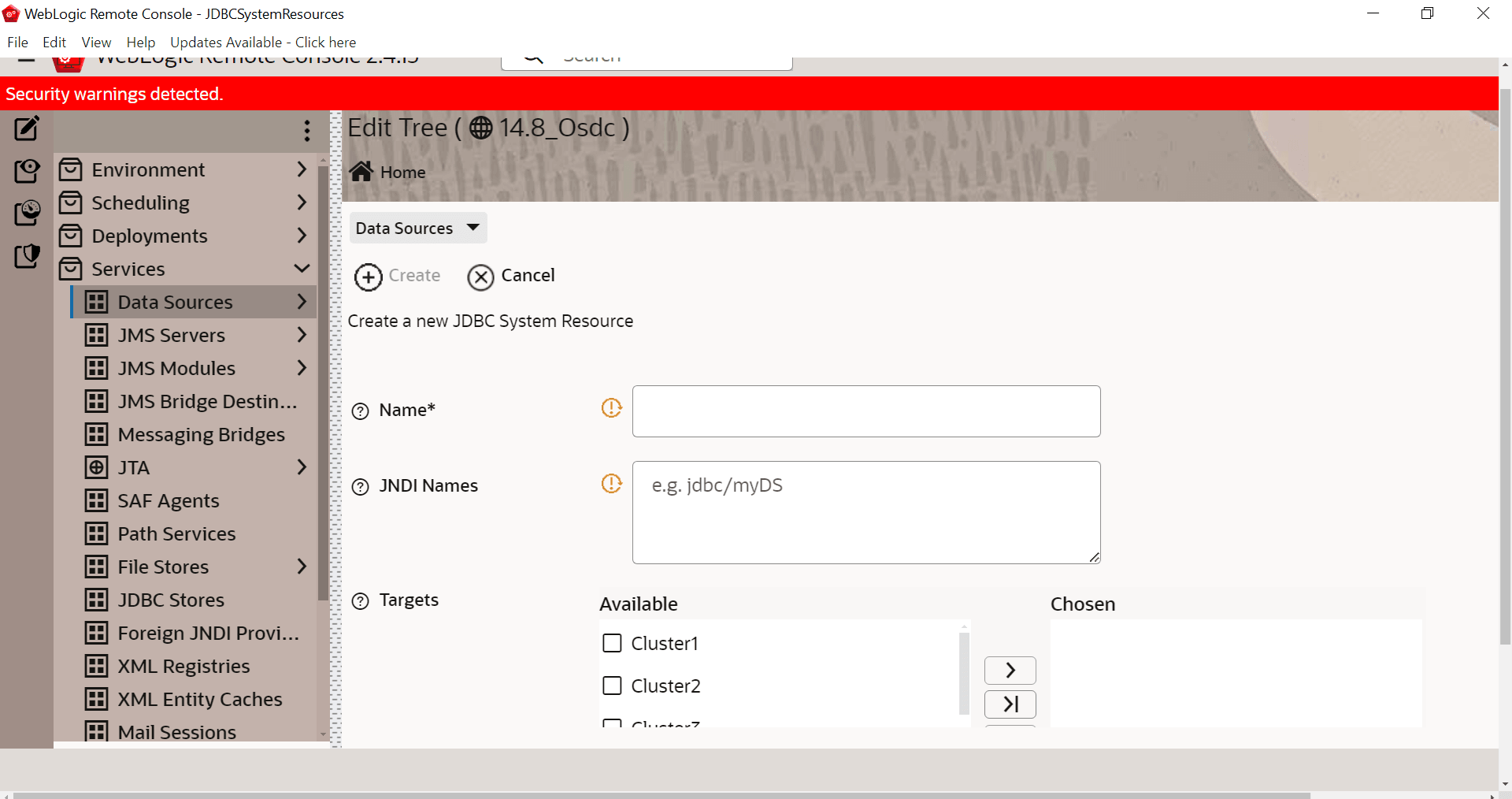

1. Select Services > Data Sources > Edit Tree, and Click New.

   Figure 3-3 DataSource





   Description of "Figure 3-3 DataSource"

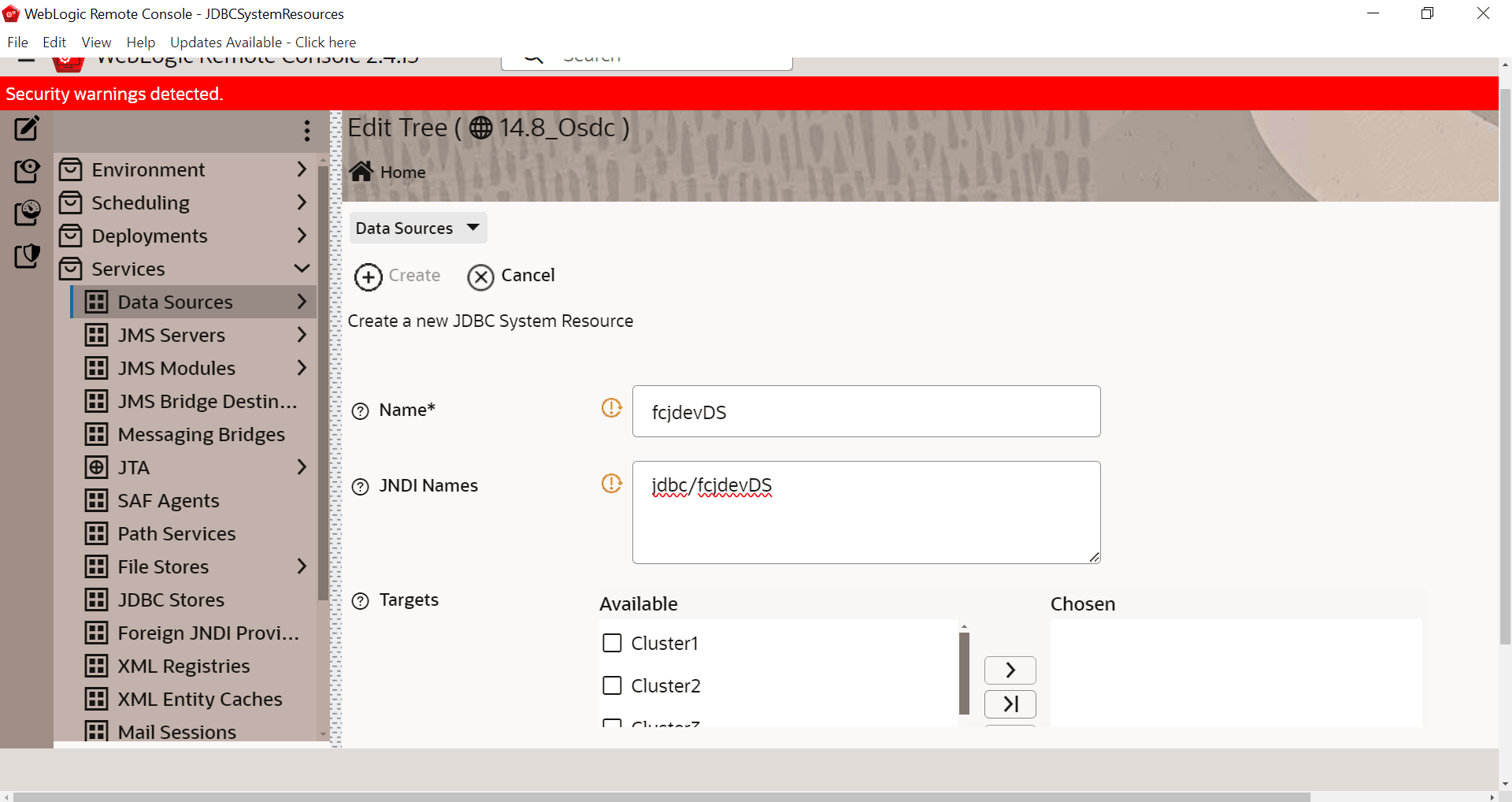

2. Specify the DataSource Name and Scroll Down.

   Figure 3-4 DataSource





   Description of "Figure 3-4 DataSource"

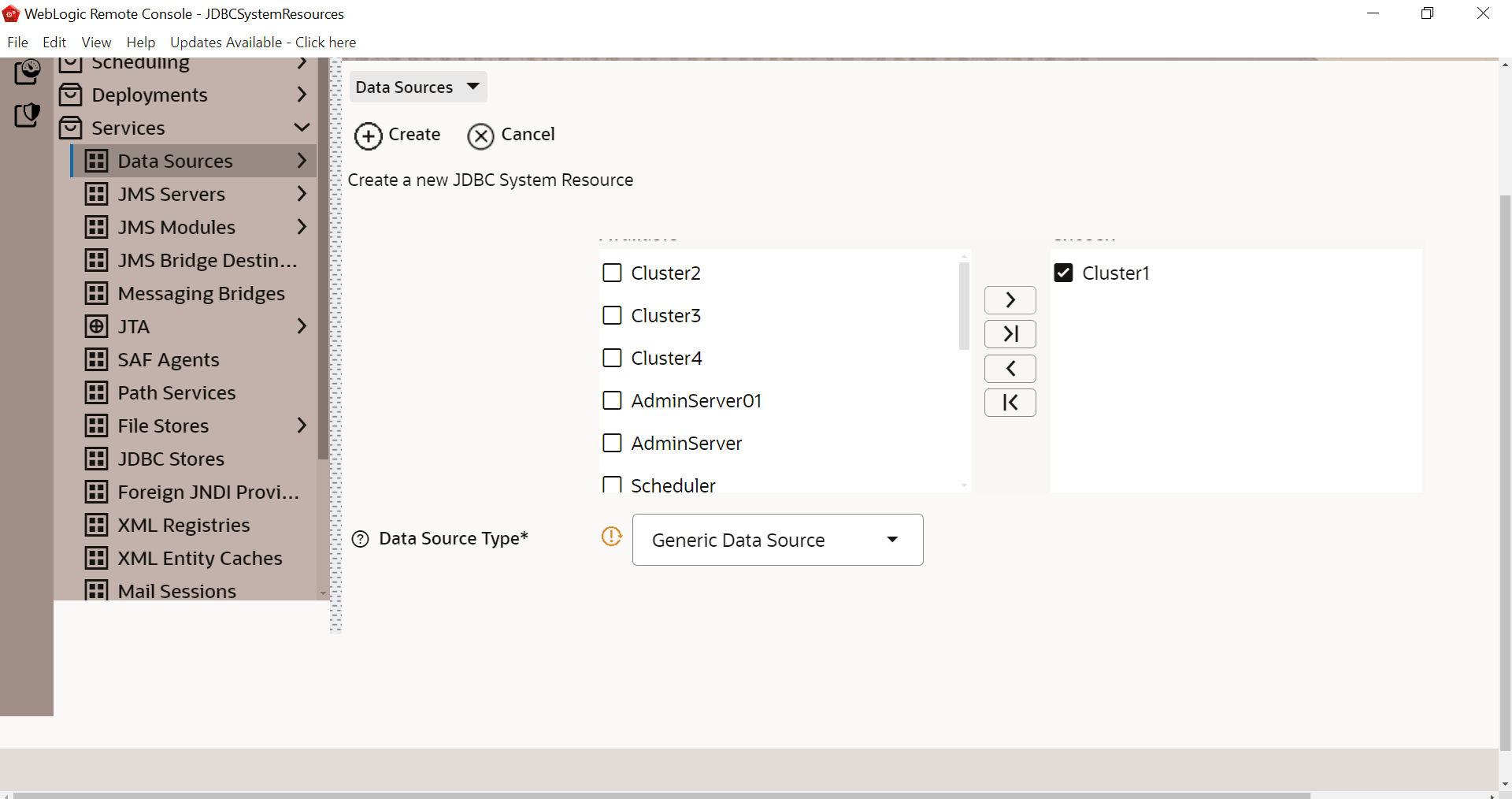

3. Map the respective Manage Server Target and select the Data source type.
4. Create, Save and Commit the Changes.

   Figure 3-5 DataSource





   Description of "Figure 3-5 DataSource"

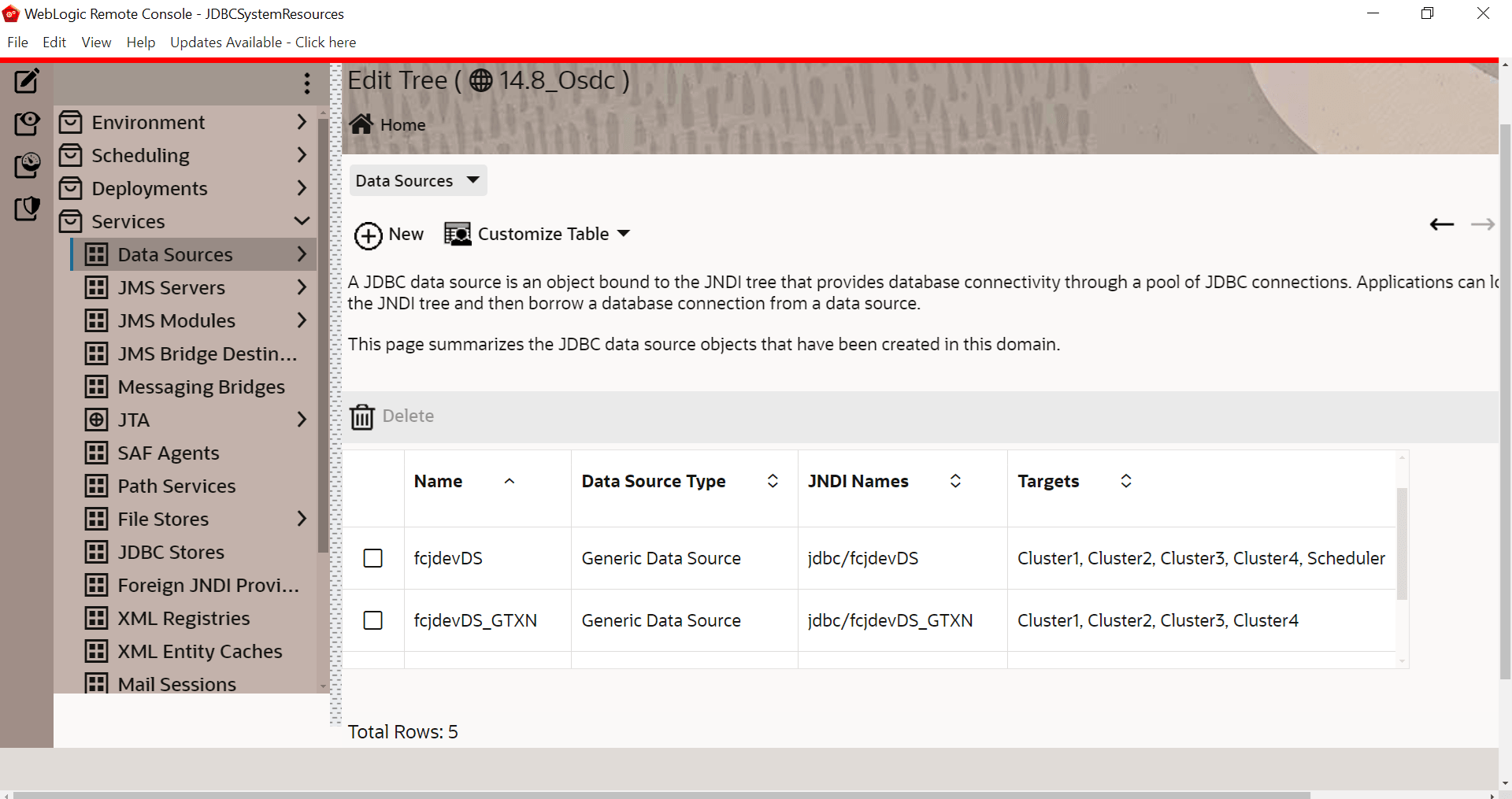

5. Go to Edit Tree, and update.

   Figure 3-6 DataSource





   Description of "Figure 3-6 DataSource"

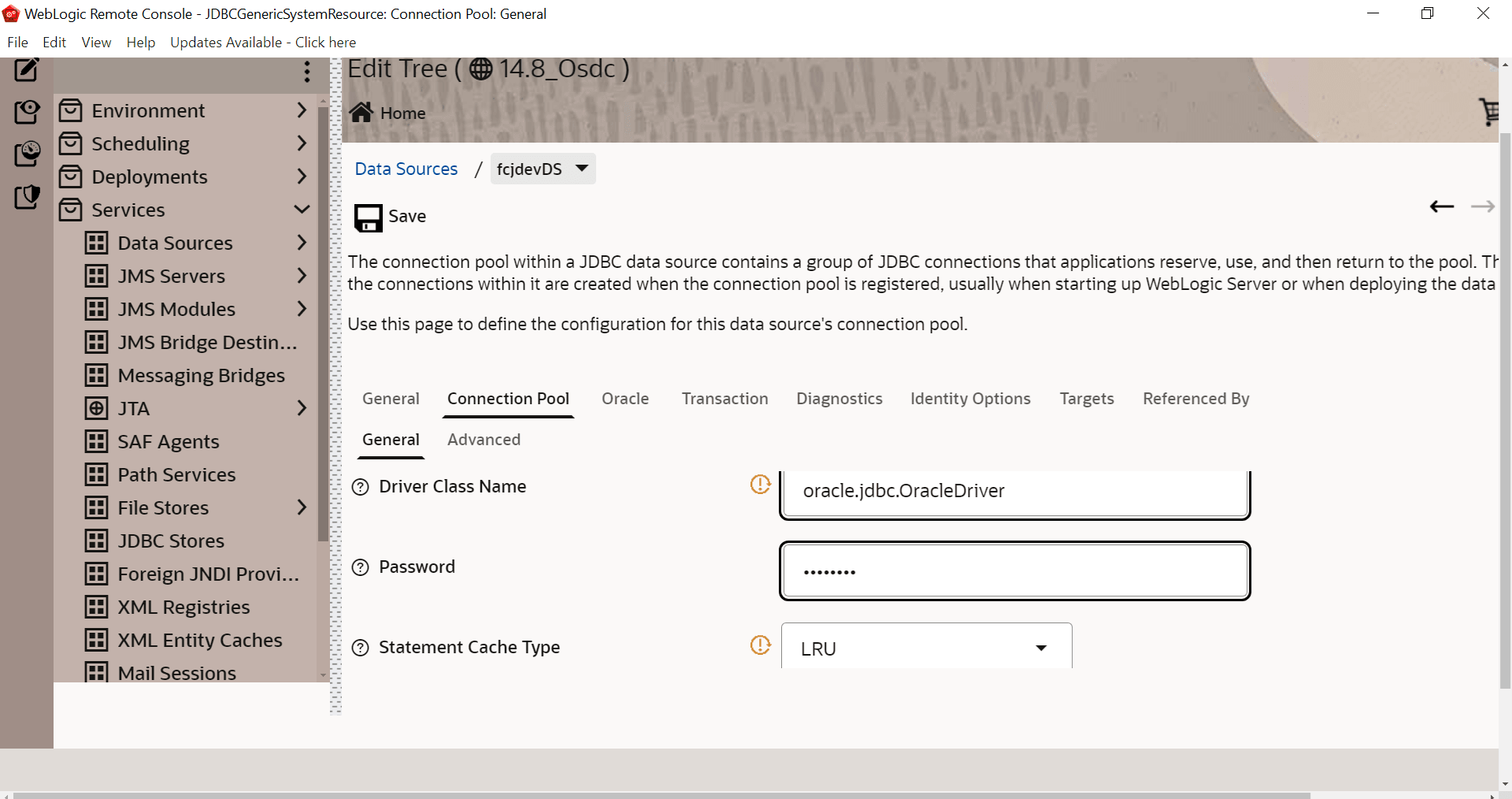

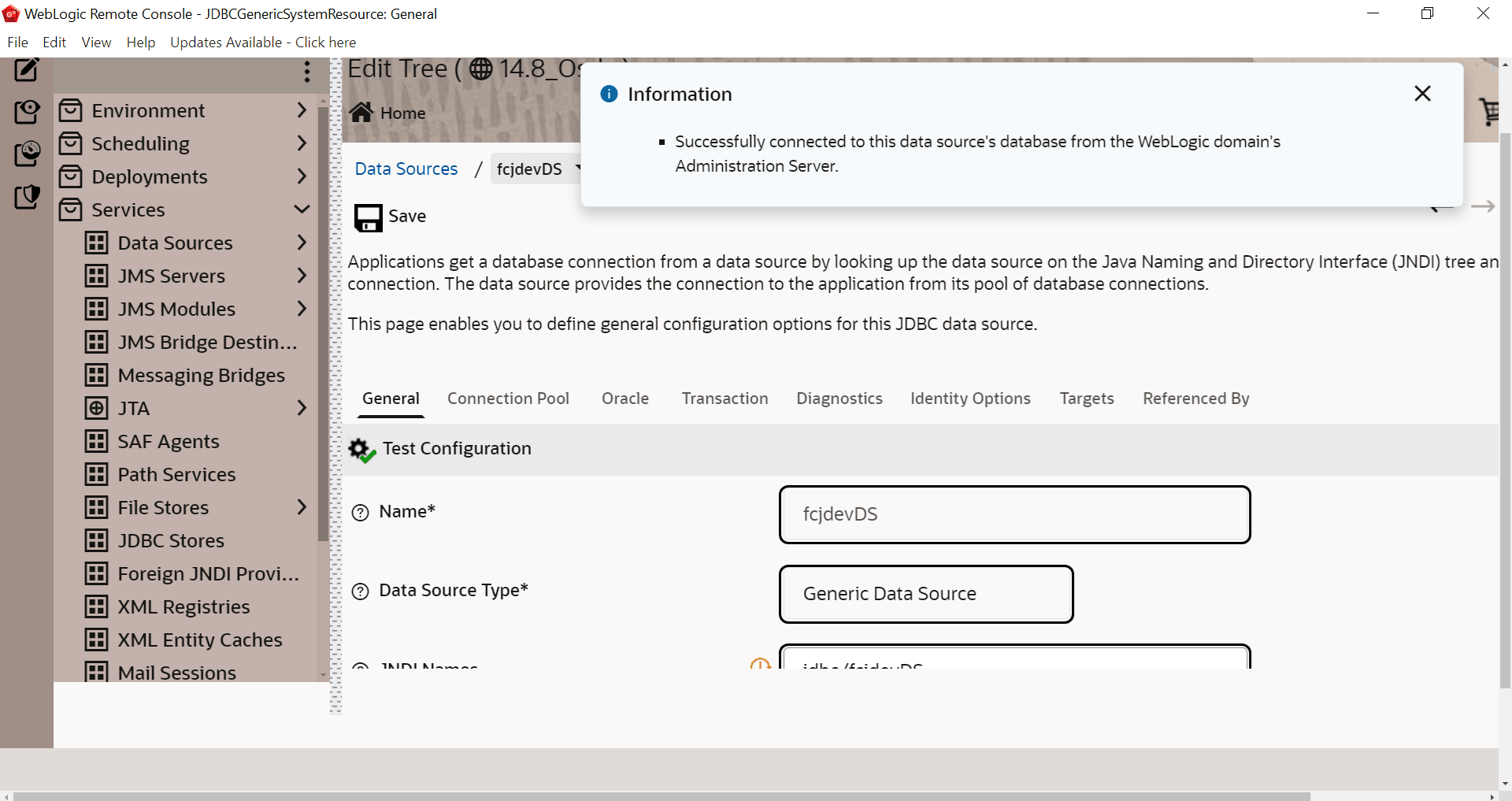

6. From Edit Tree, specify the user details and perform the test connection.

   Figure 3-7 DataSource





   Description of "Figure 3-7 DataSource"




   Figure 3-8 DataSource





   Description of "Figure 3-8 DataSource"



7. Data Source is created successfully.
