4.2 JMS Server Creation

  1. Go to Services then JMS Servers, and click New.
  2. Specify the JMS Servers Name and click Create.

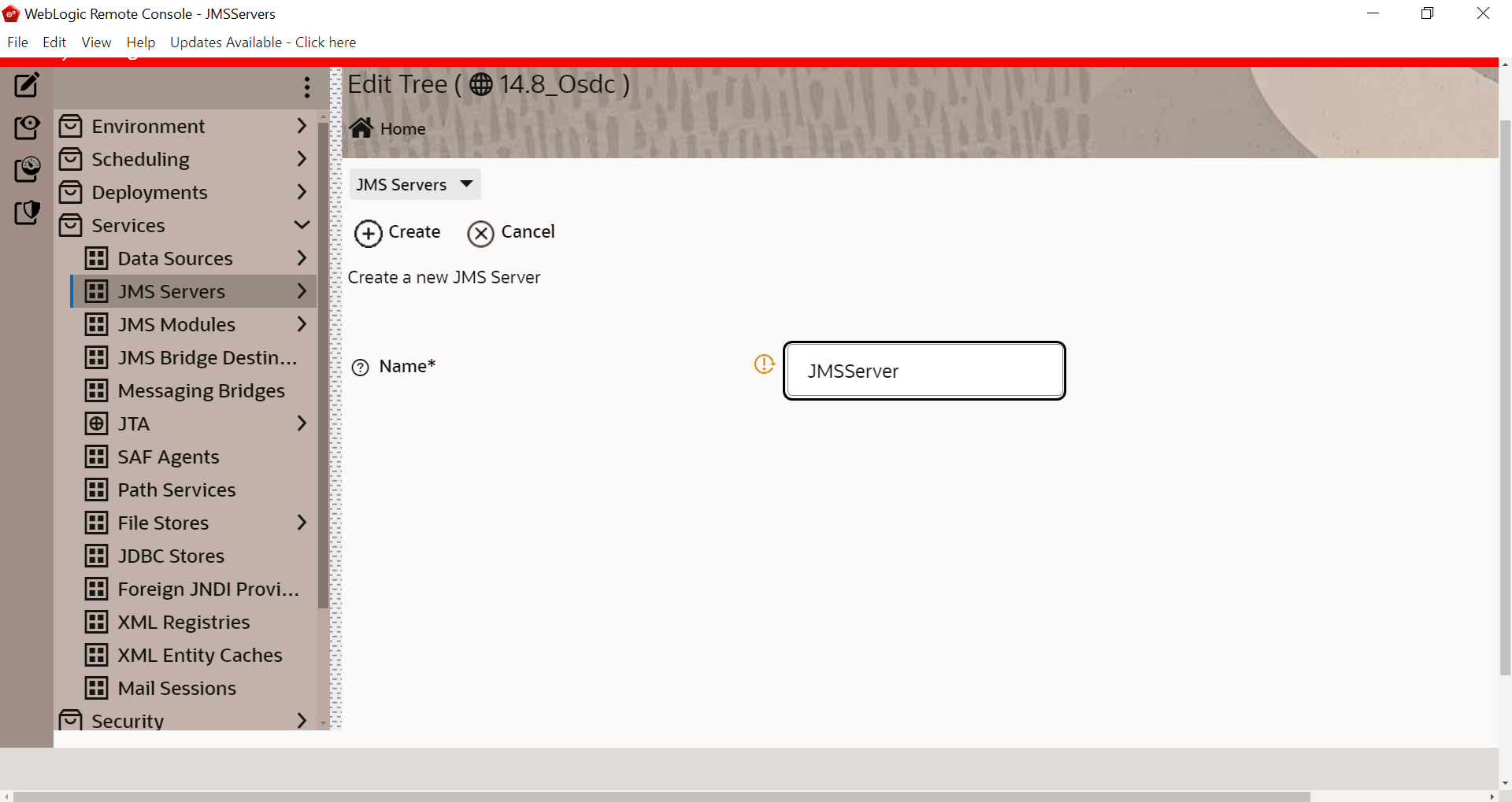

    Figure 4-3 Summary of JMS Servers


    Description of Figure 4-3 follows
    Description of "Figure 4-3 Summary of JMS Servers"

  3. Select Target Manage Server, Click Save.

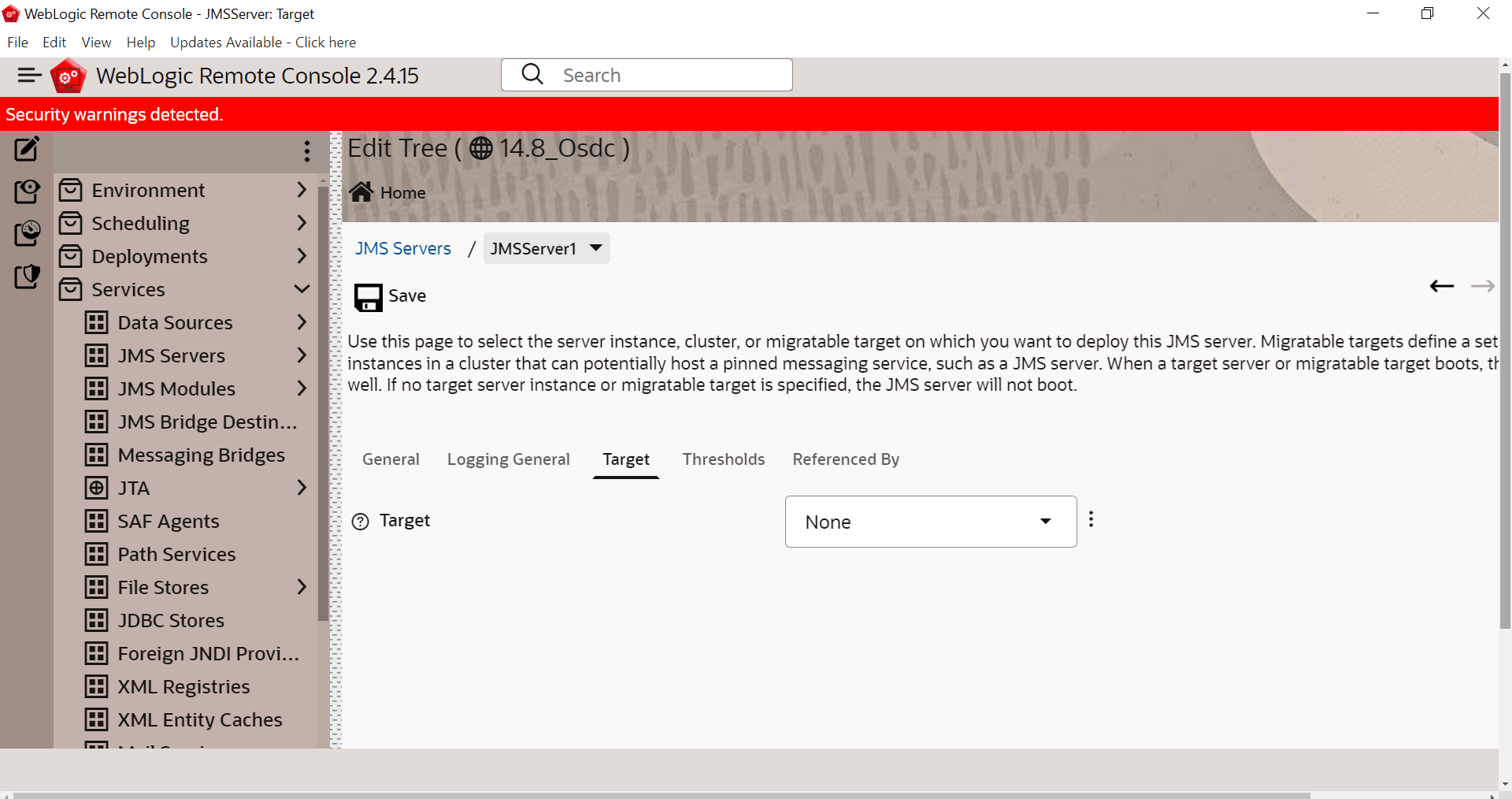

    Figure 4-4 Create a New JMS Servers


    Description of Figure 4-4 follows
    Description of "Figure 4-4 Create a New JMS Servers"

  4. Select the Target server and click Finish.

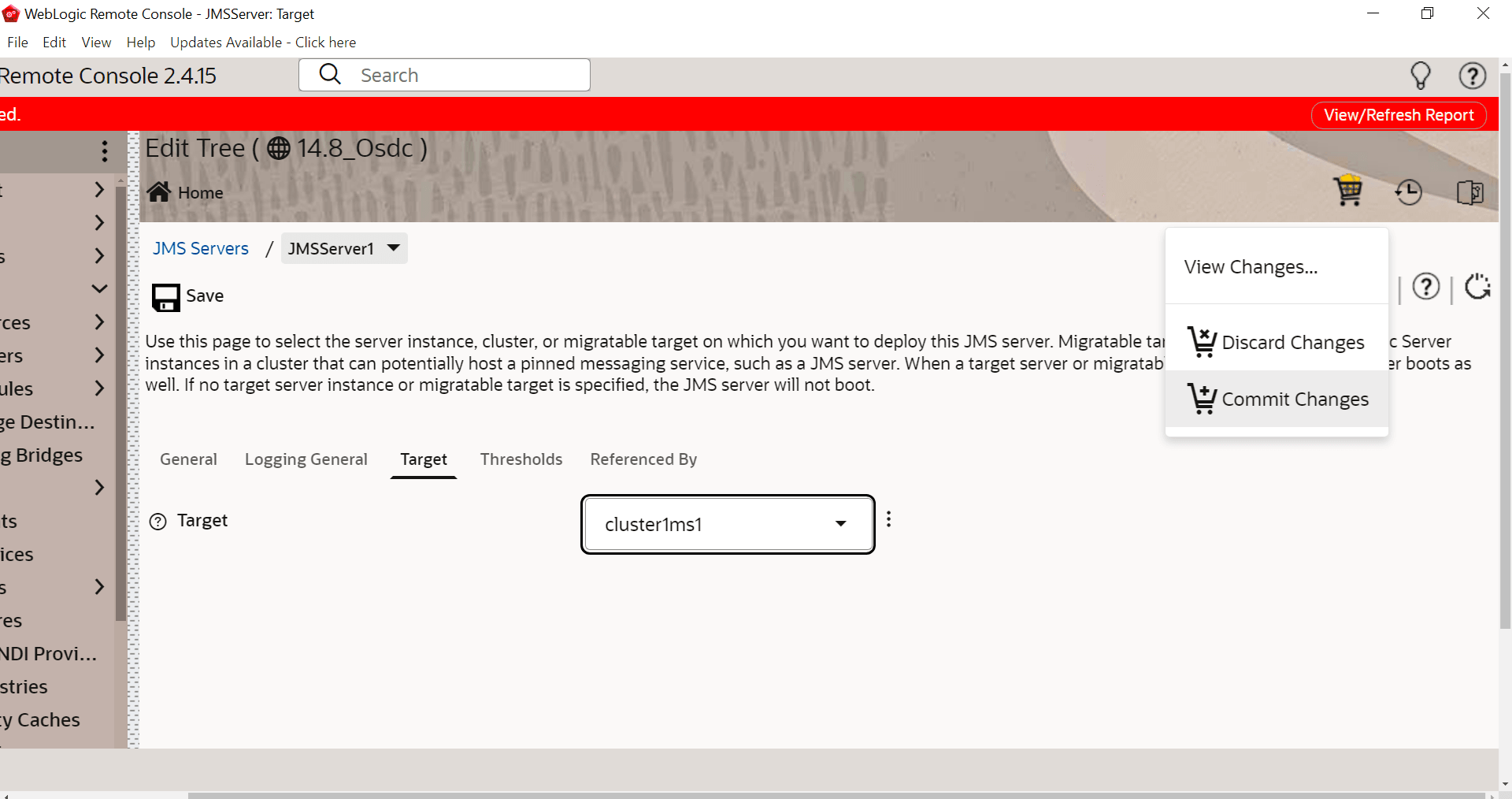

    Figure 4-5 Create a New JMS Servers


    Description of Figure 4-5 follows
    Description of "Figure 4-5 Create a New JMS Servers"

  5. Also, map the persistence store and click Commit Changes.

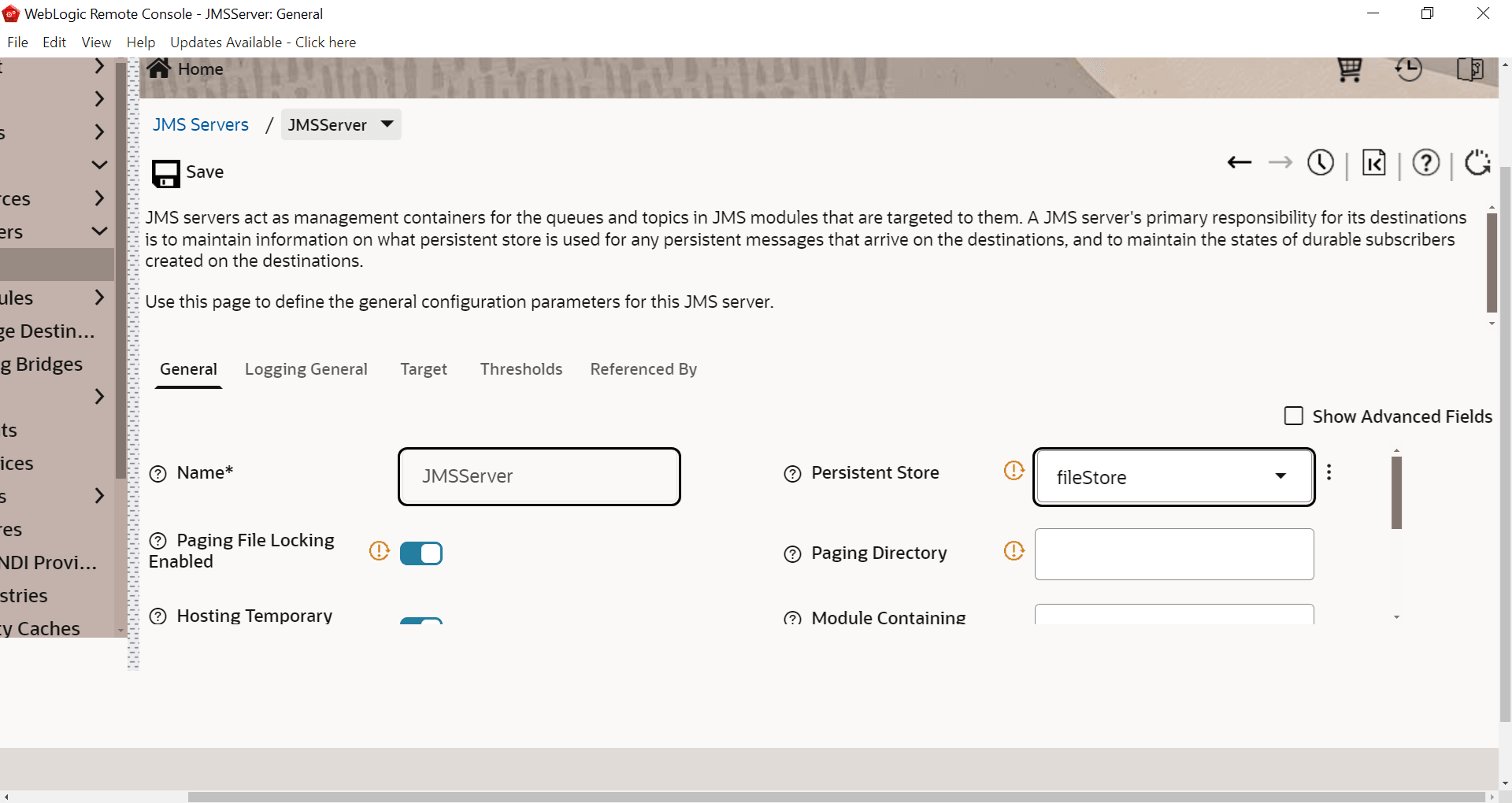

    Figure 4-6 JMS Server


    Description of Figure 4-6 follows
    Description of "Figure 4-6 JMS Server"

  6. JMS-Server-1 is created.

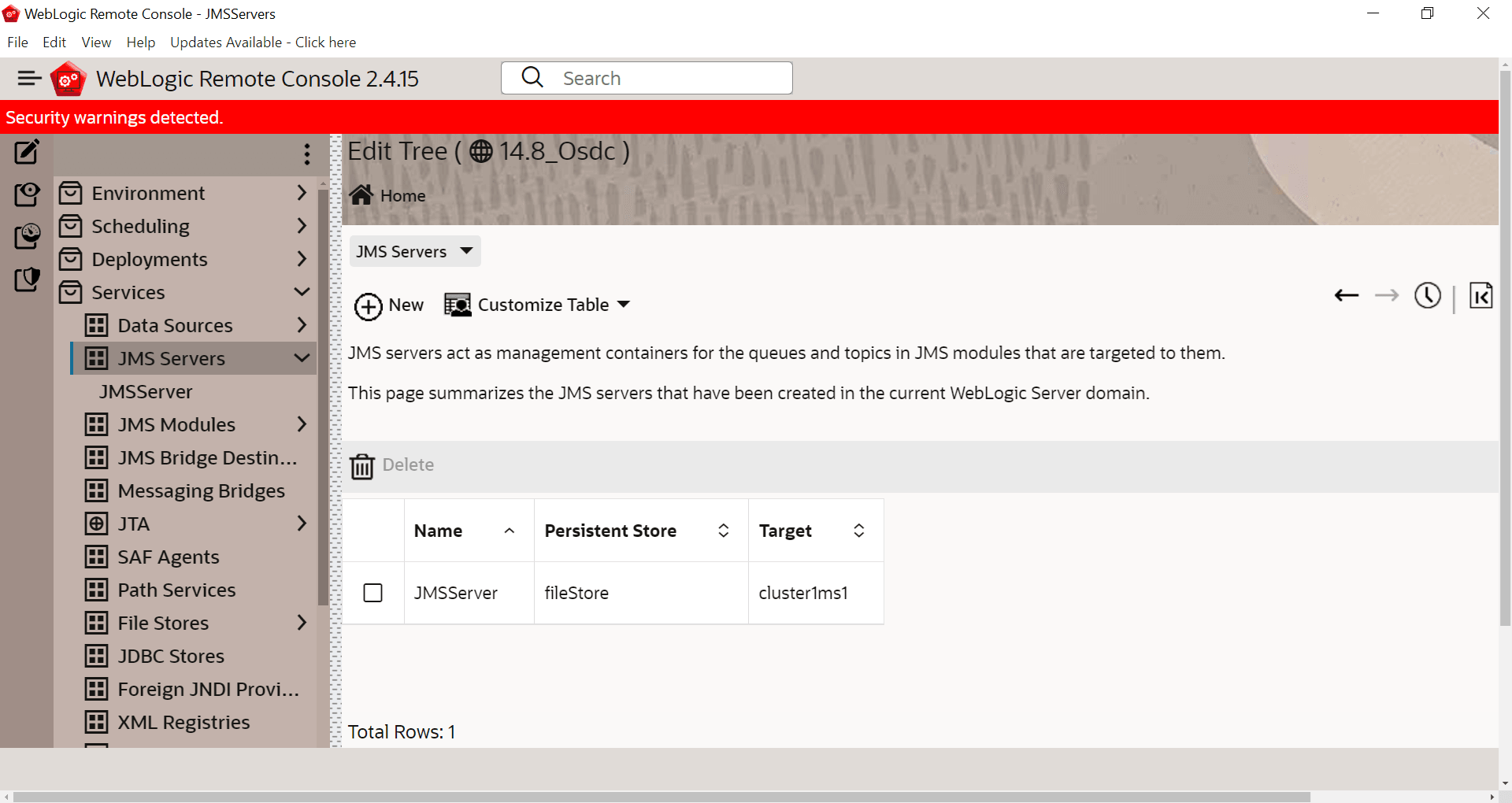

    Figure 4-7 JMS Server is created


    Description of Figure 4-7 follows
    Description of "Figure 4-7 JMS Server is created"

Parent topic: JMS Configuration
