5.1 Module Creation

1. Go to Services, select JMS Modules and then click New.

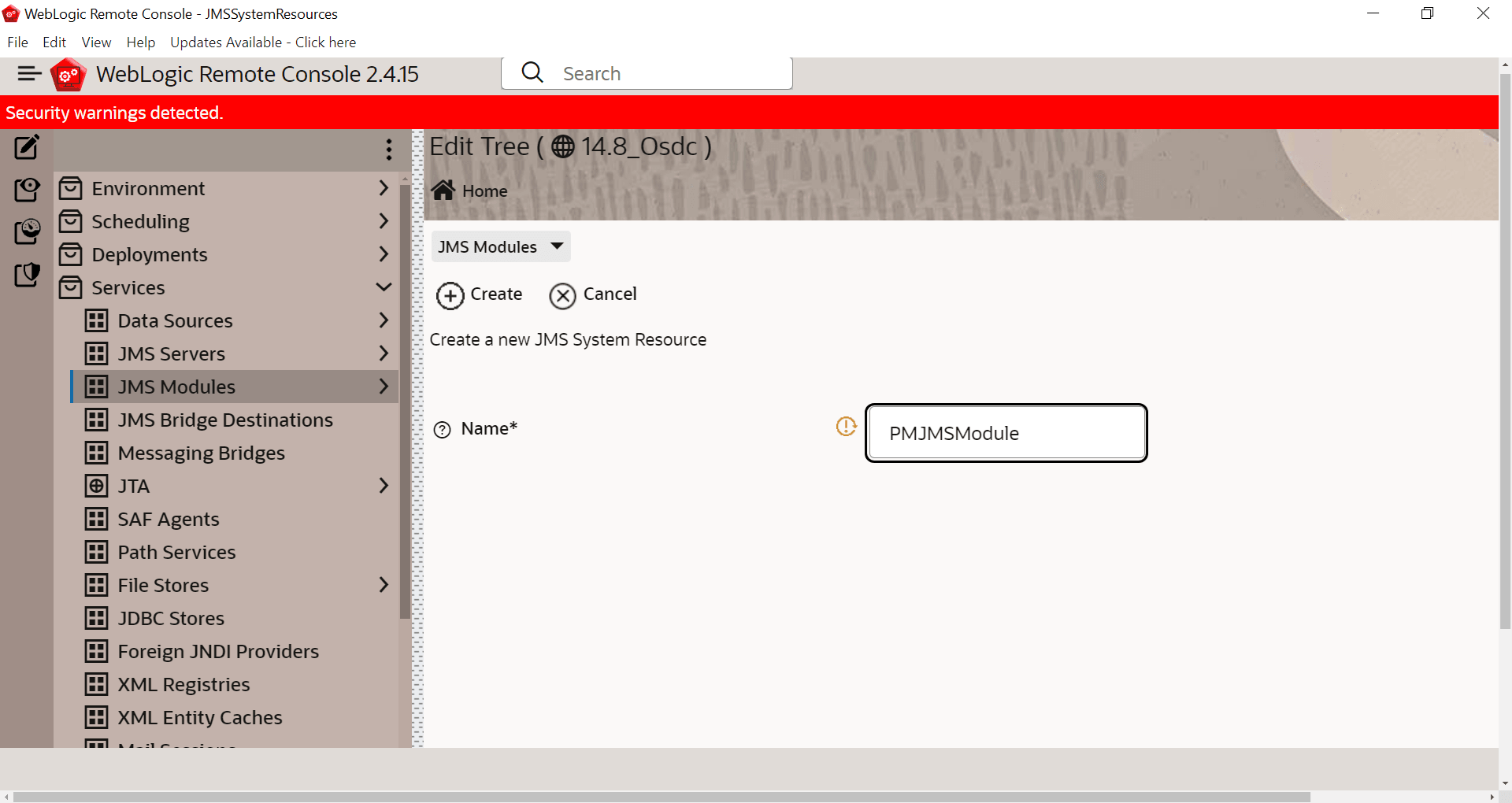

   Figure 5-1 Summary of JMS Modules





   Description of "Figure 5-1 Summary of JMS Modules"



2. Enter name as JMS_MODULE and click Create.
3. Select Target to respective Cluster and click Save.

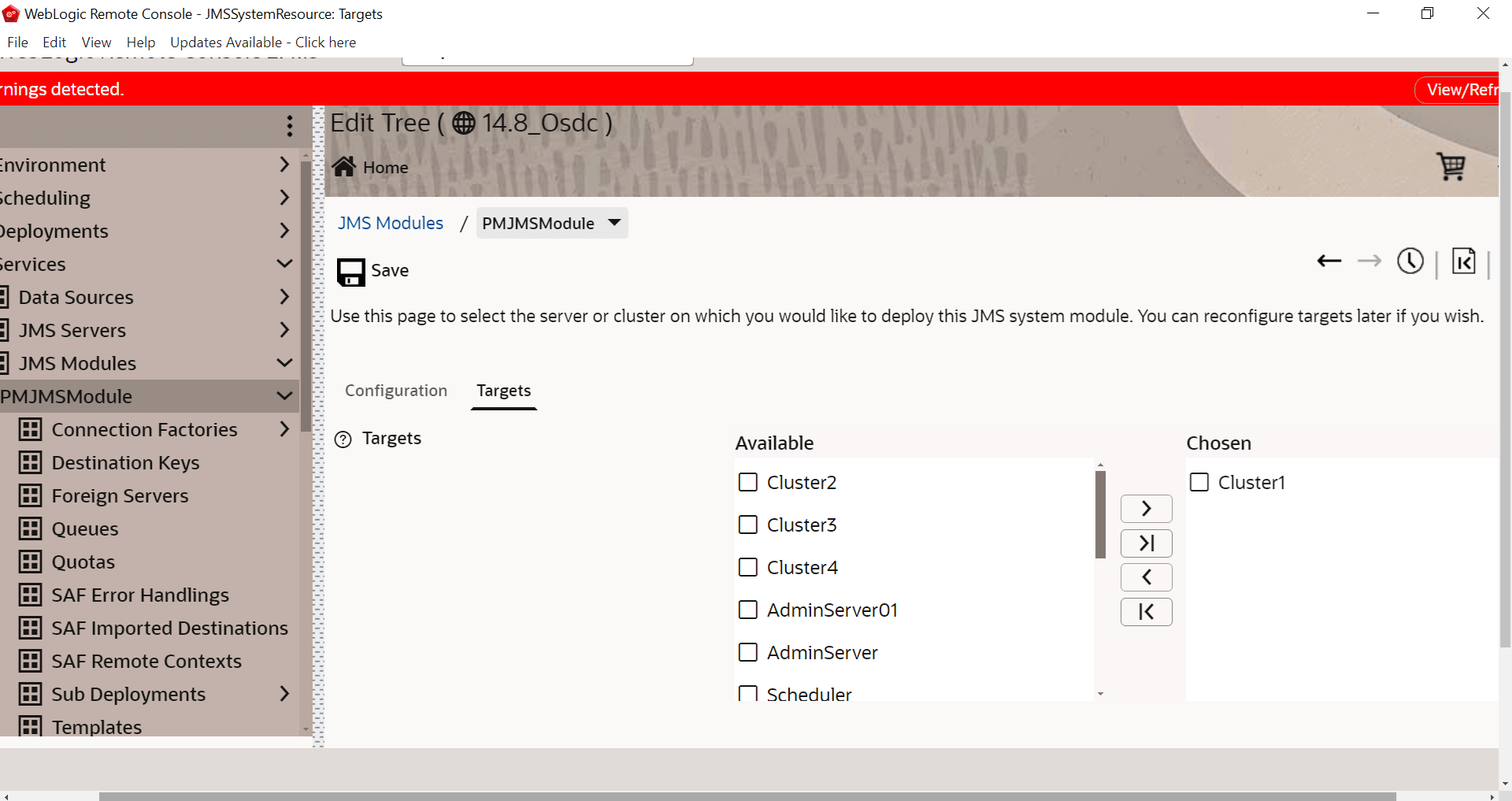

   Figure 5-2 Create JMS System Module





   Description of "Figure 5-2 Create JMS System Module"



4. Select the cart to Commit the changes.
5. JMS_MODULE is created.

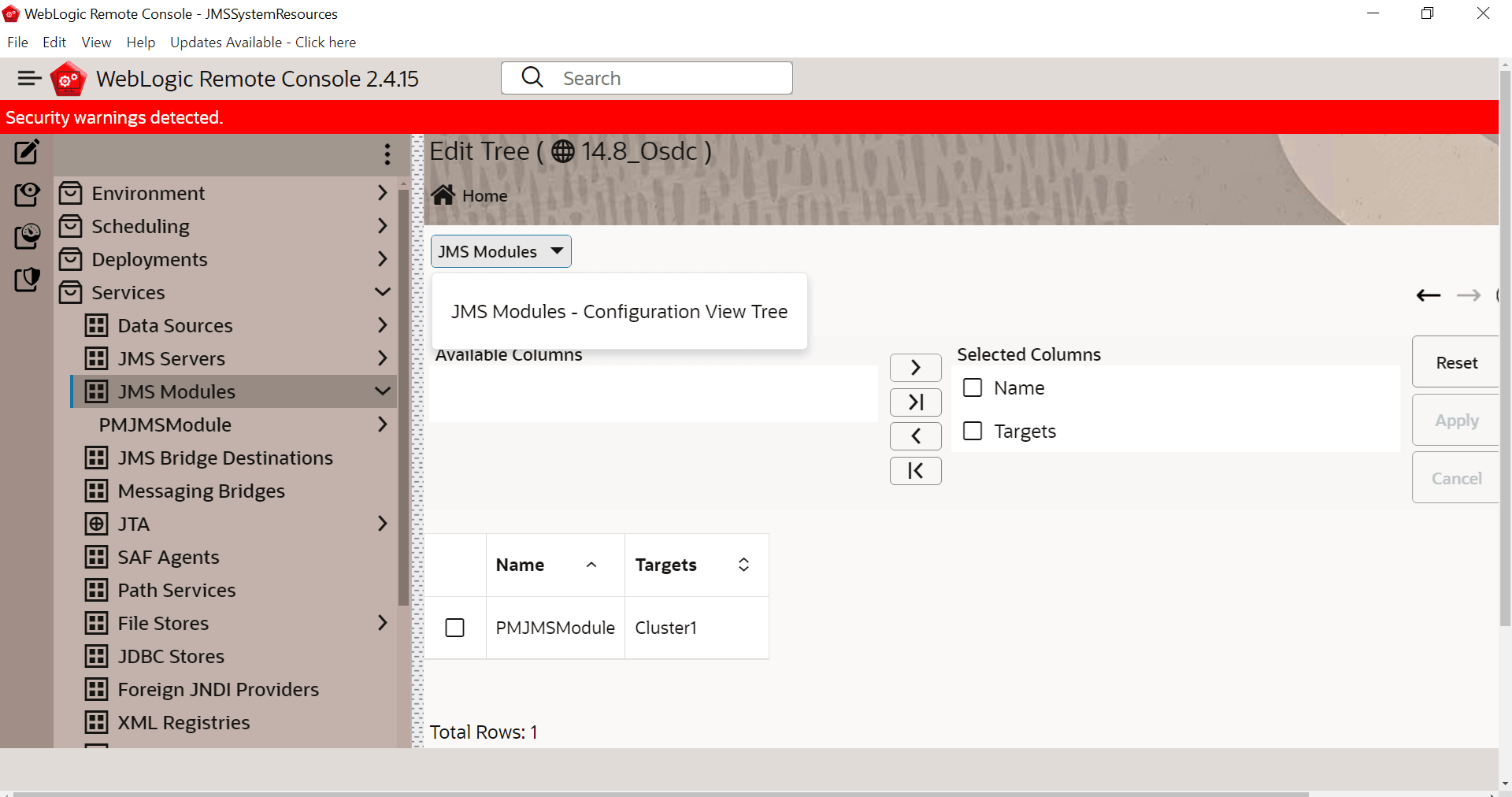

   Figure 5-3 Settings for JMS_Module





   Description of "Figure 5-3 Settings for JMS_Module"



6. Click on the configuration view tree to view the changes.
7. Select the JMS Module name and click the Edit Tree in the drop to update the configuration.

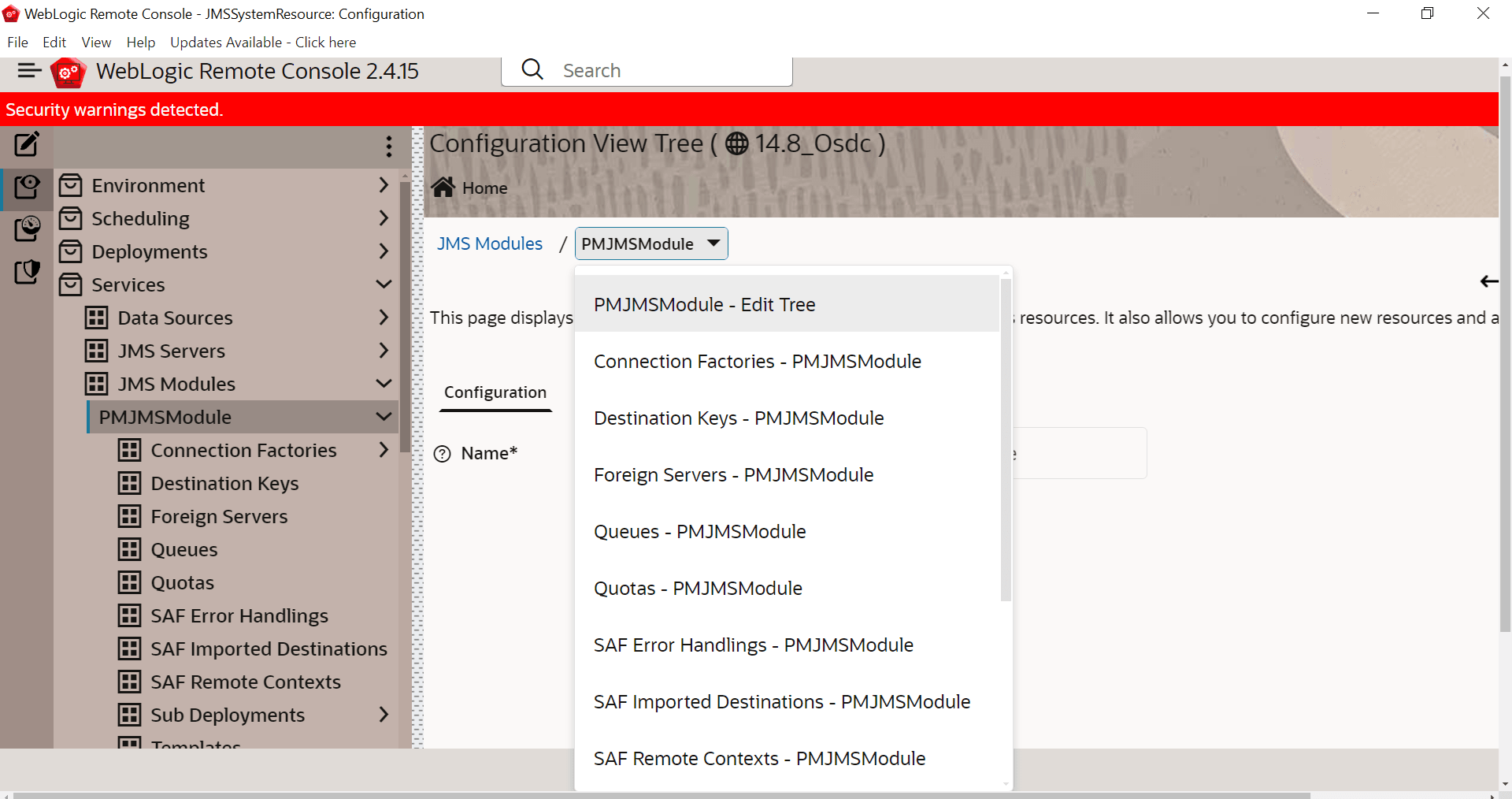

   Figure 5-4 Configuration View Tree





   Description of "Figure 5-4 Configuration View Tree"
