2.3 Weblogic 14c New Features

Before weblogic 14c JMS Servers and stores are targeted to individual WLS Servers. Scaling up requires configure the JMS server, the store and target it to new WLS Server.

In 14c JMS Servers and stores are targeted to WLS cluster. Scaling up requires to add a WLS server to the cluster.

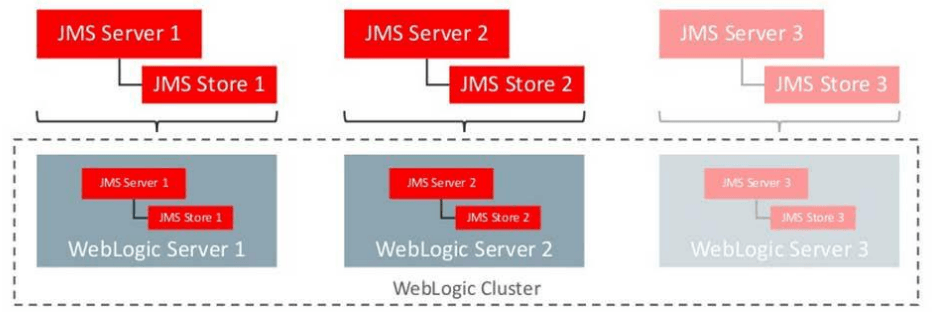

Figure 2-1 Architecture previous to 14c


Description of Figure 2-1 follows
Description of "Figure 2-1 Architecture previous to 14c"

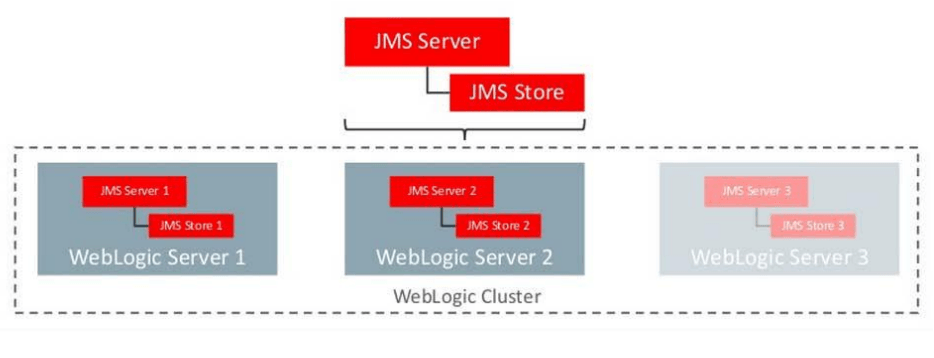

Figure 2-2 Architecture in 14c


Description of Figure 2-2 follows
Description of "Figure 2-2 Architecture in 14c"
