1.2.6 UPI Merchant Category Code Debit Transaction Limit Detailed

The UPI Merchant Category Code Debit Transaction Limit Detailed screen allows users to define and maintain the debit transaction limits applicable to merchant category codes (MCCs).

1. On Homepage, specify PVDMCCDL in the text box, and click next arrow.
   The UPI Merchant Category Code Debit Transaction Limit Detailed screen is displayed.

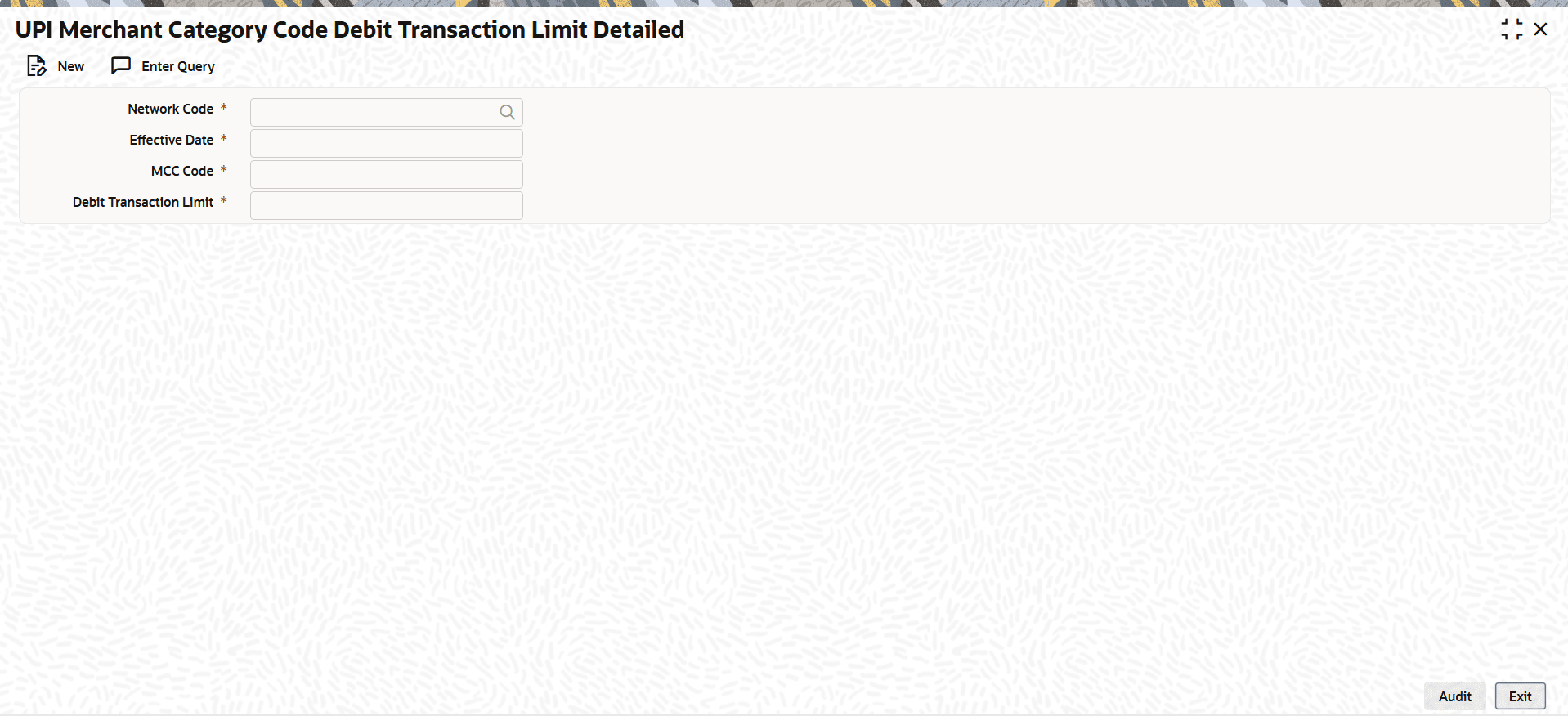

   Figure 1-13 UPI Merchant Category Code Debit Transaction Limit Detailed





   Description of "Figure 1-13 UPI Merchant Category Code Debit Transaction Limit Detailed"



2. On the UPI Merchant Category Code Debit Transaction Limit Detailed screen, click New to specify the fields.
   For more information about the fields, refer to field description table.

   Table 1-15 UPI Merchant Category Code Debit Transaction Limit Detailed - Field Description

   Field	Description
   Network Code	Select the Network Code from the values maintained in the Network Code Detailed screen (Function ID: PMDNWCOD) with Type Code set to IN-UPI.
   Effective Date	Specify the date from which the maintained limits are effective.
   MCC Code	Specify the Merchant Category Code (MCC) as provided by the National Payments Corporation of India (NPCI).
   Debit Transaction Limit	Specify the maximum transaction amount allowed for the specified MCC Code.

• UPI Merchant Category Code Debit Transaction Limit Summary
  The UPI Merchant Category Code Debit Transaction Limit Summary screen allows users to inquire and view a summary of the debit transaction limits maintained for merchant category codes (MCCs).
