1.2.4 UPI Transaction Limit Detailed

The UPI Transaction Limit Detailed screen allows users to define and maintain the transaction limits applicable to P2P transactions.

1. On Homepage, specify PVDPTPTL in the text box, and click next arrow.
   The UPI Transaction Limit Detailed screen is displayed.

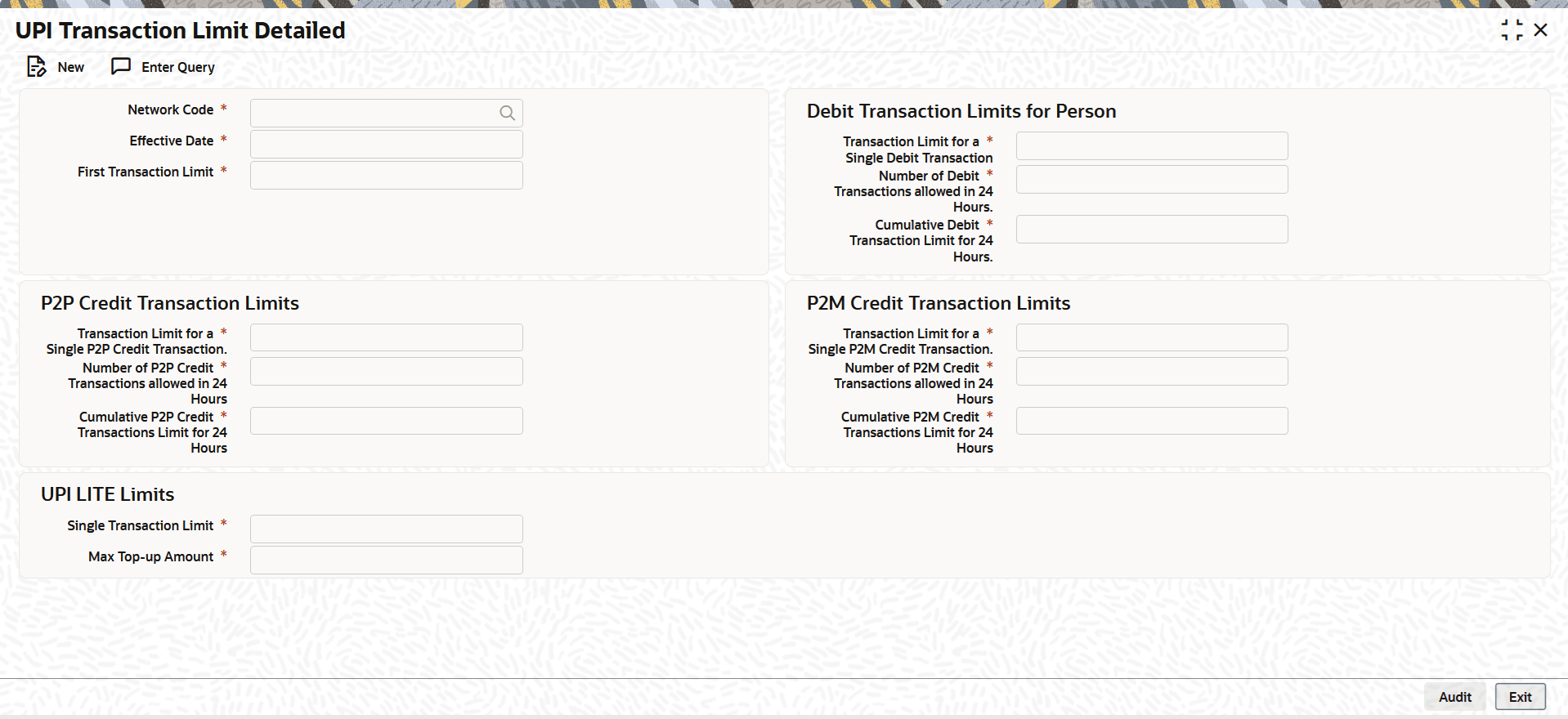

   Figure 1-9 UPI Transaction Limit Detailed





   Description of "Figure 1-9 UPI Transaction Limit Detailed"



2. On the UPI Transaction Limit Detailed screen, click New to specify the fields.
   For more information about the fields, refer to field description table.

   Table 1-13 UPI Transaction Limit Detailed - Field Description

   Field	Description
   Network Code	Select the Network Code from the values maintained in the Network Code Detailed screen (Function ID: PMDNWCOD) with Type Code set to IN-UPI.
   Effective Date	Specify the date from which the maintained limits are effective.
   First Transaction Limit	Enter the maximum allowed amount for the first debit transaction for a newly registered account.
   Debit Transaction Limits for Person	This section displays the debit transaction limit fields for person.
   Transaction Limit for a Single Debit Transaction	Enter the maximum allowed amount for a single debit transaction.
   Number of Debit Transactions allowed in 24 Hours	Enter the maximum number of debit transactions allowed in a 24-hour period.
   Cumulative Debit Transaction Limit for 24 Hours	Enter the maximum cumulative debit amount allowed in a 24-hour period.
   P2P Credit Transaction Limits	This section displays the P2P credit transaction limit fields.
   Transaction Limit for a Single P2P Credit Transaction	Enter the maximum allowed amount for a single P2P credit transaction.
   Number of P2P Credit Transactions allowed in 24 Hours	Enter the maximum number of P2P credit transactions allowed in a 24-hour period.
   Cumulative P2P Credit Transactions Limit for 24 Hours	Enter the maximum cumulative P2P credit amount allowed in a 24-hour period.
   P2M Credit Transaction Limits	This section displays the P2M credit transaction limit fields.
   Transaction Limit for a Single P2M Credit Transaction	Enter the maximum allowed amount for a single P2M credit transaction.
   Number of P2M Credit Transactions allowed in 24 Hours	Enter the maximum number of P2M credit transactions allowed in a 24-hour period.
   Cumulative P2M Credit Transactions Limit for 24 Hours	Enter the maximum cumulative P2M credit amount allowed in a 24-hour period.
   UPI LITE Limits	This section displays the UPI Lite limit fields.
   Single Transaction Limit	Enter the maximum allowed amount for a UPI Lite payment transaction (ReqPay API with Purpose Code set to 44). This validation is performed at the PSP switch.
   Max Top-up Amount	Enter the maximum allowed amount for a UPI Lite top-up transaction (ReqPay API with Purpose Code set to 41 or 42). This validation is performed at the PSP switch.

• UPI Transaction Limit Summary
  The UPI Transaction Limit Summary screen allows user to inquire and view a summary of the maintained P2P transaction limits.
