3.1 Utilization & De-Utilization Deposits

This topic describes about the service consumer Utilization & De-utilization of deposits.

• Service Consumers: OBRL_DEPOSIT_SYS

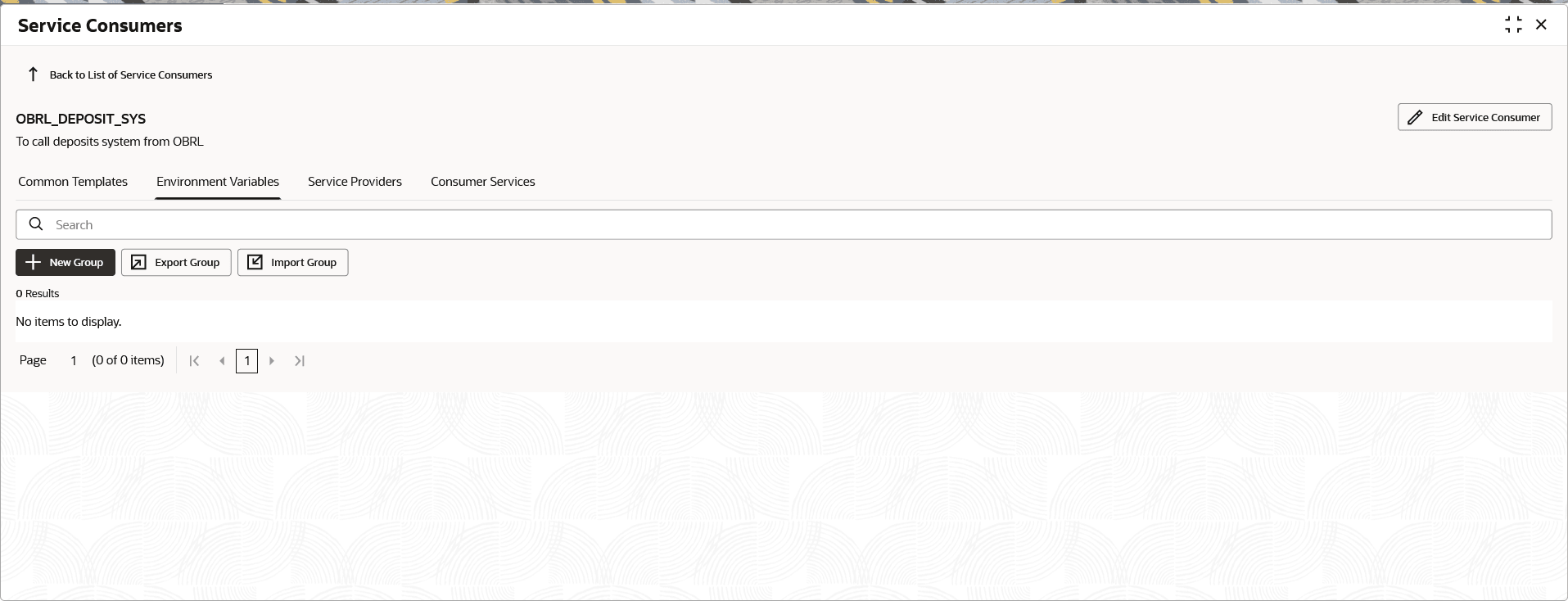

  Figure 3-1 Service Consumers





  Description of "Figure 3-1 Service Consumers"



• Service Providers

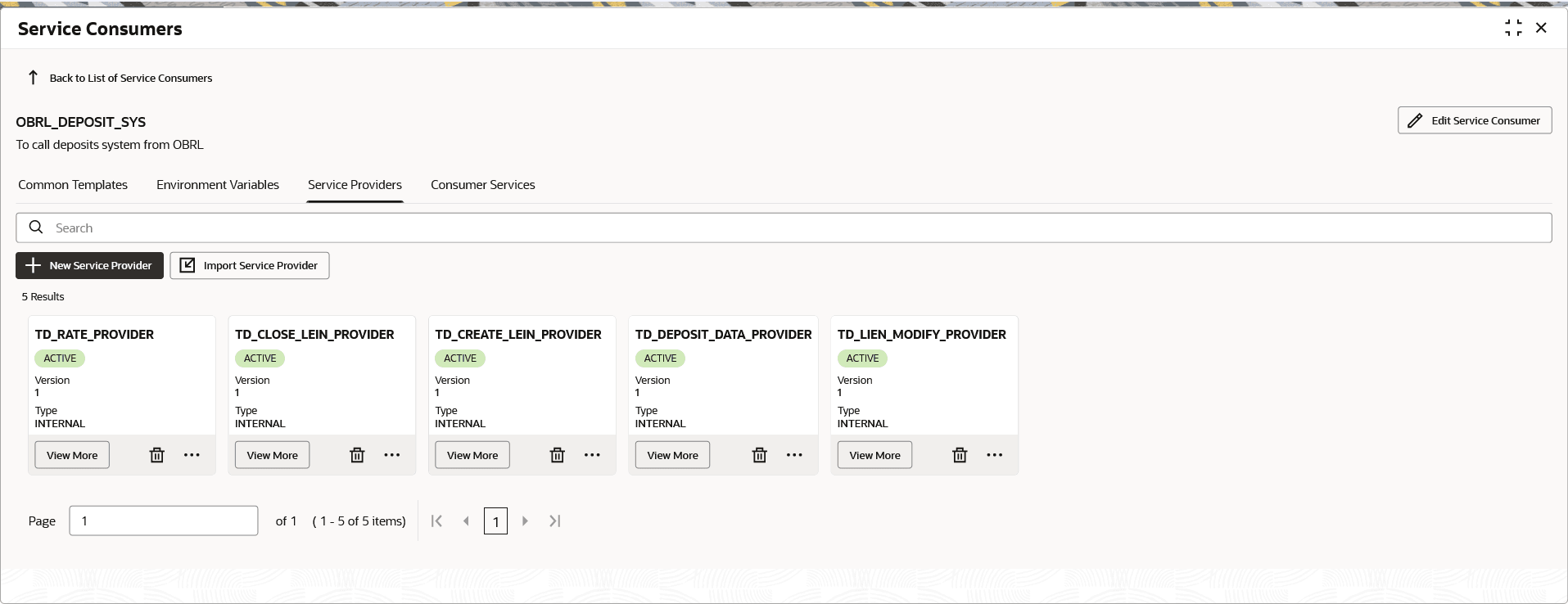

  Figure 3-2 Service Providers





  Description of "Figure 3-2 Service Providers"




  Following are the endpoints used by service providers.

  TD_CLOSE_LEIN_PROVIDER: obrdep-txn-pp-online-services/service/v14.8.1.0.0/tdamtblk/closeTDAmtBlk

  TD_CREATE_LEIN_PROVIDER: obrdep-txn-pp-online-services/service/v14.8.1.0.0/tdamtblk/createTDAmtBlk

  TD_LIEN_MODIFY_PROVIDER: obrdep-txn-pp-online-services/service/v14.8.1.0.0/tdamtblk/modifyTDAmtBlk

  TD_RATE_PROVIDER: obrdep-txn-pp-online-services/service/v14.8.1.0.0/tdSpCondn

  TD_DEPOSIT_DATA_PROVIDER: obrdep-txn-pp-online-services/service/v14.8.2.0.0/queryResponseService/.search

  TD_AMOUNT_BLOCK_DATA_PROVIDER:obrdep-txn-pp-online-services/service/v14.8.1.0.0/tdamtblk/getById

• Consumer Services

  The Consumer Services for OBRL are as displayed below:

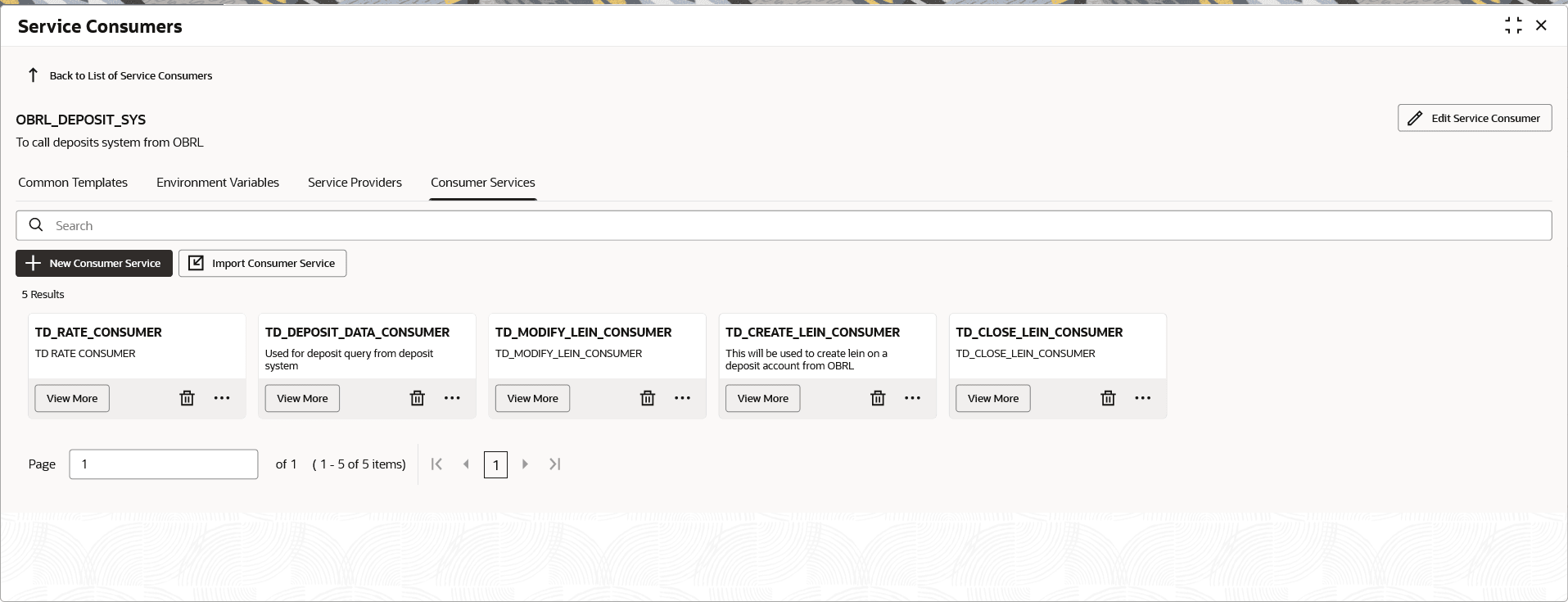

  Figure 3-3 Consumer Services





  Description of "Figure 3-3 Consumer Services"




• 1. TD_CREATE_LEIN_CONSUMER

  Request/Response

  SERVICE-CONSUMER = OBRL_DEPOSIT_SYS
  SERVICE-CONSUMER-SERVICE= TD_CREATE_LEIN_CONSUMER


  Request

  {
    "headers" : {
      "branchcode" : [ "000" ],
      "entityid" : [ "DEFAULTENTITY" ],
      "userid" : [ "YATHIKA" ],
      "appid" : [ "CMNCORE" ],
  	"service-consumer" : [ "OBRL_DEPOSIT_SYS" ],
  	"service-consumer-service" : [ "TD_CREATE_LEIN_CONSUMER" ]
    },
    "body" : {
      "amountBlockDtoList" : [ {
        "depositAccountNumber" : "R0100005569",
        "depositCurrency" : "USD",
        "remarks" : "Block for loan account :SUD01LAD002938",
        "depositAmount" : "10000",
        "depositBranchCode" : "R01"
      }, {
        "depositAccountNumber" : "R0100005575",
        "depositCurrency" : "USD",
        "remarks" : "Block for loan account :SUD01LAD002938",
        "depositAmount" : "10000",
        "depositBranchCode" : "R01"
      }, {
        "depositAccountNumber" : "R0100005577",
        "depositCurrency" : "USD",
        "remarks" : "Block for loan account :SUD01LAD002938",
        "depositAmount" : "10000",
        "depositBranchCode" : "R01"
      } ]
    }
  }


  Response

  "body":
  {
          "data": {
              "success": "Y",
              "amountBlockRefNo": "AR1458440798950604810",
              "amountBlockDtoList": [
                  {
                      "depositAccountNumber": "R0100005569",
                      "depositCurrency": "USD",
                      "depositAmount": "10000",
                      "depositBranchCode": "R01",
                      "amountBlockNo": "AB1459097392860315649"
                  },
                  {
                      "depositAccountNumber": "R0100005575",
                      "depositCurrency": "USD",
                      "depositAmount": "10000",
                      "depositBranchCode": "R01",
                      "amountBlockNo": "AB1459097392860315650"
                  },
                  {
                      "depositAccountNumber": "R0100005577",
                      "depositCurrency": "USD",
                      "depositAmount": "10000",
                      "depositBranchCode": "R01",
                      "amountBlockNo": "AB1459097392860315651"
                  }
              ],
              "errors": []
          }
  }


  2.TD_CLOSE_LEIN_CONSUMER

  Request/Response

  SERVICE-CONSUMER = OBRL_DEPOSIT_SYS
  SERVICE-CONSUMER-SERVICE= TD_CLOSE_LEIN_CONSUMER


  Request

     {
    "headers" : {
      "branchcode" : [ "000" ],
      "entityid" : [ "DEFAULTENTITY" ],
      "userid" : [ "YATHIKA" ],
      "appid" : [ "CMNCORE" ],
  	"service-consumer" : [ "OBRL_DEPOSIT_SYS" ],
  	"service-consumer-service" : [ "TD_CLOSE_LEIN_CONSUMER" ]
    },
    "body": {
          "amountBlockDtoList": [
              {
                  "amountBlockNo": "AB1459097392860315649"
              }
          ]
      }
  }


  Response

  "body": {
          "data": {
              "success": "Y",
              "amountBlockRefNo": "AR1458440798950604810",
              "amountBlockDtoList": [
                  {
                      "depositAccountNumber": "R0100005569",
                      "depositCurrency": "USD",
                      "depositAmount": "5000",
                      "depositBranchCode": "R01",
                      "amountBlockNo": "AB1459097392860315649"
                  }
              ],
              "errors": []
         }}


  3.TD_MODIFY_LEIN_CONSUMER

  Request/Response

  SERVICE-CONSUMER = OBRL_DEPOSIT_SYS
  SERVICE-CONSUMER-SERVICE= TD_MODIFY_LEIN_CONSUMER


  Request

  {
    "headers" : {
      "branchcode" : [ "000" ],
      "entityid" : [ "DEFAULTENTITY" ],
      "userid" : [ "YATHIKA" ],
      "appid" : [ "CMNCORE" ],
  	"service-consumer" : [ "OBRL_DEPOSIT_SYS" ],
  	"service-consumer-service" : [ "TD_MODIFY_LEIN_CONSUMER" ]
    },
      "body": {
          "amountBlockDtoList": [
              {
                  "amountBlockNo": "AB1459097392860315650",
                  "depositAmount": "5000"
              }
          ]
      }
  }


  Response

  "body": {
          "data": {
              "success": "Y",
              "amountBlockRefNo": "AR1458440798950604810",
              "amountBlockDtoList": [
                  {
                      "depositAccountNumber": "R0100005575",
                      "depositCurrency": "USD",
                      "depositAmount": "5000",
                      "depositBranchCode": "R01",
                      "amountBlockNo": "AB1459097392860315650"
                  }
              ],
              "errors": []
          }
      }


  4.TD_DEPOSIT_DATA_CONSUMER

  Request/Response

  SERVICE-CONSUMER = OBRL_DEPOSIT_SYS
  SERVICE-CONSUMER-SERVICE= TD_DEPOSIT_DATA_CONSUMER

  Request

  {
    "headers" : {
      "branchcode" : [ "000" ],
      "entityid" : [ "DEFAULTENTITY" ],
      "userid" : [ "YATHIKA" ],
      "appid" : [ "CMNCORE" ],
  	"service-consumer" : [ "OBRL_DEPOSIT_SYS" ],
  	"service-consumer-service" : [ "TD_DEPOSIT_DATA_CONSUMER" ]
    },
      "body": {
          "depositAccounts": [
              {
                  "depositAccountNumber": "R0100005569",
                  "depositBranchCode": "R01"
              },
              {
                  "depositAccountNumber": "R0100005575",
                  "depositBranchCode": "R01"
              },
              {
                  "depositAccountNumber": "R0100005577",
                  "depositBranchCode": "R01"
              }
          ]
      }
  }


  Response

  "body": {
          "data": {
              "depositAccountList": [
                  {
                      "depositAccount": {
                          "depositAccountNumber": "R0100005569",
                          "depositAccountCurrency": "USD",
                          "depositBranchCode": "R01",
                          "depositCustomerNumber": "000005373",
                          "depositAvlBalance": "10000",
                          "depositBlockedAmt": "0",
                          "depositMaturityDate": "2018-12-01T00:00:00.000+00:00"
                      },
                      "errors": []
                  },
                  {
                      "depositAccount": {
                          "depositAccountNumber": "R0100005575",
                          "depositAccountCurrency": "USD",
                          "depositBranchCode": "R01",
                          "depositCustomerNumber": "000005373",
                          "depositAvlBalance": "10000",
                          "depositBlockedAmt": "0",
                          "depositMaturityDate": "2018-12-01T00:00:00.000+00:00"
                      },
                      "errors": []
                  },
                  {
                      "depositAccount": {
                          "depositAccountNumber": "R0100005577",
                          "depositAccountCurrency": "USD",
                          "depositBranchCode": "R01",
                          "depositCustomerNumber": "000005373",
                          "depositAvlBalance": "10000",
                          "depositBlockedAmt": "0",
                          "depositMaturityDate": "2018-12-01T00:00:00.000+00:00"
                      },
                      "errors": []
                  }
              ]
          }



  5. TD_AMOUNT_BLOCK_DATA_CONSUMER

  Request/Response

  SERVICE-CONSUMER = OBRL_DEPOSIT_SYS
  SERVICE-CONSUMER-SERVICE= TD_AMOUNT_BLOCK_DATA_CONSUMER

  Request

  {
    "headers" : {
      "branchcode" : [ "000" ],
      "entityid" : [ "DEFAULTENTITY" ],
      "userid" : [ "YATHIKA" ],
      "appid" : [ "CMNCORE" ],
  	"service-consumer" : [ "OBRL_DEPOSIT_SYS" ],
  	"service-consumer-service" : [ "TD_AMOUNT_BLOCK_DATA_CONSUMER" ]
    },
      "body": {
          "amountBlockNumber": "AB1442518924219596801"
      }
  }


  Response

  "body": {
          "data": {
              "depositAmountBlock": {
                  "depositAccountNumber": "R0100005202",
                  "amountBlockNumber": "AB1442518924219596801",
                  "amountBlockReferenceNumber": "AR1442518924219596800",
                  "blockedAmount": "200",
                  "blockExpirationDate": null,
                  "blockStatus": "O",
                  "blockAuthStatus": "A"
              },
              "errors": []
          }


6.TD_RATE_CONSUMER

Request/Response

SERVICE-CONSUMER = OBRL_DEPOSIT_SYS
SERVICE-CONSUMER-SERVICE= TD_RATE_CONSUMER

Request

{
  "headers" : {
    "branchcode" : [ "000" ],
    "entityid" : [ "DEFAULTENTITY" ],
    "userid" : [ "YATHIKA" ],
    "appid" : [ "CMNCORE" ],
	"service-consumer" : [ "OBRL_DEPOSIT_SYS" ],
	"service-consumer-service" : [ "TD_RATE_CONSUMER" ]
  },
    "body": {
        "depositAccountNumber": "INS00154353",
        "depositBranch": "INS"
    }
}

Response

"body": {
        "data": {
            "depositDetails": [
                {
                    "depositAccountNumber": "INS00154353",
                    "depositBranch": "INS",
                    "depositRate": "6.0",
                    "rateEffectiveDate": "2019-01-25T00:00:00.000+00:00"
                }
            ]
        }
