5 Configure Weblogic Console

After the user creates the domain, the SSL needs to be enabled in the WebLogic admin server.

To enable SSL in WebLogic admin server:

1. Select Admin Server to enable SSL options.

   Figure 5-1 Enabling SSL Options





   Description of "Figure 5-1 Enabling SSL Options"



2. In the General tab, follow the steps below:
   1. Select SSL Listen Port Enabled, Client Cert Proxy Enabled, and then Weblogic Plug-In Enabled.

      Figure 5-2 General Tab





      Description of "Figure 5-2 General Tab"



   2. Click Save.

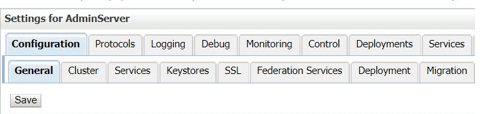

      Figure 5-3 Settings for Admin Server





      Description of "Figure 5-3 Settings for Admin Server"



3. In the Keystores tab, follow the below steps:
   1. In the Keystores tab, specify the details. For more information on fields, refer to the field description table.

      Table 5-1 Keystores - Field Description

      Field	Description
      Custom Identity Keystore and Custom Trust Keystore	Specify the value as same as the Keystore Name created in the above steps with full path.
      Custom Identity Keystore Type and Custom Trust Keystore Type	Specify the value as jks.
      Custom Identity Keystore Passphrase, Confirm Custom Identity Keystore Passphrase, Custom Trust Keystore Passphrase, and Confirm Custom Trust Keystore Passphrase	Specify the value as same as the Store Password entered in the above steps.

   2. Click Save.
4. In the SSL tab, follow the below steps:
   1. In the SSL tab, specify the details. For more information on fields, refer to the field description table.

      Table 5-2 SSL - Field Description

      Field	Description
      Private Key Alias	Specify the value as same as the alias name entered in the above steps.
      Private Key Passphrase and Confirm Private Key Passphrase	Specify the value as same as the Private Key Password entered in the above steps.
      Hostname Verification	Change the value to None.

   2. Click Save.

      Figure 5-4 Hostname Verification





      Description of "Figure 5-4 Hostname Verification"



      The screen with the Hostname Verification option is displayed.
   3. Repeat steps (a) thru (d) for all the managed servers.
      The admin server and managed servers are SSL enabled.
   4. Restart all the servers.
