2.9.2 View Limits

This topic describes the systematic instruction to view, modify, delete, or authorize limits records that have been created.

A tile is present for each record that has been created. The bottom portion of each record-tile displays the following:

• The status, whether Authorized, Unauthorized, or Rejected
• Open or Closed
• The number of times the record has been submitted by the Maker added.

Specify User ID and Password, and login to Home screen.

1. On Home screen, click Supply Chain Finance. Under Supply Chain Finance, click Maintenance.
2. Under Maintenance, click Limits Structure. Under Limits Structure, click View Limits.
   The View Limits screen displays.

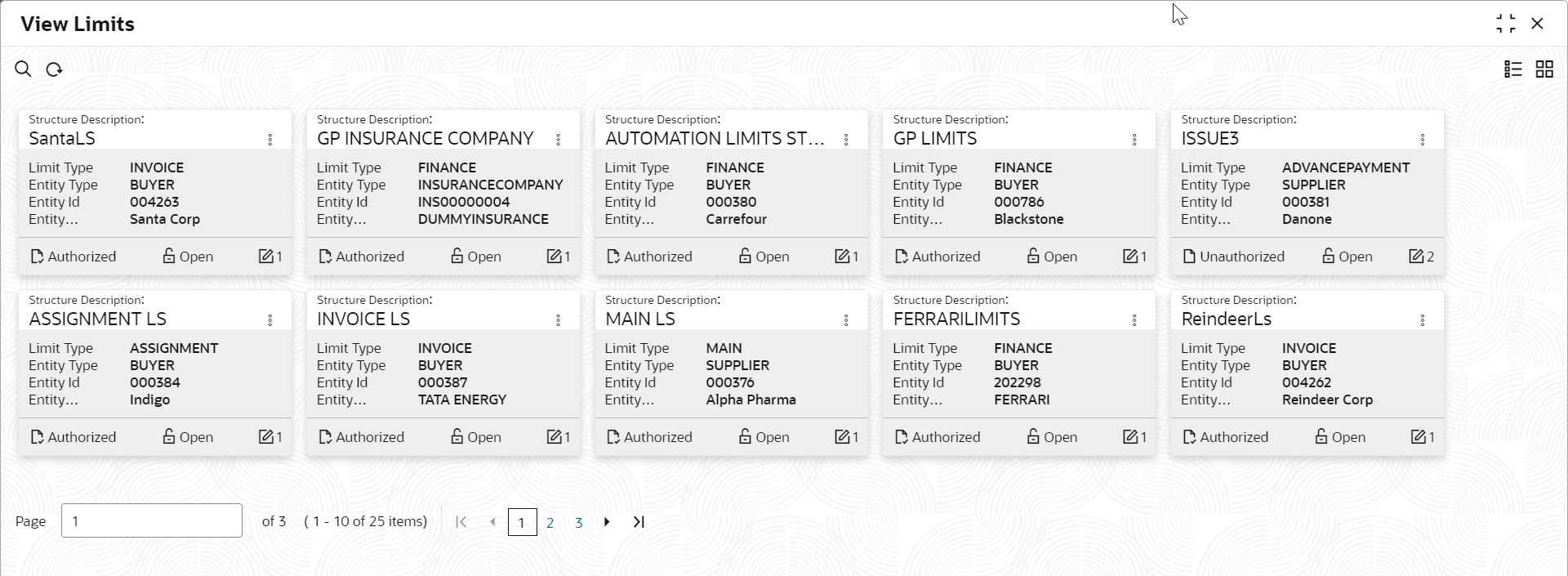

   Figure 2-68 View Limits





   Description of "Figure 2-68 View Limits"



3. Filter the records in the View screen:
   1. Click Search icon to view the filters. The user can filter the records by Structure Description, Limit Type, Entity Type, Entity Id, Entity Description, Record Status, and Authorization Status.
   2. Select the required filter criteria and click Search button to filter the records.
   3. Click Reset to reset the filter criteria.
4. Click Refresh icon to refresh the records.
5. Click Options icon and then, select any of the following options:
   1. Unlock – To modify the record details. Refer to the Create screen for the field level details.
      • Click Audit to view the maker details, checker details of the record.
      • Click Show History hyperlink to view the historical data of the record.
   2. Authorize – To authorize or reject the record. Authorizing/Rejecting requires necessary access rights.
      • Optional: Click View to view the record details.
      • If there are more than one modification, Click Compare to view the comparison through the field values of old record and the current record.
      • Select the record and click Approve to approve the record.
      • Select the record and click Reject to reject the record. Specify the relevant comments in the pop-up window that appears, and click Confirm.
   3. Delete/Close – To remove the record.
      • Optional: In the confirmation pop-up window, click View to view the record details.
      • Click Proceed to delete the record.
   4. Copy – To copy the record parameters for creating a new record.
   5. View – To view the record details.
   6. Reopen – To reopen the closed record.
