1.3.1 Deploying Integration Adapter EAR from WebLogic Administration Console

To deploy Oracle FLEXCUBE Application from Oracle WebLogic administration console, follow the steps given below.

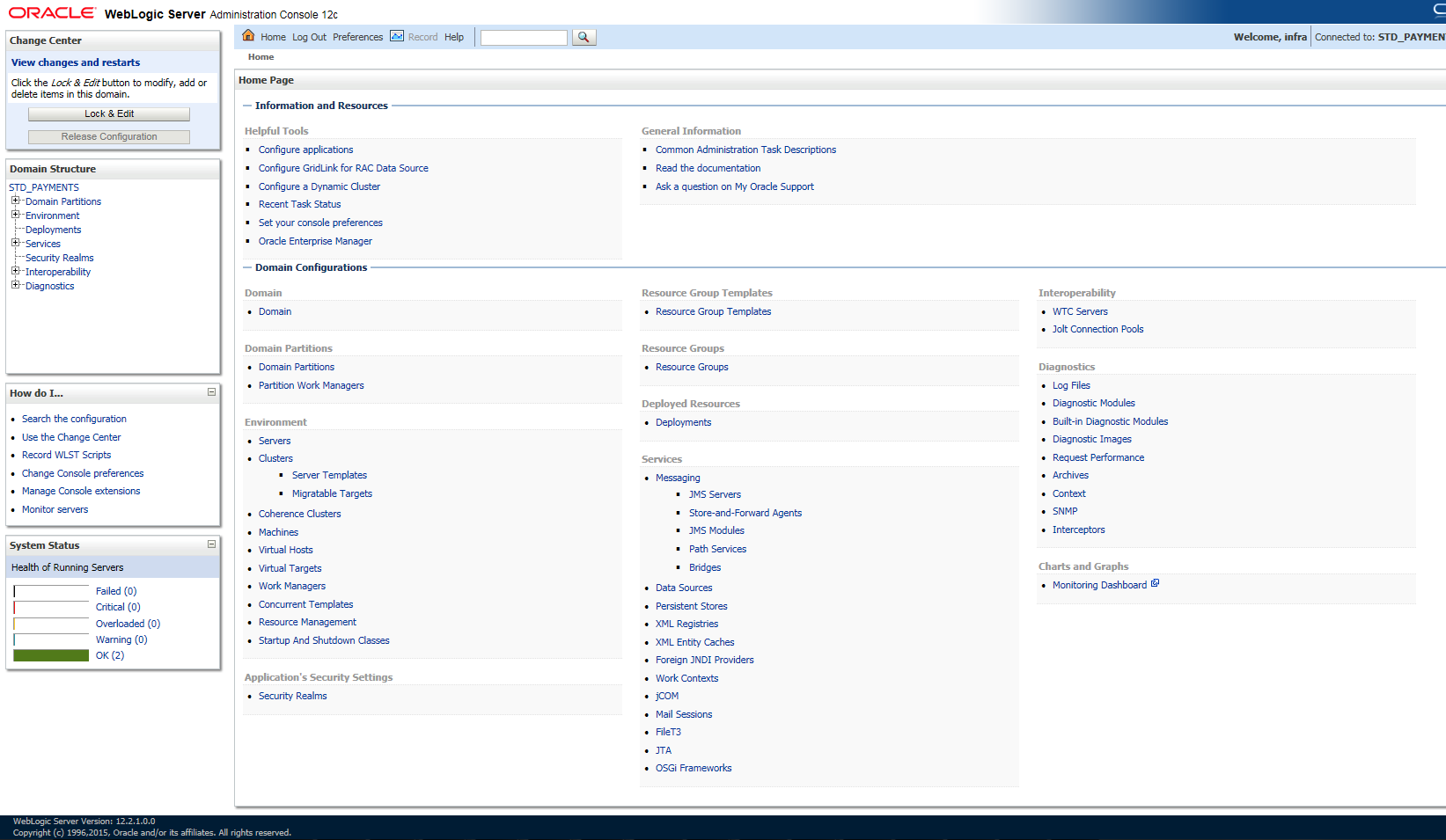

  1. Start the Administrative Console of WebLogic application server. You can start this by entering Oracle WebLogic Admin Console URL in the address bar in an internet browser.
  2. Specify the WebLogic administrator user name and password. Click ‘Log In’.

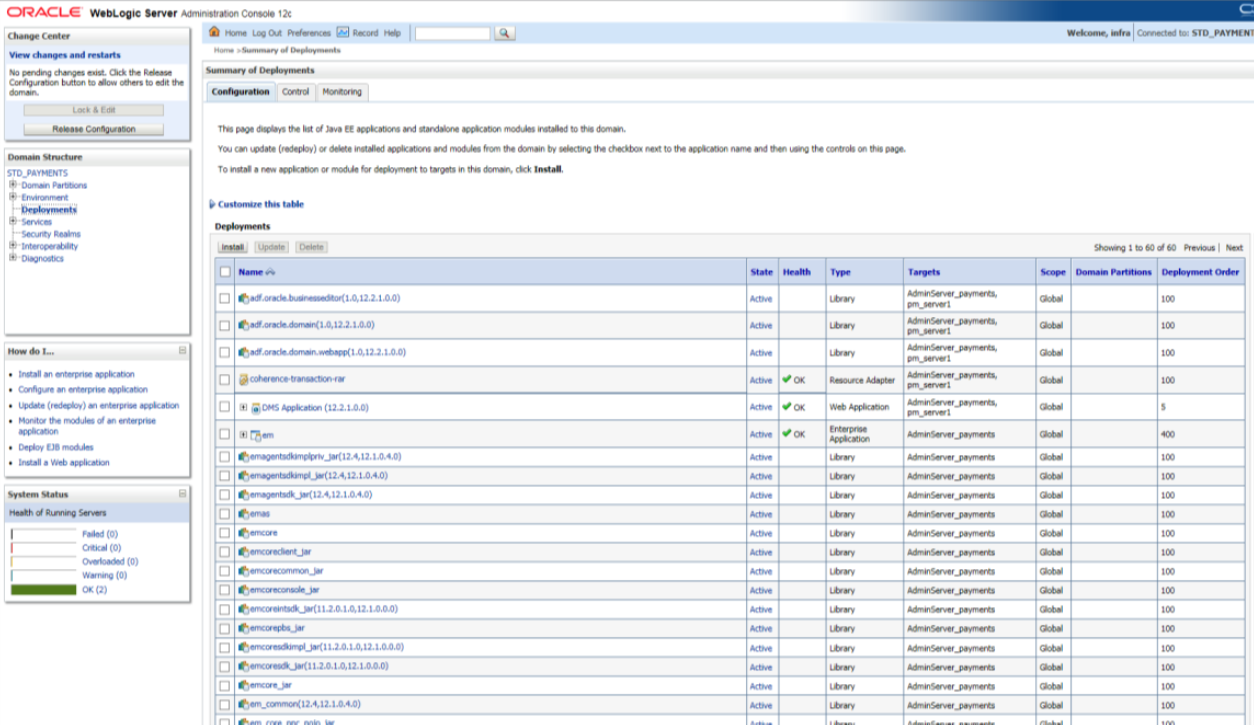

  3. You need to deploy an Integration adapter EAR. For example ‘OBCLExtAdapter.ear or ExtAdapter.ear’. Go to ‘Deployment’.
    Click ‘Lock & Edit’ button to enable the buttons. This action enables the buttons.
    Description of 1.3.1_s3_login_edit.png follows
    Description of the illustration 1.3.1_s3_login_edit.png

  4. Click ‘Install’ button. The following screen is displayed:
    Description of 1.3.1_s4_install.png follows
    Description of the illustration 1.3.1_s4_install.png

  5. In order to specify the path/location of the enterprise archive file, click the link ‘upload your file(s)’.
  6. Specify the EAR file path. You can use the ‘Browse’ button to locate the file.
  7. Click ‘Next’. The following screen is displayed.

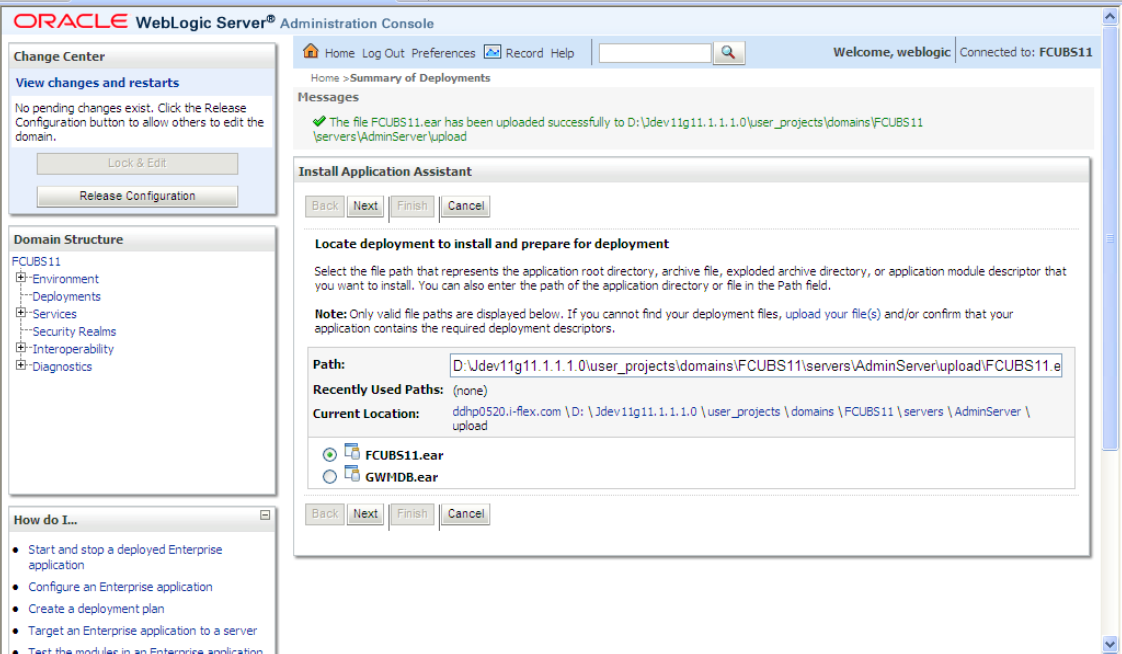

    Description of 1.3.1_s7_adapter-ear.png follows
    Description of the illustration 1.3.1_s7_adapter-ear.png

  8. Select the application Adapter EAR from the list.
  9. Click ‘Next’. Following screen is displayed:

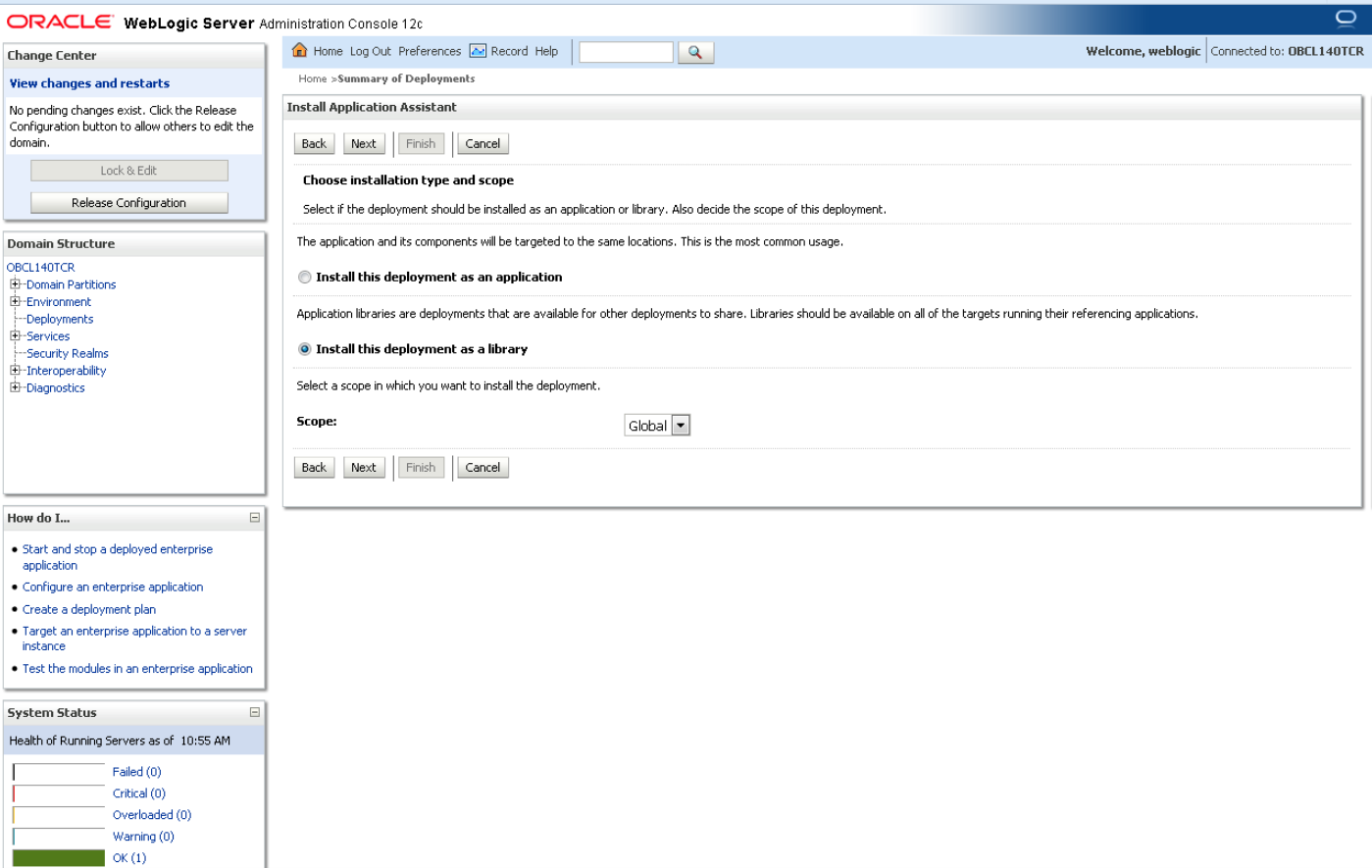

    Description of 1.3.1_s10_install-this-deployment-library.png follows
    Description of the illustration 1.3.1_s10_install-this-deployment-library.png

  10. Choose the targeting style ‘Install this deployment as a library’.
  11. Click ‘Next’. The following screen is displayed.

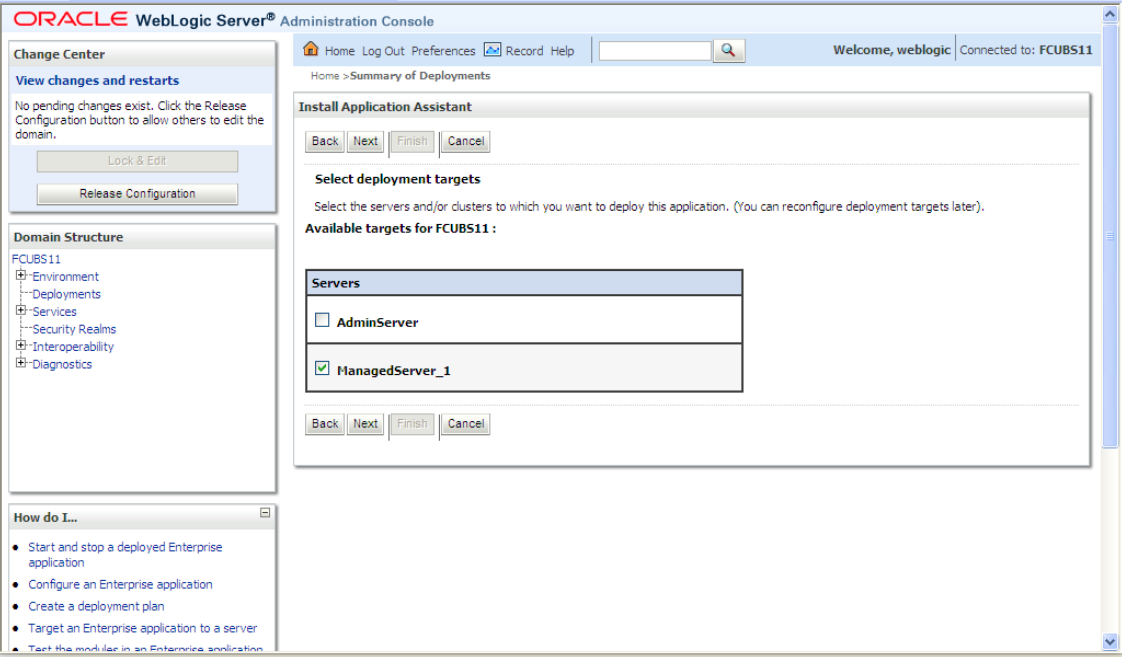

    Description of 1.3.1_s13_managed-server.png follows
    Description of the illustration 1.3.1_s13_managed-server.png

  12. Select the target of the application. You can choose the server ‘AdminServer’ or ‘Managed Server(s)’.
  13. Click ‘Next’. The following screen is displayed.

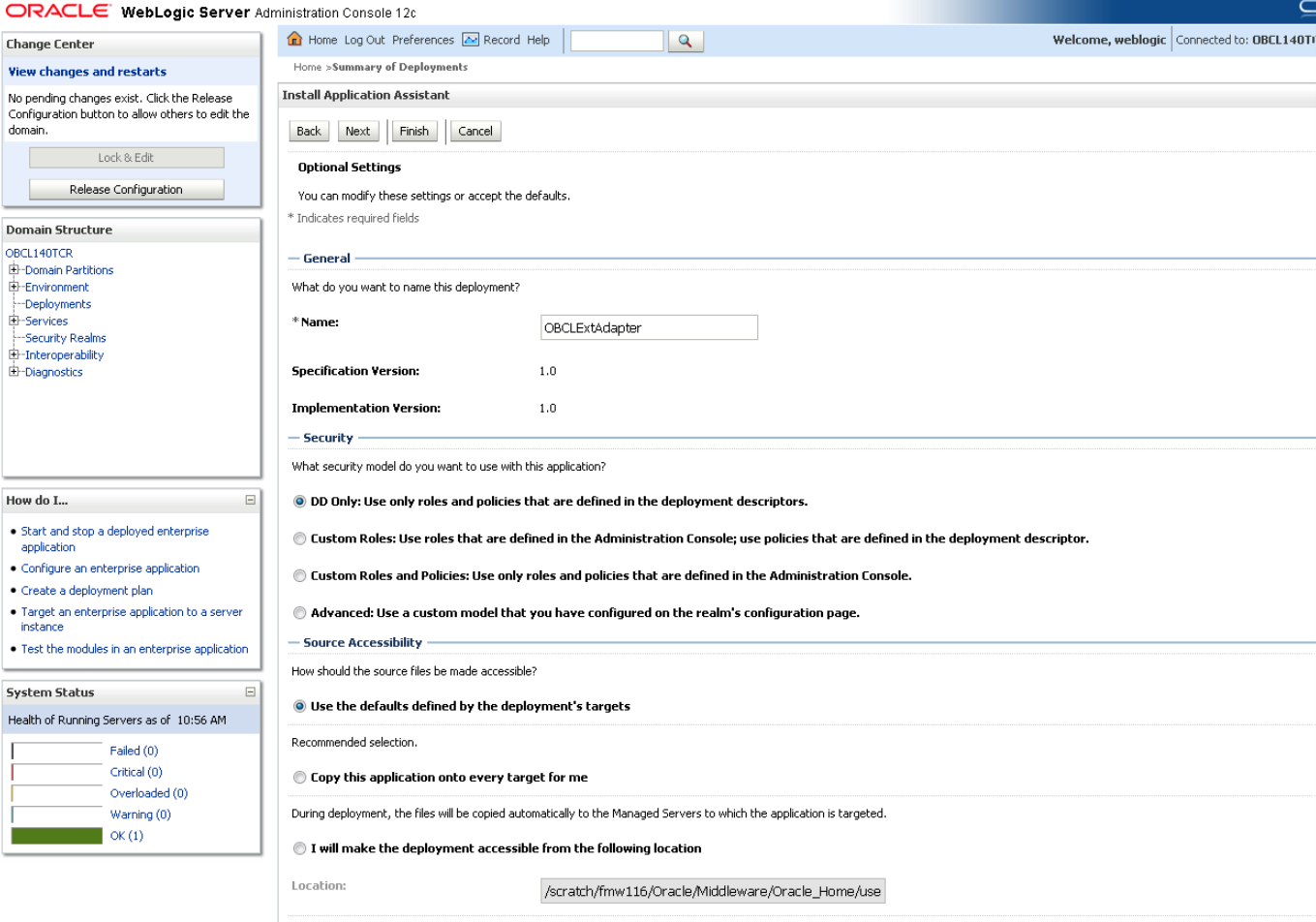

    Description of 1.3.1_s14_next.png follows
    Description of the illustration 1.3.1_s14_next.png

  14. Check the deployment name.
  15. The remaining portion of the screen is shown below:

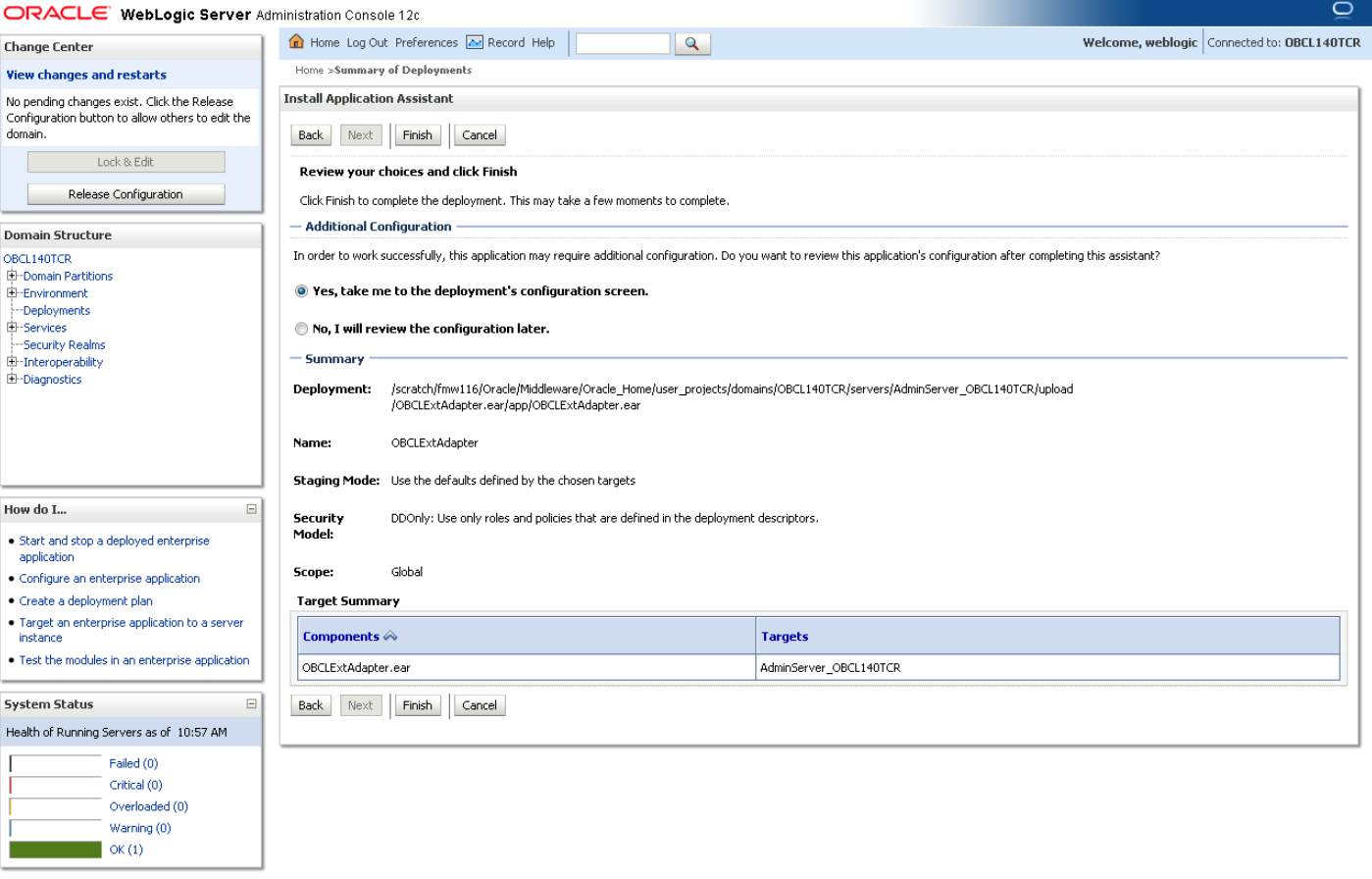

    Description of 1.3.1_s16_deployment-screen.png follows
    Description of the illustration 1.3.1_s16_deployment-screen.png

  16. Click ‘Finish’ button. The following screen is displayed.

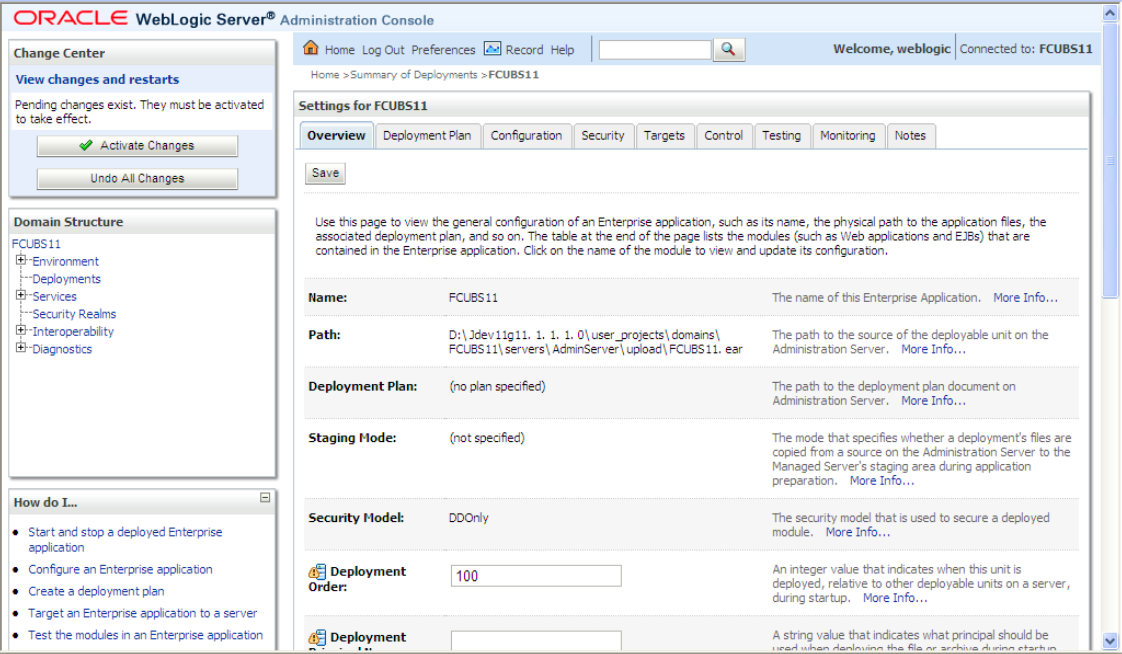

    Description of 1.3.1_s17_finish.png follows
    Description of the illustration 1.3.1_s17_finish.png

  17. Click ‘Save’ button. The message ‘Settings updated successfully’ is displayed.

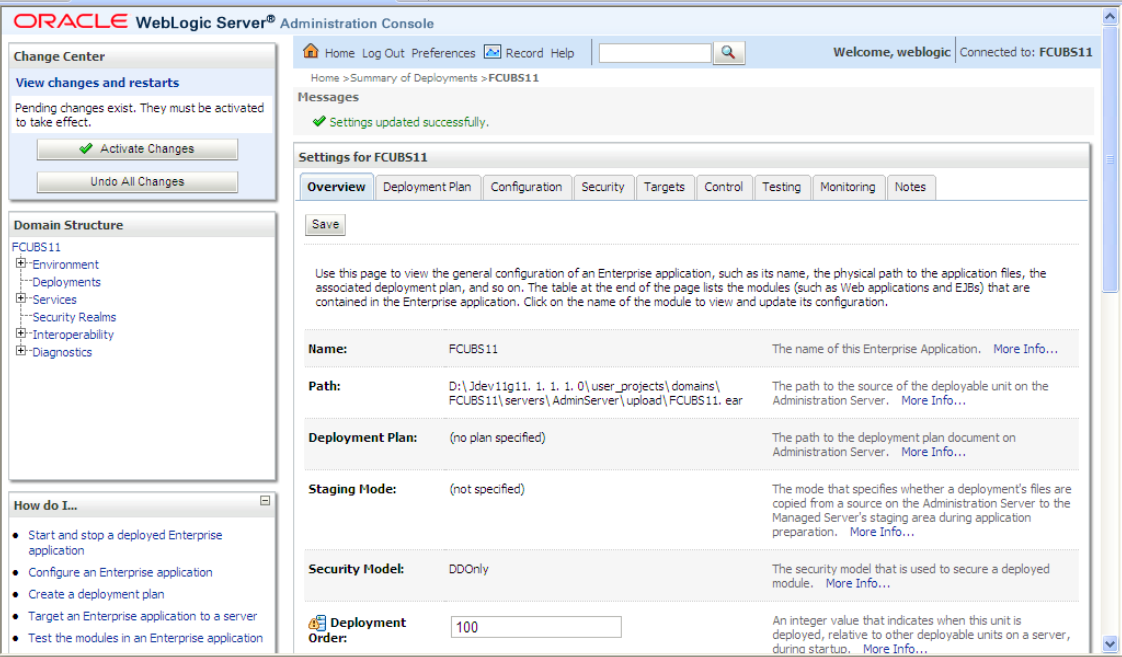

    Description of 1.3.1_s18_save.png follows
    Description of the illustration 1.3.1_s18_save.png

  18. Click ‘Activate Changes’ button on the left pane. The message ‘All the changes have been activated. No restarts are necessary’ is displayed.
