1.2.1.2 Problem Simulation

This topic describes the problem simulation in performance issues faced at the screen level.

1. To capture the performance lag reports along with process timing, the user needs to maintain these details in the system under the Performance Diagnostic Plugin (OLTP) Maintenance screen as specified under Maintain Performance Diagnostic Plugin.

   Table 1-2 Performance Diagnostic Plugin (OLTP) Maintenance - Example

   Field	Description
   User ID	TEST_USER
   Function ID	STDCIF
   Action	EXECUTEQUERY

   As per the requirement, the user needs to capture process timings, TKPROF and Application Log. The selected trace value would be ALL that is it is a combination of all the trace value options.

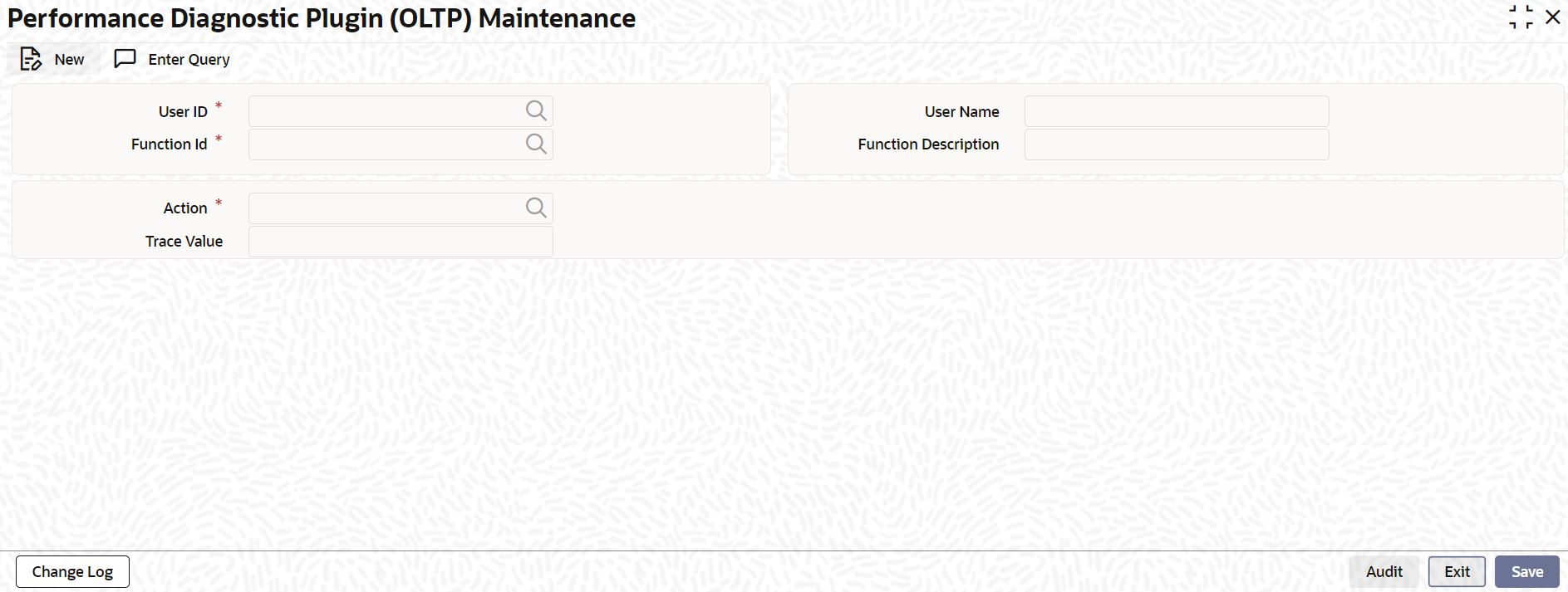

   Figure 1-2 Performance Diagnostic Plugin (OLTP) Maintenance





   Description of "Figure 1-2 Performance Diagnostic Plugin (OLTP) Maintenance"



2. Once the above maintenance is completed, the user must log in to the Customer Maintenance screen with user ID TEST_USER, and query for a customer record. Click Enter Query and input the customer number. later, click Execute Query.
3. Due to the performance issue faced by the user, fetching of the customer details might takes few minutes. Once the details are displayed, the required performance lag reports are captured into their respective folders/tables as configured.
