7.2 Steps to Deploy Conductor Process

This topic provides systematic instruction to deploy Conductor Process.

Note:

• Server names, Domain names need not to be same as this document provides.
• Steps to Deploy a process remains the same for all the process files.

1. Launch the Postman.
2. Create a new Request (if not done already) and select “POST” method. Use the “PUT” method to update the already deployed process.
3. Input the header params and conductor url (http://LOCALHOST:PORT/plato-orch/api/metadata/workflow) as shown below.

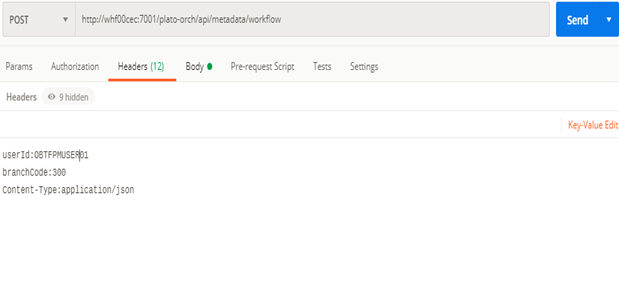

   Description of the illustration postman1.png


4. Paste the body of the request with the content from the process file.

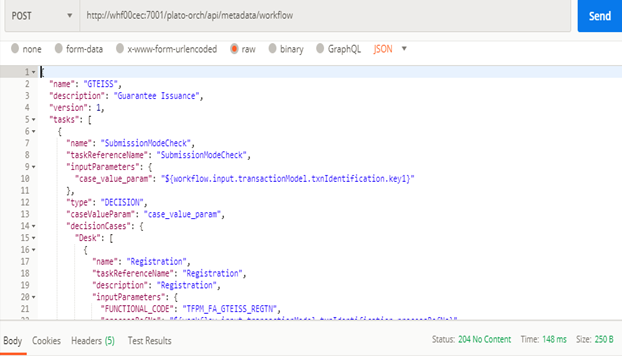

   Description of the illustration postman2.png


5. Click “Send”. Make sure the response status “204” is returned from server.

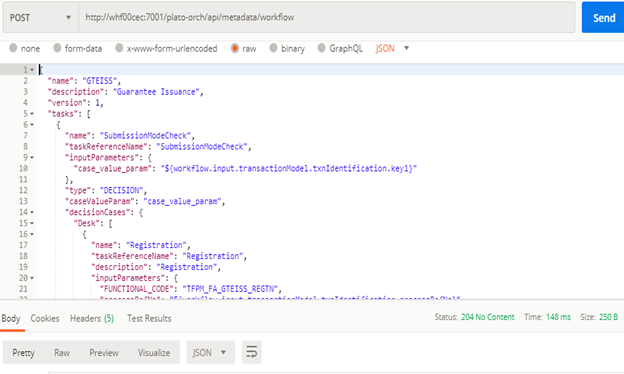

   Description of the illustration postman3.png
