Process Function Inputs

Prior to maintaining the mandatory programs, you must first maintain the function inputs for Batch EOD Functions.

1. On the Home page, type BADEODFE in the text box, and then click next arrow.
   The Batch EOD Function Inputs screen is displayed.

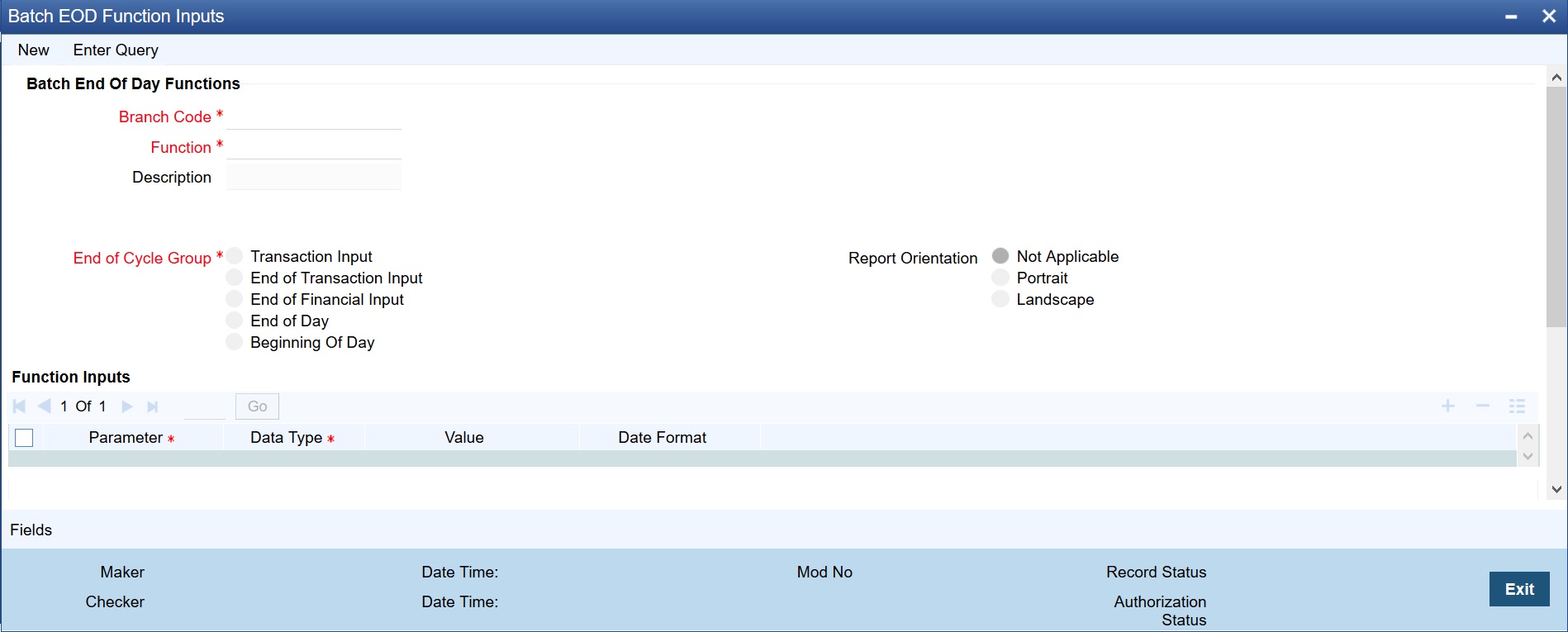

   Figure 9-2 Batch EOD Function Inputs


   Description of "Figure 9-2 Batch EOD Function Inputs"
2. On the Batch EOD Function Inputs screen, click New.
3. On the Batch EOD Function Inputs screen, specify the fields details, and then click Enter Query.

   Table 9-13 Batch EOD Function Inputs - Field Description

   Field	Description
   Branch Code	Select the Branch of the bank involved
   Function	Select the Function Identification of the EOD function EDINPRHF for Instrument Price Details Hand-off EDINSTHF for Instrument Details Hand-off
   End of Cycle Group	Select the End of Cycle Group to which the function belongs (in this case you must choose End Of Day)
   Report Orientation	Select Orientation of the generated report (this is optional)

   After specifying the above details, you can add the input of the function for the function in the Function Inputs table. You must mandatorily specify the Parameter and Data Type for each function. Now you can proceed with maintaining the Instrument Batch Hand-off process as a mandatory program.
