2.4 Shared Application with Shared Data - Custom

This uses Application Container in 18C, Single front-end application and an URL. Sharing of Entities from Approot to individual PDBs.

• Application is deployed in an Application Container.
• Source code at Approot level shared with PDBs.
• Data Model at Approot level shared with PDBs.
• Single Front-end Application and Single URL.
• Sharing of Entities/data like:
  • User Authentication, SMS Roles
  • Core Entities like Country, Currency, MIS Classes, UDFs
  • Chart of Account, Product, Account Class
• User can opt-out the entities which are not required to be the candidates of approot and move to PDB.

Sample of components deployed in Shared Application and Shared Data model is given below:

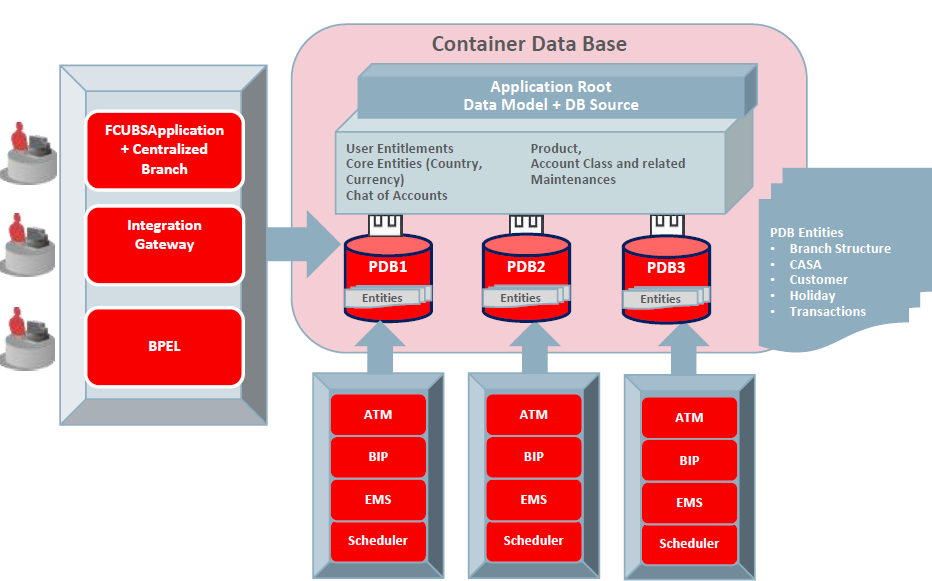

Figure 2-4 Component Deployment Architecture

Description of "Figure 2-4 Component Deployment Architecture"

Application and Gateway are common and single URL is available for the application. ATM, BIP, EMS, Scheduler has to be configured separately for each PDBs.
