1.5 Setting SMTPS/DMS details

This section describes the method to configure email details and SMTPS/DMS properties whichever is required.

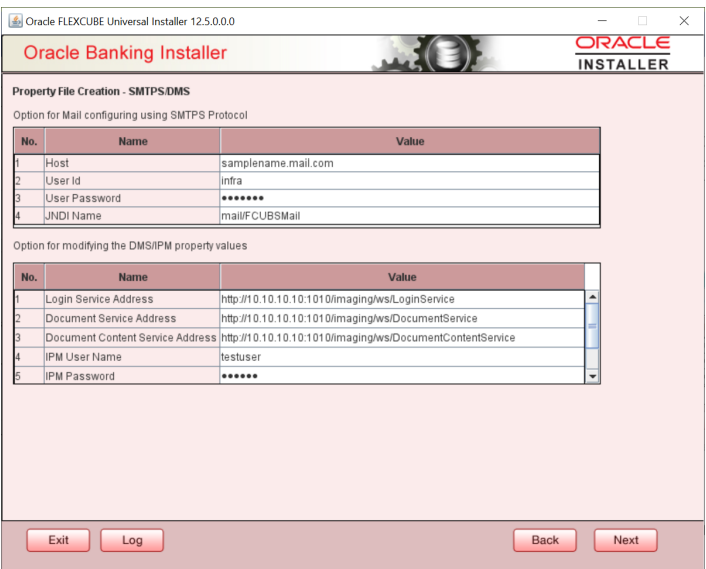

Figure 1-15 Setting SMTPS/DMS details

Description of "Figure 1-15 Setting SMTPS/DMS details"

For SMPTS protocol, specify the following details.

Table 1-6 Options for Mail configuration

Field	Description
Host	Specify the SMTP host name.
User ID	Specify the user ID.
User Password	Specify the user password.
JNDI Name	Specify the JNDI name. In the next table specify the branch properties like Date Seperator, WorkFLow frequency, Compress Request as required.

DMS/IPM Properties table is enabled only if DMS plug-in is enabled. Specify the following details:

Table 1-7 DMS/IPM Properties

Field	Description
Login Service Address	This is the endpoint address of the web service (OracleIPM.WebService.EndpointAddress).
Document Service Address	This is the URL to which the Oracle IPM adapter uploads the documents (OracleIPM11G.DocumentService.EndpointAddress).
Document Content Service Address	This is the URL to which the Oracle IPM adapter uploads the documents (OracleIPM11G.Document ConetntService.EndpointAddress). Example for Login Service Address: Weblogic: http://10.10.10.10:1010/imaging/ws/LoginService In the ablove URL replace LoginService with DocumentService and DocumentContentService respectively for Document Service Address and Document Content Service Address as well.
IPM User Name	This is the user name accessing Oracle IPM (OracleIPM11G.Authentication.UserName).
IPM Password	This is the password for the above IPM user name (OracleIPM11G.Authentication.Password).
IPM Application Name	This indicates the license that provides login rights to Oracle IPM (OracleIPM11G.Application).
HTTP Session Maintain	This check box indicates whether HTTP session to be maintained or not (OracleIPM11G.MaintainSession).

Once you have specified the above details, click Next and system displays the next screen.
