2.2 Maintain Message Types

This topic provides systematic instructions to maintain message types.

1. On Homevpage, specify MSDTRMTM in the text box, and click Next.
   Treasury Message Type Maintenance screen displays.

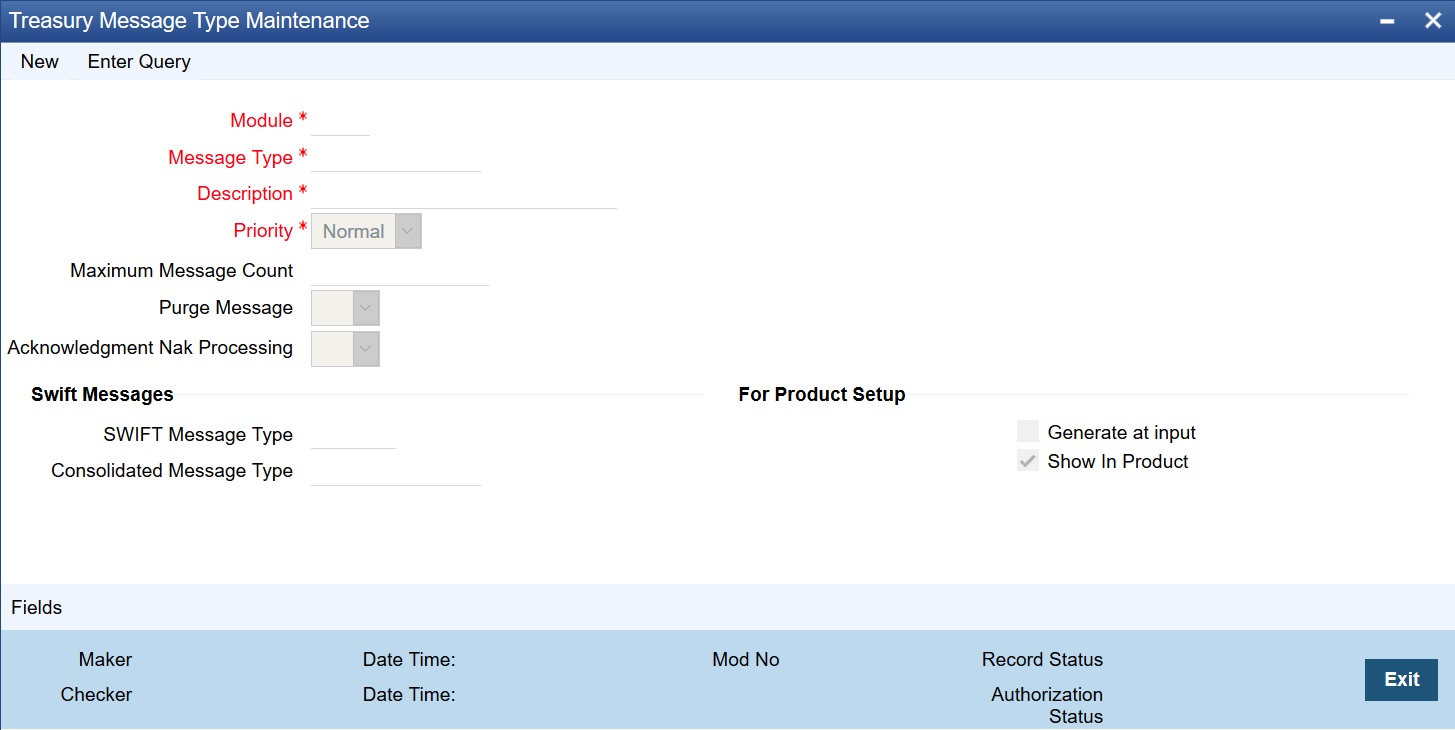

   Figure 2-2 Treasury Message Type Maintenance


   Description of "Figure 2-2 Treasury Message Type Maintenance"
2. On Treasury Message Type Maintenance screen, specify the details.

   Table 2-2 Message Type Maintenance - Field Description

   Field	Description
   Module	Specify the module from the adjoining option list.
   Message Type	Specify the message type for which SWIFT codes can be maintained.
   Description	Specify a brief description of the message type.
   Priority	Specify the priority in which a message is to be sent. Change the priority, if required. To change the priority specified for a message, click the button marked Change Priority. Thereafter, select an option from the option list that is available for this field. Normal Medium High
   Maximum Message Count	Specify the maximum message count.
   Purge Message	Select whether to purge message from the drop-down list. Yes No
   Acknowledgment Nak Processing	Select option from the drop-down list. Yes No
   SWIFT Message Type	This field indicates the SWIFT message type in the free format message. For example: The Message Type as CUST_TRANSFER in IS module, the user needs to indicate the message type as MT103.
   Consolidated Message Type	Select consolidated message type from the adjoining option list.
   Generate at input	Check this box to indicate that this message is to be generated at the time of input of the contract, and not after authorization.
   Show In Product	Check this box to indicate that this message will be available in the product to be maintained against a particular event.

3. Click the Exit button to end the transaction.
