1.4 Trigger User Defined Events Automatically

This topic describes the systematic instruction to trigger user defined events Automatically.

You can add the user defined event batch to the mandatory programs to be run for the module, using the Mandatory Batch Program Maintenance screen.

Specify User ID and Password and login to Home screen.

1. On Home screen, type EIDMANPE in the text box, and click next.
   Mandatory Batch Program Maintenance screen displays.

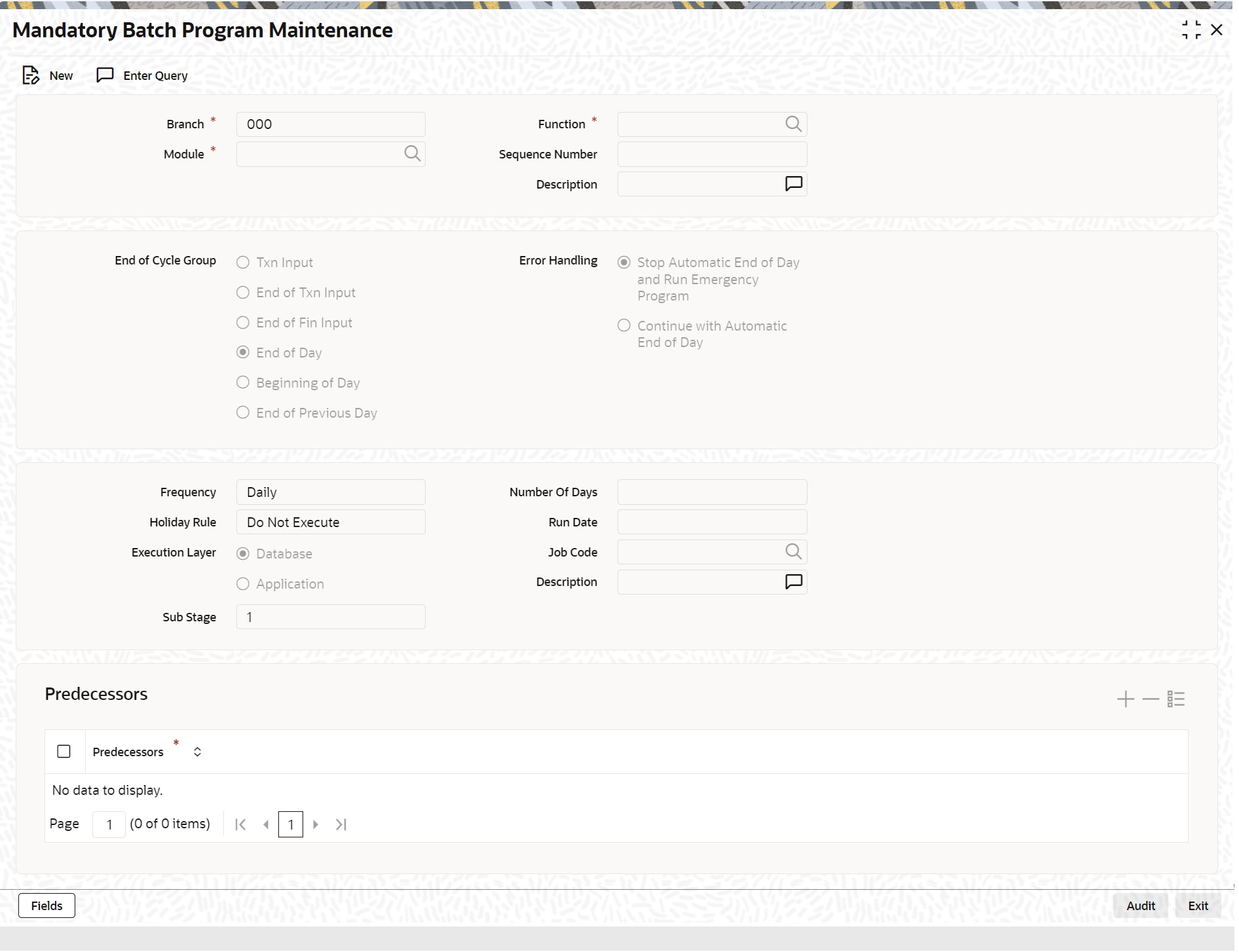

   Figure 1-12 Mandatory Batch Program Maintenance


   Description of "Figure 1-12 Mandatory Batch Program Maintenance"
2. On the Mandatory Batch Program Maintenance screen, specify the fields.

   Note:

   The fields which are marked in asterisk are mandatory.

   For more information on fields, refer to the field description table.

   Table 1-16 Mandatory Batch Program Maintenance - Field Description

   Field	Description
   Module	Choose the module code from the adjoining option list.
   Function	Specify UDBTFEVT as the batch that needs to be run.
   End of Cycle Group	Select the option End Of Transaction Input.

3. Click the Exit button to close the screen.
