3.1 Environment Detailed

This topic provides systematic instructions to get the Environment details.

1. Click on the detailed node of environment.
2. Click on the new button.
   The Environment Master screen displays.

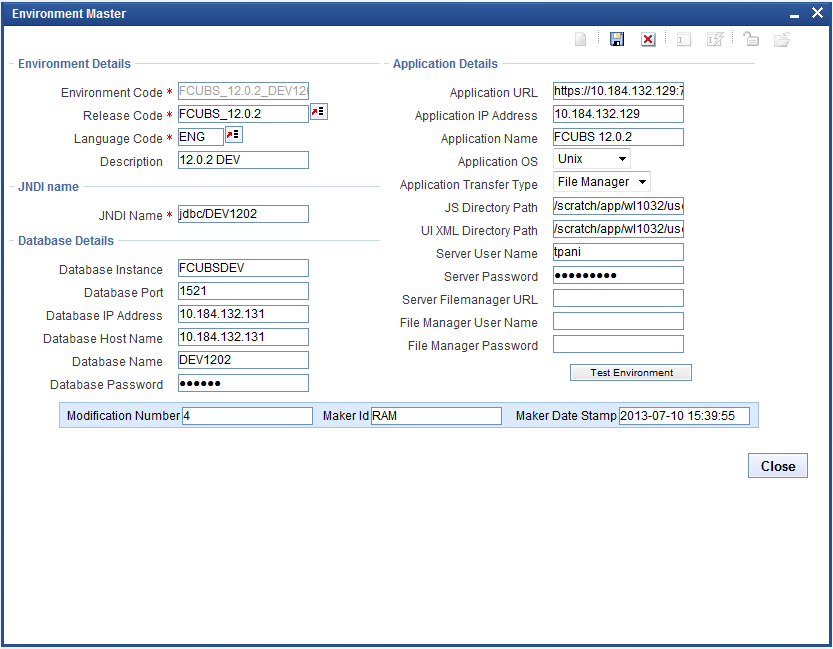

   Figure 3-2 Environment Master





   Description of "Figure 3-2 Environment Master"



3. Specify the following details.

   Table 3-1 Environment Details

   Field	Description
   Environment Code	This is a mandatory field. The naming convention would be <release code>_ENV. For Example, FCUBS11.4_MODEL_BANK_ENV
   Release Code	This is a mandatory field. Select the correct release code from the list of values. This field identifies the release to which the environment is mapped
   Language Code	This is a mandatory field. Select the required language from LOV. This field is very important in environment creation as screen XML will be generated based on the language set up at the environment level. List of values fetches the available languages from RDTM_LANGUAGE. Any new language, if required, has to be maintained in this table.
   Description	Information field. Meaningful description of environment code.

   Table 3-2 JNDI Name

   Field

   Description

   JNDI Name

   Enter valid JNDI name. This is mandatory. It should match with the JNDI name used while creation of Data Source for FLEXCUBE in the app server. It’s case-sensitive. Connection to the FLEXCUBE schema is established from Workbench using the JNDI name maintained in the environment definition. If the JNDI name does not match the database connection to the FLEXCUBE schema won’t happen. For instance: If the server is Apache Tomcat, JNDI provided in environment creation should match with JNDI provided in server.xml and context.xml. If the server is web logic, JNDI provided in environment creation should match with JNDI of the data source created. Note: Dynamic Registering of Data Source with JNDI: Dynamic Data Source Registering feature avoids the need of creating Data Source manually in the Application Server. To enable this feature, the Provider URL value has to be provided during installation. A new data source will be added to the JNDI context using the DataBase details provided while creating the Environment (explained below). An Example of Properties to be specified in odt.properties for WebLogic Server is given below INITIAL_CONTEXT_FACTORY=weblogic.jndi.WLInitialContextFactory PROVIDER_URL=t3://localhost:7101 This feature won’t be available if the JNDI context is read only. For Example : Apache tomcat Server

   The FLEXCUBE database server details of the environment can be provided here. These are information fields. The database connection is achieved through JNDI maintained and not with help of data provided in these fields unless dynamic registering of the Data Source feature is available.

   Table 3-3 Data Base Details

   Field	Description
   Data Base Instance	Enter the valid database instance name.
   Data Base Port	Enter database port number.
   Data Base IP Address	Enter database IP address.
   Data Base Host Name	Enter the hostname or IP address of the database.
   Data Base Name	Enter schema name.
   Data Base password	Enter schema password.

   If dynamic registering of Data Source feature is not available then the following has to be taken care:

   1. If the password of the FLEXCUBE schema is changed, merely changing the password in the Workbench environment wouldn’t be of any help. The developer will have to update the data source in the server with the latest credentials.
   2. If the JNDI of the data source is changed, the Application server has also to be updated with the same.

   Table 3-4 Application Details

   Field	Description
   Application URL	Enter valid FLEXCUBE URL and this will be launched from Workbench.
   Application IP Address	Enter the application IP address.
   Application Name	Enter application name. This is the information field.
   Application Operating System	Select the operating system on which FLEXCUBE is running; two options are provided: Windows or UNIX.
   Application transfer Type	If the user requires the Deploy option (Check the document Development Workbench- Screen Development II to get more details about deploy option), file transfer type has to be selected. File Transfer type depends on the operating system of the application server in which FLEXCUBE is hosted. Windows: File manager/File Copy UNIX: File Manager File Copy: Directly copies files into the specified location. File Manager: It is a Servlet (please check the File manager section in the appendix to get more details) running in an app server where FLEXCUBE is deployed. This Servlet has to be deployed in the same server where FLEXCUBE is hosted for copying files from the Workbench server. This has to be selected if the operating system is UNIX. Refer Appendix section for further details on File Manager.
   JS Directory Path	Enter the shared path of JavaScript files in the FLEXCUBE server. This is also required for deploy feature of Workbench. All the system JavaScript files generated will be copied to the path mentioned in this field. For Example: Windows: \\\\10.184.46.209\\js\\ (Each forward slash should be appended by one more), UNIX: /oraint1/web1034/Oracle/Middleware/user_projects/domains/FCUBSDevDomain/servers/FC114EXT/tmp/_WL_user/FC114EXT/eiq6wn/war/Script/JS/ (It should contain only single backward slash). Note that slash has to be provided, in the end, in the path provided. Make sure write permission is provided on this folder.
   UIXML Directory Path	Enter shared path of UIXML (language XML) files. This is also required for the deploy feature of WORKBENCH. All the system JavaScript files generated will be copied to the path mentioned in this field. For Example: Windows: \\\\10.184.46.209\\eng\\ , UNIX: /oraint1/web1034/Oracle/Middleware/user_projects/domains/FCUBSDevDomain/servers/FC114EXT/tmp/_WL_user/FC114EXT/eiq6wn/war/UIXML/ENG/. Note that slash has to be provided, in the end, in the path provided. Make sure write permission is provided on this folder. If Transfer Type is File manager then the below details have to be provided mandatorily.
   Server User Name	Enter application server user name.
   Serve Password	Enter application server password.
   File Manager URL	Enter file manager url as shown below. Format: http://<ipaddress>:<portnumber>/FileManager/FileManageServlet , For Example: http://10.184.74.143:7755/FileManager/FileManageServlet
   File Manager User Name	Enter a user name. This is an optional field.
   File Manager Password	Enter password. This is an optional field.
