6.1.10 Sections and Partitions

This topic describes about the sections and partitions.

Sections has to be created for each tab .Number of sections can vary depending upon the design requirement .All tabs should have at least one section Partitions should be added to each section. Number of partitions that can be added to a screen depends on the screen size When partitions are again divided, we get sub partitions Sections can be created either by:

• Selecting add section option from the right click menu for the Tab.
• By clicking on Add Section icon in top right of the Tab screen.

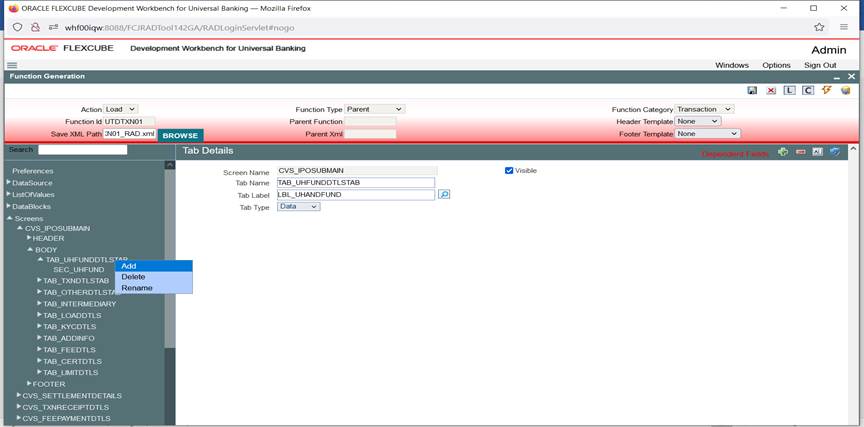

Figure 6-8 Adding a Section to a Tab

Description of "Figure 6-8 Adding a Section to a Tab"

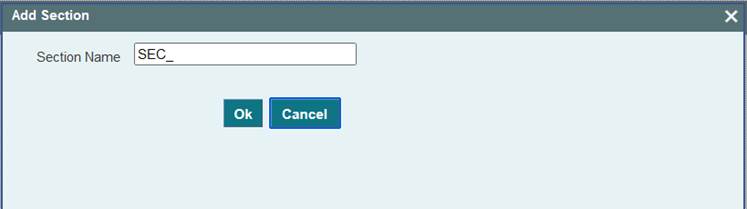

Figure 6-9 Adding Section window

Description of "Figure 6-9 Adding Section window"

Provide the name of the section in add section window. Section Name should start with SEC_. Example: SEC_ONE.

• Section Name: This field will be defaulted based on the section name provided while creation. It is a non- editable field.
• Collapse: If the section has to be made collapsible, this option can be checked.
• Visible: If the sections are not required in the screen, it can be made invisible. Note: sections created in previous releases cannot be deleted. Hence it can be made invisible to achieve the same.
• Multiple Section: Fieldset attached to this section will allow only multi entry block fields to be mapped to this fieldset. Mapping for single entry block will not be allowed if multiple section option is selected. If multiple section features is to be provided for a section then this option can be selected.

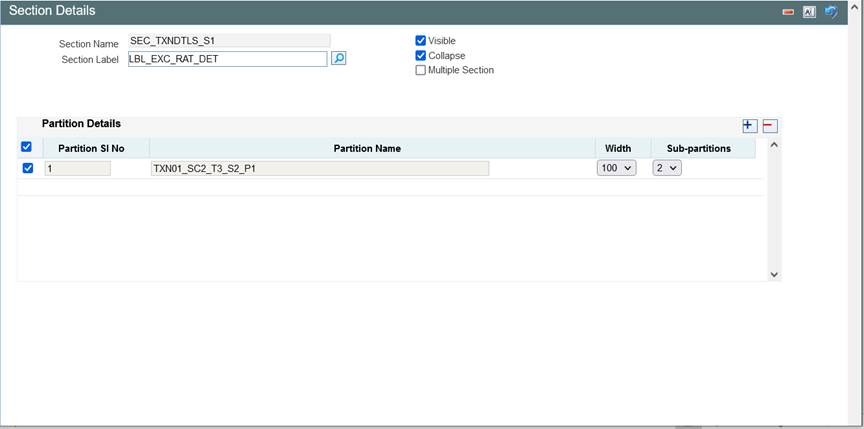

  Figure 6-10 Section Properties





  Description of "Figure 6-10 Section Properties"
