1.1 Create Property File for Open Development Tool

This topic provides systematic instructions to create a property file for the Open Development Tool.

  1. Run FCUBSInstaller.bat batch file in windows or FCUBSInstaller.sh in Linux to launch Oracle FLEXCUBE Universal Banking Solution Installer.

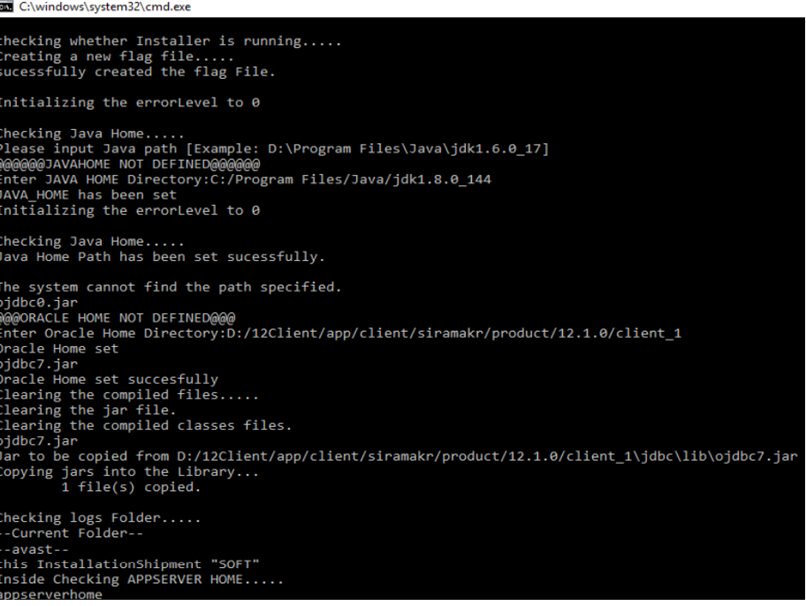

    Figure 1-1 Command prompt


    Description of Figure 1-1 follows
    Description of "Figure 1-1 Command prompt"

    Table 1-1 Command prompt screen - Field Description

    Field Description
    JAVA HOME PATH Provide the JAVA 8 home path.
    ORACLE HOME PATH Provide the Oracle Client Path.
    APPSERVER PATH Provide the Application Server Path.
  2. After providing the above details, INSTALLER-GUI is launched.
    The Welcome to Oracle FLEXCUBE screen is displayed.

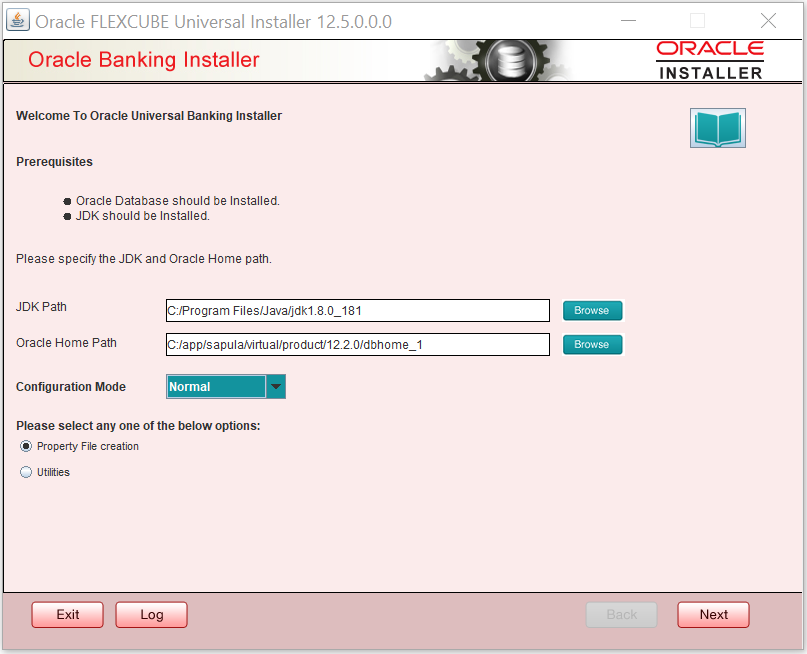

    Figure 1-2 Welcome to Oracle FLEXCUBE


    Description of Figure 1-2 follows
    Description of "Figure 1-2 Welcome to Oracle FLEXCUBE"

  3. On the Welcome to Oracle FLEXCUBE, specify the following details.

    For more information on fields, refer to the field description table.

    Table 1-2 Welcome to Oracle FLEXCUBE

    Field Description
    JDK Path Maintain Home folder path of JDK1.8.
    Oracle Home

    Maintain home folder path of Oracle Client or Database.

    Select one of the radio buttons

    1. Property File creation
    2. Utilities
  4. Click Next.
    The Select one of the components screen is displayed.

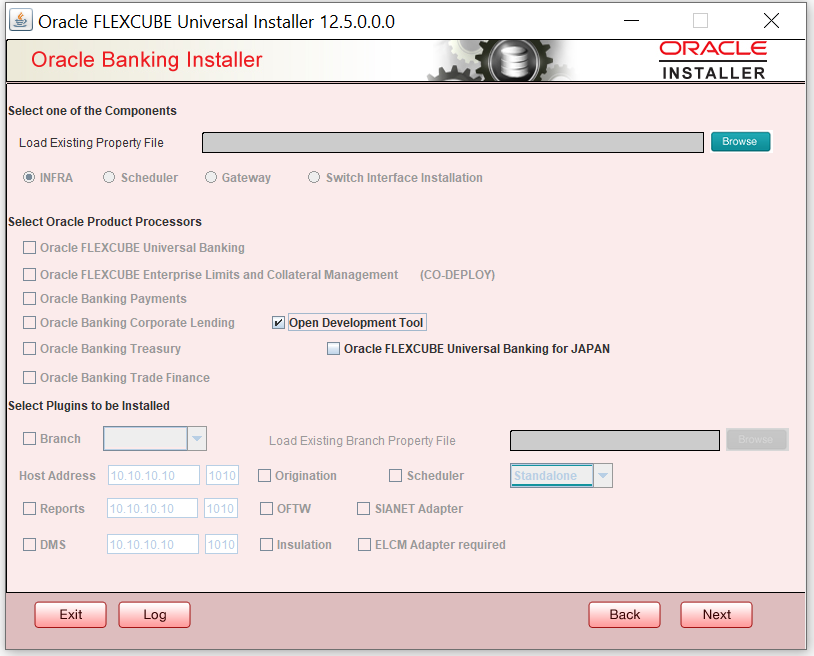

    Figure 1-3 Select one of the components


    Description of Figure 1-3 follows
    Description of "Figure 1-3 Select one of the components"

  5. Click on the Open Development Tool component for installation and then click the Next button.
    Open Development Tool screen is displayed.

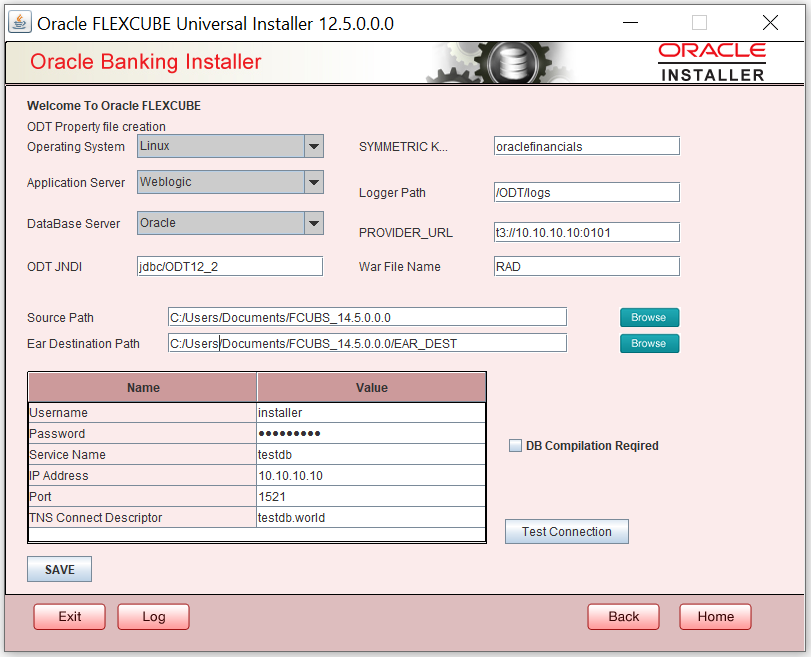

    Figure 1-4 Open Development Tool


    Description of Figure 1-4 follows
    Description of "Figure 1-4 Open Development Tool"

  6. Specify the following details:

    Table 1-3 Open Development Tool- Property file details

    Field Description
    Operating System Specify the operating system in which you are installing Oracle FLEXCUBE.
    Application Server Specify the application server on which you are installing Oracle FLEXCUBE.
    ODT JNDI Specify the JNDI for the ODT.
    SYMMETRIC KEY Specify the symmetric key as “oraclefinancials”.
    Logger Path Specify the path where the logs have to be written.
    Provider_URL Specify the provider URL.
    WAR File Name Specify the war file Name.
    Source Directory Specify the source directory location. The source directory should have the ‘rad_ddl.sql’ and other corresponding packages. You can use the directory icon to browse to the source directory location.
    Destination Directory Specify the destination directory. You can use the directory icon to browse to the source directory location.
  7. Specify the following ODT schema details.

    For more information on fields, refer to the field description table.

    Table 1-4 ODT Schema Screen - Field Description

    Field Description
    User Name Specify the user name to access the schema.
    Password Specify the schema password for the above user name.
    Service Name Specify service name of database.
    TNS Connect Descriptor Specify a valid connect string that contains the details for database connectivity.
    IP Address Specify the IP address of the system where the database schema is installed.
    Port Specify the port number.
    DB Complication Required Check this box to indicate execute ODT scripts in provided ODT schema. ODT schema details will be appended to env.properties file.
  8. Once you have specified the details, click Test Connection to test the database schema connection.
    The below message is displayed if the connection is established successfully.

    Figure 1-5 Message


    Description of Figure 1-5 follows
    Description of "Figure 1-5 Message"

  9. Click save to save the env.properties file.

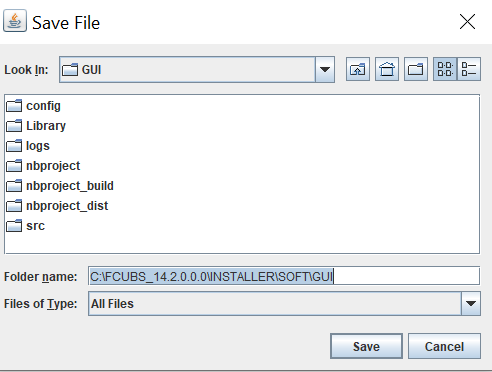

  10. Browse to the folder to save file and click the Save button.
    Message is displayed.

    Figure 1-7 Message


    Description of Figure 1-7 follows
    Description of "Figure 1-7 Message"

  11. The property file named odt.properties will be available in the custom location .Path will be written as ODT_PROPERTIES_PATH IN env.properties file .Please copy this file to SOFT/Logs folder and proceed for war building.
