9.1 Create JavaMail Session

This topic explains creating the JavaMail session in the Oracle weblogic server.

To configure the mail session, perform the follwing:

1. Click Mail Session from the Domain Structure in the left pane.
   The following screen is displayed.

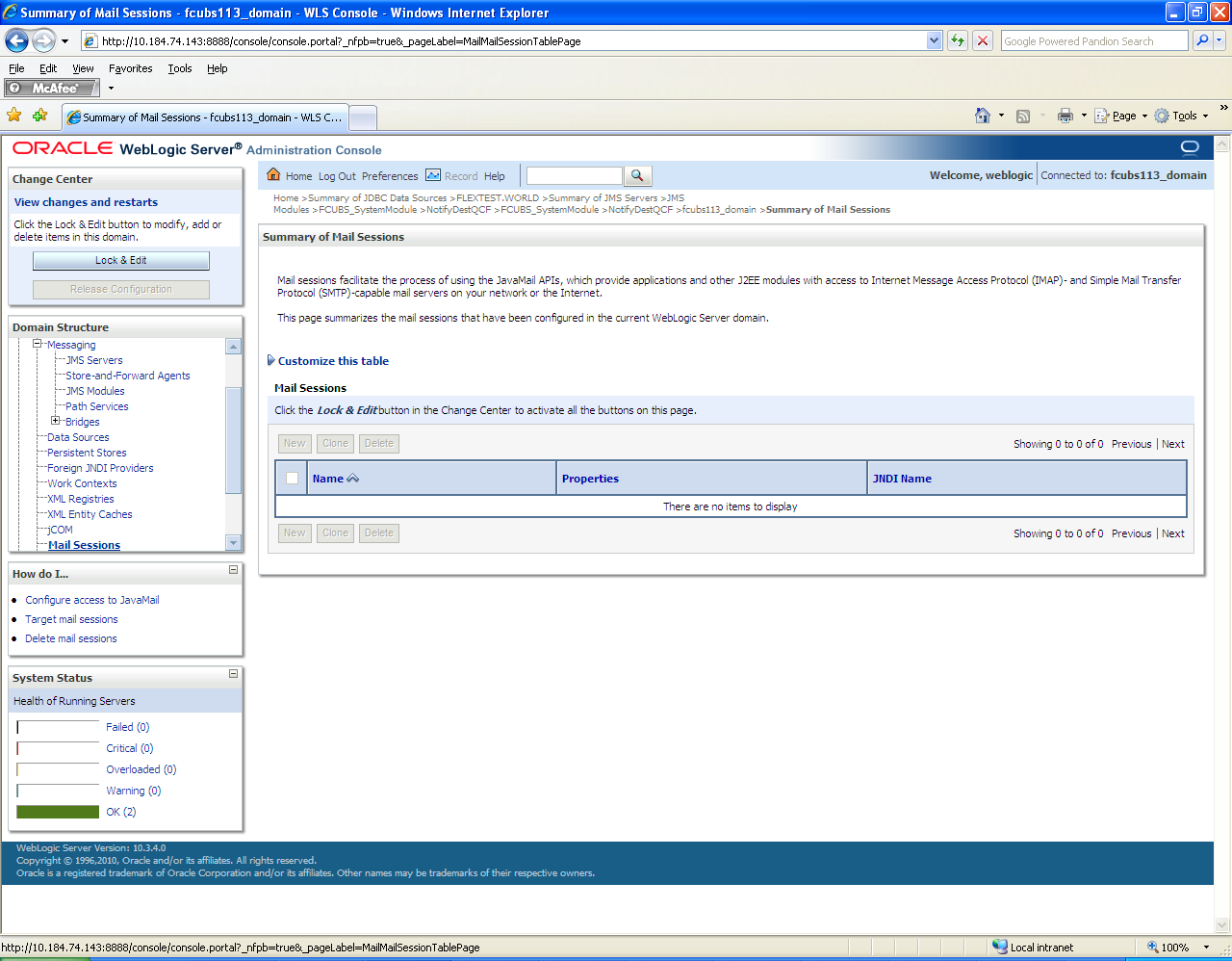

   Figure 9-1 Summary of Mail Sessions





   Description of "Figure 9-1 Summary of Mail Sessions"



2. Click Lock & Edit in the Change Center to enable all the buttons in this page.
   The following screen is displayed.

   Figure 9-2 Summary of Mail Sessions_Lock & Edit





   Description of "Figure 9-2 Summary of Mail Sessions_Lock & Edit"



3. Click New to create a new session.
   The following screen is displayed.

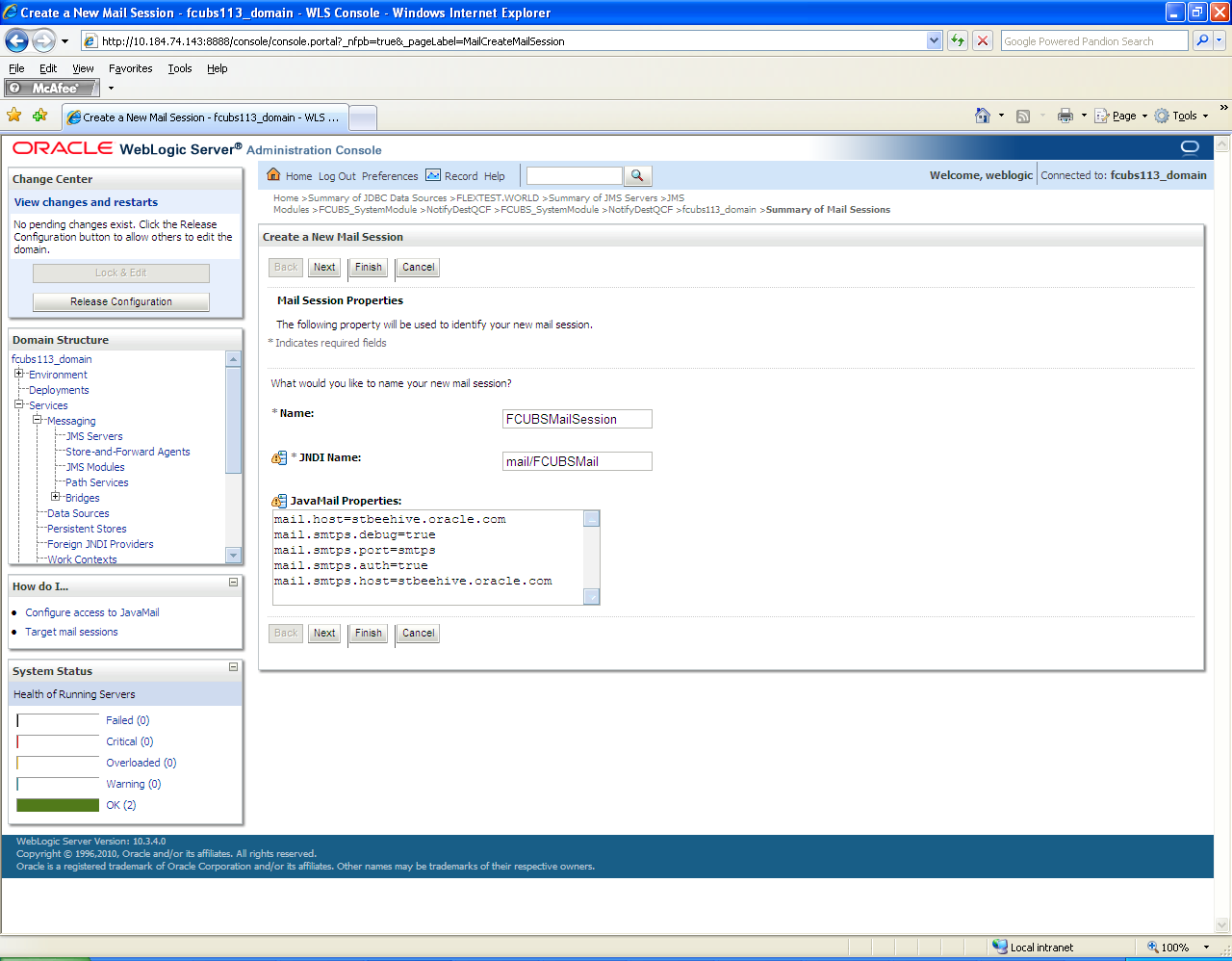

   Figure 9-3 Create a New Mail Session





   Description of "Figure 9-3 Create a New Mail Session"



4. Specify the Name of the Mail Session.
   Sample details are given below:

   • Name: FCUBSMailSession
   • JNDI Name: mail/FCUBSMail

   This JNDI name needs to be maintained in fcubs.properties file with encrypted format.

   Java Mail Properties

   mail.host=<HOST_MAIL_SERVER>

   Eg: samplename.mail.com

   mail.smtps.port=<SMTPS_SERVER_PORT>

   Eg: 1010

   mail.transport.protocol=<MAIL_TRANSFER_PROTOCOL>

   Eg: smtps

   mail.smtps.auth=true

   mail.smtps.host==<HOST_SMTPS_MAIL_SERVER>

   Eg: samplename.mail.com

5. Click Next.
   The Following screen is displayed.

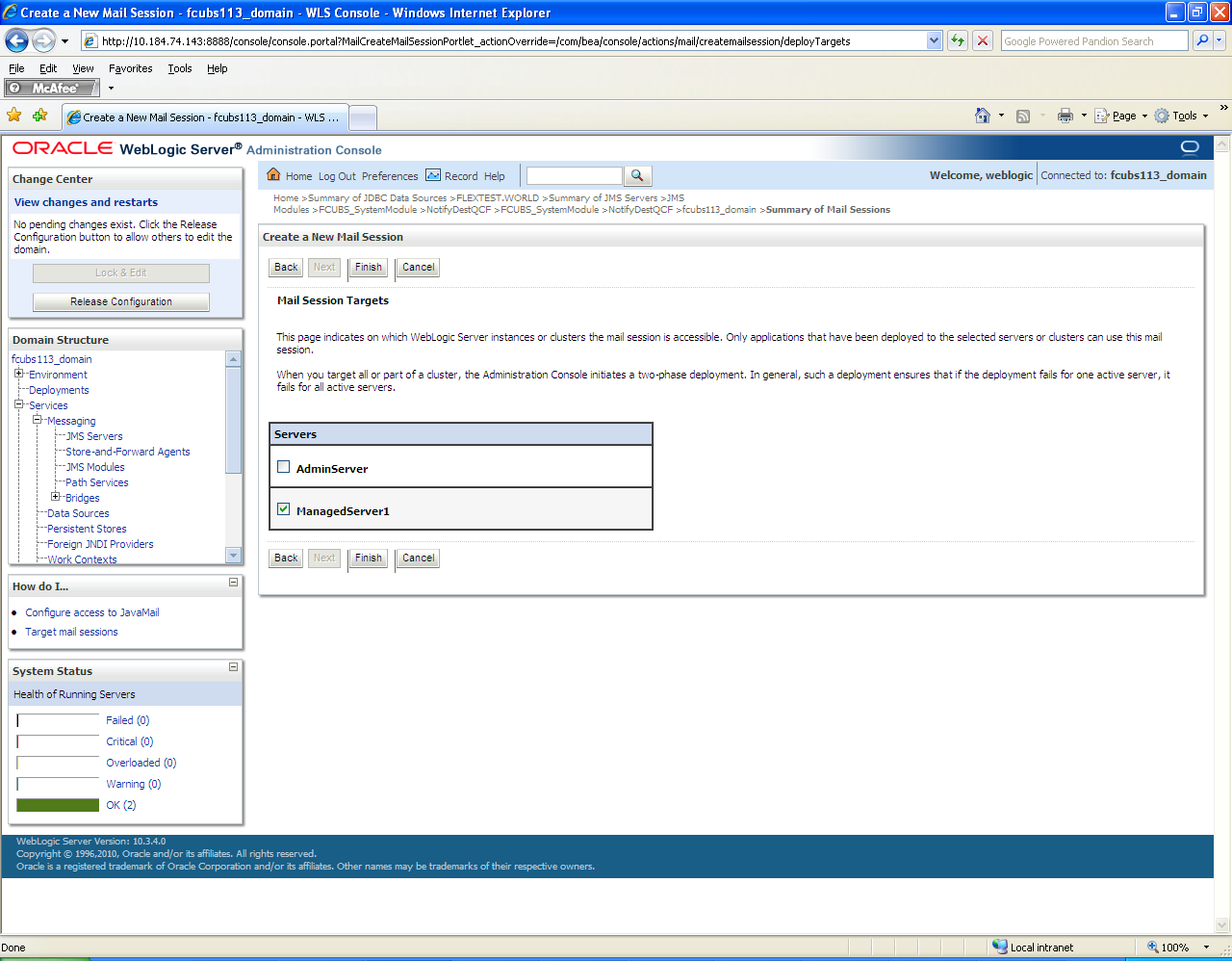

   Figure 9-4 Create a Mail Session - Mail Session Targets





   Description of "Figure 9-4 Create a Mail Session - Mail Session Targets"



6. Select the Required Servers and click Finish to complete the configuration.
   fcubs.properties file needs to be updated with the encrypted values of

   • SMTP_HOST
   • SMTP_USER
   • SMTP_PASSWORD
   • SMTP_JNDI
7. Click Active Changes to activate the current mail session settings.
   The following screen is displayed.

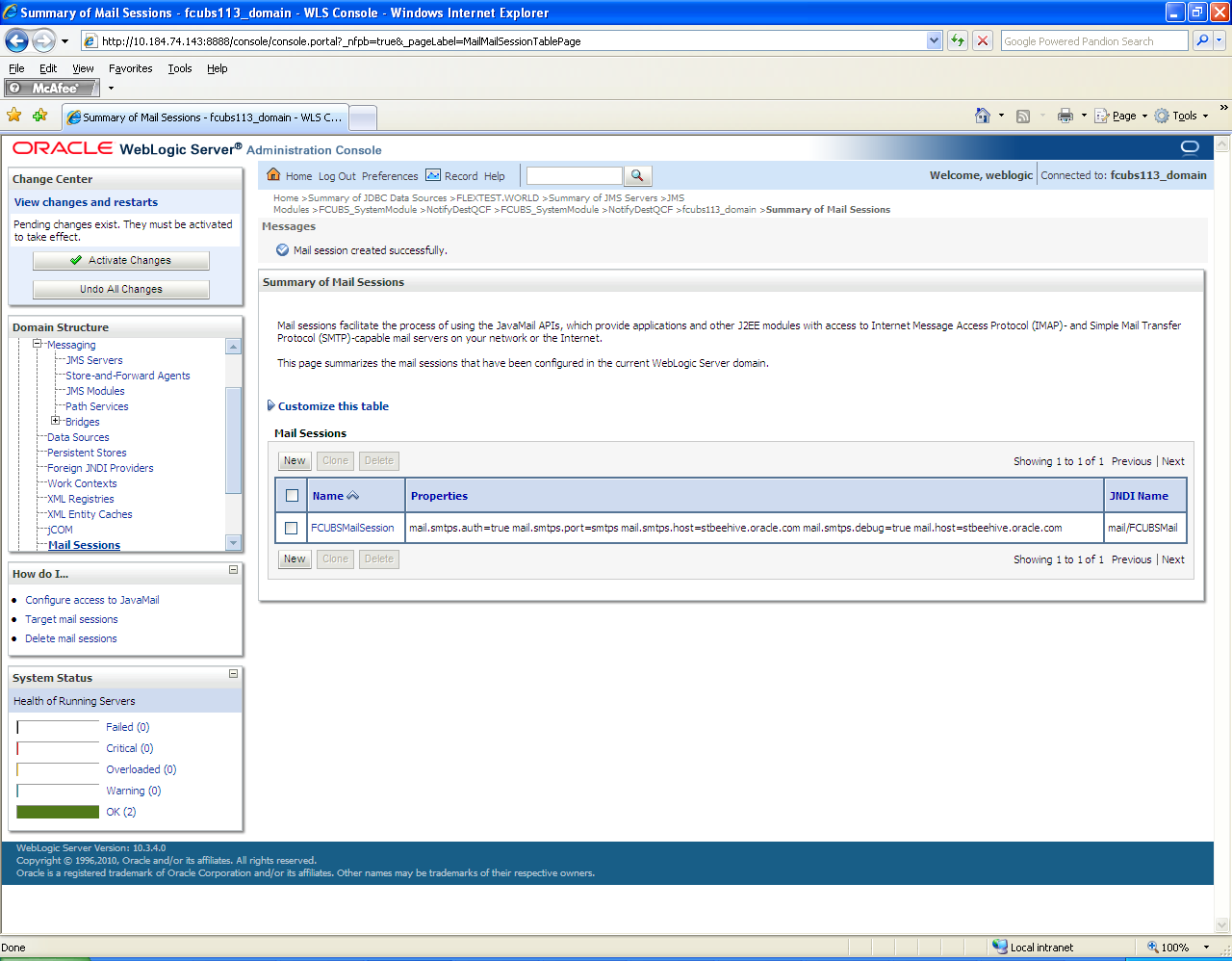

   Figure 9-5 Mail Sessions_Activate Changes





   Description of "Figure 9-5 Mail Sessions_Activate Changes"
