1.2.1 Deploy Integration Adapter EAR from WebLogic Administration Console

This topic explains the systematic instructions to deploy integration adapter EAR from WebLogic administration console.

To deploy the Oracle Banking Treasury Management application from the Oracle WebLogic administration console, follow the steps below:
  1. Start the Administrative Console of the WebLogic application server. Specify the Oracle WebLogic Admin Console URL in the address bar in an internet browser. For example: http://10.10.10.10:1001/console
    The Oracle Weblogic Server - Welcome screen displays.

    Figure 1-1 Oracle Weblogic Server - Welcome


    Description of Figure 1-1 follows
    Description of "Figure 1-1 Oracle Weblogic Server - Welcome"

  2. Specify the WebLogic administrator Username and Password and click Log In.
    The Oracle Weblogic Server - Home screen displays.

    Figure 1-2 Oracle Weblogic Server - Home


    Description of Figure 1-2 follows
    Description of "Figure 1-2 Oracle Weblogic Server - Home"

  3. Deploy an Integration adapter EAR. For e.g. OBCLExtAdapter.ear or ExtAdapter.ear.
  4. Go to Deployment.
  5. Click the Lock & Edit button to enable the buttons.
    This action enables the buttons on the screen.
    The Summary of Deployments screen displays.

    Figure 1-3 Summary of Deployments


    Description of Figure 1-3 follows
    Description of "Figure 1-3 Summary of Deployments"

  6. Click Install.
    The Install Application Assistant window displays.

    Figure 1-4 Install Application Assistant


    Description of Figure 1-4 follows
    Description of "Figure 1-4 Install Application Assistant"

  7. To specify the path/location of the enterprise archive file, click the upload your file(s) link.
  8. Specify the EAR file path. Click the Browse button to locate the file.
  9. Click Next.
    The Install Application Assistant - Messages window displays.

    Figure 1-5 Install Application Assistant - Message


    Description of Figure 1-5 follows
    Description of "Figure 1-5 Install Application Assistant - Message"

  10. Select the application Adapter EAR from the list.
  11. Click Next.
    The Install Application Assistant - Choose Installation Type and Scope window displays.

    Figure 1-6 Install Application Assistant - Choose Installation Type and Scope


    Description of Figure 1-6 follows
    Description of "Figure 1-6 Install Application Assistant - Choose Installation Type and Scope"

  12. Choose the targeting style as Install this deployment as a library.
  13. Click Next.
    The Install Application Assistant - Select Deployment Targets window displays.

    Figure 1-7 Install Application Assistant - Select Deployment Targets


    Description of Figure 1-7 follows
    Description of "Figure 1-7 Install Application Assistant - Select Deployment Targets"

  14. Select the target of the application. Choose the server AdminServer or Managed Server(s).
  15. Click Next.
    The Install Application Assistant - Optional Settings window displays.

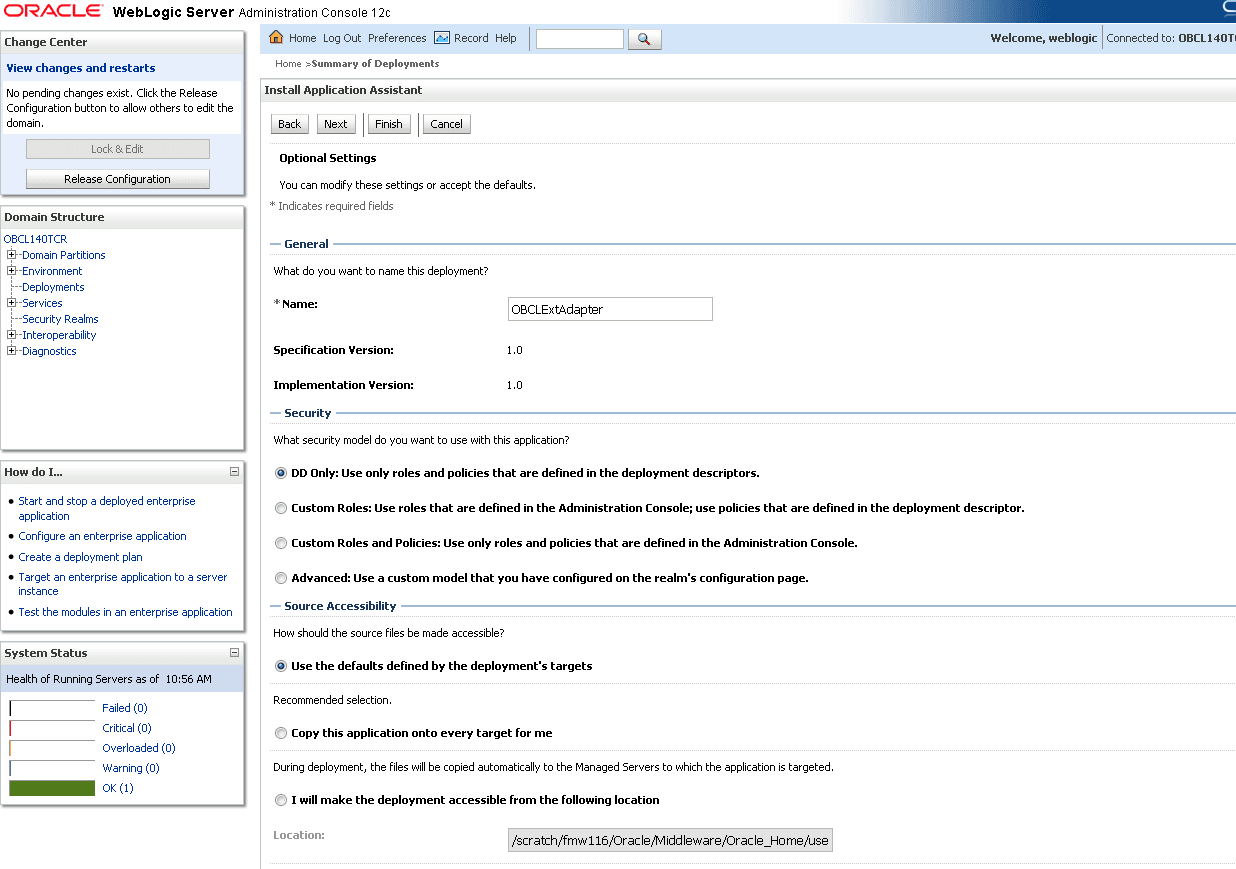

    Figure 1-8 Install Application Assistant - Optional Settings


    Description of Figure 1-8 follows
    Description of "Figure 1-8 Install Application Assistant - Optional Settings "

  16. Check the deployment name.
    The Install Application Assistant - Review your choices window displays.

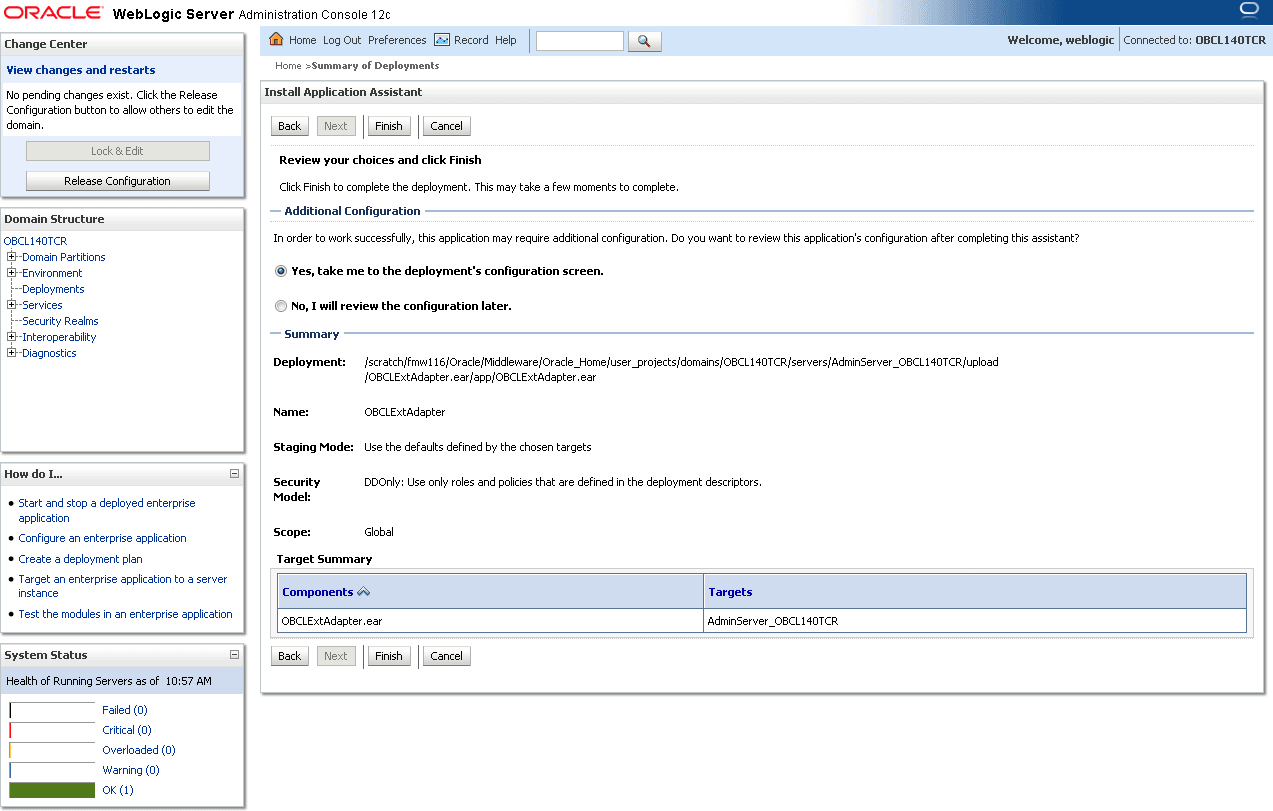

    Figure 1-9 Install Application Assistant - Review your choices


    Description of Figure 1-9 follows
    Description of "Figure 1-9 Install Application Assistant - Review your choices"

  17. Click Finish.
    The Settings for FCUBS11 - Overview screen displays.

    Figure 1-10 Settings for FCUBS11 - Overview


    Description of Figure 1-10 follows
    Description of "Figure 1-10 Settings for FCUBS11 - Overview"

  18. Click Save.

    A message displays on the Settings for FCUBS11 - Message window confirming that the setting updated successfully.

    Figure 1-11 Settings for FCUBS11 - Message


    Description of Figure 1-11 follows
    Description of "Figure 1-11 Settings for FCUBS11 - Message"

  19. Click the Activate Changes on the left pane.
    The message displays on the Settings for FCUBS11 window stating that All the changes have been activated. No restarts are necessary.

    Figure 1-12 Settings for FCUBS11 - Activate Changes Message


    Description of Figure 1-12 follows
    Description of "Figure 1-12 Settings for FCUBS11 - Activate Changes Message"
