1.2.3 Deploy Oracle Banking Treasury Management Application from WebLogic Administration Console

This topic explains the systematic instructions to deploy Oracle Banking Treasury Management application from WebLogic administration console.

  1. Start the Administrative Console of the WebLogic application server. Enter the Oracle WebLogic Admin Console URL in the address bar in an internet browser. For example: http://10.10.10.10:1001/console
    The Oracle Weblogic Server - Welcome screen displays.

    Figure 1-20 Oracle Weblogic Server - Welcome


    Description of Figure 1-20 follows
    Description of "Figure 1-20 Oracle Weblogic Server - Welcome"

  2. Specify the WebLogic administrator Username and Password and click Log In.
    The Oracle Weblogic Server - Home Page screen displays.

    Figure 1-21 Oracle Weblogic Server - Home


    Description of Figure 1-21 follows
    Description of "Figure 1-21 Oracle Weblogic Server - Home"

  3. Go to Deployments to deploy an EAR. For example: OBCL.ear
  4. Click on Lock & Edit to enable the buttons.
    This action enables the buttons.
    The Summary of Deployments screen displays.

    Figure 1-22 Summary of Deployments


    Description of Figure 1-22 follows
    Description of "Figure 1-22 Summary of Deployments"

  5. Click Install.
    The Install Application Assistant window displays.

    Figure 1-23 Install Application Assistant


    Description of Figure 1-23 follows
    Description of "Figure 1-23 Install Application Assistant"

  6. To specify the path/location of the enterprise archive file, click the upload your file(s) link.
  7. Click Next.
    The Install Application Assistant - Upload Deployment to the admin server window displays.

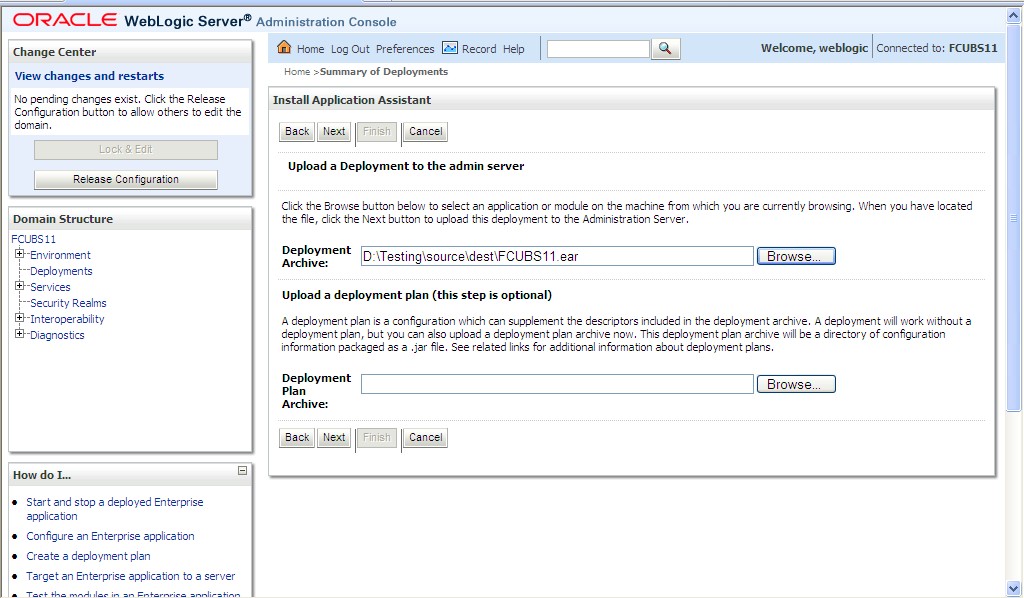

    Figure 1-24 Install Application Assistant - Upload Deployment


    Description of Figure 1-24 follows
    Description of "Figure 1-24 Install Application Assistant - Upload Deployment"

  8. Click the Browse to specify the EAR file path.
  9. Click Next.
    The Install Application Assistant - Message window displays.

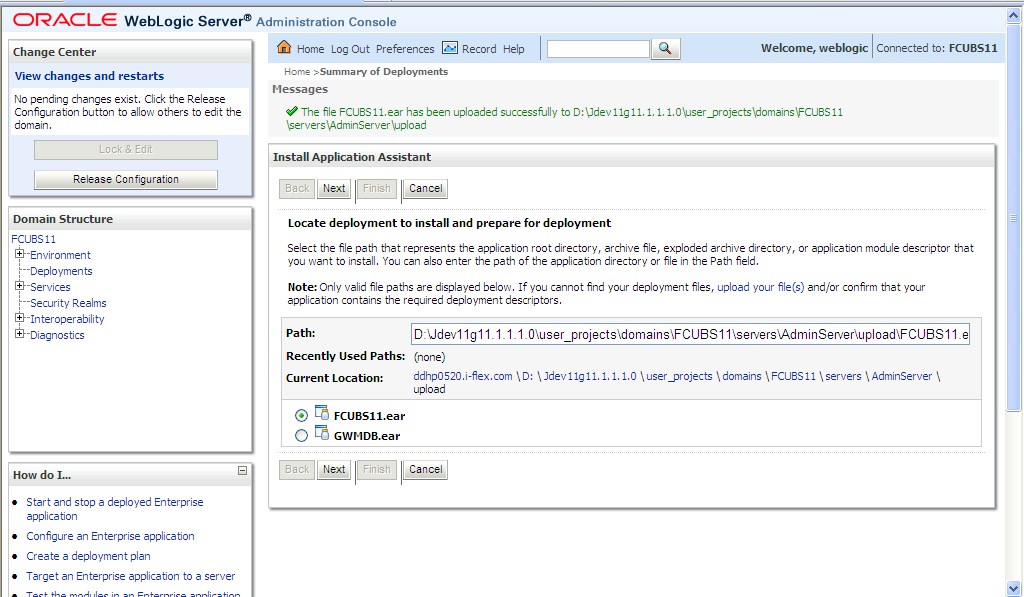

    Figure 1-25 Install Application Assistant - Message


    Description of Figure 1-25 follows
    Description of "Figure 1-25 Install Application Assistant - Message"

  10. Select the application OBCL EAR created from the list.
  11. Click Next.
    The Install Application Assistant - Choose targeting style window displays.

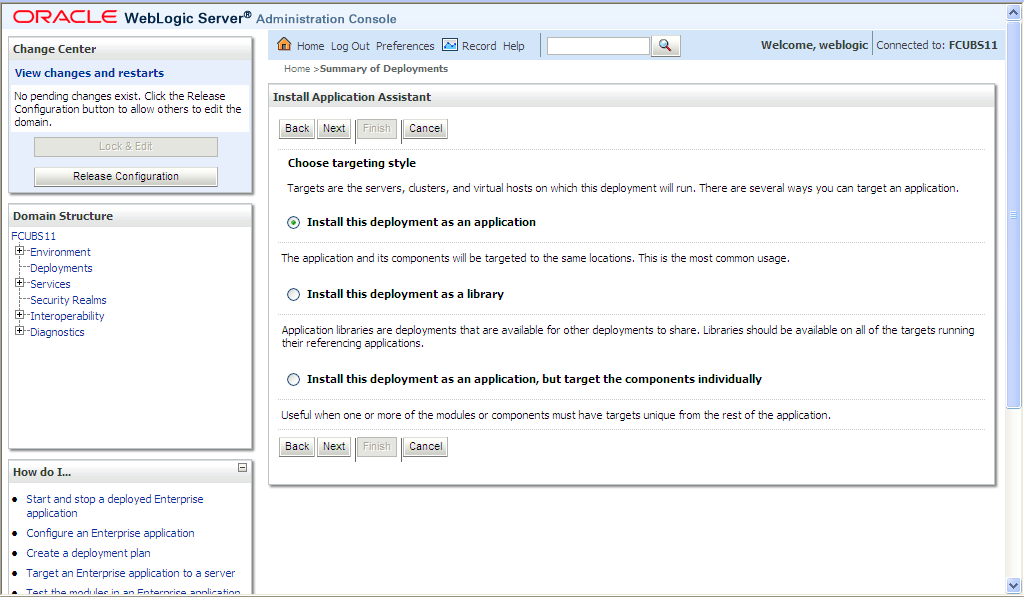

    Figure 1-26 Install Application Assistant - Choose targeting style


    Description of Figure 1-26 follows
    Description of "Figure 1-26 Install Application Assistant - Choose targeting style"

  12. Choose the targeting style Install this deployment as an application.
  13. Click Next.
    The Install Application Assistant - Select Deployment Targets window displays.

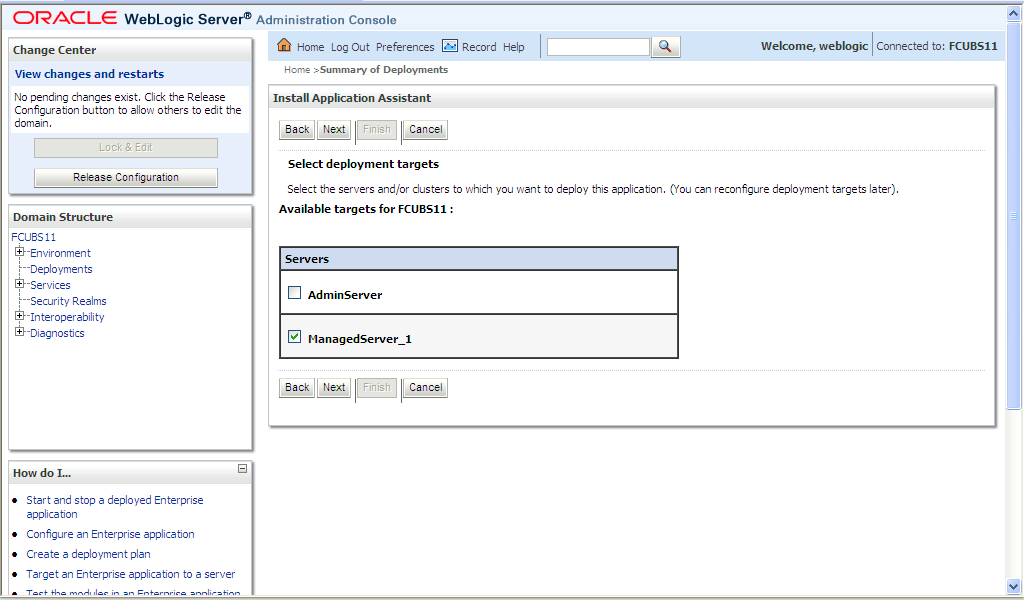

    Figure 1-27 Install Application Assistant - Select Deployment Targets


    Description of Figure 1-27 follows
    Description of "Figure 1-27 Install Application Assistant - Select Deployment Targets"

  14. Select the target of the application. You can choose the server either AdminServer or Managed Server(s).
  15. Click Next.
    The Install Application Assistant - Optional Settings window displays.

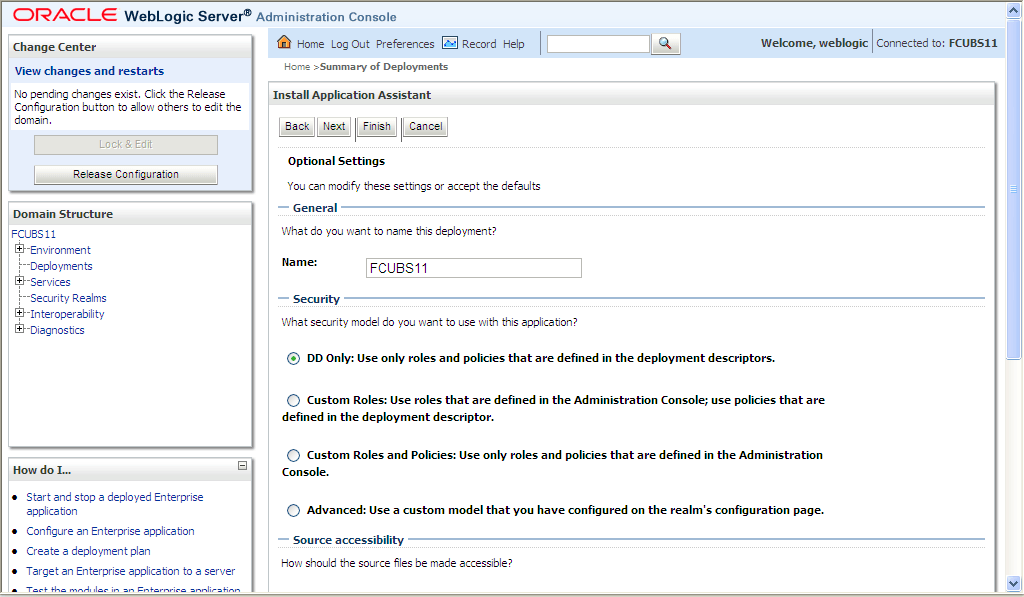

    Figure 1-28 Install Application Assistant - Optional Settings 1


    Description of Figure 1-28 follows
    Description of "Figure 1-28 Install Application Assistant - Optional Settings 1"

  16. Check the deployment name.

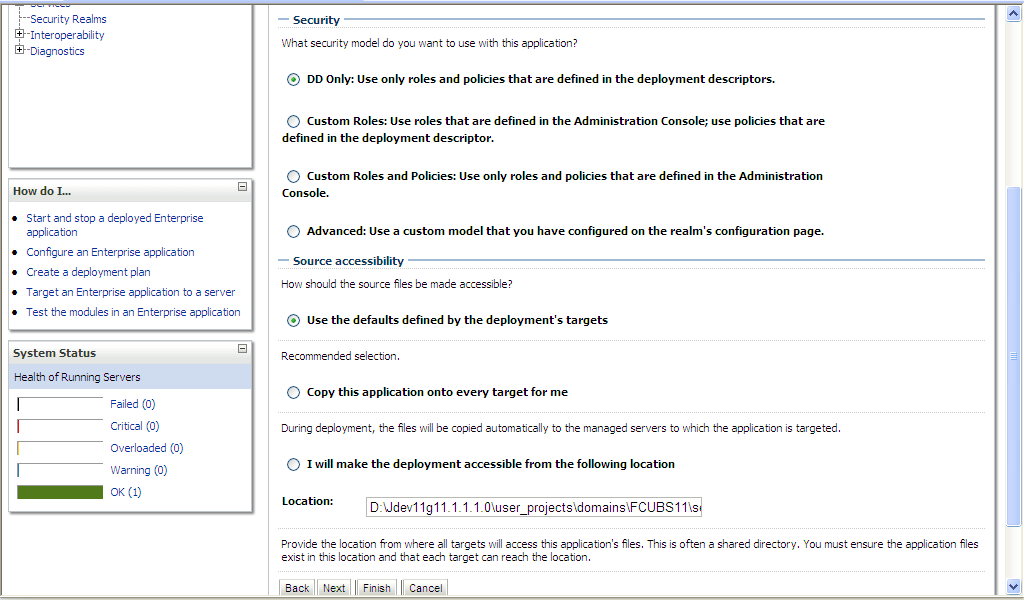

    Figure 1-29 Install Application Assistant - Optional Settings2


    Description of Figure 1-29 follows
    Description of "Figure 1-29 Install Application Assistant - Optional Settings2"

  17. Check whether the deployment location is accessible or not.
    The Install Application Assistant - Review Choices window displays.

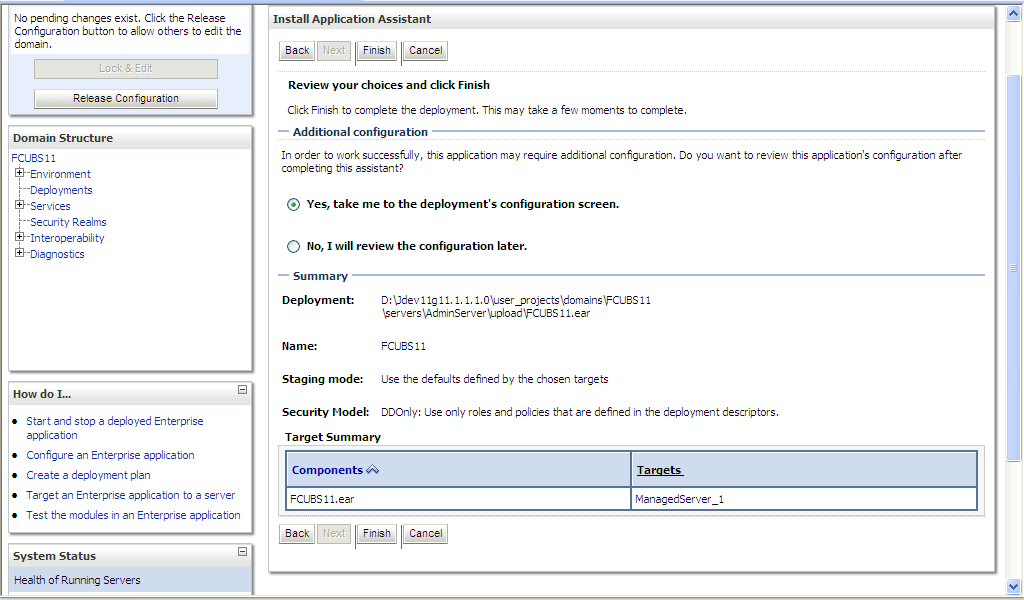

    Figure 1-30 Install Application Assistant - Review Choices


    Description of Figure 1-30 follows
    Description of "Figure 1-30 Install Application Assistant - Review Choices"

  18. Click Finish.
    The Settings for FCUBS11 window displays.

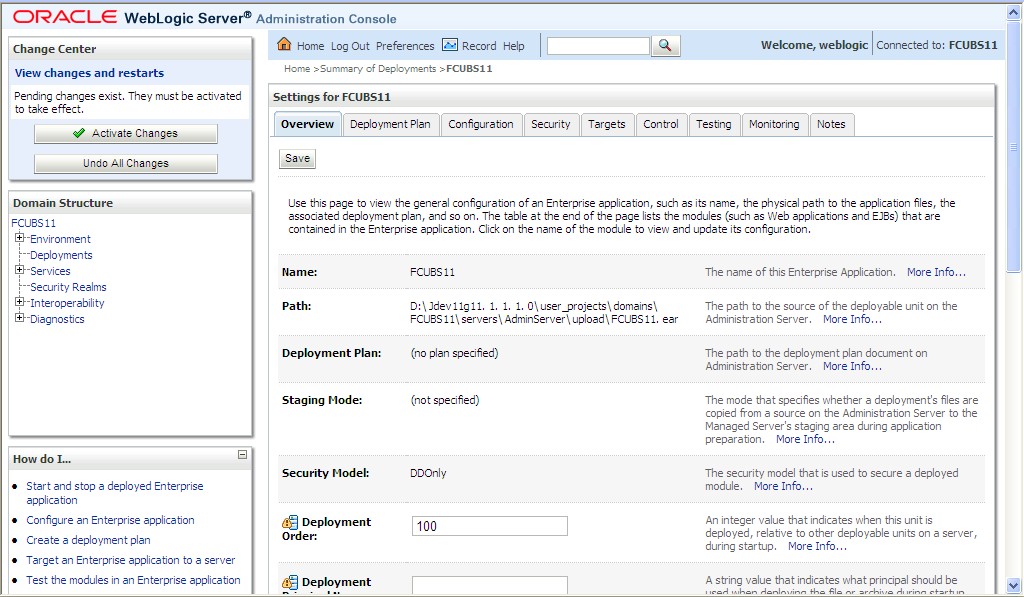

    Figure 1-31 Settings for FCUBS11 - Overview


    Description of Figure 1-31 follows
    Description of "Figure 1-31 Settings for FCUBS11 - Overview"

  19. Change Deployment Order to 400 if the application includes BPEL plug-in.
  20. Click Save.
    A message displays on the Settings for FCUBS11 - Message window confirming that Settings updated successfully.

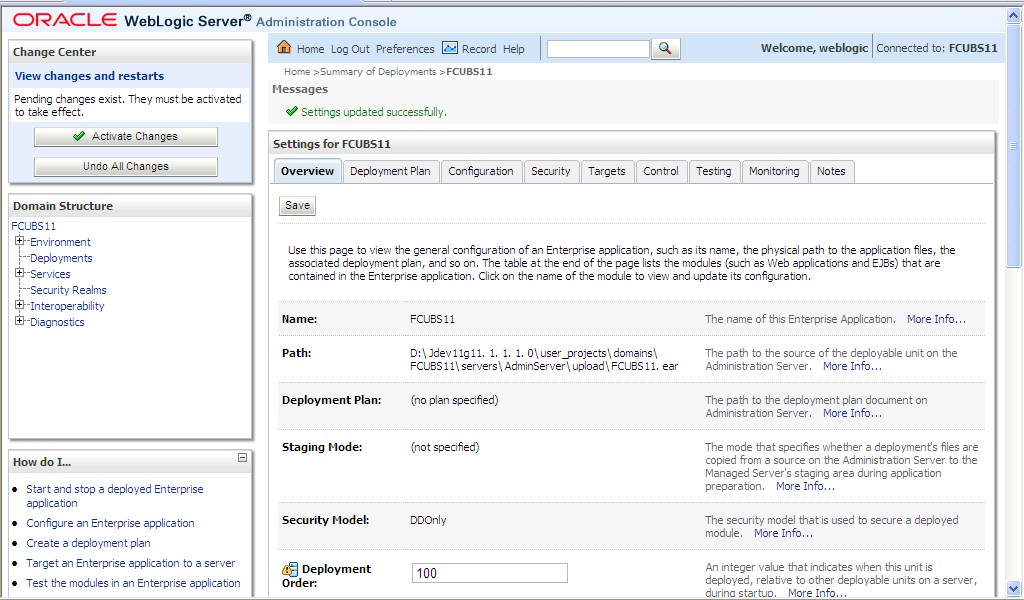

    Figure 1-32 Settings for FCUBS11 - Message


    Description of Figure 1-32 follows
    Description of "Figure 1-32 Settings for FCUBS11 - Message"

  21. Click the Activate Changes on the left pane. The message All the changes have been activated. No restarts are necessary displays.
    The message displays on the Settings for FCUBS11 - Activate Changes Message window stating that All the changes have been activated. No restarts are necessary.

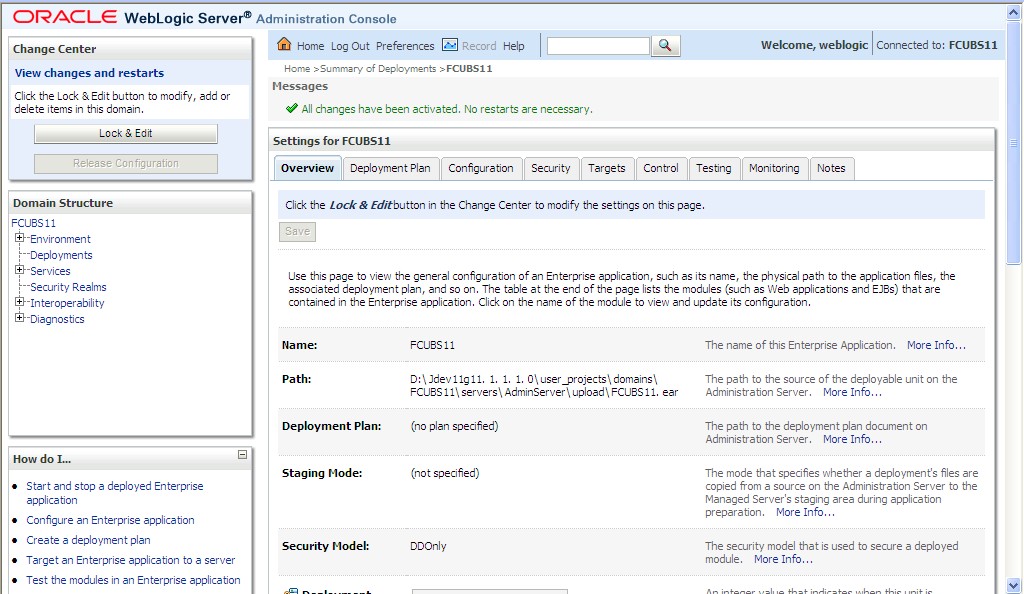

    Figure 1-33 Settings for FCUBS11 - Activate Changes Message


    Description of Figure 1-33 follows
    Description of "Figure 1-33 Settings for FCUBS11 - Activate Changes Message"

  22. On the left pane, click Deployment and switch to Control tab.
    The Summary of Deployments - Control screen displays.

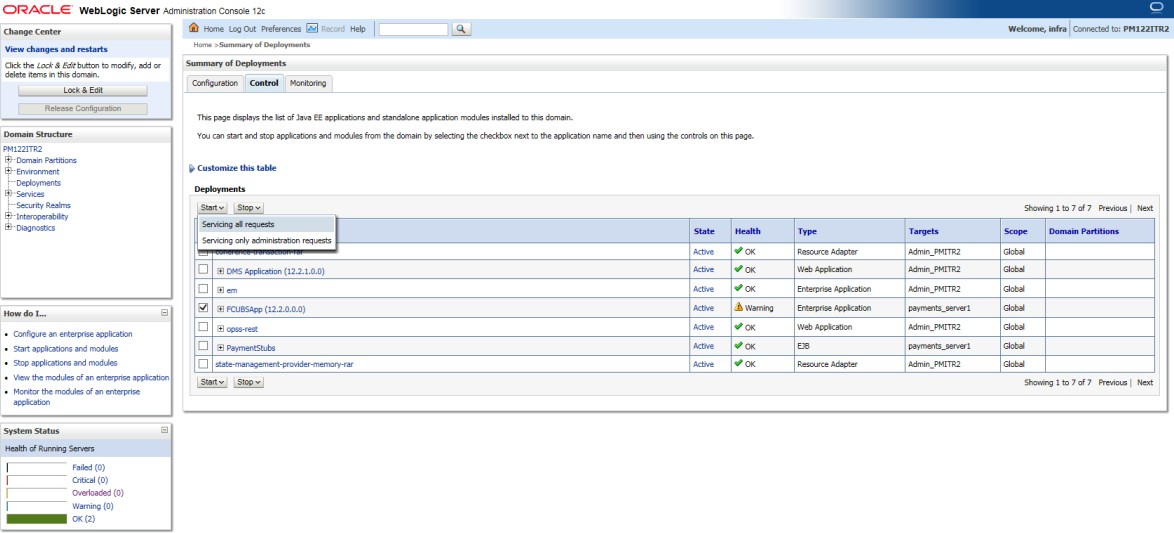

    Figure 1-34 Summary of Deployments - Control


    Description of Figure 1-34 follows
    Description of "Figure 1-34 Summary of Deployments - Control"

  23. Click the Start drop-down and select Servicing all requests.
    The Start Application Assistant screen displays.

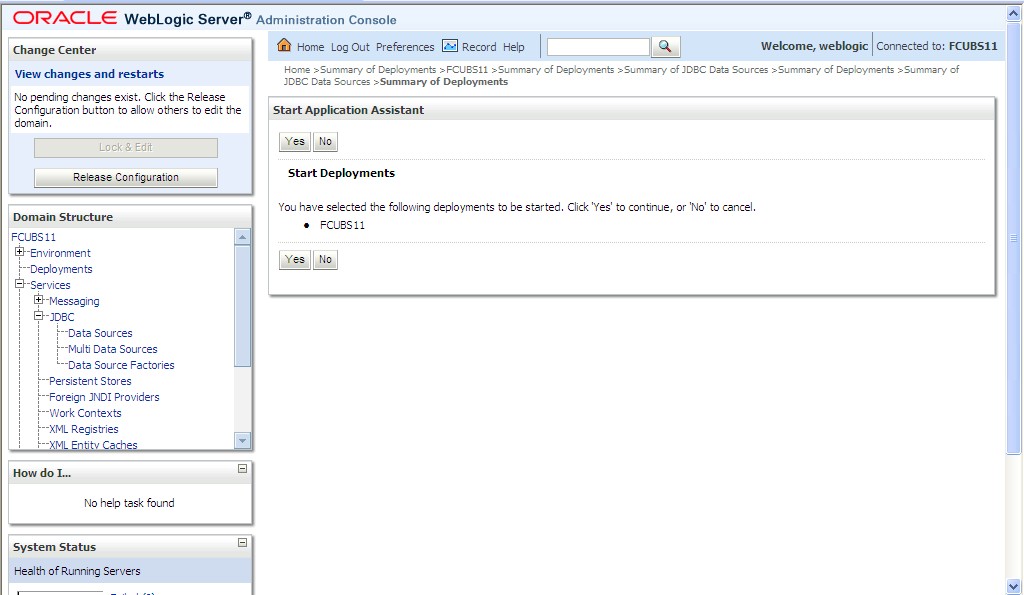

    Figure 1-35 Start Application Assistant


    Description of Figure 1-35 follows
    Description of "Figure 1-35 Start Application Assistant"

  24. On the Start Application Assistant screen, click on Yes to continue.
    The Summary of Deployments - Control Message screen displays.

    Figure 1-36 Summary of Deployments - Control Message


    Description of Figure 1-36 follows
    Description of "Figure 1-36 Summary of Deployments - Control Message"

The deployment of the Oracle Banking Treasury Management application in the WebLogic server is completed.
