Field Templating Options

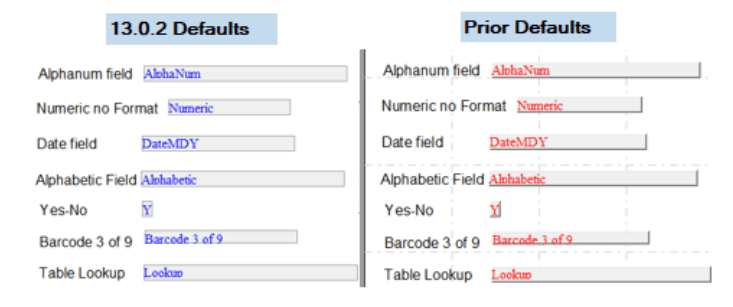

Field representations when editing and viewing forms and sections now uses a “flat” shaded area and utilizes blue text. The prior default color of fields (not specifying a color) was red and shown in a raised “button-style” depiction.

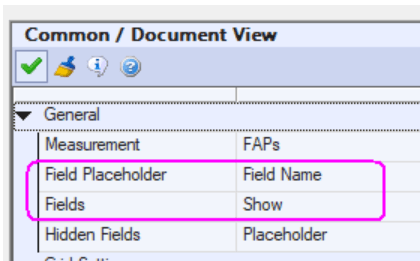

Options available to change the representation of fields within Studio were in different areas of the configuration. New in 13.0.2, these presentation options have been brought together under the View/Options/Common-Document View options.

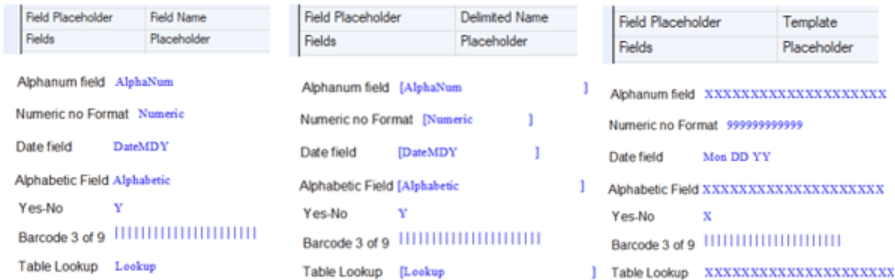

Combinations of these two options offers presentation methods that someone might prefer over the default.

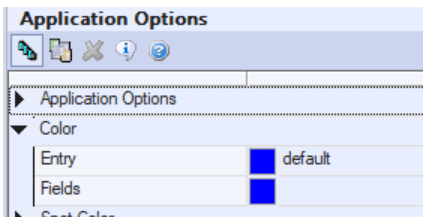

The default field color – for fields that do not otherwise have a color assigned – is an option that can be specified for the entire workspace within the Application (BDF) Definition. This has not changed in 13.0.2 other than the default will now be blue if another color was not already chosen.
