2.2 Creating Domain and Servers

The following section details the steps to create domain and servers.
  1. In Unix/Linux machine, once the Oracle WebLogic Server is installed, navigate to the following path - <WL_HOME>/oracle_common/common/bin.
  2. In Unix, run config.sh

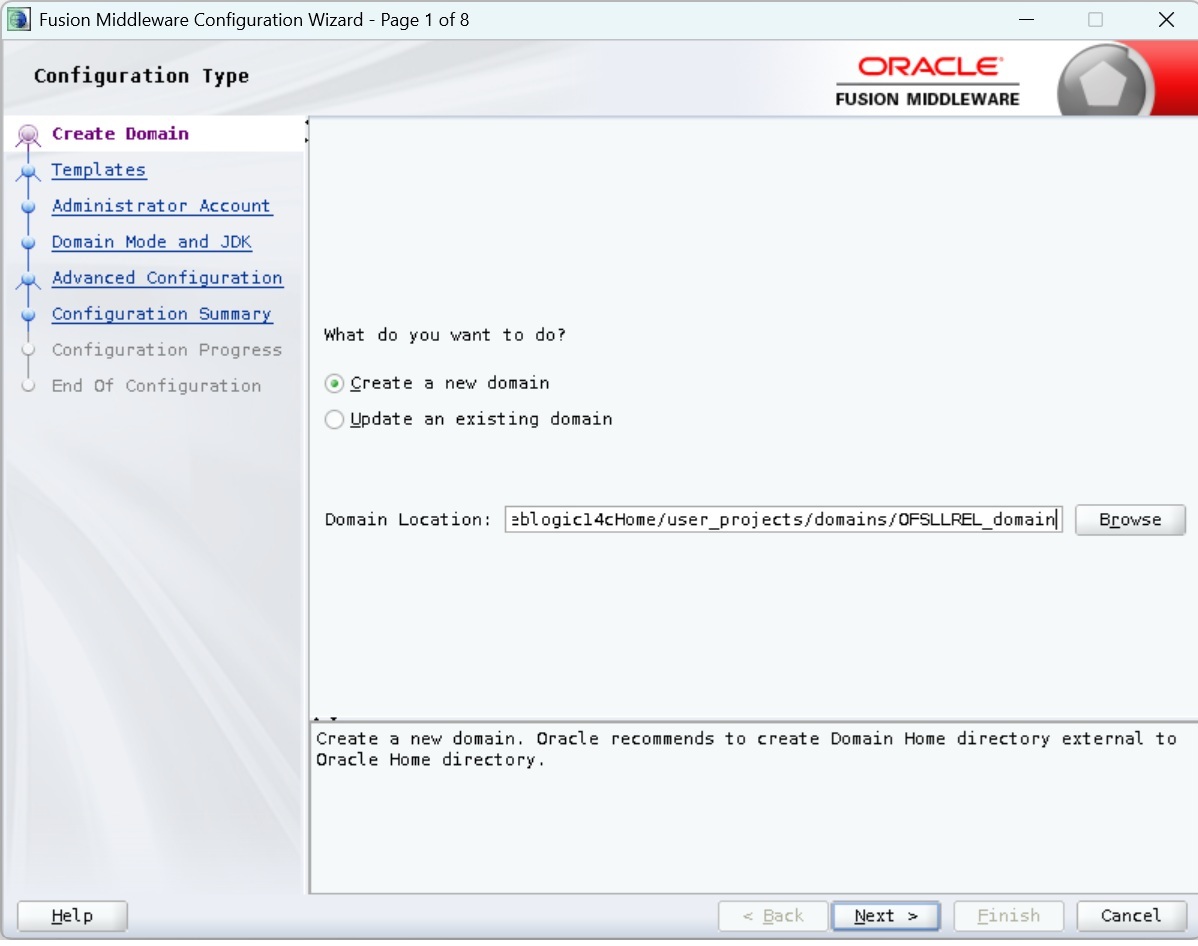

    Figure 2-14 Weblogic Domain Creation 1


    Description of Figure 2-14 follows
    Description of "Figure 2-14 Weblogic Domain Creation 1"

  3. Select Create a new domain and specify the Domain Location.
  4. Click Next to continue.
    The following window is displayed.

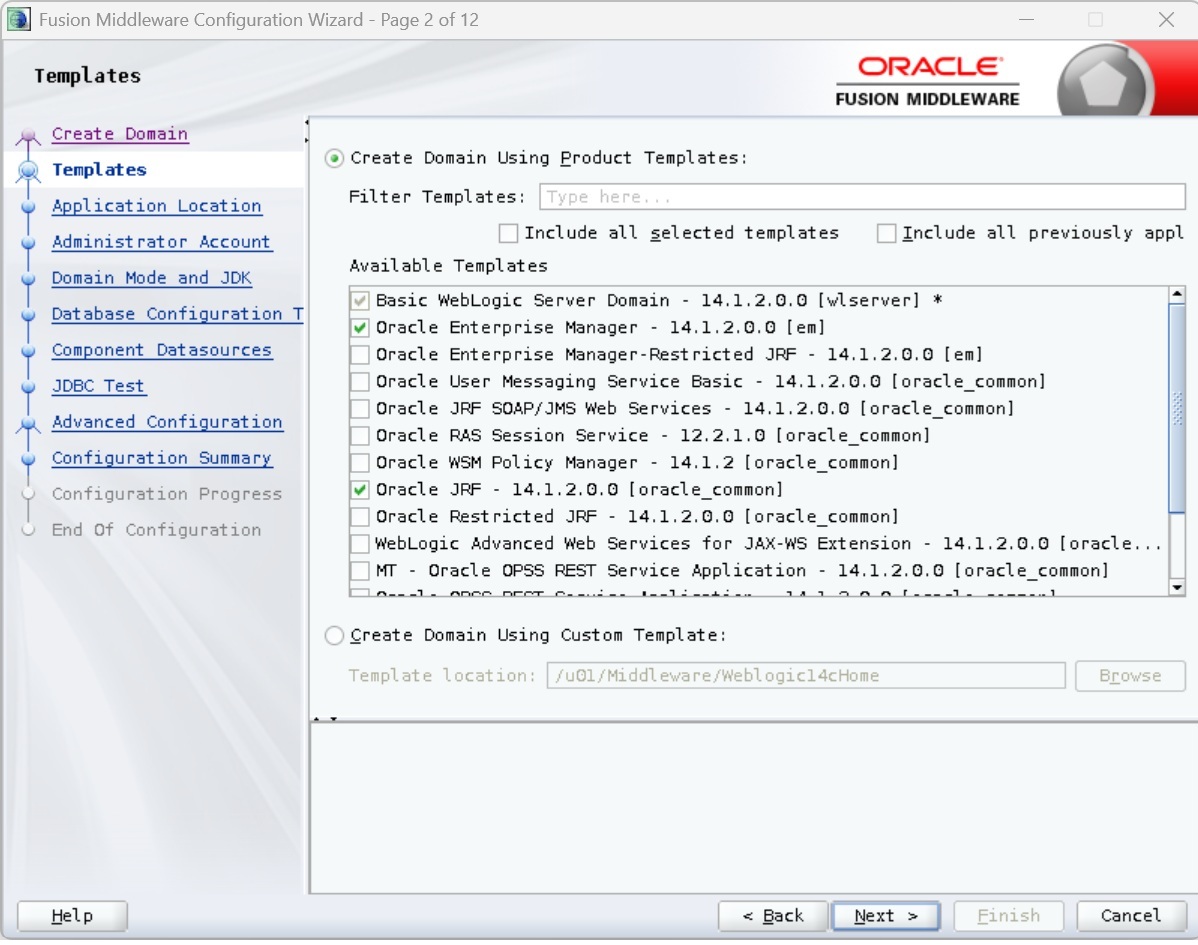

    Figure 2-15 Weblogic Domain Creation 2


    Description of Figure 2-15 follows
    Description of "Figure 2-15 Weblogic Domain Creation 2"

  5. Select the option Create Domain Using Product Templates in the list of available templates and select Oracle Enterprise Manager [em]. On selection, the following options are auto-selected:
    • Oracle JRF [oracle_common]
    • Weblogic coherence cluster Extension [wlserver]
  6. Click Next.
    The following window is displayed.

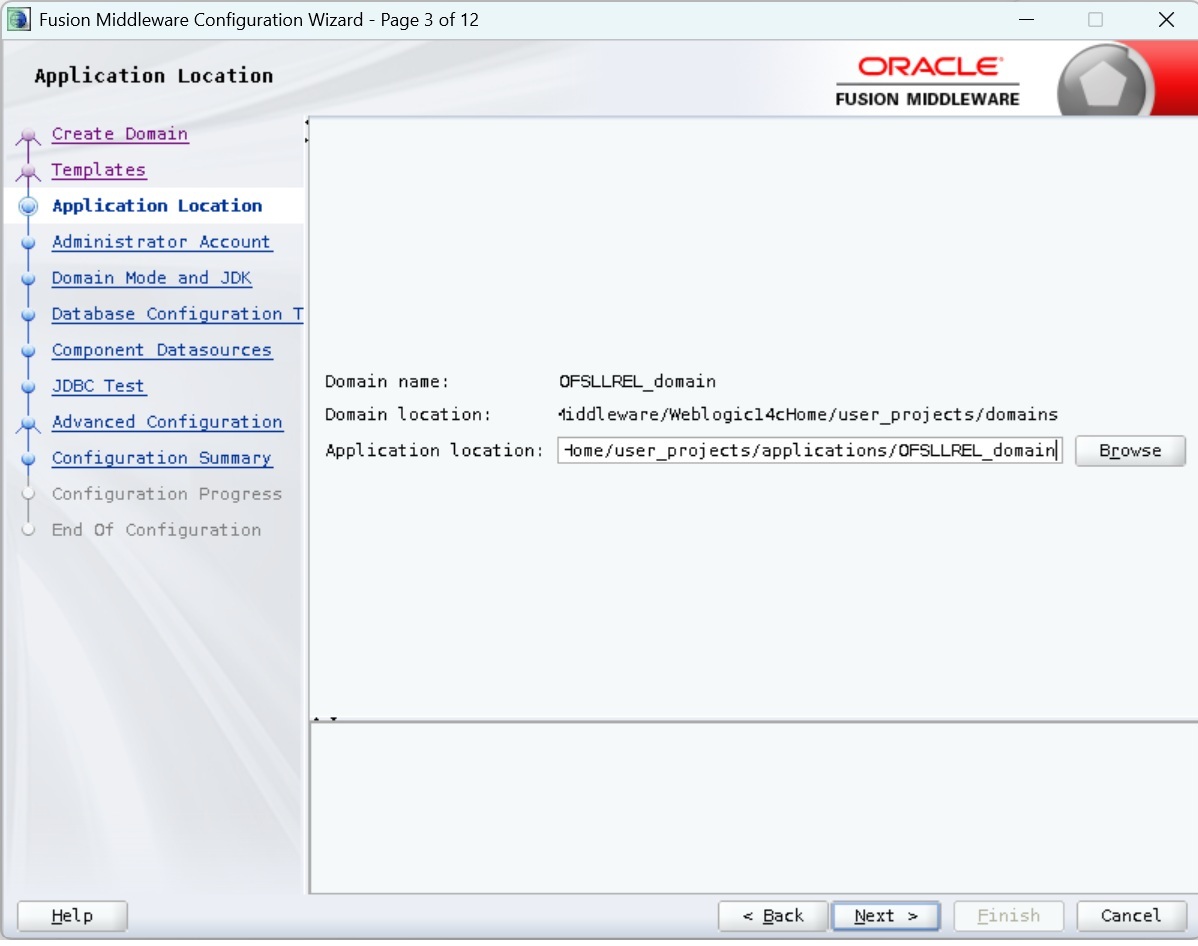

    Figure 2-16 Weblogic Domain Creation 3


    Description of Figure 2-16 follows
    Description of "Figure 2-16 Weblogic Domain Creation 3"

  7. Specify the Domain Name in the Application location field. You can click browse to directly select the path (if required). Click Next.
    The following window is displayed.

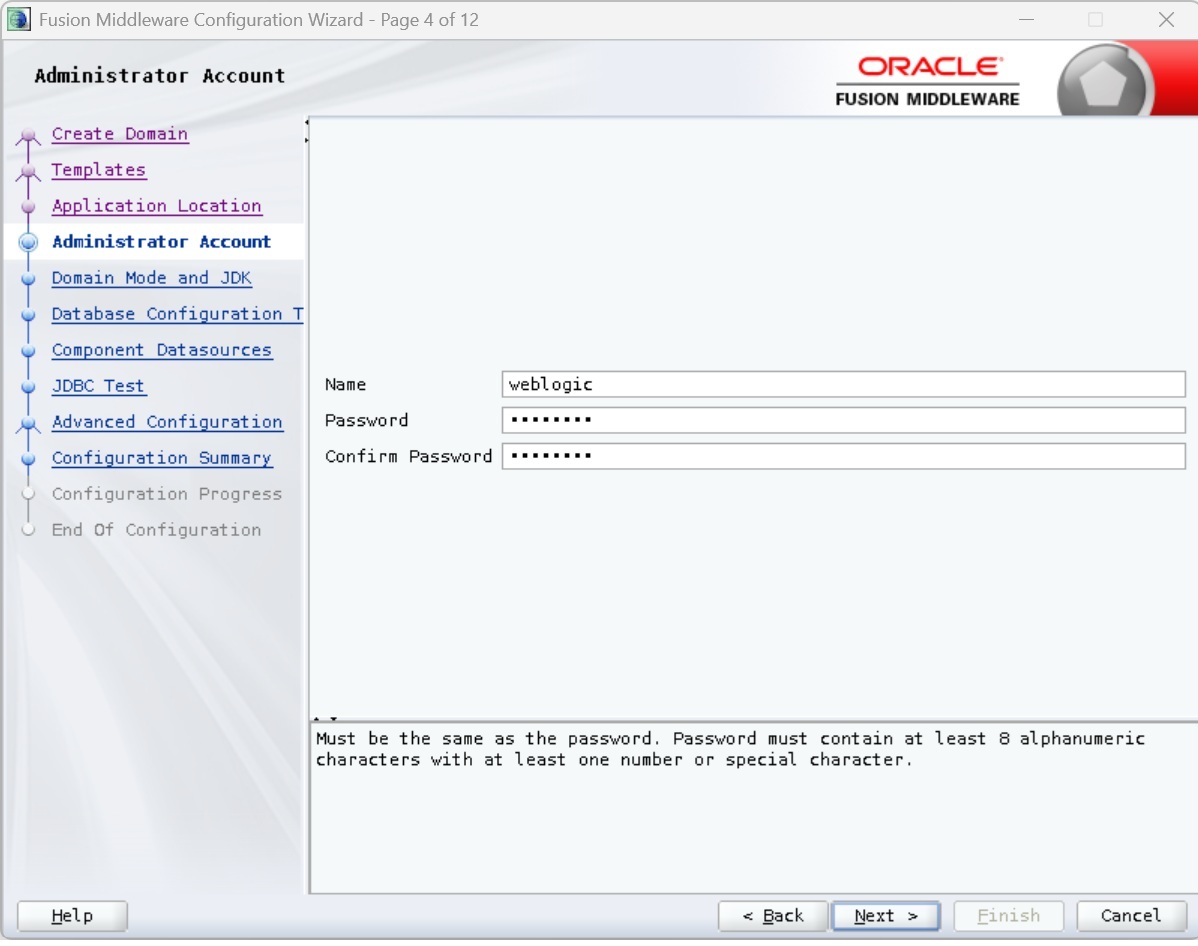

    Figure 2-17 Weblogic Domain Creation 4


    Description of Figure 2-17 follows
    Description of "Figure 2-17 Weblogic Domain Creation 4"

  8. Enter credentials for the following:
    • Name
    • Password
    • Confirm Password
  9. Click Next.
    The following window is displayed.

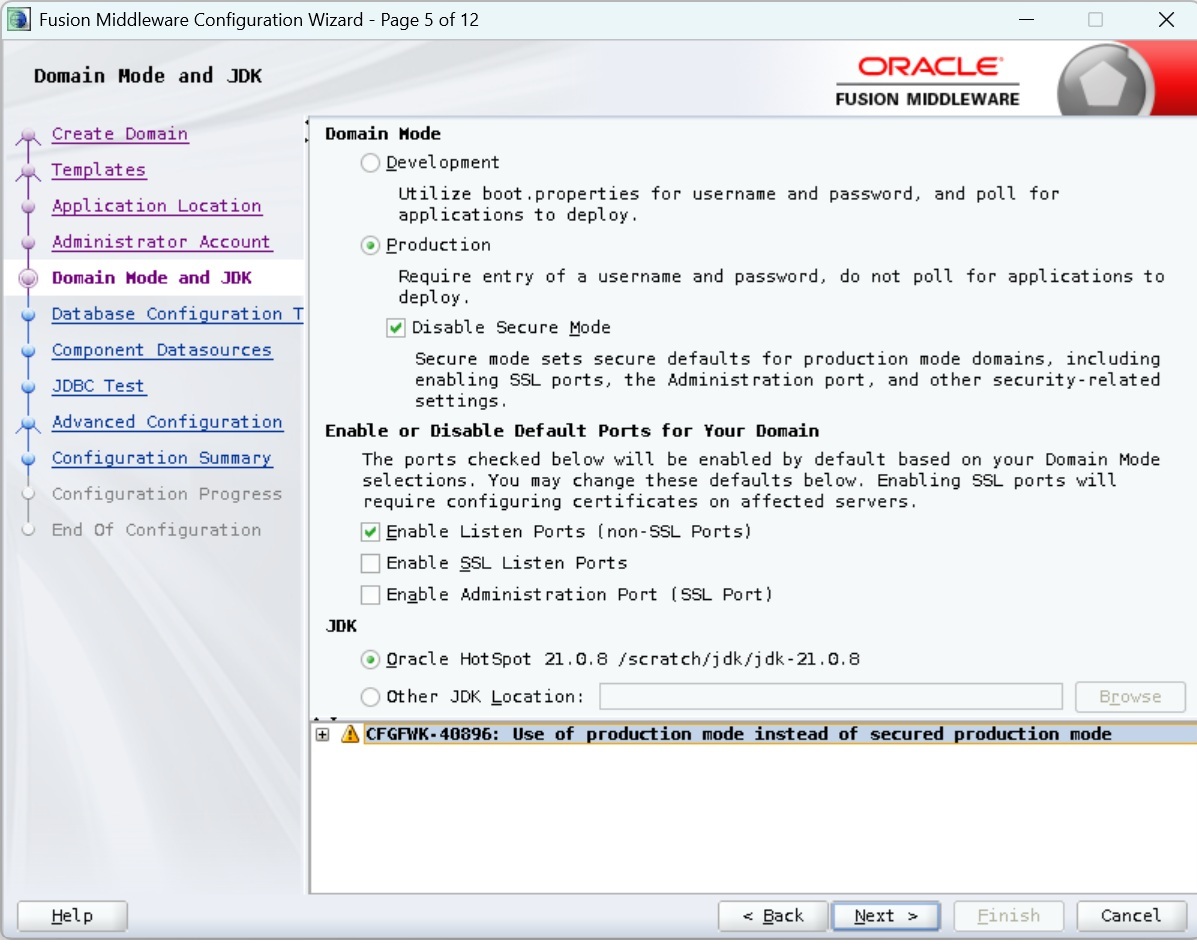

    Figure 2-18 Weblogic Domain Creation 5


    Description of Figure 2-18 follows
    Description of "Figure 2-18 Weblogic Domain Creation 5"

  10. Select the Domain Mode as Production, Disable Secure Mode, Enable Listen Ports (non-SSL Ports) and JDK from Available JDKs. You can also select any other JDK by selecting Other JDK Locationoption. Click Next.
    The following window is displayed.

    Figure 2-19 Weblogic Domain Creation 6


    Description of Figure 2-19 follows
    Description of "Figure 2-19 Weblogic Domain Creation 6"

  11. Specify the RCU data and click on Get RCU Configuration.
    The following window is displayed.

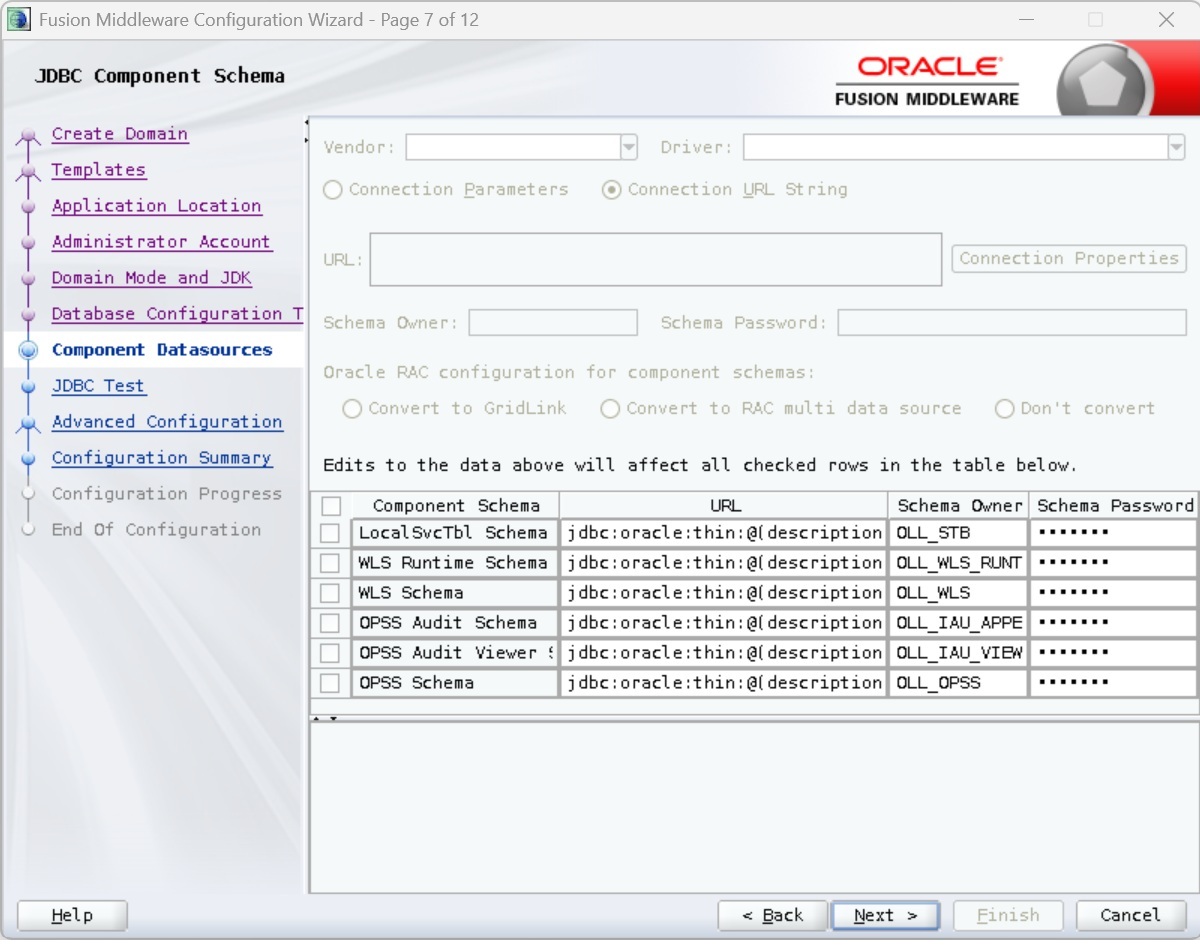

    Figure 2-20 Weblogic Domain Creation 7


    Description of Figure 2-20 follows
    Description of "Figure 2-20 Weblogic Domain Creation 7"

  12. Click Next.
    The following window is displayed.

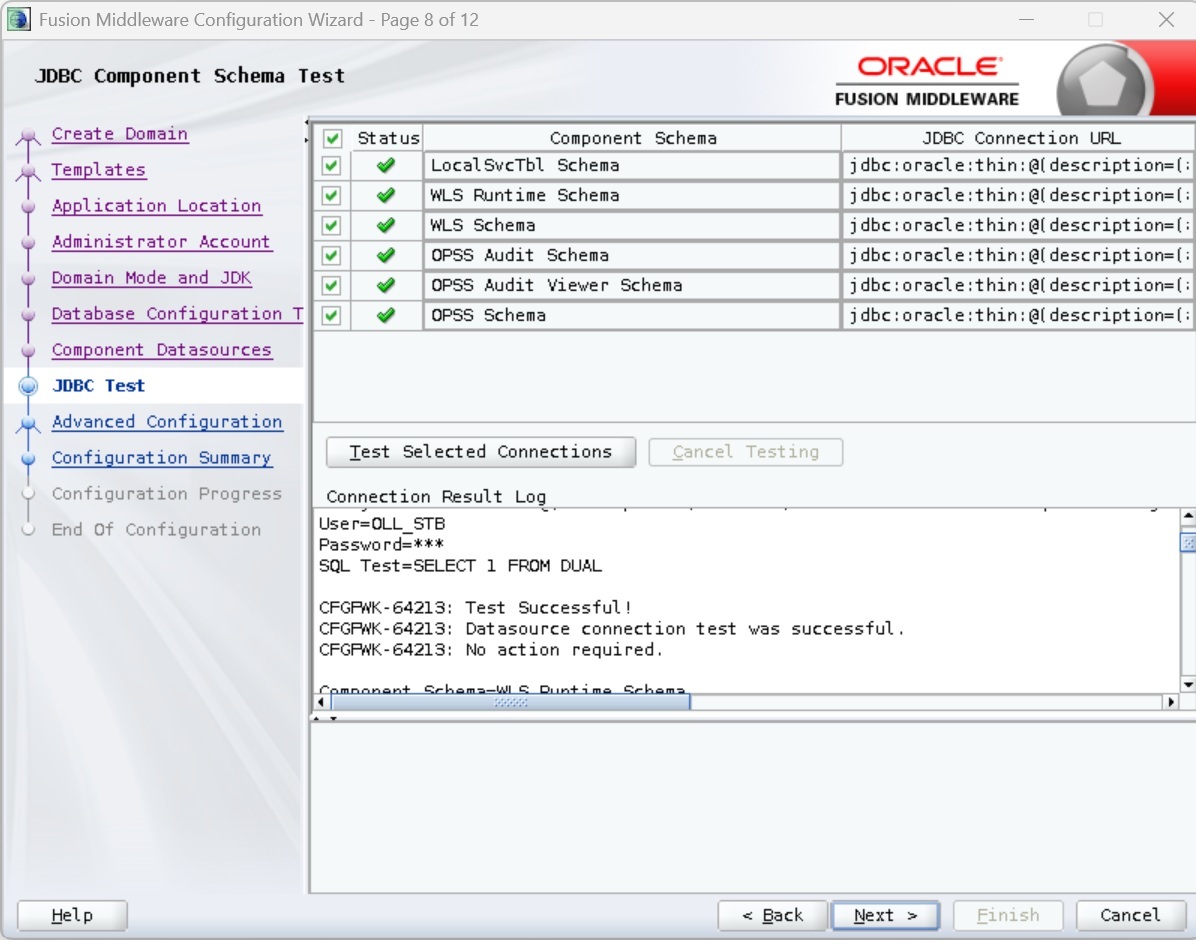

    Figure 2-21 Weblogic Domain Creation 8


    Description of Figure 2-21 follows
    Description of "Figure 2-21 Weblogic Domain Creation 8"

  13. Click Next.
    The following window is displayed.

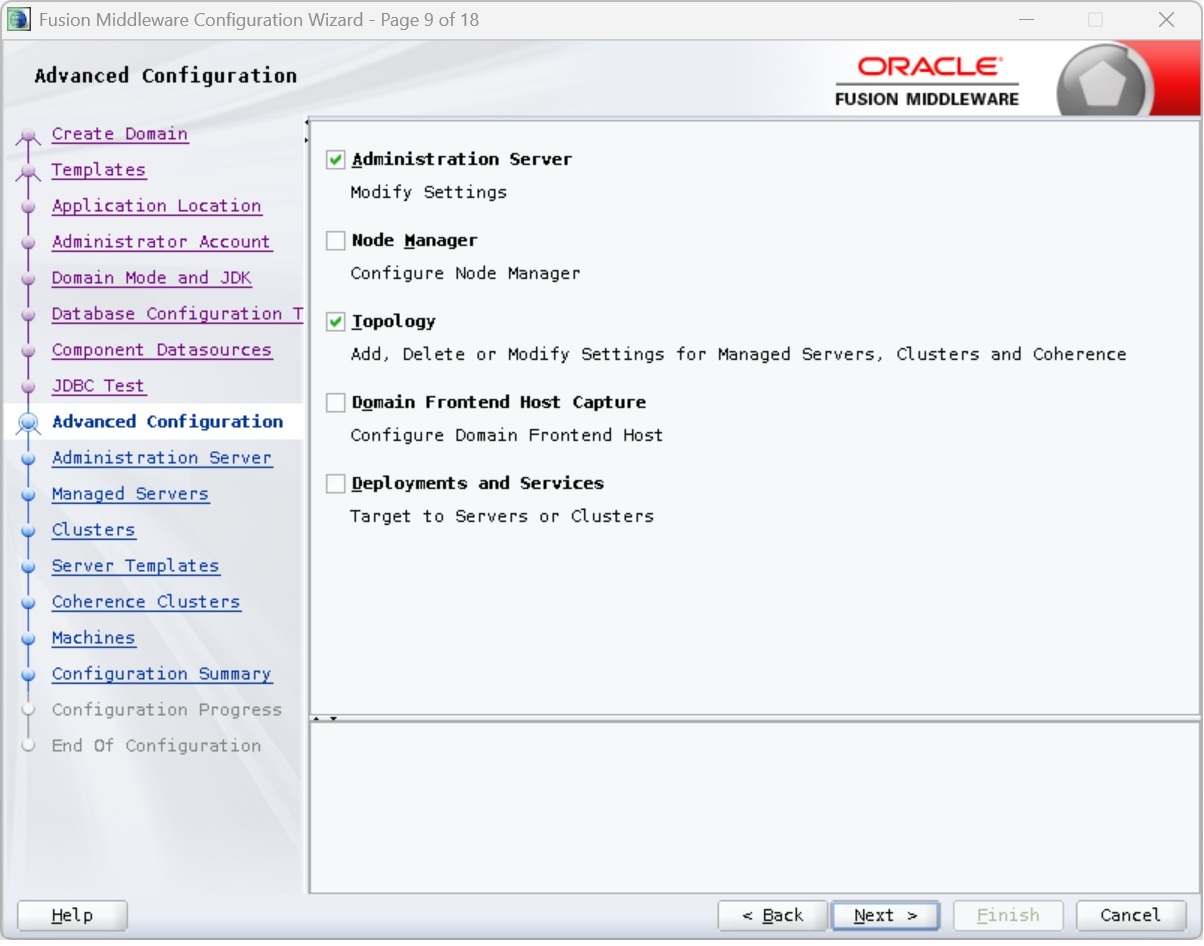

    Figure 2-22 Weblogic Domain Creation 9


    Description of Figure 2-22 follows
    Description of "Figure 2-22 Weblogic Domain Creation 9"

  14. Select Administration Server and Topology and click Next.
    The following window is displayed.

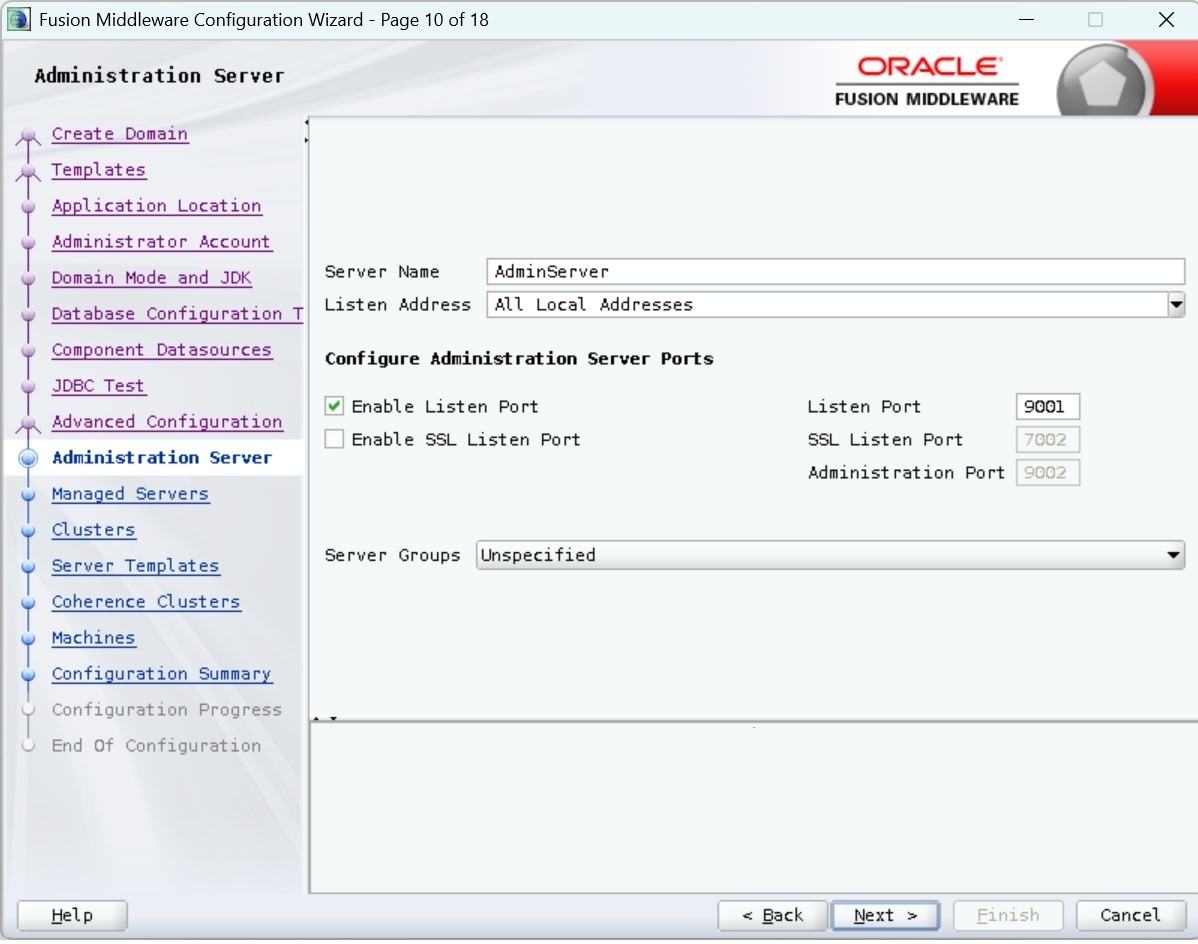

    Figure 2-23 Weblogic Domain Creation 10


    Description of Figure 2-23 follows
    Description of "Figure 2-23 Weblogic Domain Creation 10"

  15. Enter Administration Server Name and Listen Port details. Click Next.
    The following window is displayed.

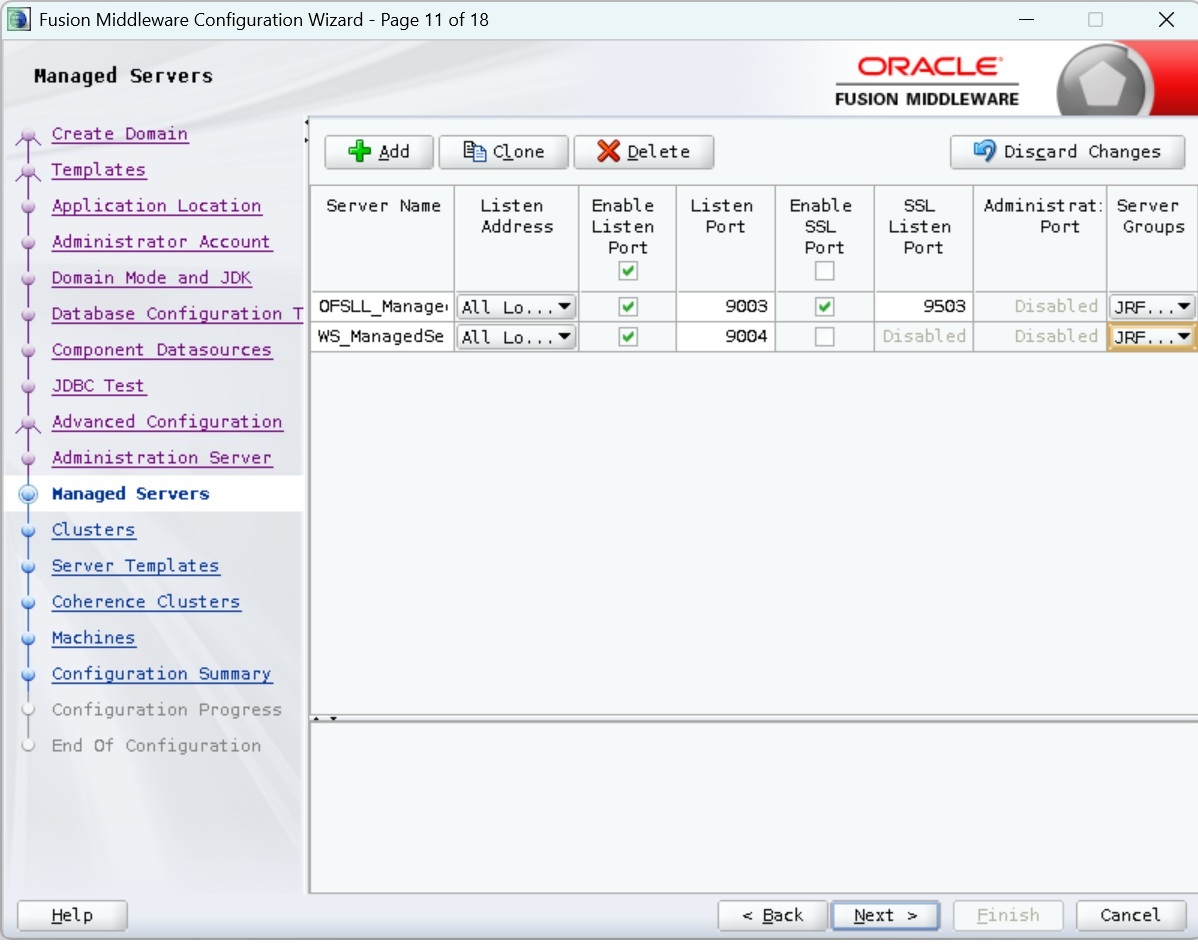

    Figure 2-24 Weblogic Domain Creation 11


    Description of Figure 2-24 follows
    Description of "Figure 2-24 Weblogic Domain Creation 11"

  16. Click Add button to create ManagedServer.
  17. Select the Server Group as JRF-MAN-SVR. Selecting this server group ensures that the Oracle JRF services are targeted to the specific Managed Servers created.

    Note:

    It is recommended to create two managed servers, one each for UI and Web Services.
  18. Click Next.
    The following window is displayed.

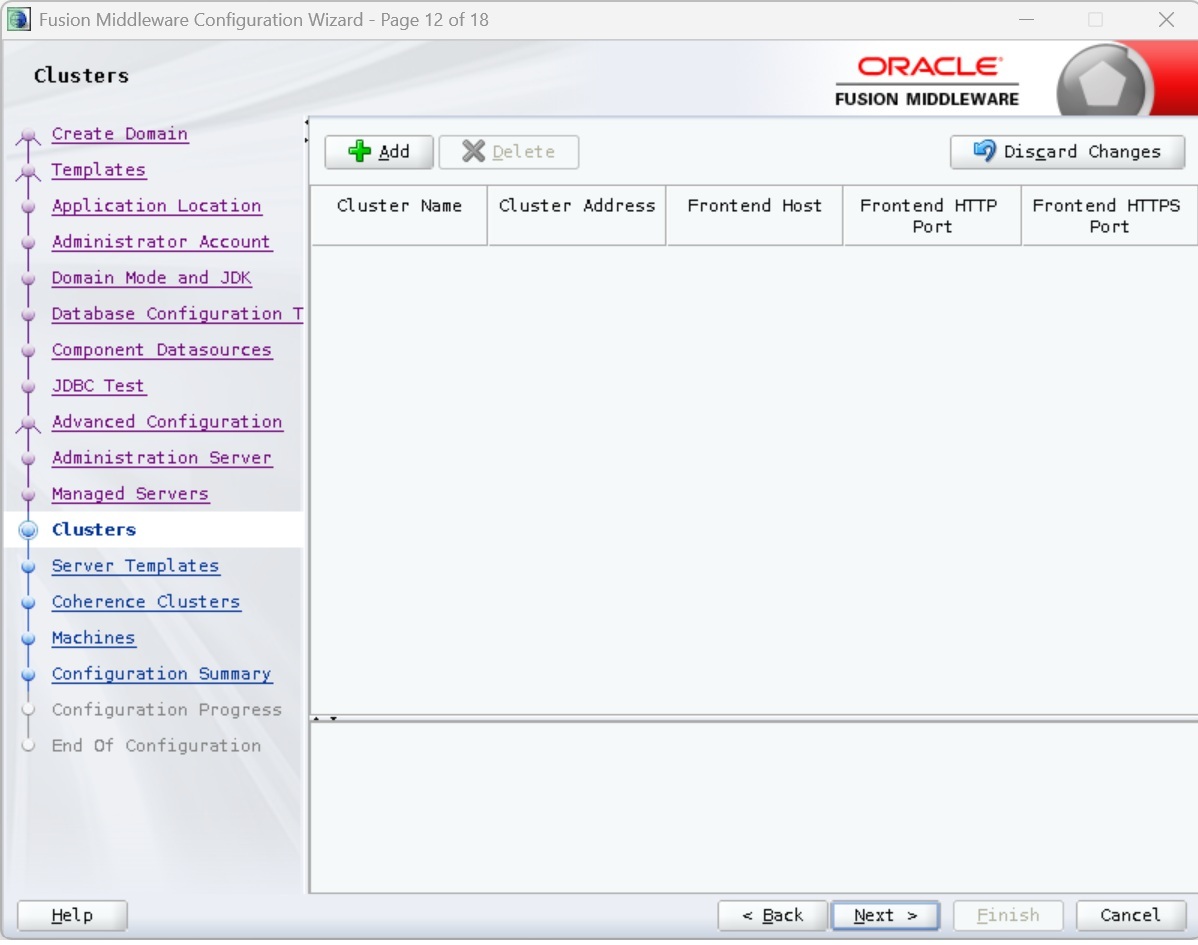

    Figure 2-25 Weblogic Domain Creation 12


    Description of Figure 2-25 follows
    Description of "Figure 2-25 Weblogic Domain Creation 12"

  19. Configure as required and click Next.
    The following window is displayed.

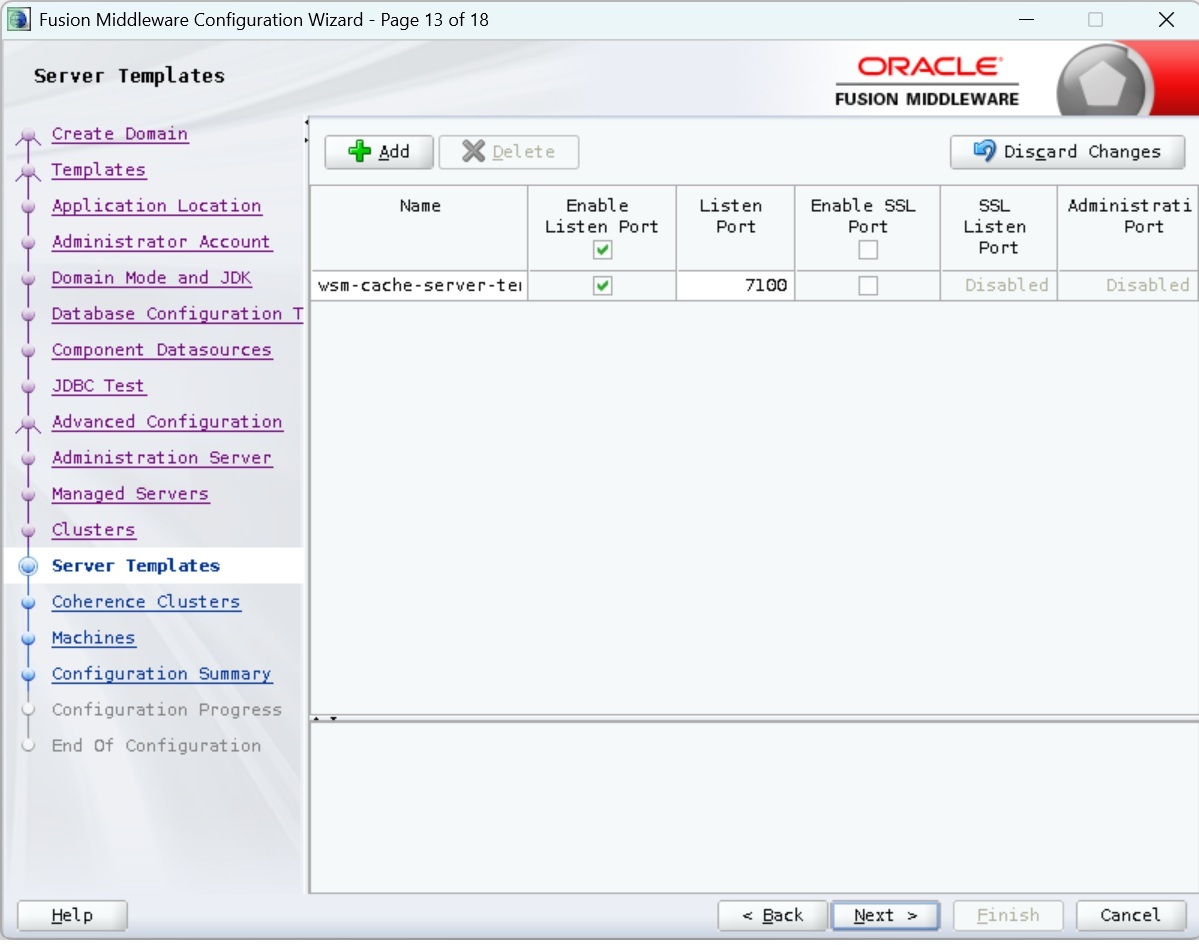

    Figure 2-26 Weblogic Domain Creation 13


    Description of Figure 2-26 follows
    Description of "Figure 2-26 Weblogic Domain Creation 13"

  20. Configure as required and click Next.
    The following window is displayed.

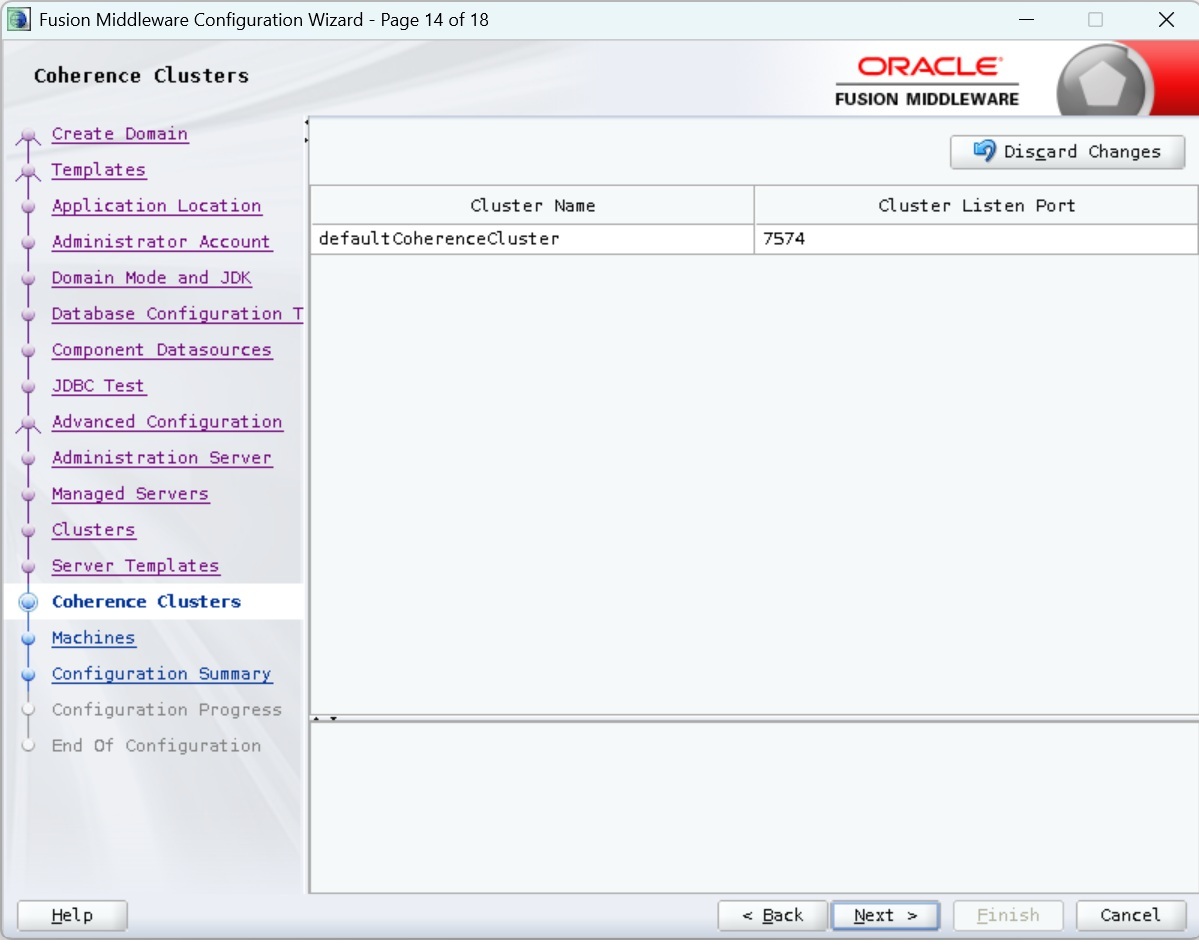

    Figure 2-27 Weblogic Domain Creation 14


    Description of Figure 2-27 follows
    Description of "Figure 2-27 Weblogic Domain Creation 14"

  21. Configure as required and click Next.
    The following window is displayed.

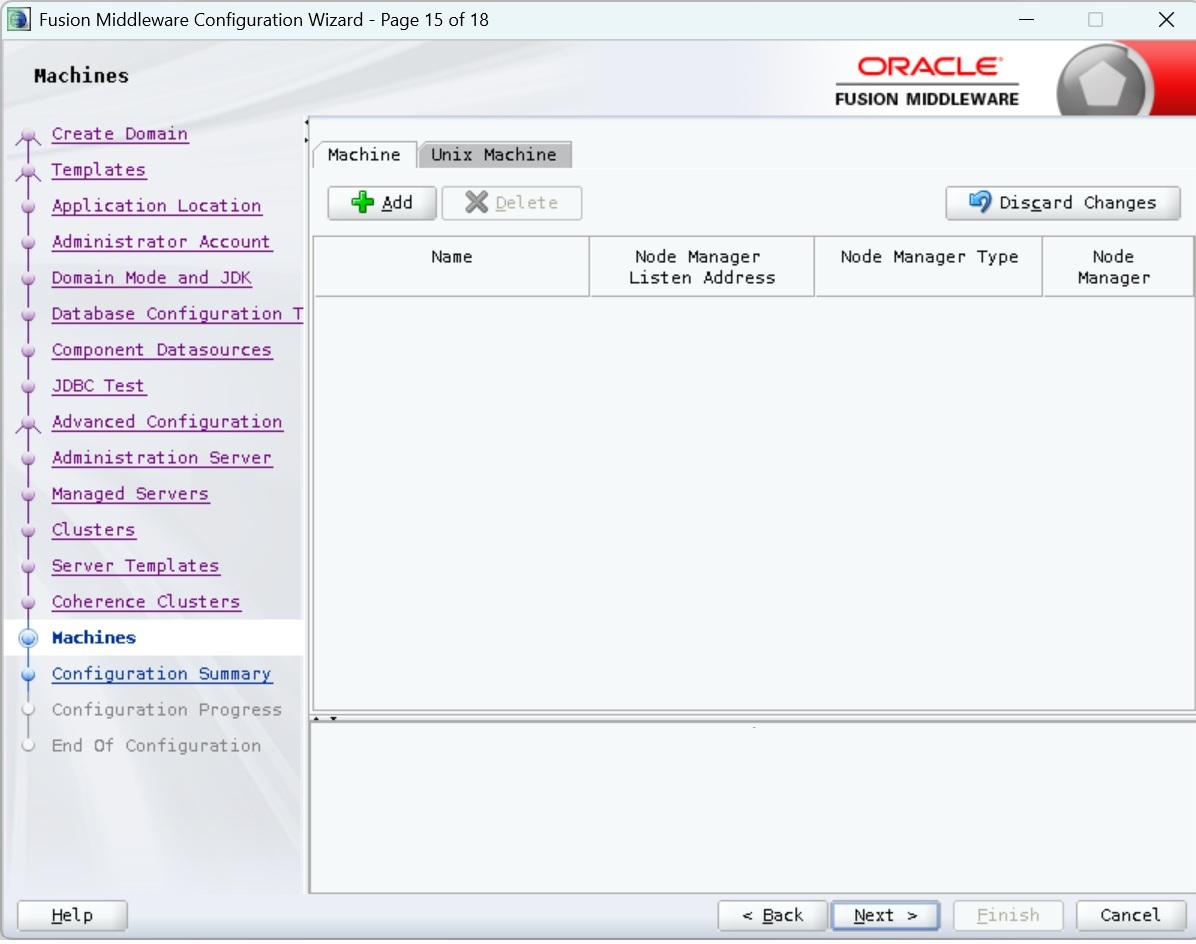

    Figure 2-28 Weblogic Domain Creation 15


    Description of Figure 2-28 follows
    Description of "Figure 2-28 Weblogic Domain Creation 15"

  22. Click Next.
    The following window is displayed.

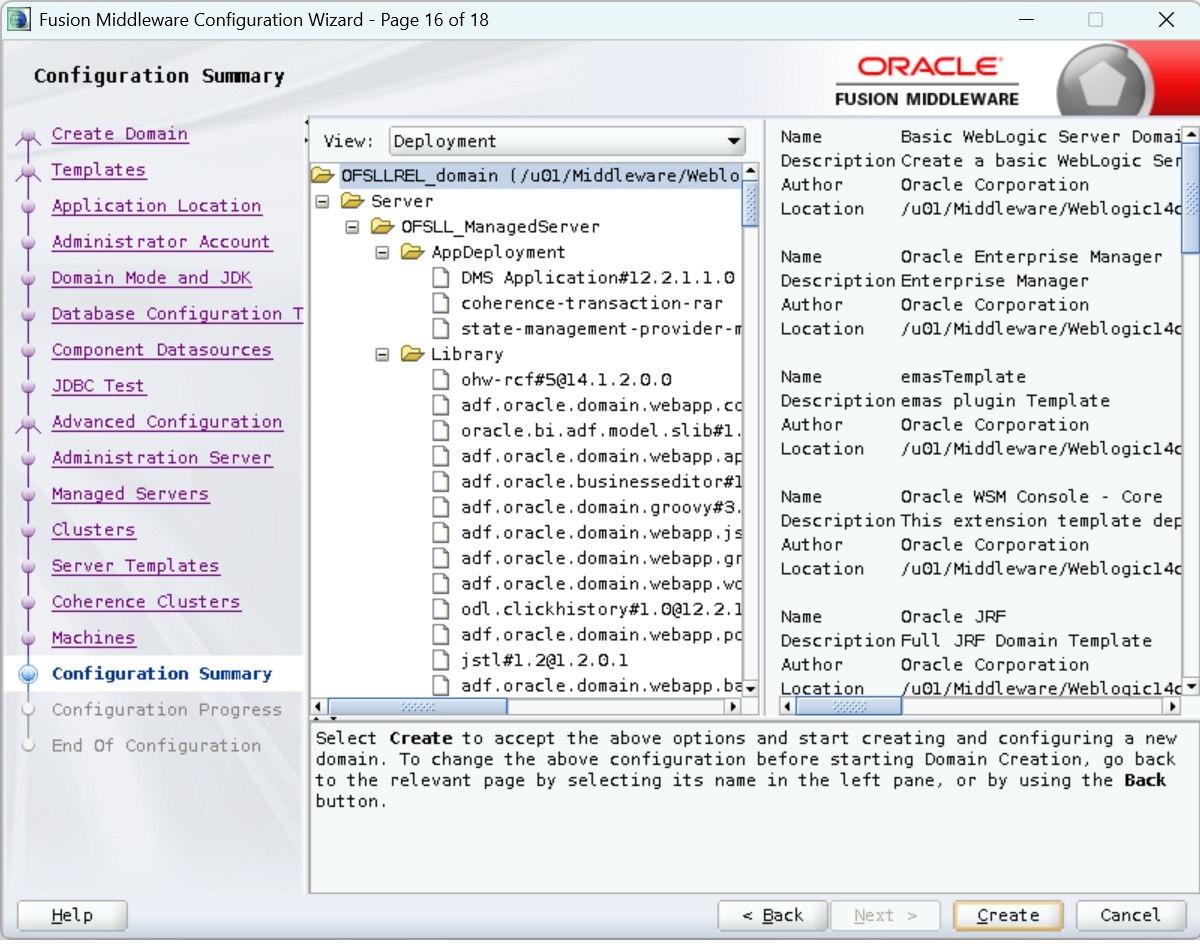

    Figure 2-29 Weblogic Domain Creation 18


    Description of Figure 2-29 follows
    Description of "Figure 2-29 Weblogic Domain Creation 18"

  23. Click Next.
    The following window is displayed.

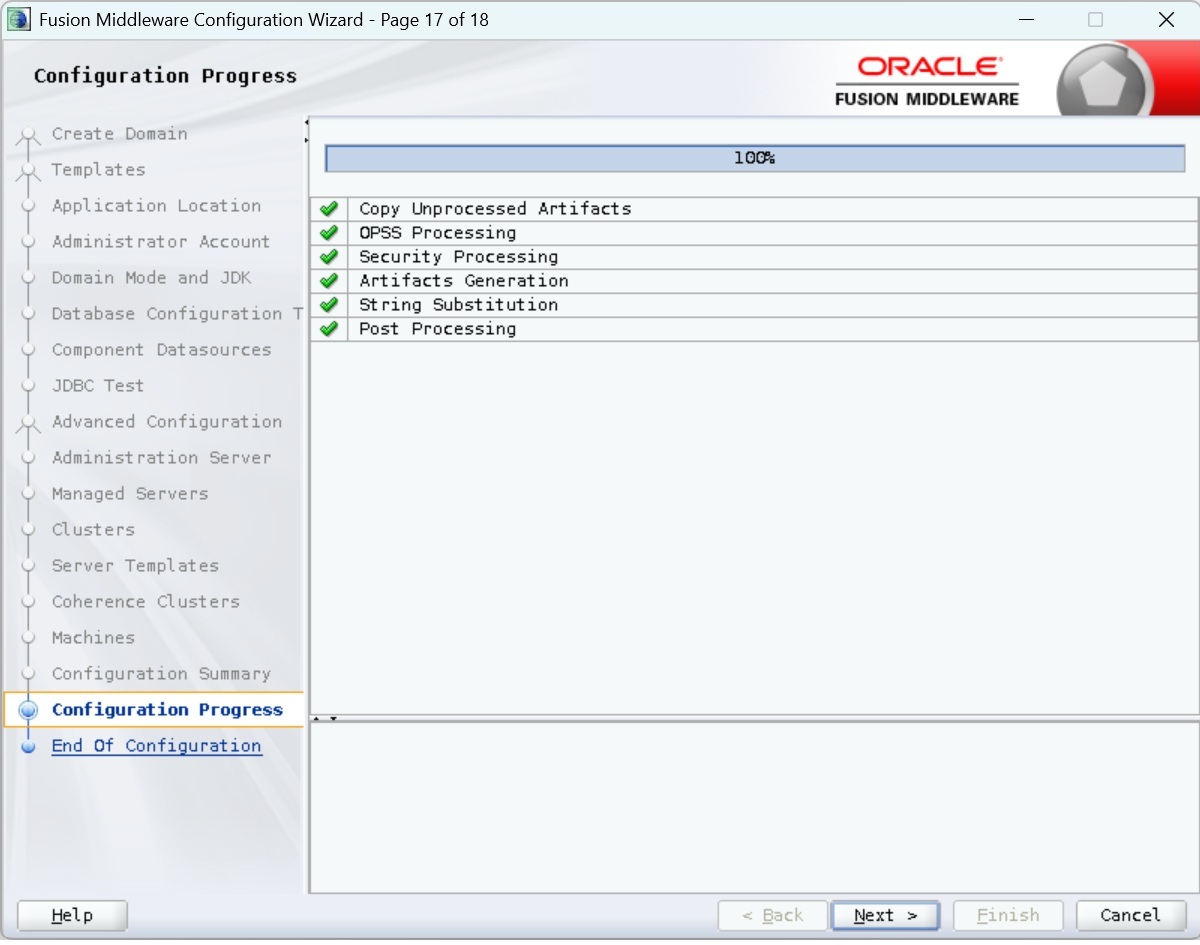

    Figure 2-30 Weblogic Domain Creation 19


    Description of Figure 2-30 follows
    Description of "Figure 2-30 Weblogic Domain Creation 19"

  24. Click Next.
    The following window is displayed.

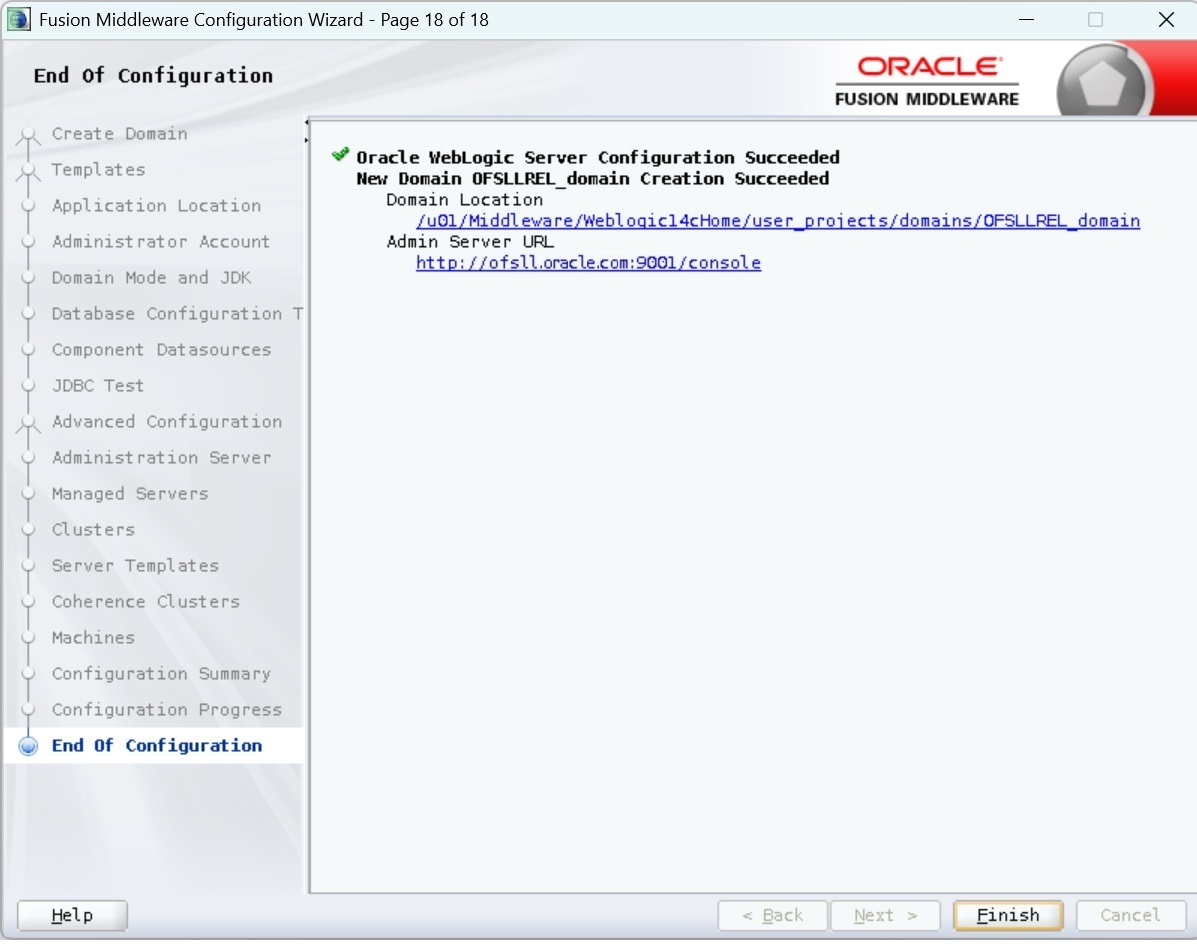

    Figure 2-31 Weblogic Domain Creation 20


    Description of Figure 2-31 follows
    Description of "Figure 2-31 Weblogic Domain Creation 20"

  25. Once the creation of the Domain is complete, click Finish to close the window.

    Note:

    The default Weblogic installation will be running JVM with 512MB, this has to be increased for the ADF managed server. Say, for a 2 CPU Quad Core with 16 GB it could have the JVM running at 8 GB as:

    USER_MEM_ARGS="-Xms8192m –Xmx8192m -XX:PermSize=2048m -XX:Max­PermSize=2048m"

  26. Install Application JAR to OFSLL Domain lib Directory
    • Copy the OfsllCommonCSF.jar from /WEB-INF/lib available in the staging area to $DOMAIN_HOME/lib

    • Update the setDomainEnv.sh file ($MW_HOME/user_projects/domains/mydomain/bin directory) by appending the above jar file path – EXTRA_JAVA_PROPERTIES="…….. ${EXTRA_JAVA_PROPERTIES} -Dofsll.csf.path=${DOMAIN_HOME}"

  27. The "$MW_HOME/user_projects/domains/<mydomain>" directory contains a script that can be used to start the Admin server.
    • $ cd $MW_HOME/user_projects/domains/<mydomain>/bin
    • $ ./startWebLogic.sh

    If the server is required to be running and access to command line needs to be returned use "nohup" and "&"

    $ nohup ./startWebLogic.sh &

  28. To Start Managed Server
    • $ cd $MW_HOME/user_projects/domains/<mydomain>/bin
    • $ ./$MW_HOME/user_projects/domains/<mydomain>/bin/startManagedWebLogic.sh {ManagedServer_name} {AdminServer URL}

    If the server is required to be running and access to command line needs to be returned use "nohup" and "&".

    $ nohup ./$MW_HOME/user_projects/domains/<mydomain>/bin/startManagedWebLogic.sh {ManagedServer_name} {AdminServer URL} &

    The recommended parameters for each Managed Server for application and web services are as follows:

    • For managed server where application is deployed:

      -Xms10g -Xmx10g -XX:HeapDumpPath=/tmp -XX:SoftRefLRUPolicyMSPerMB=10 -Dweblogic.diagnostics.debug.DebugLogger.DISABLED=true -Dweblogic.management.discover=false -Dweblogic.MuxerClass=weblogic.socket.PosixSocketMuxer -Dweblogic.SocketReaders=40 -Dweblogic.llr.table.specjdsl=wl_llr_jent31_1 -Dweblogic.llr.table.specjds2=wl_llr_jent31_2 -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchStyle=1 -XX:MaxTenuringThreshold=4 -XX:+PrintClassHistogram -XX:+AlwaysPreTouch -Djbo.load.components.lazily=true -Djbo.ampool.initpoolsize=100 -Djbo.recyclethreshold=200 -Djbo.ampool.minavailablesize=200 -Djbo.ampool.maxavailablesize=200 -Djbo.ampool.timetolive=-1 -Djbo.locking.mode=optimistic -Djbo.doconnectionpooling=true -Djbo.txn.disconnect_level=1 -Djbo.ampool.doampooling=true -Djbo.dofailover=false -Djbo.ampool.maxinactiveage=3600000 -Djbo.ampool.monitorsleepinterval=360000 -Doracle.multitenant.enabled=false -XX:StringTableSize=100003 -XX:ReservedCodeCacheSize=1g -XX:+OptimizeStringConcat -XX:+FlightRecorder -Doracle.adfm.useSharedTransactionForFrame=false -Dweblogic.mdb.message.MinimizeAQSessions=true -Dweblogic.ejb.container.MDBDestinationPollIntervalMillis=6000 -Dlog4j2.formatMsgNoLookups=true -Dweblogic.ssl.JSSEEnabled=true -DUseJSSECompatibleHttpsHandler=true -Dweblogic.security.SSL.minimumProtocolVersion=TLSv1.2

    • For managed server where web services are deployed:

      -Xms10g -Xmx10g -XX:HeapDumpPath=/tmp -XX:SoftRefLRUPolicyMSPerMB=10 -XX:StringTableSize=100003 -XX:ReservedCodeCacheSize=1g -XX:+AlwaysPreTouch -verbose:gc -Dweblogic.diagnostics.debug.DebugLogger.DISABLED=true -Dweblogic.management.discover=false -Dweblogic.llr.table.specjdsl=wl_llr_jent31_1 -Dweblogic.llr.table.specjds2=wl_llr_jent31_2 -Dsun.net.inetaddr.ttl=0 -Dnetworkaddress.cache.ttl=0 -DUseJSSECompatibleHttpsHandler=true -Dweblogic.MuxerClass=weblogic.socket.PosixSocketMuxer -Dweblogic.SocketReaders=40 -Dweblogic.ssl.JSSEEnabled=true -Dweblogic.security.SSL.minimumProtocolVersion=TLSv1.2
