2.1 Creating Data Sources for RESTful WebService

Please follow the below steps to create data Sources for RESTful WebService.

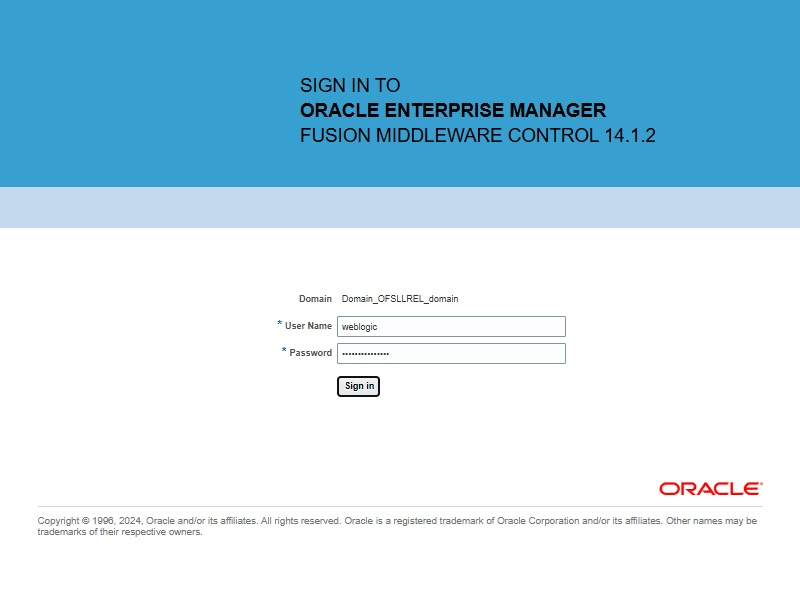

  1. Login to Oracle Weblogic 14c em (http://hostname:port/em).

    Figure 2-1 Create RESTful WebService 1


    Description of Figure 2-1 follows
    Description of "Figure 2-1 Create RESTful WebService 1"

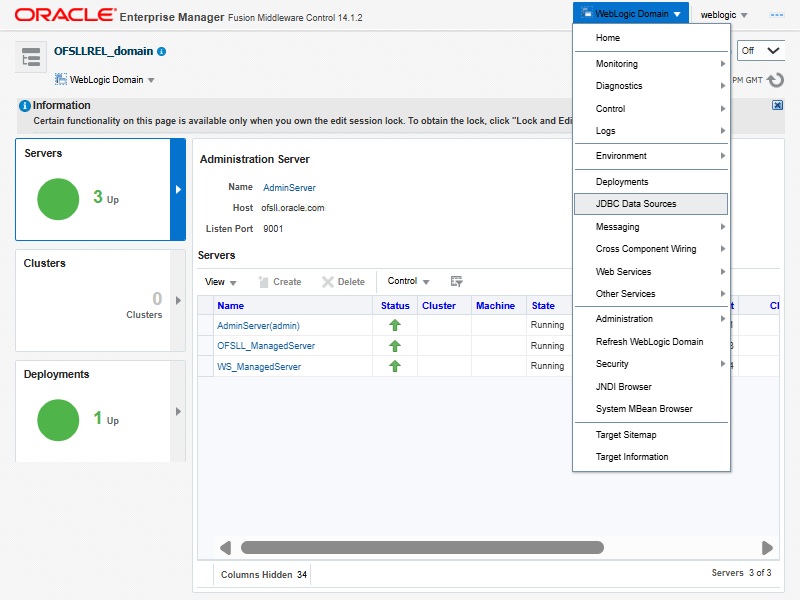

  2. Click WebLogic Domain > JDBC Data Sources.
    The following window is displayed.

    Figure 2-2 Create RESTful WebService 3


    Description of Figure 2-2 follows
    Description of "Figure 2-2 Create RESTful WebService 3"

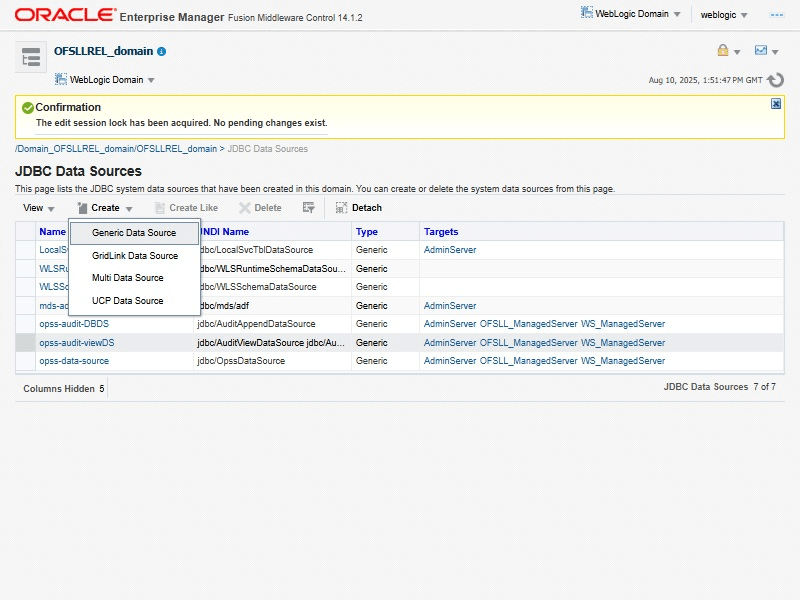

  3. Click Lock & Edit on the Change Center. Click ‘Create’ and select ‘Generic Data Source’.
    The following window is displayed.

    Figure 2-3 Create RESTful WebService 4


    Description of Figure 2-3 follows
    Description of "Figure 2-3 Create RESTful WebService 4"

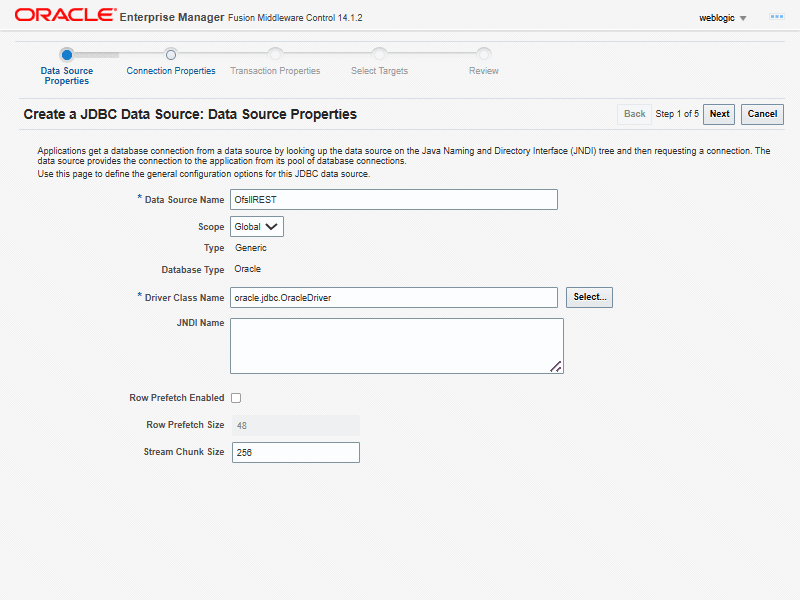

  4. Specify the following details:
    1. Enter Data source Name: OfsllREST
    2. Click on Select

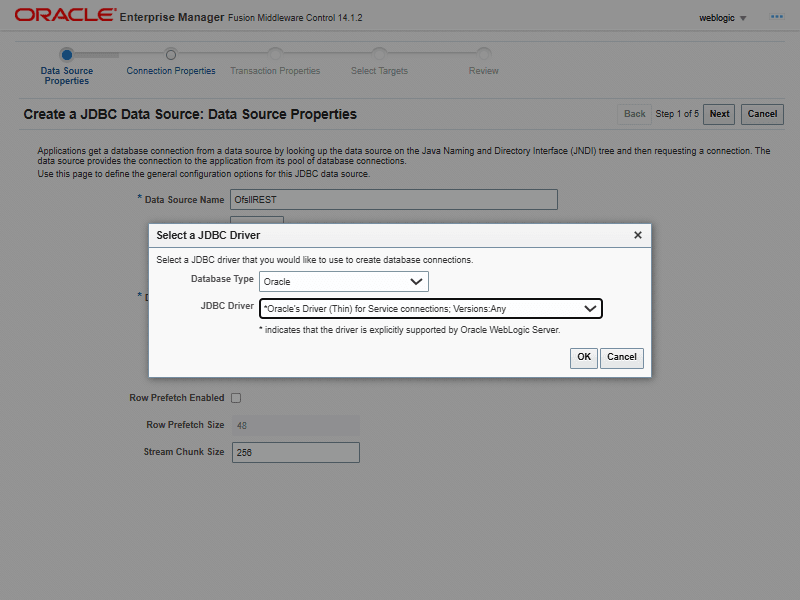

  5. Select the Database Driver ‘Oracle's Driver(Thin) for Services connections;Versions:Any’
  6. Click Ok.

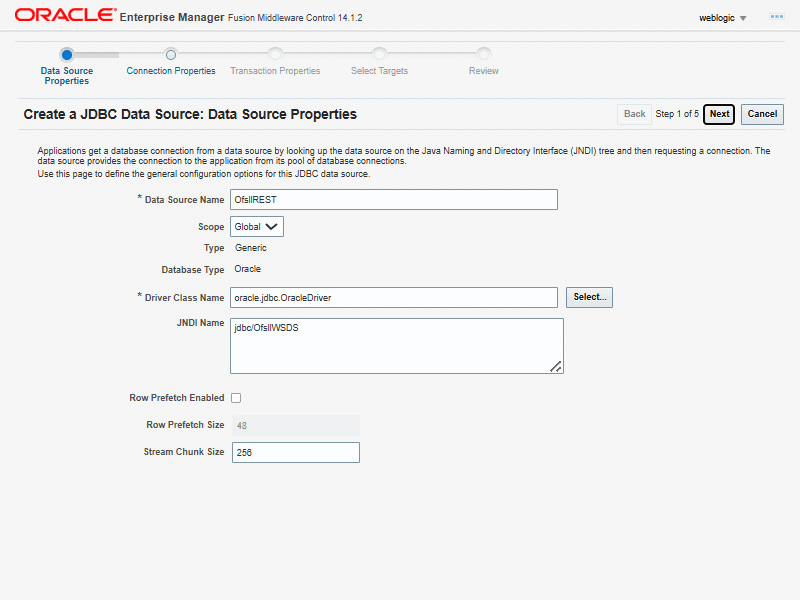

  7. Specify the following details:
    • Enter the JNDI Name as ‘jdbc/OfsllWSDS’.
    • Click Next.

    Description of webservices_creatingdatasources6.png follows
    Description of the illustration webservices_creatingdatasources6.png

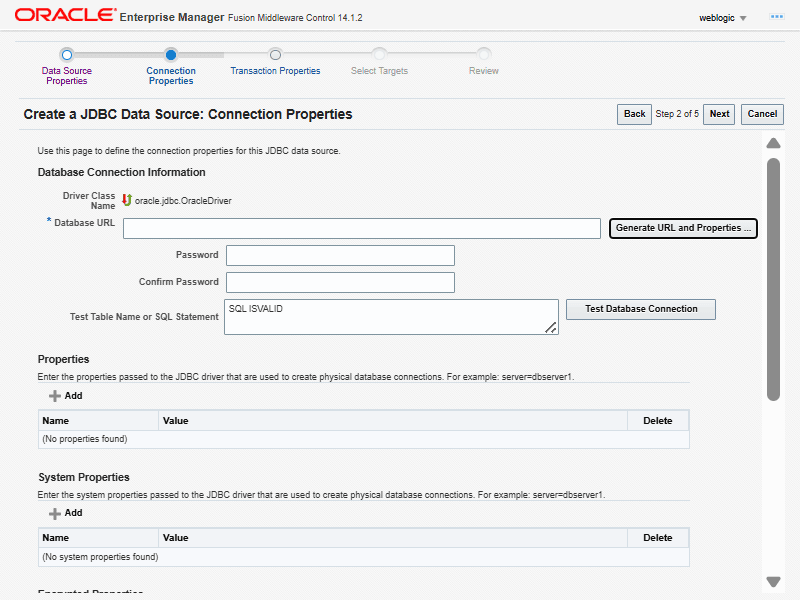

  8. Click Next.

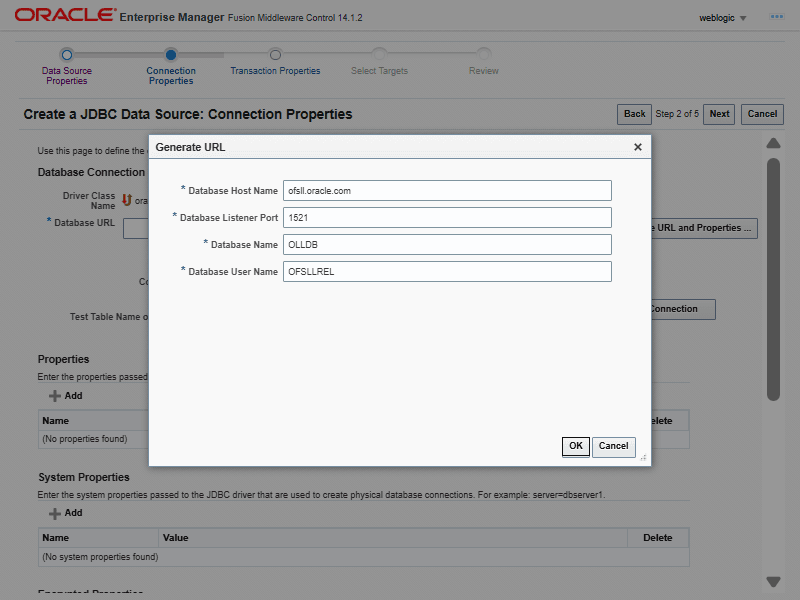

  9. Enter the Database details.
    • Click Ok.
    The following window is displayed.
    Description of webservices_creatingdatasources8.png follows
    Description of the illustration webservices_creatingdatasources8.png

  10. Enter OFSLL DB schema “Password” and Confirm Password”.
    • Click Test Database Connection. On completion, displays a confirmation message as ‘Connection test succeeded’.

    Description of webservices_creatingdatasources9.png follows
    Description of the illustration webservices_creatingdatasources9.png

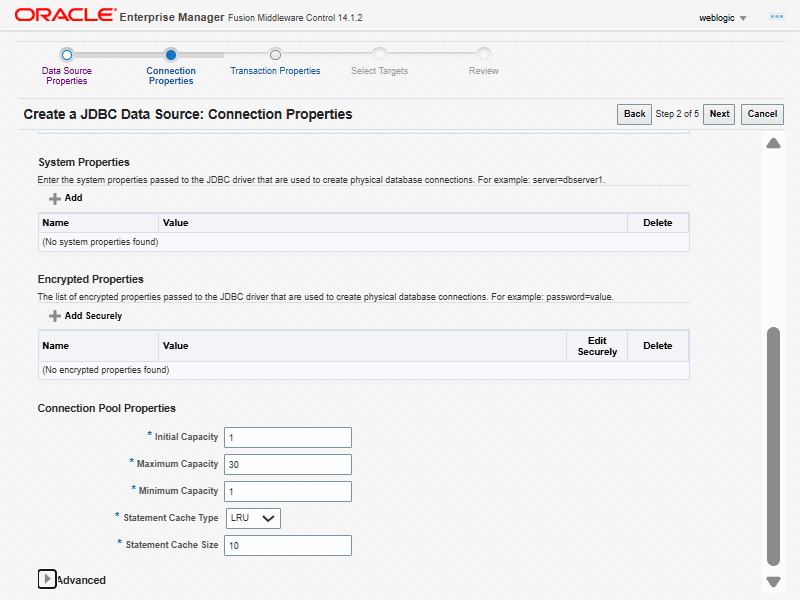

  11. Initial capacity and Maximum capacity is defaulted to 30, if the number of concurrent users are more this needs to be increased.

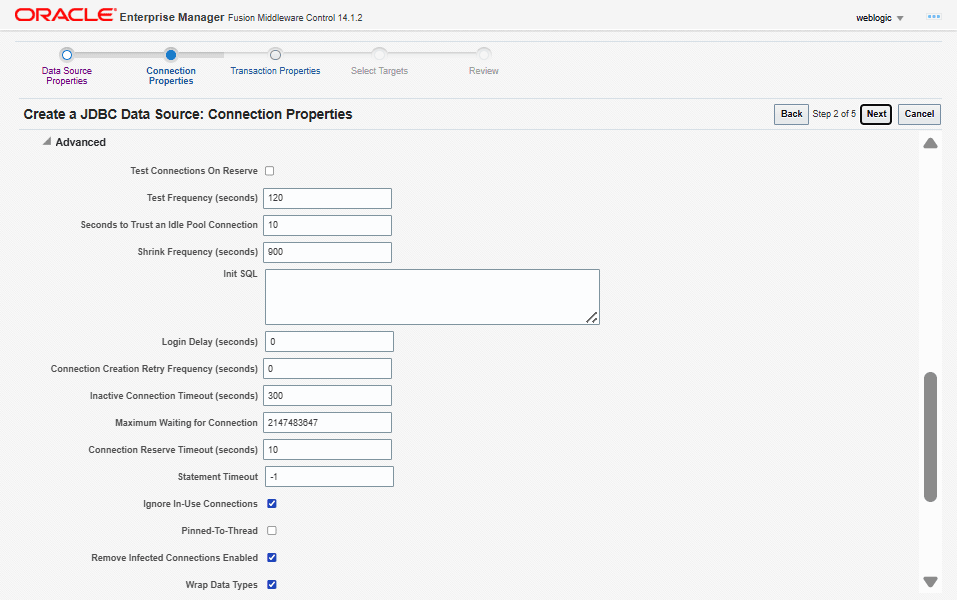

  12. Click Advanced and update the ‘Inactive Connection Timeout’ to 300 seconds.
    • Click Next.

    The following window is displayed.


    Description of webservices_creatingdatasources11.png follows
    Description of the illustration webservices_creatingdatasources11.png

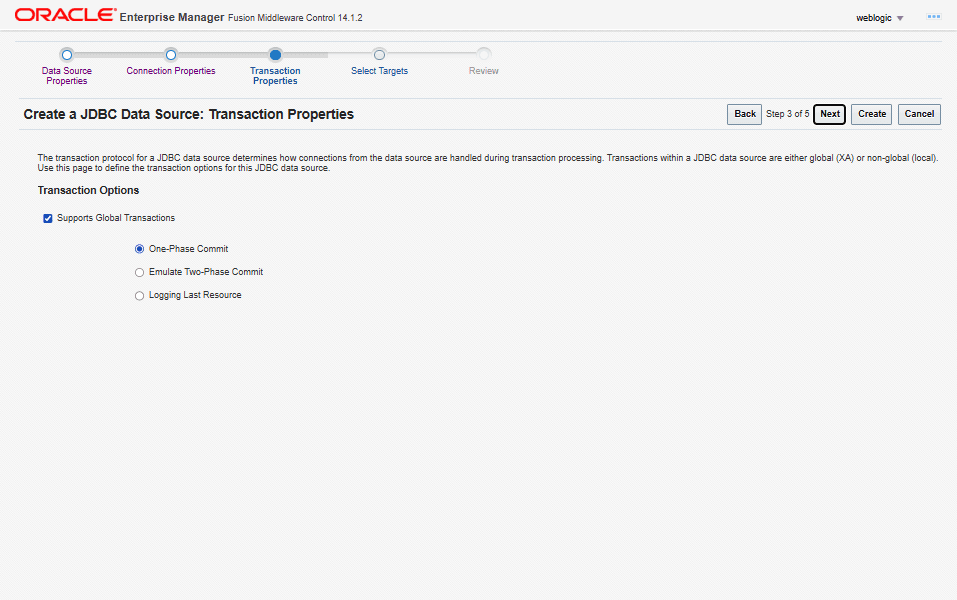

  13. Click Next.
  14. Click Next.

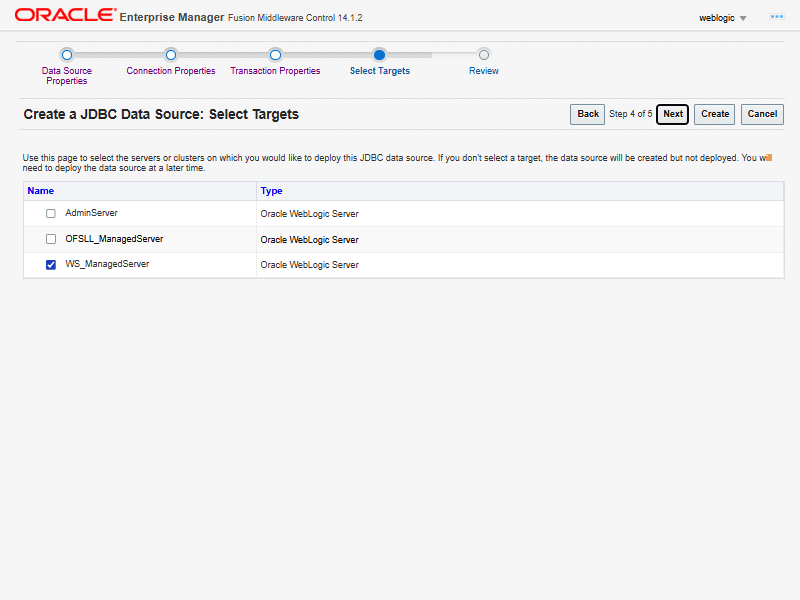

    • Select target Server as ‘WS_ManagedServer’.
    The following window is displayed.
    Description of webservices_creatingdatasources13.png follows
    Description of the illustration webservices_creatingdatasources13.png

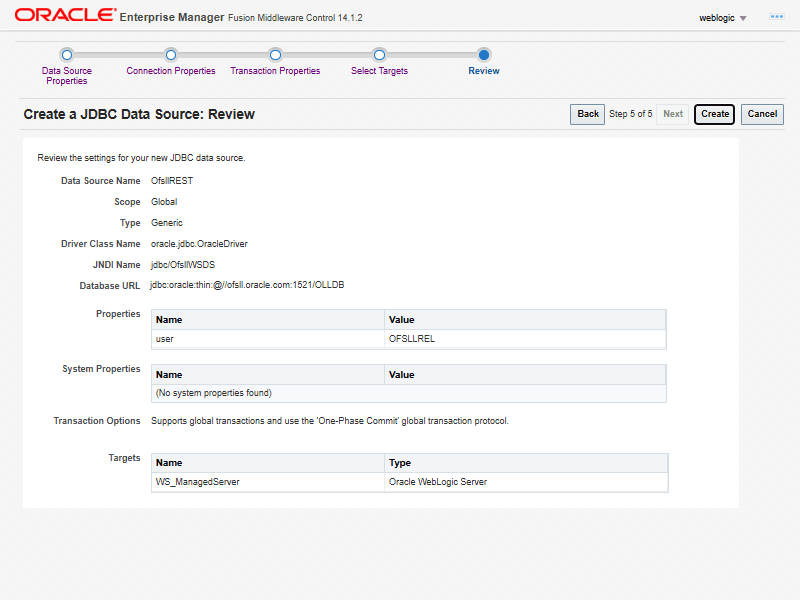

  15. Click Create to activate the changes

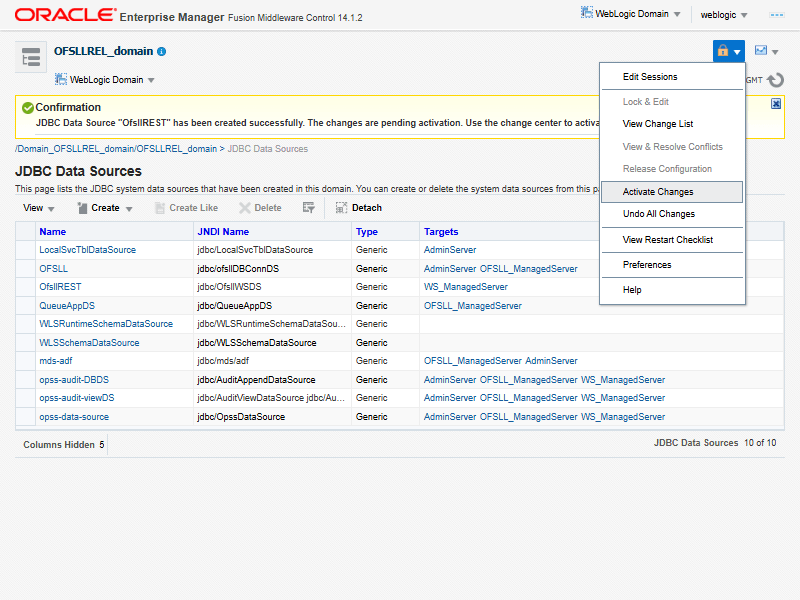

  16. Activate Changes from Change Center.
