2.5 Deploying RESTful Credit Bureau WebService

Please follow the below steps to deploy RESTful Credit Bureau WebService.
  1. Login to Web Logic application server enterprise manager (e.g.:http://hostname:port/em).

    Figure 2-18 Deploy Bureau WebService 1


    Description of Figure 2-18 follows
    Description of "Figure 2-18 Deploy Bureau WebService 1"

  2. Enter valid login credentials.
    The following window is displayed.

    Figure 2-19 Deploy Bureau WebService 2


    Description of Figure 2-19 follows
    Description of "Figure 2-19 Deploy Bureau WebService 2"

  3. Select Lock & Edit option in the lock drop-down list available in the header.
  4. Click Deployment in the left panel.
    The following window is displayed.

    Figure 2-20 Deploy Bureau WebService 3


    Description of Figure 2-20 follows
    Description of "Figure 2-20 Deploy Bureau WebService 3"

  5. Select Deploy from the Deployment drop-down list.
    The following window is displayed.

    Figure 2-21 Deploy Bureau WebService 4


    Description of Figure 2-21 follows
    Description of "Figure 2-21 Deploy Bureau WebService 4"

  6. The following window is displayed.

    Figure 2-22 Deploy Bureau WebService 5


    Description of Figure 2-22 follows
    Description of "Figure 2-22 Deploy Bureau WebService 5"

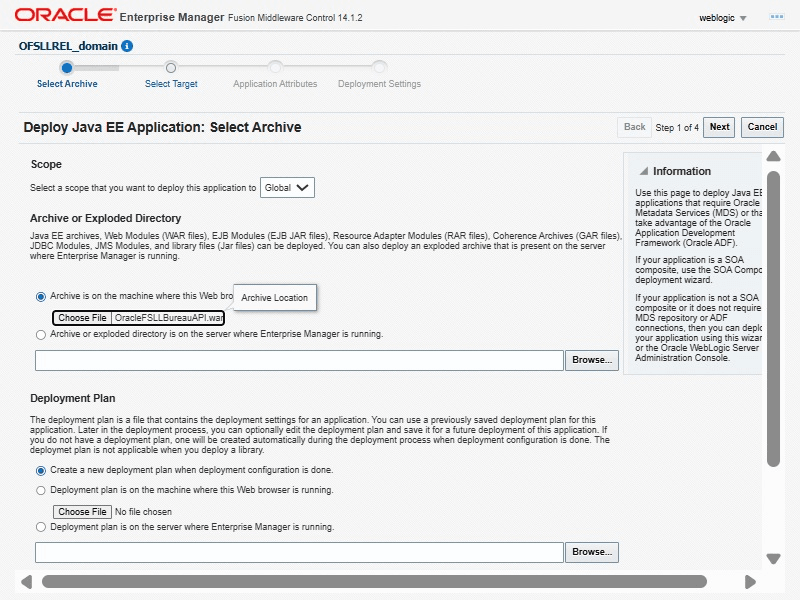

  7. Browse to the folder containing the Credit Bureau WebService. For example: C:/OracleFSLLBureauAPI.war
  8. Click Next.
    The following window is displayed.

    Figure 2-23 Deploy Bureau WebService 6


    Description of Figure 2-23 follows
    Description of "Figure 2-23 Deploy Bureau WebService 6"

  9. Select the server on which the WebService needs to be deployed.
  10. Click Next.
    The following window is displayed.

    Figure 2-24 Deploy Bureau WebService 7


    Description of Figure 2-24 follows
    Description of "Figure 2-24 Deploy Bureau WebService 7"

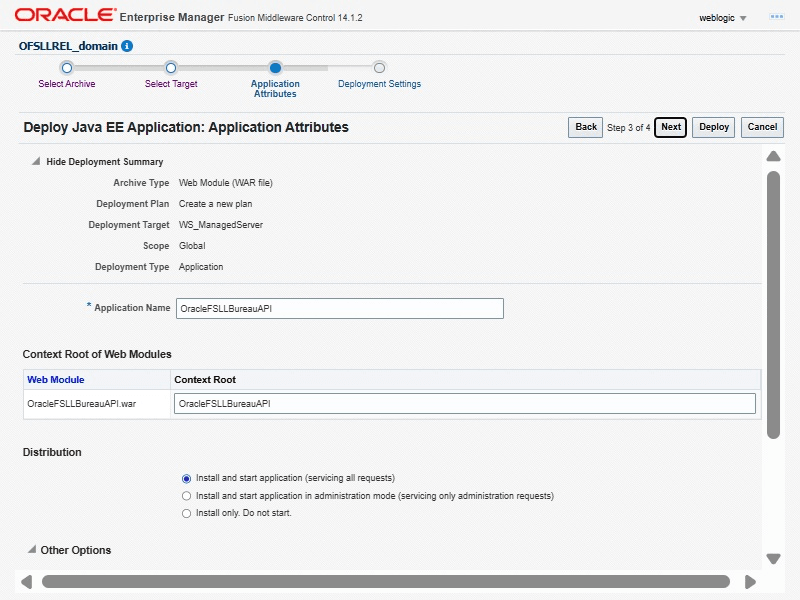

  11. Select the option Install and start application (servicing all requests).
  12. Check the context root and click Next.
    The following window is displayed.

    Figure 2-25 Deploy Bureau WebService 8


    Description of Figure 2-25 follows
    Description of "Figure 2-25 Deploy Bureau WebService 8"

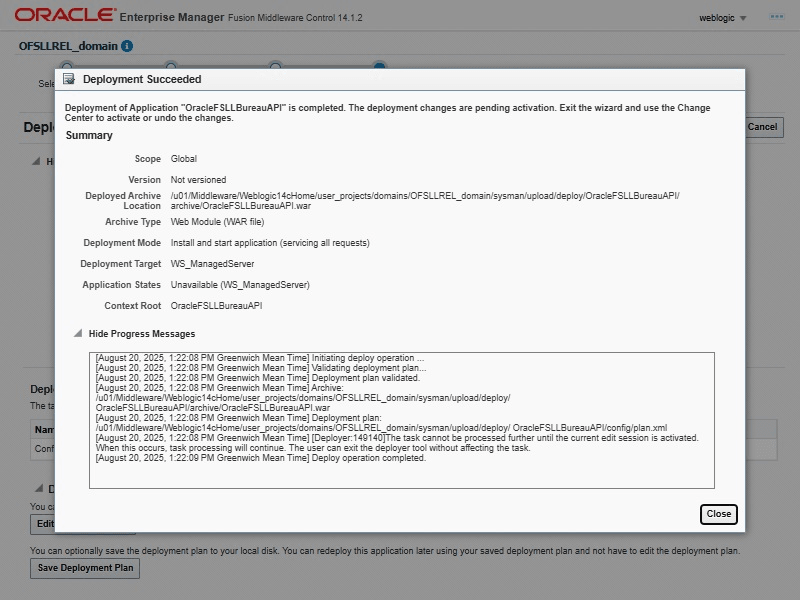

  13. Click Deploy. On successful deployment, the following window is displayed.

    Figure 2-26 Deploy Bureau WebService 9


    Description of Figure 2-26 follows
    Description of "Figure 2-26 Deploy Bureau WebService 9"

  14. Click Close. Post deployment, you need to activate the changes by selecting Active Changes option from Edit Session drop-down list as indicated in step 4 above.
The next step is to create.

Parent topic: Configure RESTful WebService
