2.4 Deploying RESTful WebService

Please follow the below steps to deploy RESTful WebService.

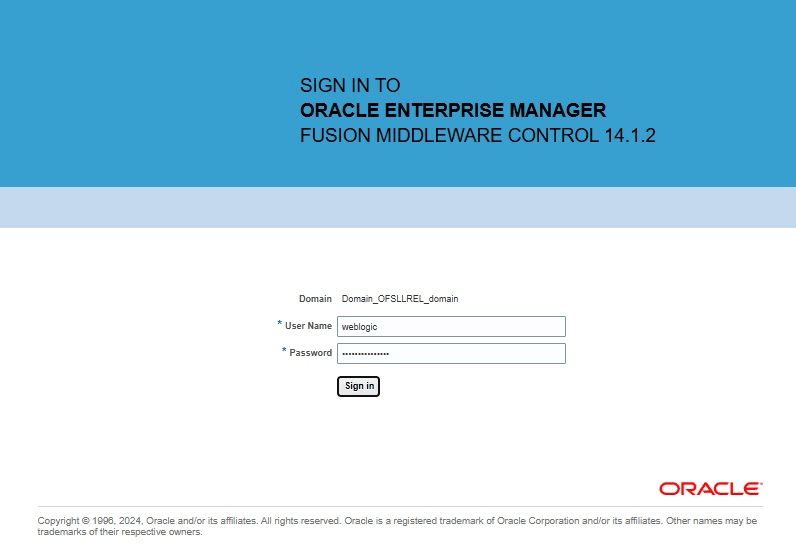

  1. Login to Web Logic application server enterprise manager (e.g.: http://hostname:port/em)

    Figure 2-7 Deploy RESTful WebService 1


    Description of Figure 2-7 follows
    Description of "Figure 2-7 Deploy RESTful WebService 1"

  2. Enter valid login credentials.

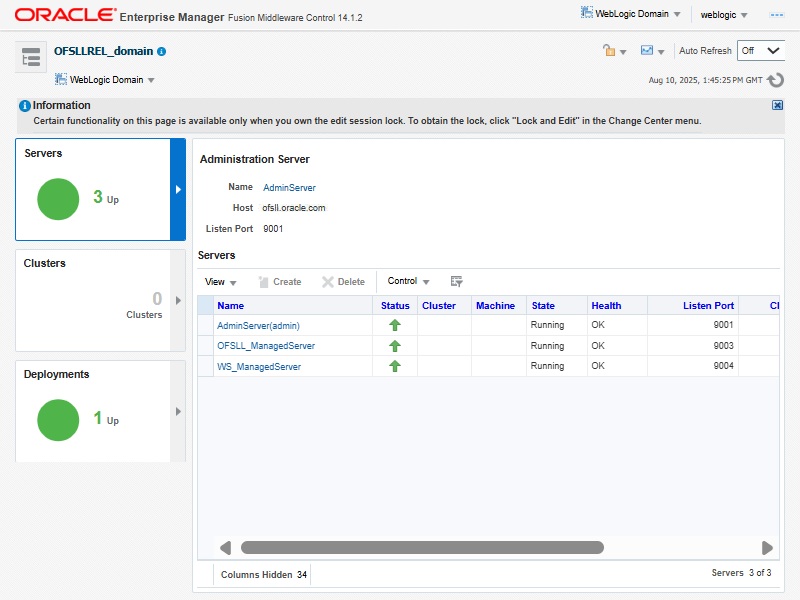

    The following window is displayed.

    Figure 2-8 Deploy RESTful WebService 2


    Description of Figure 2-8 follows
    Description of "Figure 2-8 Deploy RESTful WebService 2"

  3. Select Lock & Edit option in the lock drop-down list available in the header.
  4. Click Deployment in the left panel. Select Lock & Editoption in the lock drop-down list available in the header.
    The following window is displayed.

    Figure 2-9 Deploy RESTful WebService 3


    Description of Figure 2-9 follows
    Description of "Figure 2-9 Deploy RESTful WebService 3"

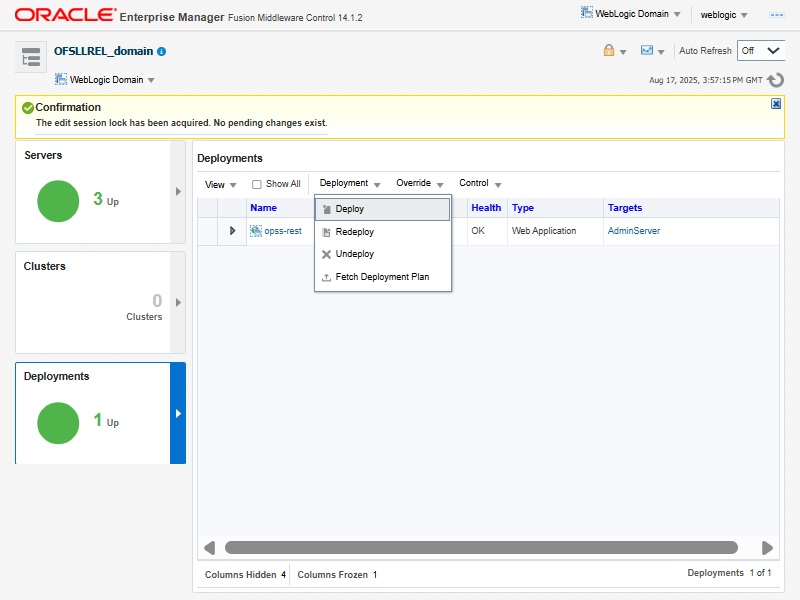

  5. Select Deploy from the Deployment drop-down list.
    The following window is displayed.

    Figure 2-10 Deploy RESTful WebService 4


    Description of Figure 2-10 follows
    Description of "Figure 2-10 Deploy RESTful WebService 4"

  6. The following window is displayed.

    Figure 2-11 Deploy RESTful WebService 5


    Description of Figure 2-11 follows
    Description of "Figure 2-11 Deploy RESTful WebService 5 "

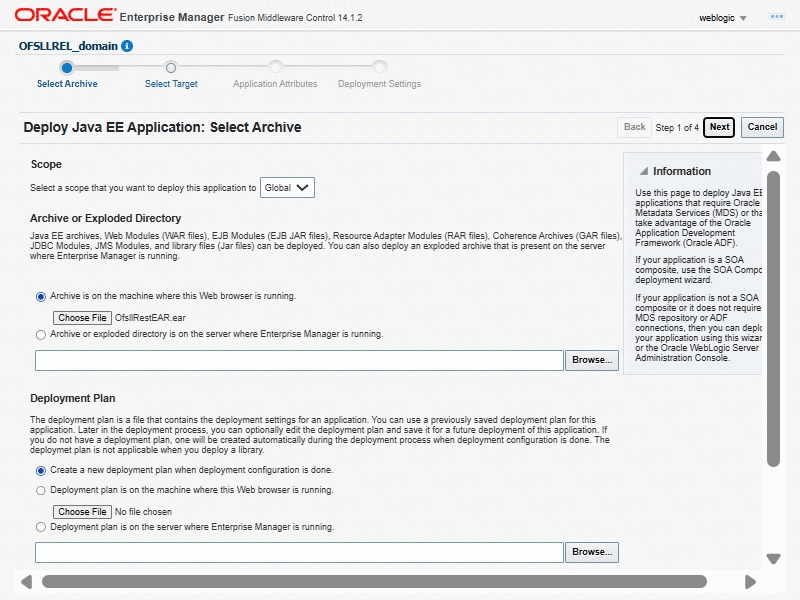

  7. Browse to the folder containing the WebService. Eg: C:/OfsllRestEAR.ear
  8. Click Next.
    The following window is displayed.

    Figure 2-12 Deploy RESTful WebService 6


    Description of Figure 2-12 follows
    Description of "Figure 2-12 Deploy RESTful WebService 6"

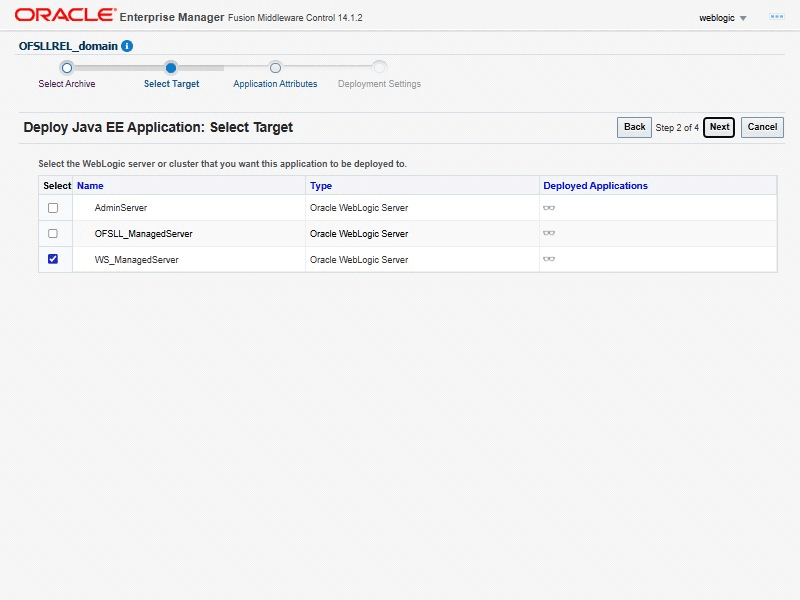

  9. Select the server on which the WebService needs to be deployed.
  10. Click Next.
    The following window is displayed.

    Figure 2-13 Deploy RESTful WebService 7


    Description of Figure 2-13 follows
    Description of "Figure 2-13 Deploy RESTful WebService 7"

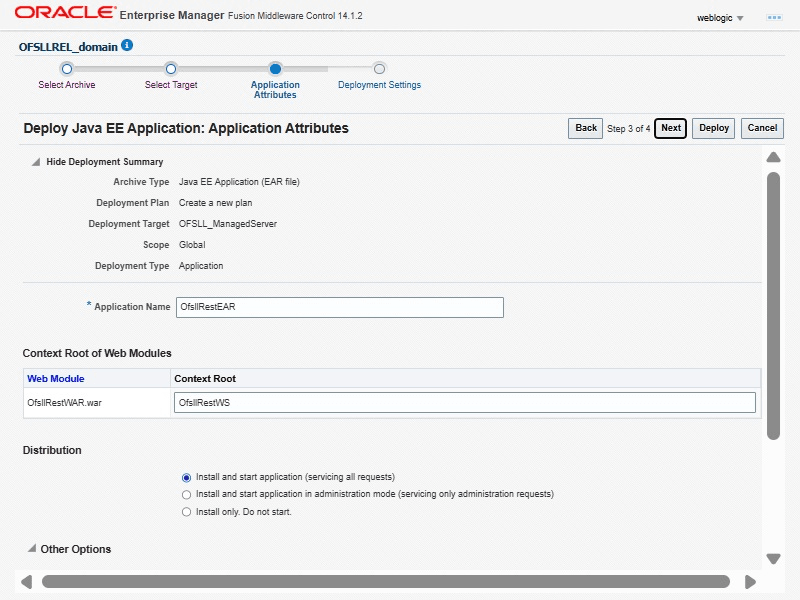

  11. Select the option Install and start application (servicing all requests).
  12. Check the context root and click Next.
    The following window is displayed.

    Figure 2-14 Deploy RESTful WebService 8


    Description of Figure 2-14 follows
    Description of "Figure 2-14 Deploy RESTful WebService 8"

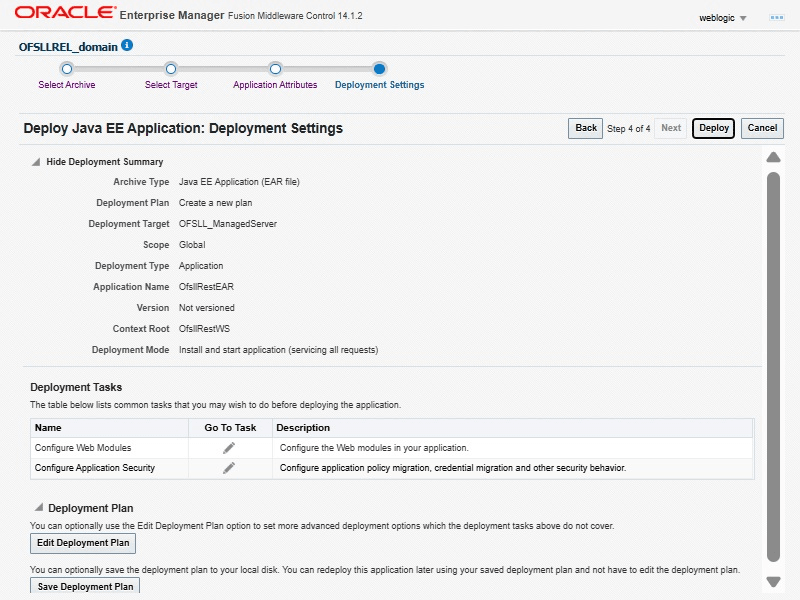

  13. Click Deploy . On successful deployment, the following window is displayed.

    Figure 2-15 Deploy RESTful WebService 9


    Description of Figure 2-15 follows
    Description of "Figure 2-15 Deploy RESTful WebService 9"

  14. Click Close. Post deployment, you need to activate the changes by selecting Active Changes option from Edit Session drop-down list as indicated in step 4 above.
The next step is to Identifying the RESTful Webservice URL.
