2.5 Perform LDS Process

This topic provides the systematic instructions to perform post-process execution operation of LDS record.

1. On Home screen, type LDPROCES in the text box, and click Next.
   The LDS Process screen is displayed.

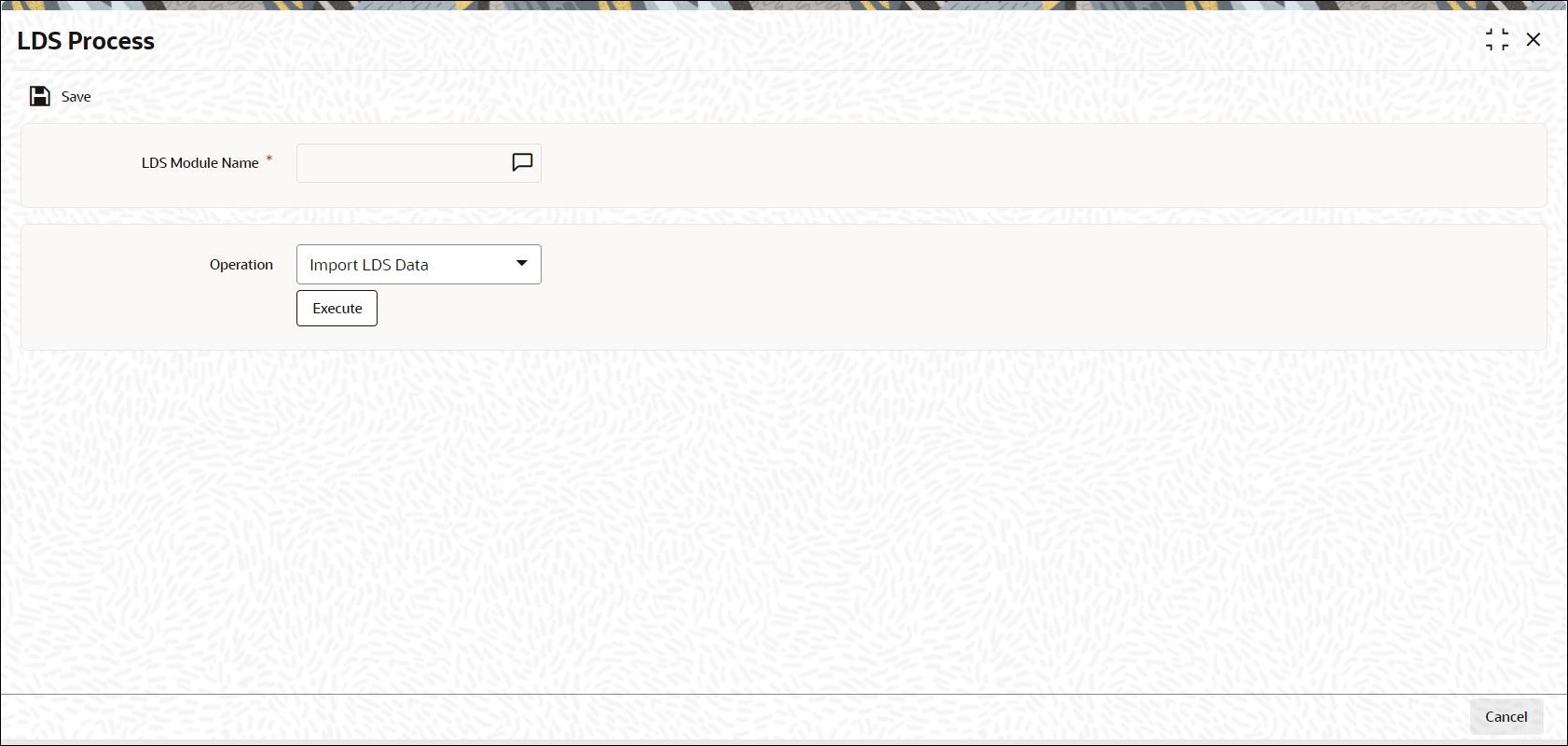

   Figure 2-9 LDS Process





   Description of "Figure 2-9 LDS Process"



2. On LDS Process, click New to enter the details.
   For more information on fields, refer to the field description table.

   Table 2-4 LDS Process - Field Description

   Field	Description
   LDS Module Name	Display The system displays the LDS module name on click of New button.
   Operation	Optional Select the operation status from the drop-down list. The list displays the following values: Export LDS Data Export Business Data Truncate Business Data Import Business Data Post Process

3. Maintain values in the system in such a way that the following values are stored in LOB module.
   The following values are stored in LOB module:

   • Export LDS Data
   • Export Business Data
   • Truncate Business Data
   • Import Business Data
   • Post Process
4. Maintain values in the system in such a way that the following value is stored in LDS module.
   The following value Import LDS Data is stored in LDS module.

• Business Schema
  This topic gives information on the Business Schema.
• LDS Schema
  This topic gives information on the LDS Schema.
