1.4.1 Business Process Workflow for FCIS Transaction
This topic provides information about the business process workflow for FCIS transaction.
The following image represents the overall functional flow using blockchain
for the transaction.

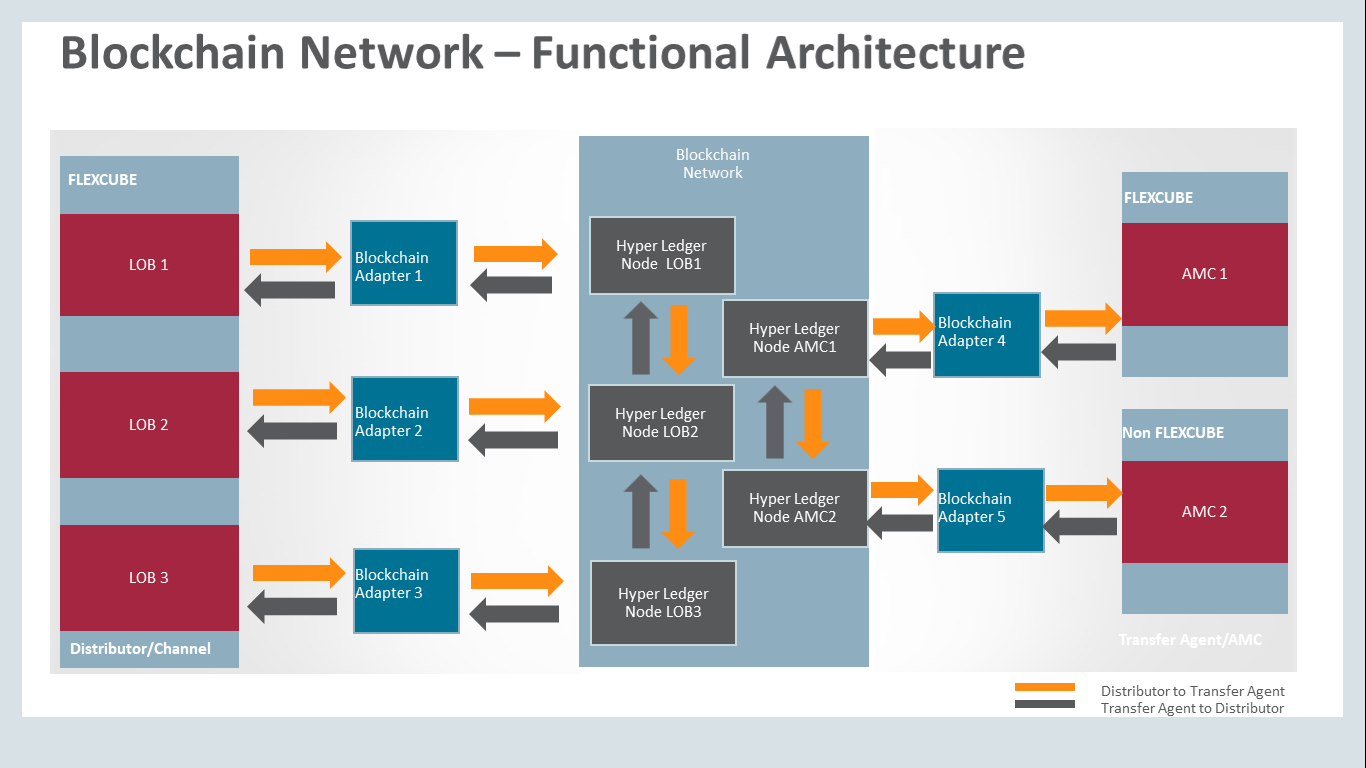

Figure 1-2 Functional Architecture of Blockchain Network
The following image represents the current Transaction flow:

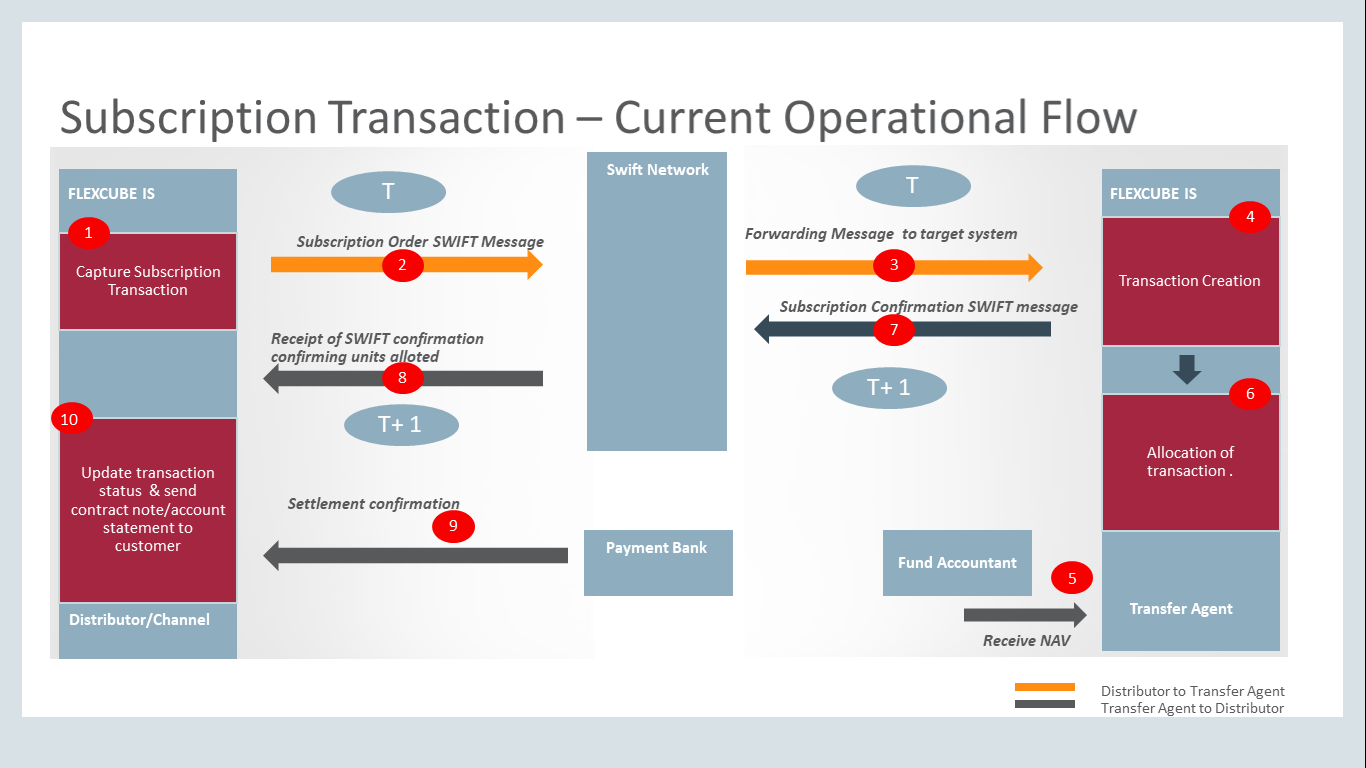

Figure 1-3 Current Operational Flow of Subscription Transaction
The following image represents the proposed Transaction flow:

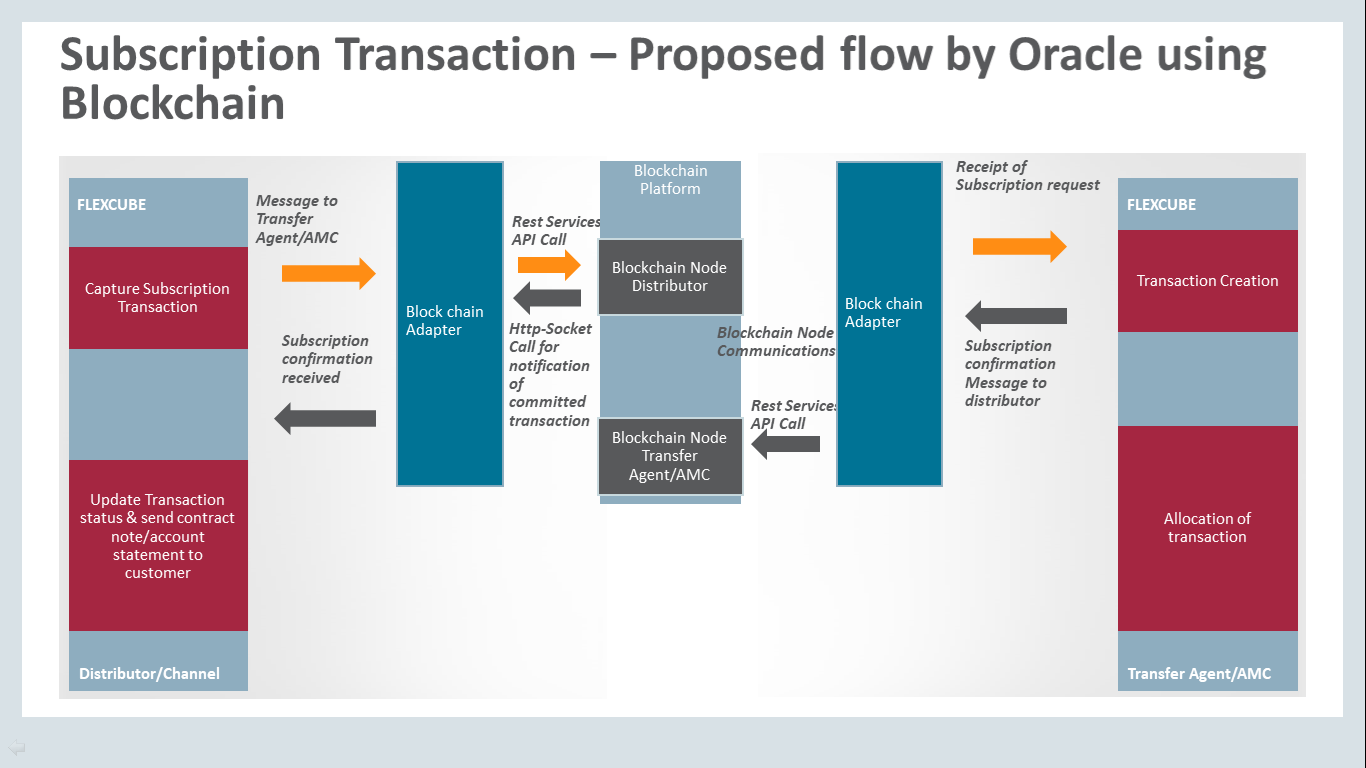

Figure 1-4 Proposed Flow by Oracle using Blockchain for Subscription Transaction
