2.5 Screens

This topic describes about designing the screens for Call Forms.

1. Design the screen layout based on the requirement in the Screen Details.

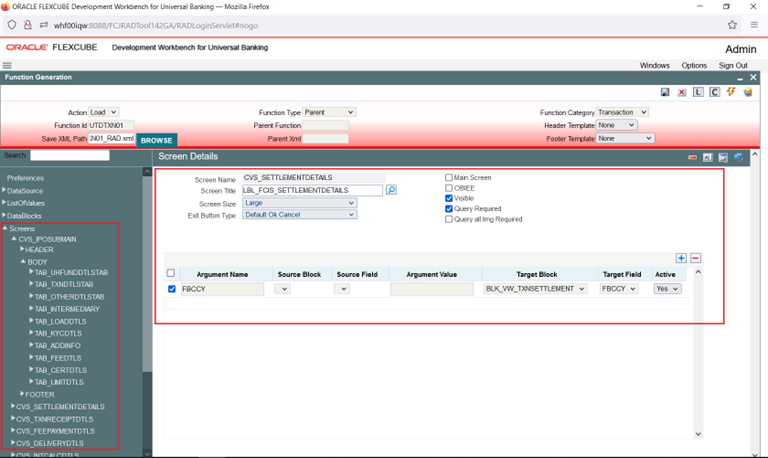

   Figure 2-10 Designing Screens and providing Screen Properties





   Description of "Figure 2-10 Designing Screens and providing Screen Properties"



2. Identify one screen as the main screen; if multiple screens are present.
3. Add Tabs, sections and partitions as per the screen design.

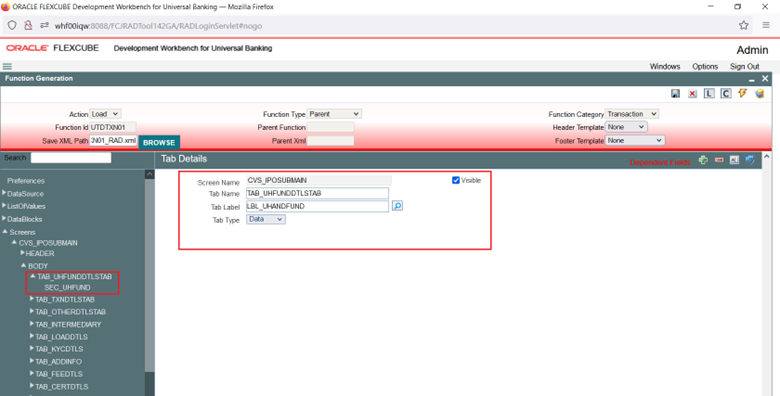

   Figure 2-11 Creating Tabs and maintaining Properties





   Description of "Figure 2-11 Creating Tabs and maintaining Properties"



4. When creating tabs and sections for the screen, if the screen does not have multiple tabs, then only the TAB_MAIN needs to be used. TAB_HEADER should not contain any sections in this scenario.
5. Use all the tabs for Online forms. Since online forms are large screens with multiple tabs.
   TAB_HEADER should contain the header information. TAB_MAIN should be the first tab in the body. Other tabs have to be added in the body portion as required.
6. Provide sections in TAB_FOOTER as required.
   The developer often designs footers for Online forms.

   Note:

   In large screens, footer supports four partitions while other portions support three partitions.

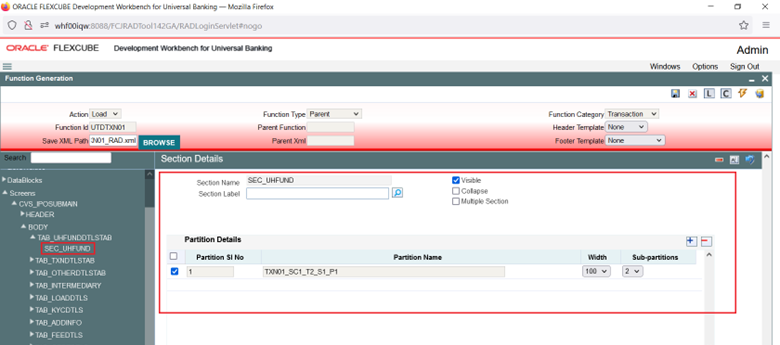

   Figure 2-12 Section Properties





   Description of "Figure 2-12 Section Properties"




   Multiple Screens can be designed if required.
