5.3.29 Custom Attributes

This topic describes about the custom attributes.

Attribute Name and values for SELECT, RADIO, CHECKBOX and READ ONLY SELECT fields has to be provided here.

• Attribute Name: corresponds to the Label Code whose description will appear in the screen.
• Attribute Value: is the corresponding value which will be stored in the backend for the corresponding attribute.
• Active: ODT does not allow the deletion of attribute elements if created in an earlier release. Hence if an attribute is no longer required, the attribute can be made inactive.
• Position: Ordering of the attributes in the list can be manipulated using Position field. Position numbers can be modified. After changing the position values, position button has to be clicked; which will arrange all attributes in the new order.

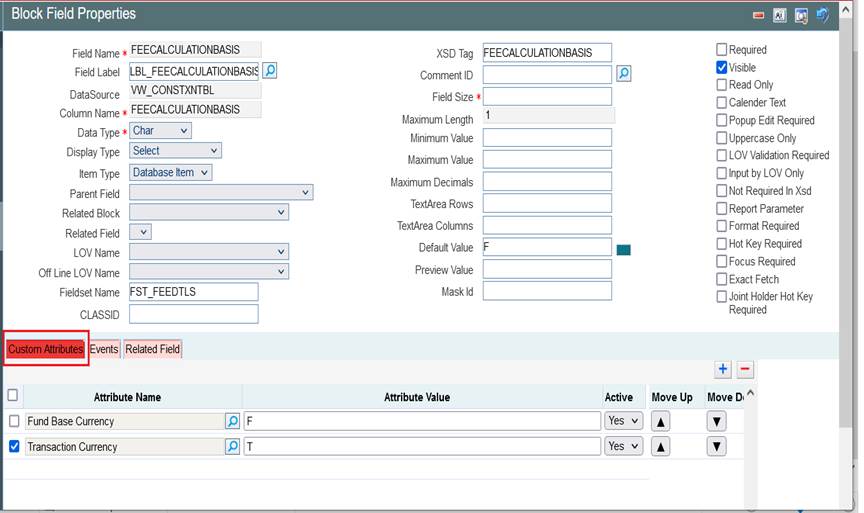

  Figure 5-19 Defining Custom attributes for a Select Field





  Description of "Figure 5-19 Defining Custom attributes for a Select Field"
