2 Release

This topic provides an overview of release files to SVN through Development Workbench.

The release feature of Workbench is applicable only for developers within Oracle Financials. It involves the integration of the Tool with other in-house tools (repository/version control tools). Oracle FLEXCUBE Development Workbench is integrated with SVN.

SVN Integration

Workbench provides an interface to release the units generated to SVN. The following prerequisite should be adhered to before attempting to release units to SVN:
  1. SVN Repository URL should be provided in the Preferences Node of Function Id against the field SVN Repository URL. Path till the module name has to be given. For Example:- For an FT module RADXML path can be given as Z:\FCUBS_11.3.0\Soft\MAIN\FT

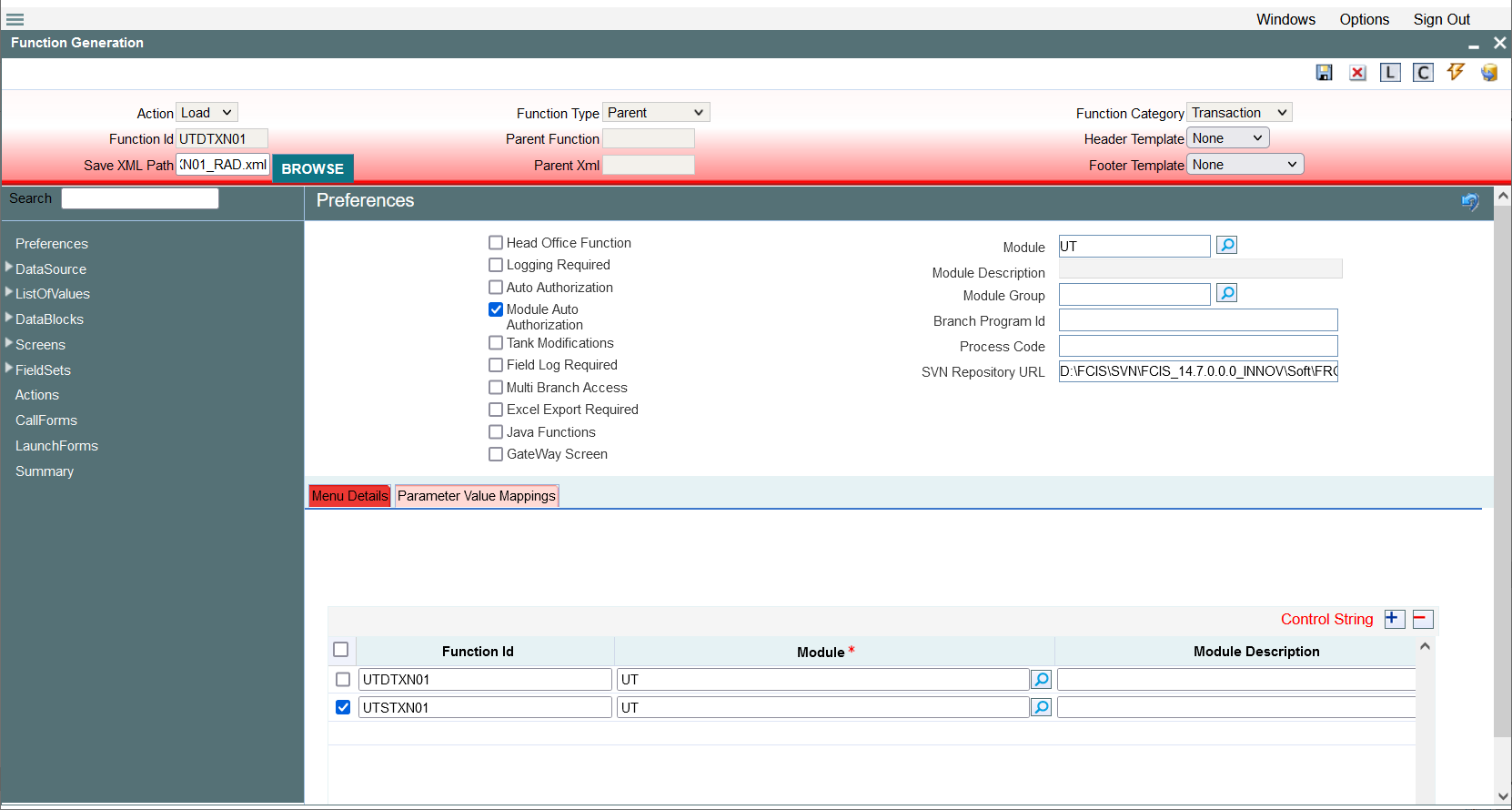

Figure 2-1 Preferences Screen highlighting SVN Repository URL


Description of Figure 2-1 follows
Description of "Figure 2-1 Preferences Screen highlighting SVN Repository URL"

The following files can be released to SVN through Development Workbench:
  1. RADXML
  2. Main Package(spc and sql)
For releasing files to SVN, the user has to check on the units to be released to SVN and click the OK button from the Release screen. SVN credentials have to be provided on the screen. SFR number has to be provided if it is not a simple check-in and if checked in successfully, the status will be displayed as released.
