4.9 Load Group Mapping Summary

This topic provides information about perform actions in load group mapping summary screen.

Specify User ID and Password, and log in to Home Screen.

Retrieve Record in Load Group Mapping Summary

1. On Home screen, type UTSLDGRP in the text box and click Next.
   The Load Group Mapping Summary screen is displayed.

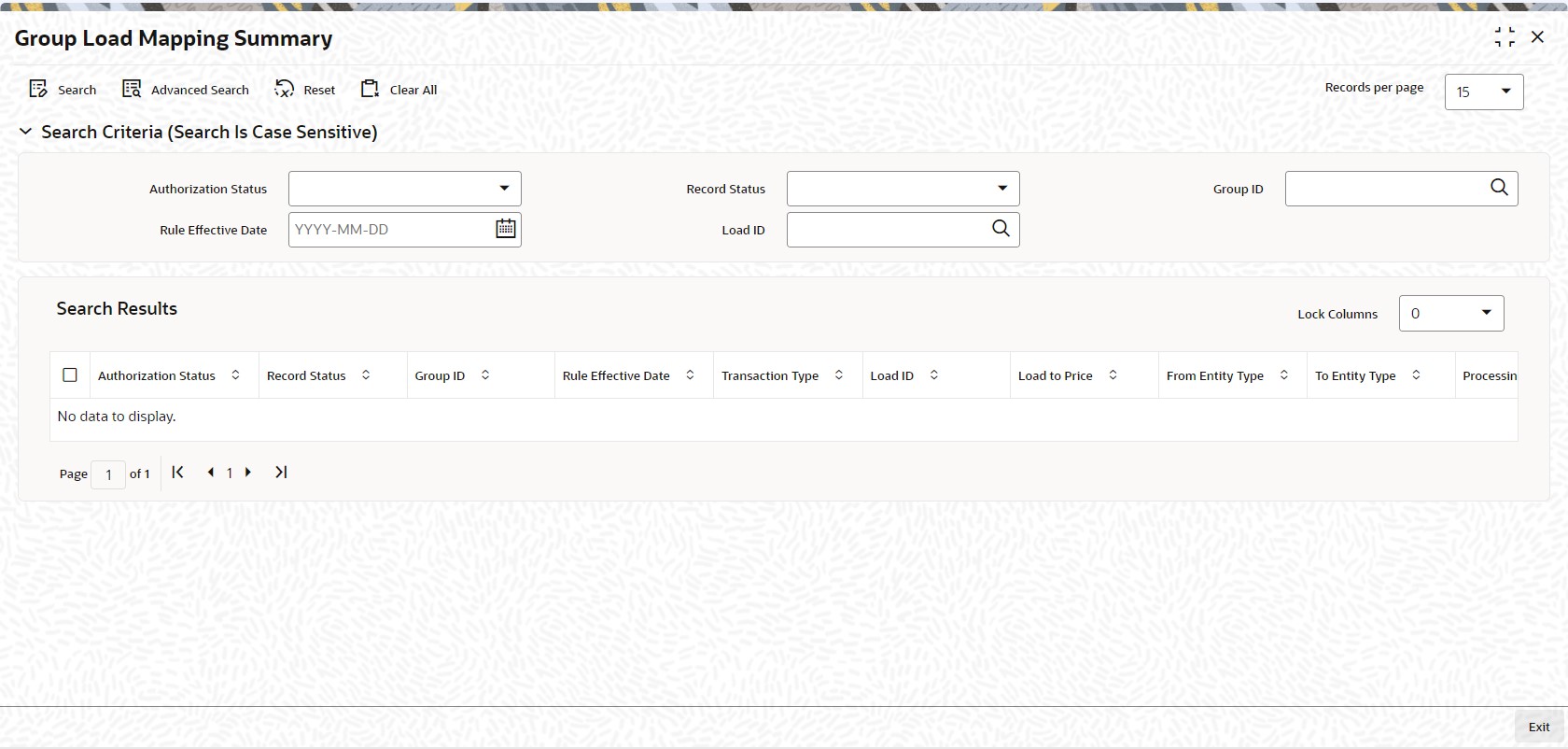

   Figure 4-7 Group Load Mapping Summary





   Description of "Figure 4-7 Group Load Mapping Summary"



2. On Load Group Mapping Summary screen, specify any or all of the following details in the corresponding fields.
   • Authorization Status - If you choose the status, then the records matching the specified status are retrieved. If you do not choose any option, then all the records are retrieved.
   • Record Status
   • Group ID
   • Rule Effective Date
   • Local ID
3. Click Search button to view the records.
   All the records with the specified details are retrieved and displayed in the screen.

   Note:

   You can also retrieve the individual record detail from the detail screen by querying in the following manner:

   • Press F7
   • Input any parameter in the screen
   • Press F8
4. Perform Edit, Delete, Amend, Authorize, Reverse, and Confirm operations by selecting the desired operation from the Action list. You can also search a record by using a combination of % and alphanumeric value.
   You can search the record for Fund ID by using the combination of % and alphanumeric value as follows:

   • Search by A% :- System will fetch all the records whose Fund ID starts from Alphabet ‘A’. For example:- AGC17,AGVO6,AGC74 etc.
   • Search by %7 :- System will fetch all the records whose Fund ID ends by numeric value’ 7’. For example: AGC17, GSD267, AGC77 etc.
   • Search by %17%:- System will fetch all the records whose Fund ID contains the numeric value 17. For example: GSD217, GSD172, AGC17 etc.

• Edit Load Group Mapping
  This topic provides the systematic instructions to edit load group mapping.
• View Load Group Mapping
  This topic provides the systematic instructions to view load group mapping.
• Delete Load Group Mapping
  This topic provides the systematic instructions to delete load group mapping.
• Authorize Load Group Mapping
  This topic provides the systematic instructions to authorize load group mapping.
• Amend Load Group Mapping
  This topic provides the systematic instructions to amend load group mapping.
• Authorize Amended Load Group Mapping
  This topic provides the systematic instructions to authorize amended load group mapping.
• Copy Attributes
  This topic provides the systematic instructions to copy attributes.
