4.3 Interface Mapping Detail

This topic describes the systematic instructions to interface mapping detail.

Interfaces will be listed for execution in Online Interface Execution (UTSONLIN) on below cases:
  • If there are no records mapped in Module Mapping and User Mapping section, then the interface will be available for all the modules and users.
  • If there are records mapped in Module Mapping section alone, then the interface will be available only in the mapped modules and for all users.
  • If there are records mapped in User Mapping section alone, then the interface will be available only for the mapped users and in all modules.
  • If there are records mapped in both Module Mapping and User Mapping, then the interface will be available only for the mapped modules and users.

Note:

  • If client country parameter INTERFACEMAPREQ is ON, then Interface ID in UTSONLIN screen will be listed as per Interface Mapping.
  • If client country parameter INTERFACEMAPREQ is OFF, then all Interface ID will be listed in UTSONLIN screen.
  1. On Home screen, type UTDIFMAP in the text box, and click Next.
    The Interface Mapping Detail screen is displayed.

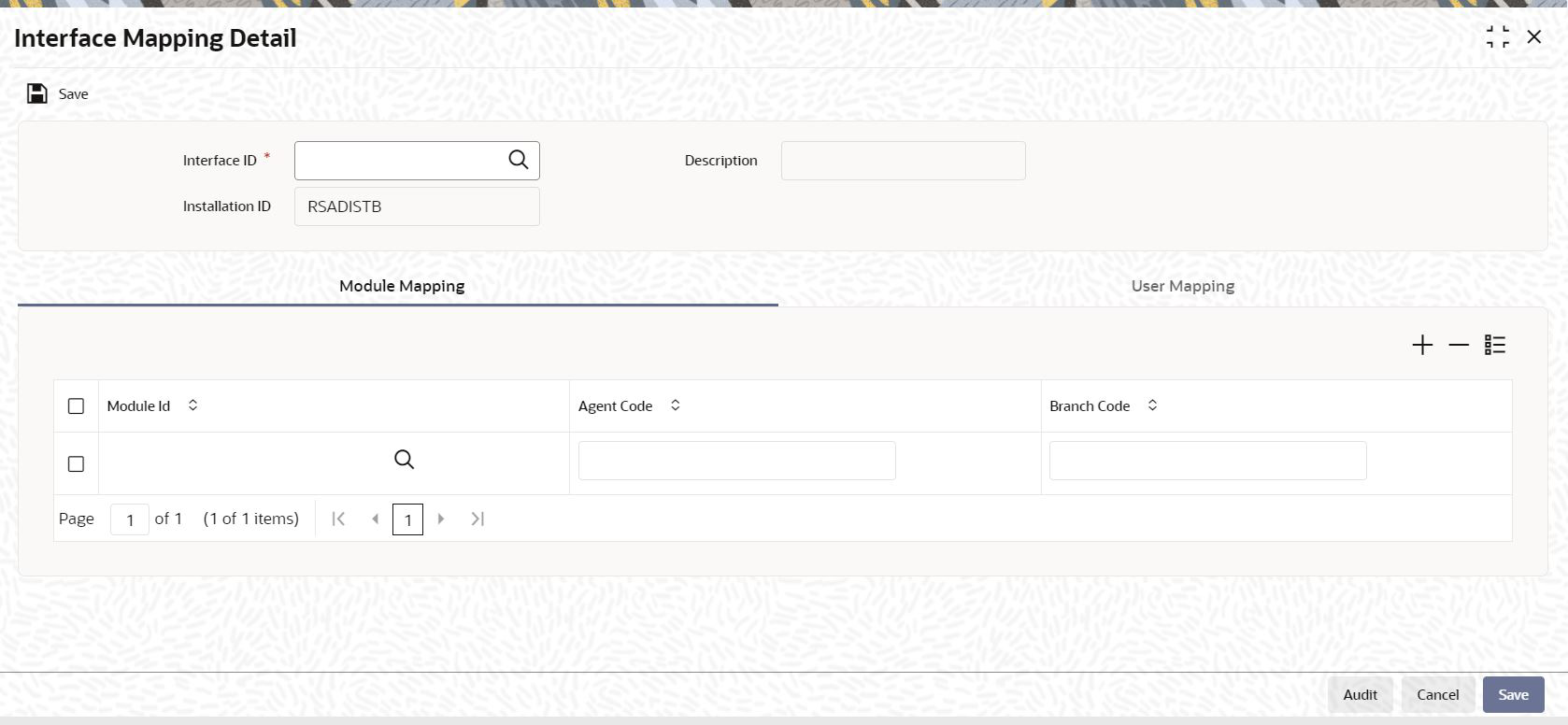

    Figure 4-4 Interface Mapping Detail


    Description of Figure 4-4 follows
    Description of "Figure 4-4 Interface Mapping Detail"

  2. Specify any or all of the details corresponding to the message you want to retrieve.
    The system uses your specifications to as search criteria to query the database and retrieve the record as specified.
  3. On Interface Mapping Detail screen, click New and specify the details.
    For more information on fields, refer to the field description table.

    Table 4-6 Interface Mapping Detail - Field Description

    Field Description Attributes
    Interface ID

    Click the Search icon and select the interface ID from the list.

    Alphanumeric; 16 Characters; Mandatory
    Description

    Displays the description based on the interface ID selected.

    Display; Alphanumeric; 255 Characters; Optional
    Installation ID

    Displays the installation ID based on the interface ID selected.

    Display; Alphanumeric; 12 Characters;
    Module Mapping Specify the details under this section. Module mapping is used to map interface ID with one or more AGY or FMG. NA
    Module ID

    Click the Search icon and select the module ID from the list.

    Alphanumeric; 30 Characters; Mandatory
    Agent Code

    Displays the default agent code based on the selected module ID.

    Display; Optional
    Branch Code

    Displays the default branch code based on the selected module ID.

    Display; Optional
    User Mapping Specify the details under this section. User mapping is used to map interface ID with one or more users. NA
    User ID

    Click the Search icon and select the user ID from the list.

    Alphanumeric; 320 Characters; Mandatory
    User Name

    Displays the user name based on the selected user ID.

    Display; Optional
  4. Click Save to save the record.
