4.6.1 Job Maintenance Detail

This topic describes about the maintenance of job details.

  1. On Home screen, type UTDJOB in the text box, and click Next.
    The Job Maintenance Detail screen is displayed.

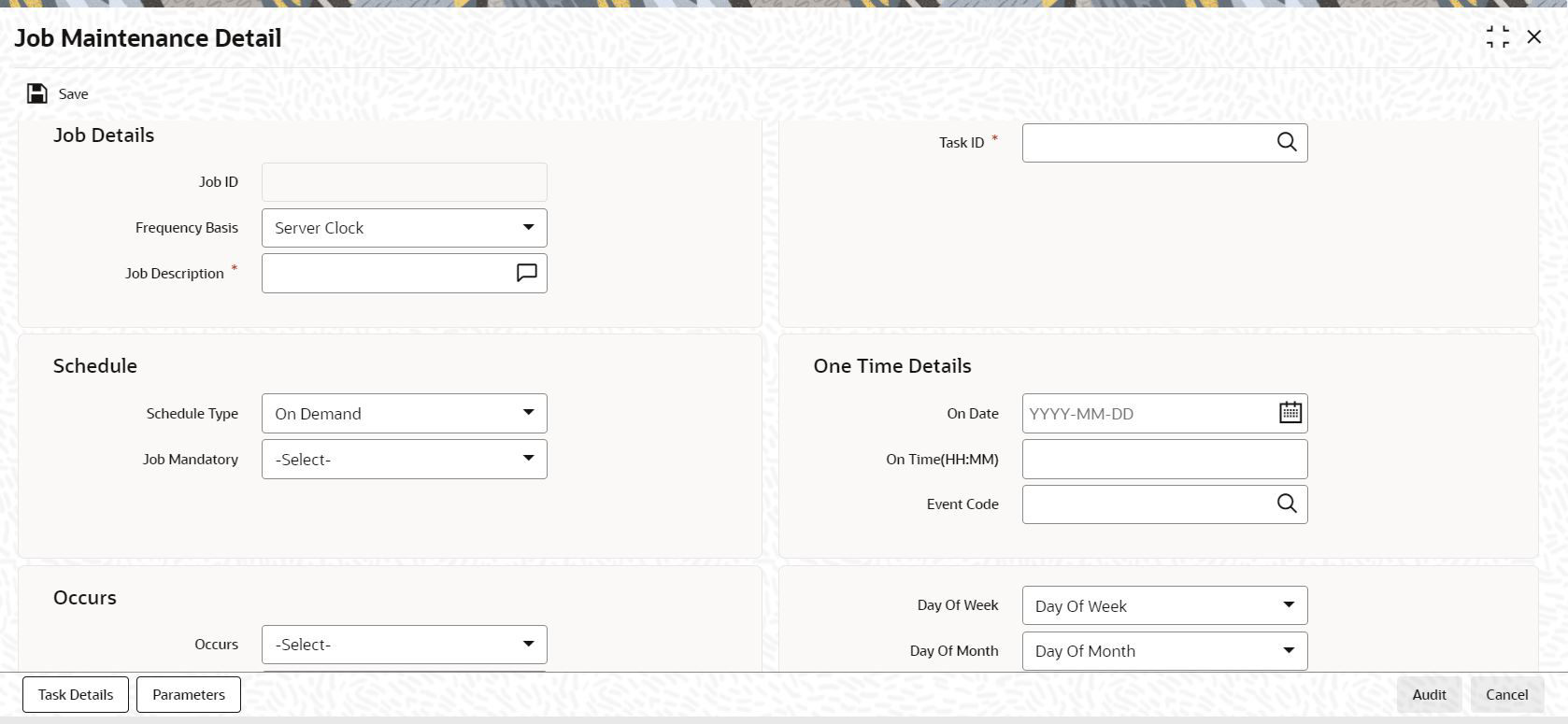

    Figure 4-8 Job Maintenance Detail


    Description of Figure 4-8 follows
    Description of "Figure 4-8 Job Maintenance Detail"

  2. Specify any or all of the details corresponding to the message you want to retrieve.
    The system uses your specifications to as search criteria to query the database and retrieve the record as specified.
  3. On Job Maintenance Detail screen, click New and specify the details.
    For more information on fields, refer to the field description table.

    Table 4-9 Job Maintenance Detail - Field Description

    Field Description Attributes
    Job ID

    Displays the unique code to identify the job.

    Display
    Task ID

    Click the Search icon and select the task ID from the list.

    Alphanumeric; 16 Characters; Mandatory
    Frequency Basis
    Select the frequency basis from the drop-down list. The available options are:
    • Server Clock
    • Client Clock
    • Event Based

    Optional
    Job Description

    Specify the description of the job.

    Alphanumeric; 255 Characters; Mandatory
    Schedule Specify the details under this section. NA
    Schedule Type
    Select the type of schedule from the drop-down list. The available options are:
    • On Demand
    • One Time
    • Recurring

    Optional
    Job Mandatory
    Select if job is mandatory or not from the drop-down list. The available options are:
    • Yes
    • No

    Optional
    One Time Details Specify the details under this section. NA
    On Date

    Select on date from the adjoining calendar.

    Date Format; Optional
    On Time(HH:MM)

    Specify the time.

    Time Format; Optional
    Event Code

    Click the Search icon and select the event code from the list.

    Alphanumeric; 50 Characters; Optional
    Occurs Specify the details under this section. NA
    Occurs
    Select the occurrences from the drop-down list. The available options are:
    • Daily
    • Weekly
    • Monthly

    Optional
    Every Month On
    Select the monthly occurrences from the drop-down list. The available options are:
    • Specific Day
    • Specific Week

    Optional
    Of Every(Days/Weeks/Months)
    Select the monthly occurrences from the drop-down list. The available options are:
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12

    Optional
    Day Of Week
    Select the day of week from the drop-down list. The available options are:
    • Sunday
    • Monday
    • Tuesday
    • Wednesday
    • Thursday
    • Friday
    • Saturday

    Optional
    Day Of Month

    Select the day of month from the drop-down list.

    Optional
    Week Of Month
    Select the week of the month from the drop-down list: The available options are:
    • 1
    • 2
    • 3
    • 4
    • 5

    Optional
    Duration Specify the details under this section. NA
    Start Date

    Specify the start date.

    Date Format; Optional
    End Date

    Specify the end date.

    Date Format; Optional
    End Date Reqd?

    Select if end date is required or not from the drop-down list.

    Optional
    Time Specify the details under this section.
    Interval Type

    Specify the interval value.

    Alphanumeric; 4 Characters; Optional
    Interval Value
    Select the interval unit from the drop-down list. The available options are:
    • Hours
    • Minutes

    Optional
    Starting At(HH:MM)

    Specify the starting time details.

    Numeric; 5 Characters; Optional
    Ending At(HH:MM)

    Specify the ending time details.

    Numeric; 5 Characters; Optional
    Event Specify the details under this section. NA
    Event Code

    Specify the event code.

    Alphanumeric; 50 Characters; Optional
  4. Click Save to save the record.

Parent topic: Scheduler Services
