4.6.3 Job Parameters

This topic describes about the procedure for maintaining a task detail.

1. On Task Maintenance Detail screen, click on Parameters tab.
   The Job Parameters screen is displayed.

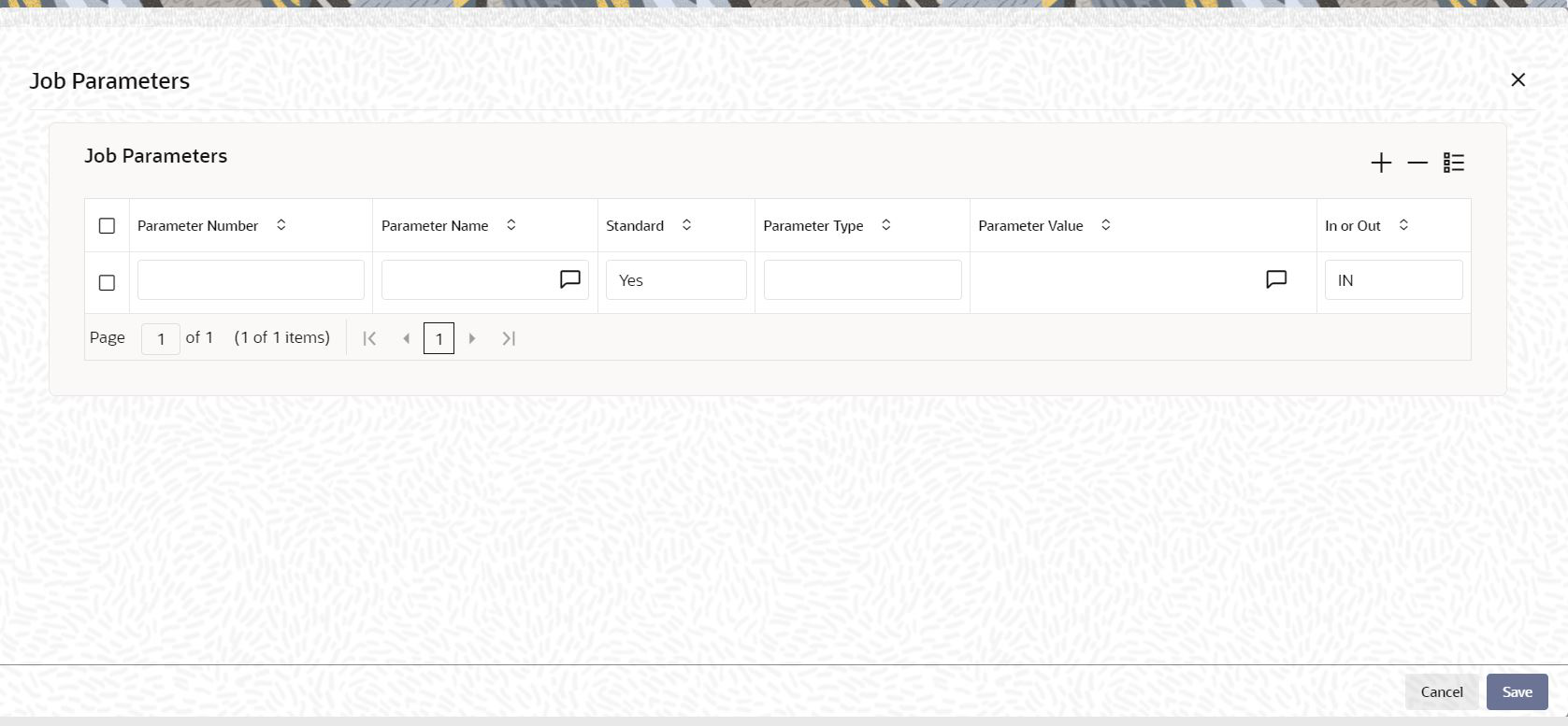

   Figure 4-11 Job Parameters





   Description of "Figure 4-11 Job Parameters"



2. Specify any or all of the details corresponding to the message you want to retrieve.
   The system uses your specifications to as search criteria to query the database and retrieve the record as specified.
3. On Job Parameters screen, specify the details.
   For more information on fields, refer to the field description table.

   Table 4-12 Job Parameters - Field Description

   Field	Description	Attributes
   Parameter Number	Displays the paramter number.	Display
   Parameter Name	Specify the name of the job parameter. The parameter name you specify here is passed to job class or procedure at run time.	Alphanumeric; 255 Characters; Optional
   Standard	Select the standard type from the drop-down list.	Optional
   Parameter Type	Specify the data type of the parameter.	Alphanumeric; 20 Characters; Optional
   Parameter Value	Specify the value of the parameter.	Alphanumeric; 255 Characters; Optional
   In or Out	Select if the parameters from the drop-down list. The available options are: IN OUT	Optional

4. Click Save to save the record.
