1.21.2 Related Parties Tab

This topic explains the Related Parties of Instrument Definition Detail screen.

You can maintain related parties like trustee, custodian etc as parties in the system through party maintenance and also assign appropriate roles through party role maintenance system.

You can capture instrument administrator as related party and there can be only one instrument administrator mapped to the instrument. If more than one instrument administrator is attached to an instrument, then the system displays an error message.

1. On Instrument Definition screen, click Related Parties tab to view the details.
   The Related Parties details are displayed.

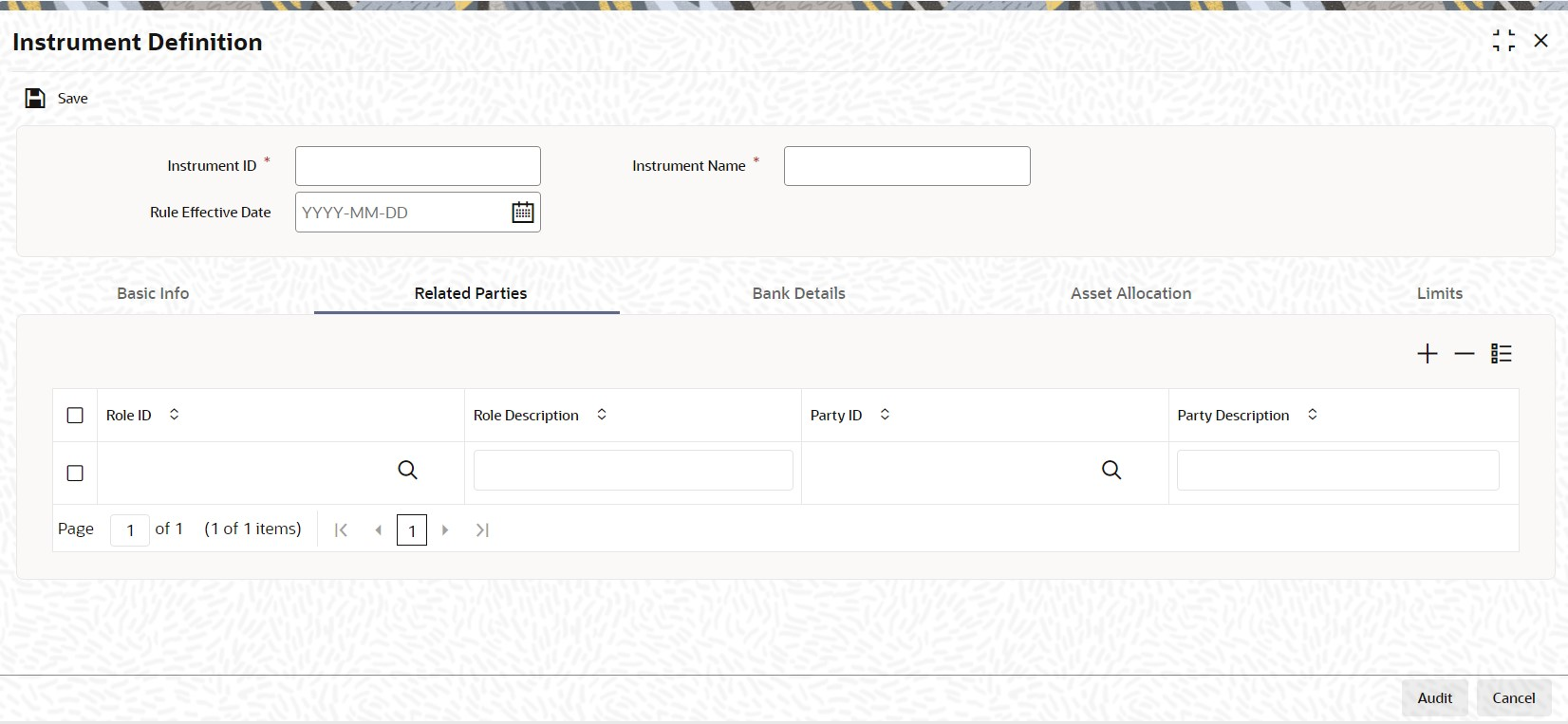

   Figure 1-13 Related Parties





   Description of "Figure 1-13 Related Parties"



2. On the Related Parties tab, specify the fields.
   For more information on fields, refer to the field description table.

   Table 1-14 Related Parties - Field Description

   Field	Description
   Role ID	Alphanumeric; 2 Characters; Optional Specify the role ID. Alternatively, you can select role ID from the option list. The list displays all valid role ID maintained in the system.
   Role Description	Display The system displays the description for the selected role ID.
   Party ID	Alphanumeric; 16 Characters; Optional Specify the party ID. Alternatively, you can select party ID from the option list. The list displays all valid party ID maintained in the system.
   Party Description	Display The system displays the description for the selected party ID.
