1.45.6 Identification Details Tab

This topic explains the Identification Details of Party Maintenance Detail screen.

  1. On Party Maintenance Detail screen, click Identification Details tab to view the following details.
    The Identification Details tab are displayed.

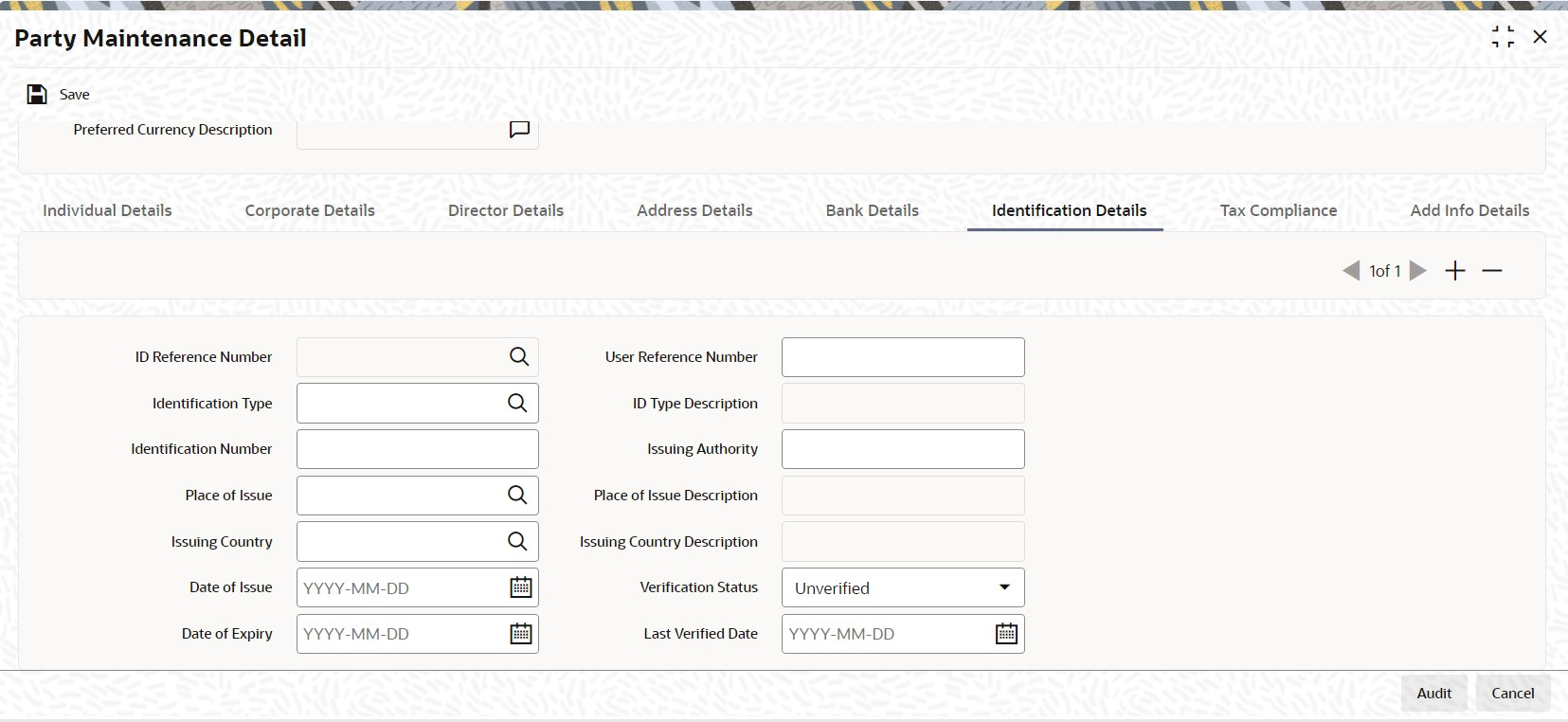

    Figure 1-58 Identification Details


    Description of Figure 1-58 follows
    Description of "Figure 1-58 Identification Details"

  2. On the Identification Details tab, specify the fields.
    For more information on fields, refer to the field description table.

    Table 1-52 Identification Details - Field Description

    Field Description
    ID Reference Number Alphanumeric; 16 Characters; Optional

    Specify the ID reference number. Alternatively, you can select ID reference number from the option list. The list displays all valid ID reference number maintained in the system.

    Once you specify the ID reference number, the system displays the following details:

    • Identification Type
    • Identification Number
    • Place of Issue
    • Issuing Country
    • Date of Issue
    • Date of Expiry
    • User Reference Number
    • ID Type Description
    • Issuing Authority
    • Place of Issue Description
    • Issuing Country Description
    • Verification Status
    • Last Verified Date

    If you have not specified ID reference number, then you need to fill the above details manually.
    User Reference Number Alphanumeric; 16 Characters; Optional

    Specify the user reference number.
    Identification Type Alphanumeric; 3 Characters; Mandatory

    Specify the identification type. Alternatively, you can select identification type from the option list. The list displays all valid identification type maintained in the system.
    ID Type description Display

    The system displays the description of the selected ID type.
    Identification Number Alphanumeric; 50 Characters; Optional

    Specify the identification number.
    Issuing Authority Alphanumeric; 50 Characters; Optional

    Specify the issuing authority details.
    Place of Issue Alphanumeric; 3 Character; Optional

    Specify the place of issue details. Alternatively, you can select place of issue from the option list. The list displays all valid place of issue details maintained in the system.
    Place of issue description Display

    The system displays the description of the selected place of issue code.
    Issuing Country Alphanumeric; 3 Characters; Optional

    Specify the issuing country code. Alternatively, you can select issuing country code from the option list. The list displays all valid issuing country code maintained in the system.
    Issuing country description Display

    The system displays the description of the selected issuing country code.
    Date of Issue Date Format; Mandatory

    Select the issuing date from the adjoining calendar.
    Date of Expiry Date Format; Optional

    Select the date of expiry from the adjoining calendar.

    Verification Status Optional

    Select if the bank details are verified or not from the drop-down list. The list displays the following values:

    • Verified
    • Unverified
    Last Verified Date Date Format; Optional

    Select the last verified date from the adjoining calendar.

Parent topic: Process Party Maintenance Detail
