1.18 Process Asset Maintenance Detail

This topic provides the systematic instructions to define assets maintenance in pension module.

1. On Home screen, type PADASMNT in the text box, and click Next.
   The Asset Maintenance Detail screen is displayed.

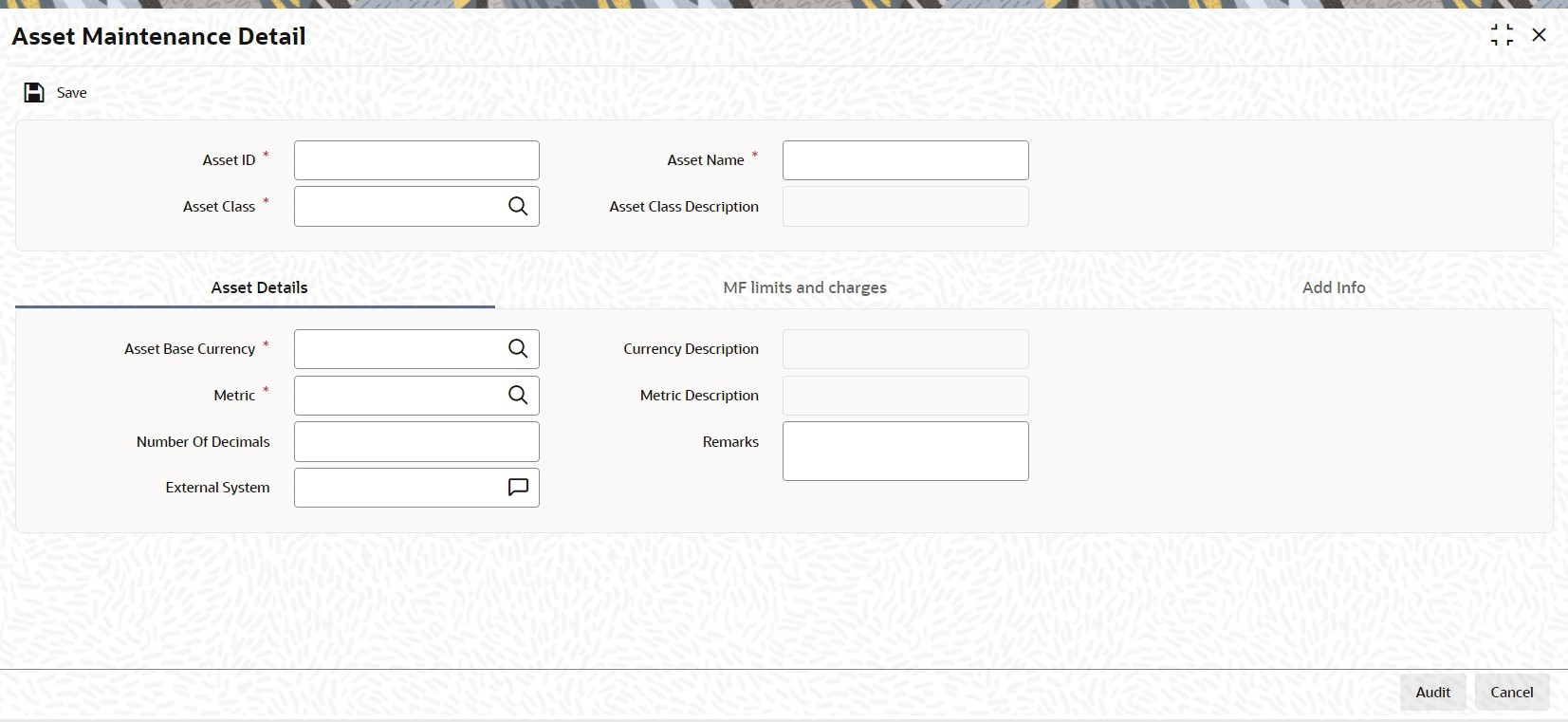

   Figure 1-6 Asset Maintenance Detail





   Description of "Figure 1-6 Asset Maintenance Detail"



2. On Asset Maintenance Detail screen, click New to enter the details.
   For more information on fields, refer to the field description table.

   Table 1-6 Asset Maintenance Detail - Field Description

   Field	Description
   Asset ID	Alphanumeric; 6 Characters; Mandatory Specify the asset ID.
   Asset Name	Alphanumeric; 90 Characters; Optional Specify the name of the asset.
   Asset Class	Alphanumeric; 10 Characters; Mandatory Specify the asset class code. Alternatively, you can select asset class code maintained in the system. The system displays all valid asset class code maintained in the system.
   Asset Class Description	Display The system displays the description for the selected asset class.

• Asset Details Tab
  This topic explains the asset details of Asset Maintenance Detail screen.
• MF Limits and Charges Tab
  This topic explains the MF Limits and Charges of Asset Maintenance Detail screen.
• Add Info Tab
  This topic explains the Add Info of Asset Maintenance Detail screen.
