4.47.1 From Delivery Details Tab

This topic explains the From Delivery Details tab of FCIS Conversion Transaction Detail screen.

1. On FCIS Conversion Transaction Detail, click From Delivery Details tab to view the following details.
   The FCIS Conversion Transaction Detail - From Delivery details are displayed.

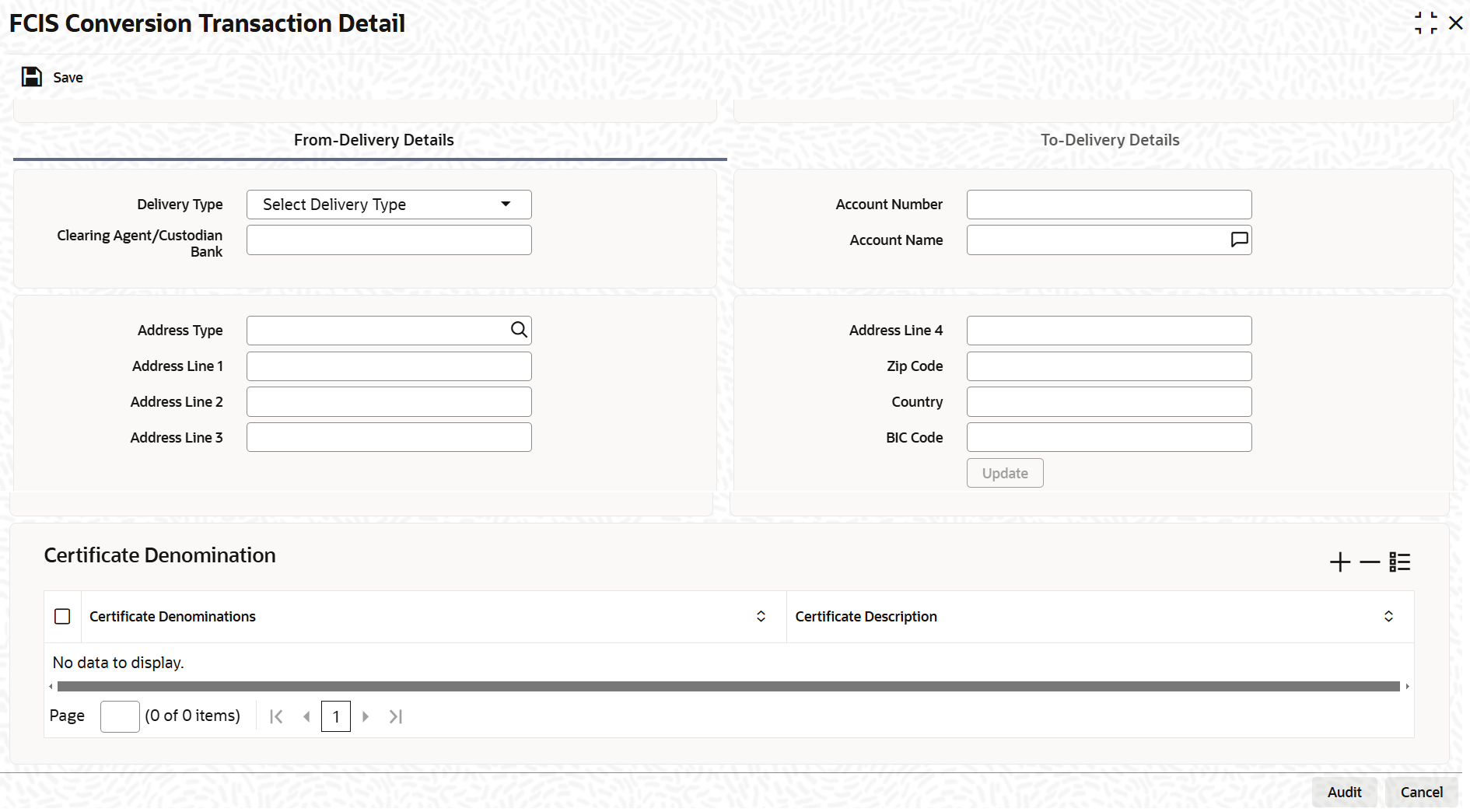

   Figure 4-45 From Delivery Details





   Description of "Figure 4-45 From Delivery Details"



2. On the From Delivery Details tab, specify the fields.
   For more information, refer to the field description table.

   Table 4-65 From Delivery Details Tab

   Field	Description
   Delivery Type	Display Select the type of delivery from the drop-down list. The list displays the following values: Self Third Party
   Custodian Agent/ Custodian Bank	Alphanumeric; 12 Characters; Optional Specify the custodian agent or custodian bank details.
   Account Number	Alphanumeric; 34 Characters; Optional Specify the account number.
   Account Name	Alphanumeric; 140 Characters; Optional Specify the name of the account holder.
   Address Type	Alphanumeric; 2 Characters; Optional Specify the type of address. Alternatively, you can select address type ID from the option list. The list displays all valid address maintained in the system.
   Address Line 1-4	Alphanumeric; 105 Characters; Optional Specify the address details of the customer.
   Zip Code	Alphanumeric; 10 Characters; Optional Specify zip code details.
   Country	Alphanumeric; 3 Characters; Optional Specify the country code.
   BIC Code	Alphanumeric; 12 Characters; Optional Specify the BIC Code.

   Table 4-66 From Delivery Details - Certificate Denomination

   Field	Description
   Certificate Denominations	Alphanumeric; 200 Characters; Optional Specify the certificate denomination details.
   Certificate Description	Alphanumeric; 34 Characters; Optional The system displays the transaction number.
