3.21.7 Certificates Tab

This topic explains the Certificates tab in the FCIS Block Transaction Detail screen.

1. On the FCIS Block Transaction Detail screen, click Certificates tab to enter the details.
   The Certificates details are displayed.

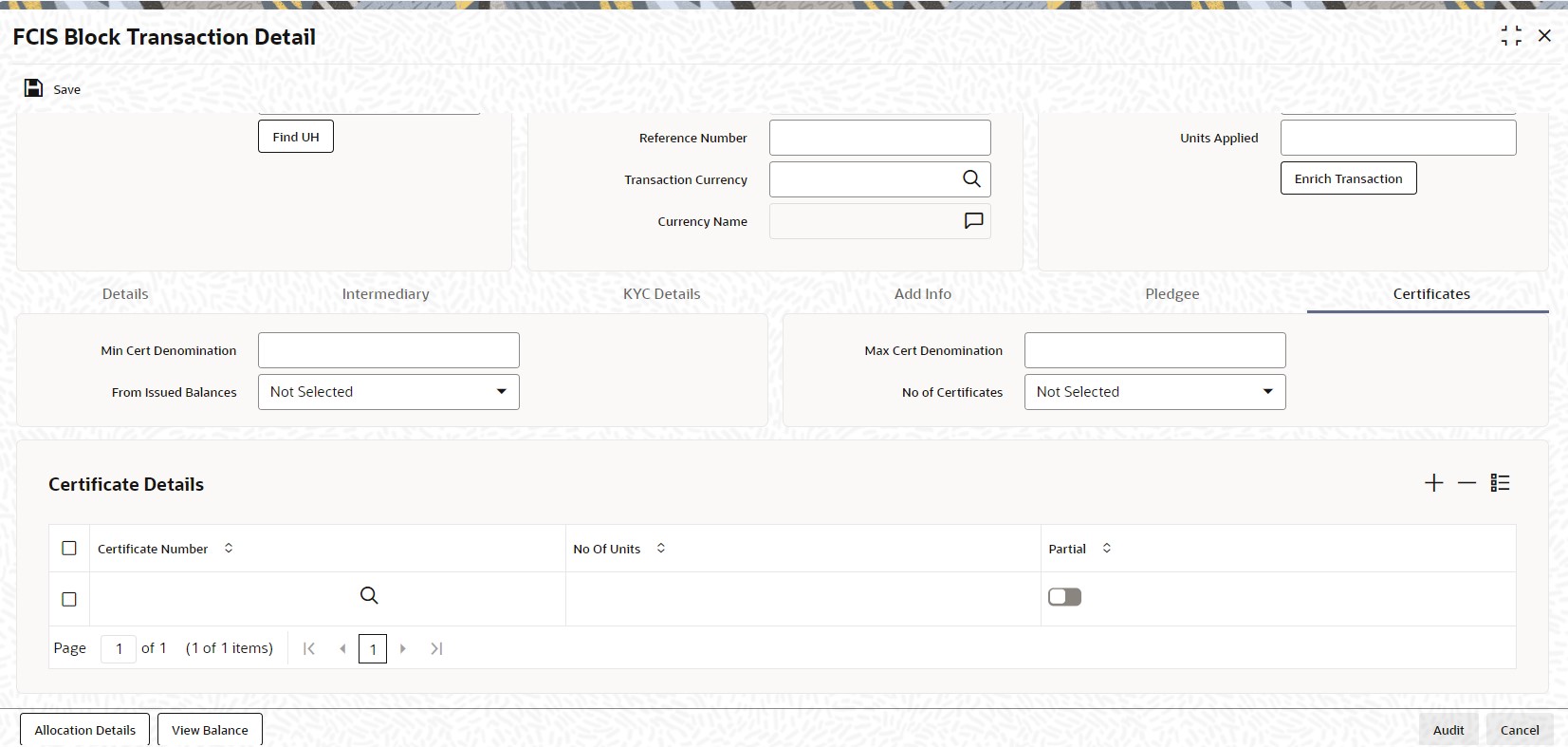

   Figure 3-106 FCIS Block Transaction Details - Certificate





   Description of "Figure 3-106 FCIS Block Transaction Details - Certificate"



2. On Certificates tab, specify the fields.
   For more information on fields, refer to the field description table.

   Table 3-123 FCIS Block Transaction Details - Certificate Tab

   Fields	Description
   Min Cert Denomination	Numeric; 22 Characters; Optional Specify the Minimum Certificate Denomination details.
   Max Cert Denomination	Numeric; 22 Characters; Optional Specify the Minimum Certificate Denomination details.
   From Issued Balances	Optional Select from issued balances details from the drop-down list. The list displays the following values: Yes No Both Note: In the From Issued Balances field, the option Both is not applicable for the subscription transaction
   No of Certificates	Optional Select the number of certificates from the drop-down list. The list displays the following values: Single Multiple
   Certificate Details	The section displays the following fields.
   Certificate Number	Numeric; 10 Characters; Mandatory Specify the certificate number. Alternatively, you can select the certificate number from the option list. The list displays all valid certificate number maintained in the system.
   No of Units	Numeric; 27 Characters; Optional Specify the number of units details.
   Partial	Optional Check this box if partial details to be selected.
